- Description
-

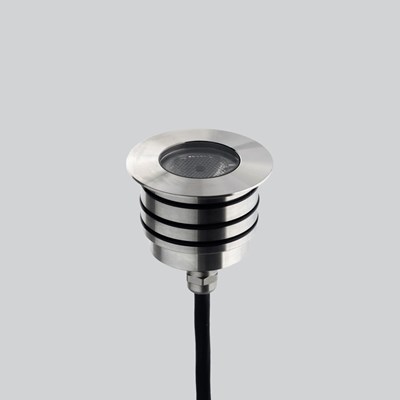

Rated as IP68, the LLD River Submersible Spot Light is the perfect underwater luminaire for lighting swimming pools, jacuzzis, fountains and water features. A minimal permanent immersion spotlight, the LLD River has a diameter of just under 4cm, a slim 1.5mm lip and a maximum underwater installation depth of 3m. The LLD River Spot Light can be walked over when installed as an uplight out of the water, making it suitable for lighting pathways.
An energy-efficient LED light source powers the fitting, available in constant current or 24Vdc versions. River has a choice of beam angles in 10°, 36°, 60°, diffused or 10°x55°. Available with a selection of 2200K, 2700K, 3000K, 4000K, red, green, or blue light temperatures. Constructed from AISI 316L stainless steel body and trim, with tempered transparent glass and PMMA lens.
Supplied with a 3m, 10m, or 15m cable with WP system. Can be installed with an optional housing box, available in standard for non-underwater installation or IP68-rated submersible versions. Driver not included. This fitting is compatible with non-dim, TRIAC dim, push dim, 1-10V dim and DALI dim drivers.

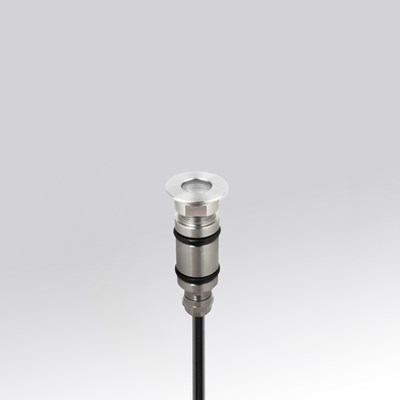

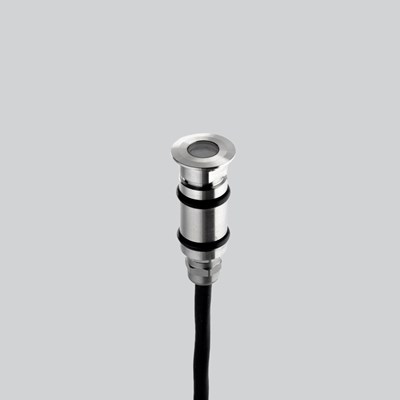

Other sizes are available - see our 'More Like This' section below.
- Specification
-
IP68
AISI 316L Stainless steel body
AISI 316L stainless steel trim
Transparent tempered glass and PMMA lens
Cable with WP system: 3m, 10m, 15m
C.C.
1W - 1,6W - 2,5W
1W - 350mA Not included
1,6W - 500mA Not included
2,5W - 700mA Not included
Wired in series
24Vdc
2,2W
24Vdc - 2,2W not included
Wired in parallel
2200K / 2700K / 3000K / 4000K / RED / GREEN / BLUE
CRI 80
Optics:
10°, 36°, 60°, Diffused, 10° x 55°
Installation:
Recessed on ground with housing box (not included)
Recessed on brickwork with housing box (not included)
Installation out of water with standard housing box
Permanent immersion installation with IP68 housing box
Accessories:
PVC Housing Box (CAW32): Ø39 x 110 x Ø35
ABS Housing Box (CAI32): Ø100 x 100 x Ø37
IP68 Housing Box PVC (CA832): Ø40 x 102
Honeycomb Filter (with 10°, 36°, 60°, 10°x 55° lens only)
Black & Clear Filter (with 10°, 36°, 60° lens only)
Lamp type: LED Lifespan 50,000hrs
- Dimensions
-
Product dimensions: H.45mm x Diameter.38mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
