- Description
-

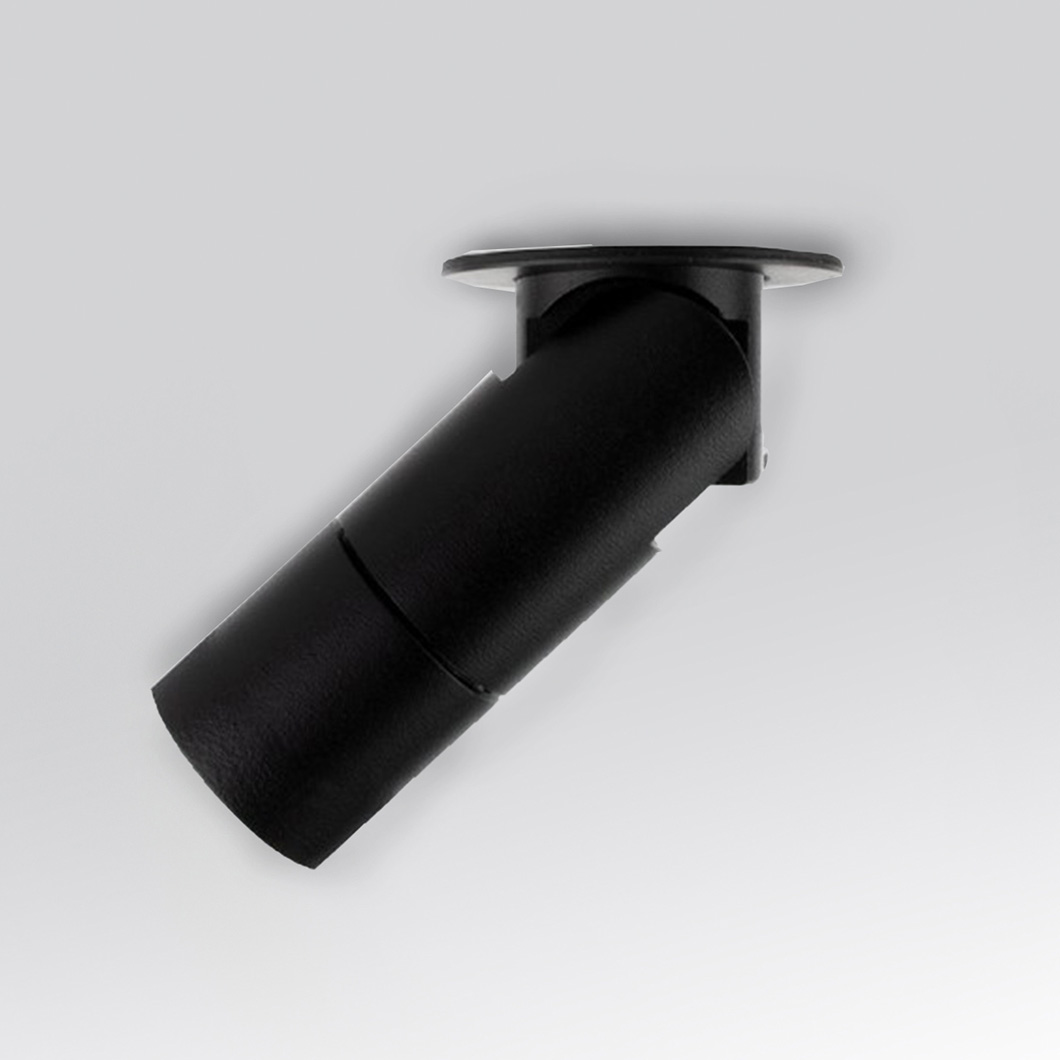

Sleek and versatile, the LLD Gea Frame IP40 In-Out Recessed Spotlight offers a modern, functional lighting solution for indoor spaces.
Features:
- IP40 Protection: Ideal for indoor, dry applications.
- Adjustable Beam: The adjustable head allows you to precisely direct the light where needed, highlighting specific areas or creating a desired ambiance.
- Modern Design: The small and minimalist design seamlessly integrates into contemporary spaces, simply elevating your indoor lighting.
- High-Quality Construction: Built with anticorodal aluminium, this spotlight is both light and resistant. Designed to provide long-lasting performance and reliable illumination.

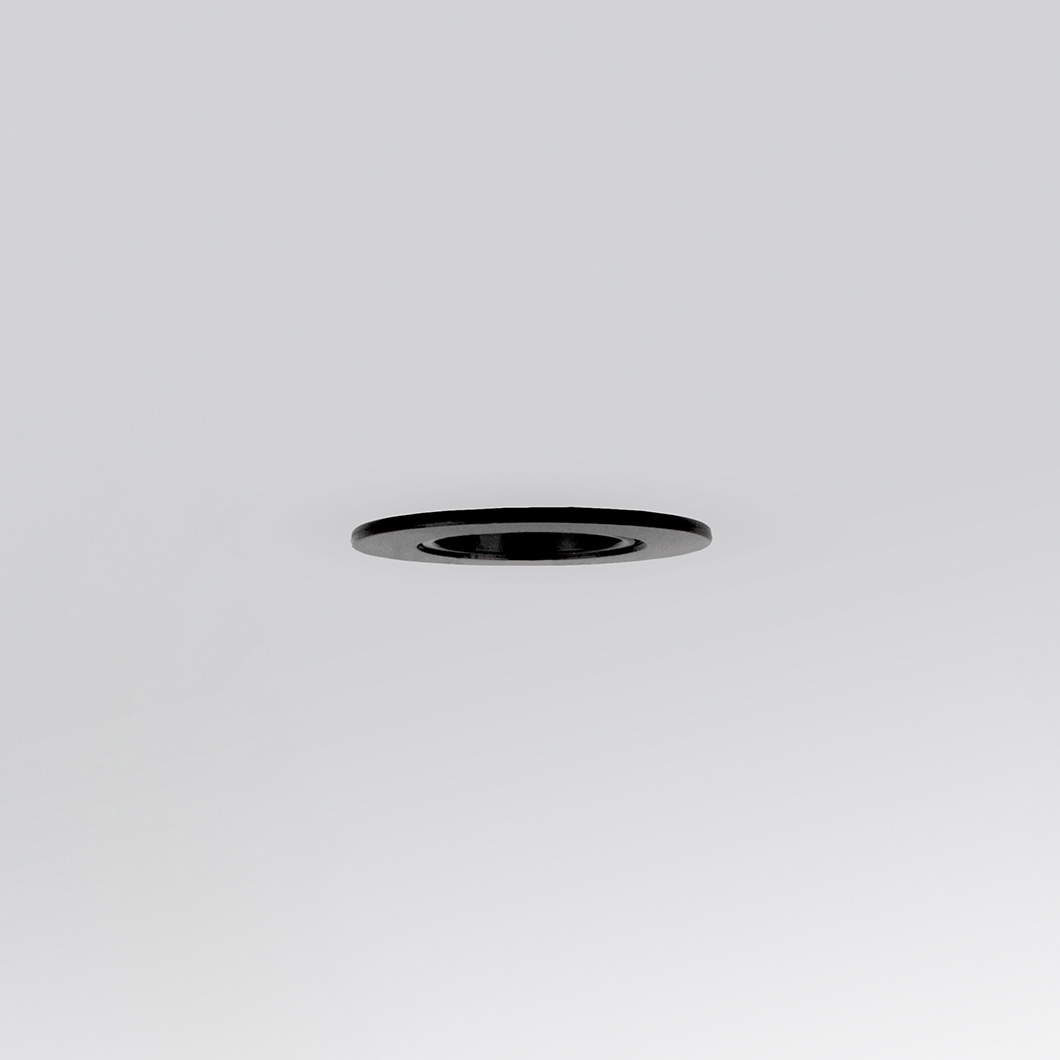

- Recessed Installation: Creates a clean, unobtrusive appearance
- LED Colours: Choose between warm white (2700K), soft white (3000K), or cool daylight (4000K)
- Power Supplies: Choose between the following versions:
- Constant Current (500mA, wired in series)
- Mains voltage 230VAC
- 24VDC (wired parallel)
Available in a trio of subtle yet stylish finishes, you can choose what best suits your interior: black, white, or grey. Springs included for installation into plasterboard or wood.
- Specification
-
IP40
Anticorodal aluminium body
Anticorodal aluminium heatsink
PMMA lens or opal PMMA diffuser
Cable: 25cm, 5m, 10m
C.C.
6W
6W - 500mA Not included
6W 408lm 36°
Wired in series
24Vdc
6,5W
6,5W - 24Vdc Included
6,5W 408lm 36°
Wired in parallel
230Vac
7W
50/60Hz
7W 408lm 36°
Power supply unit included
Mains voltage
2700K / 3000K / 4000K
CRI 90
Optics:
10°, 36°, 60°
Installation:
Recessed on plasterboard or wood with springs (included)
Recessed on brickwork with housing box (not included) and spring (included)
Accessories:
Housing box (CMGI23): 193 x 193 x 150
PLA Extractor (CHGEA): Ø26 x 50 x Ø10
Honeycomb Antiglare Filter
- Dimensions
-
Product dimensions: H.184mm x Diameter.49mm
Cutout dimensions: Dia.42mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
