- Description
-

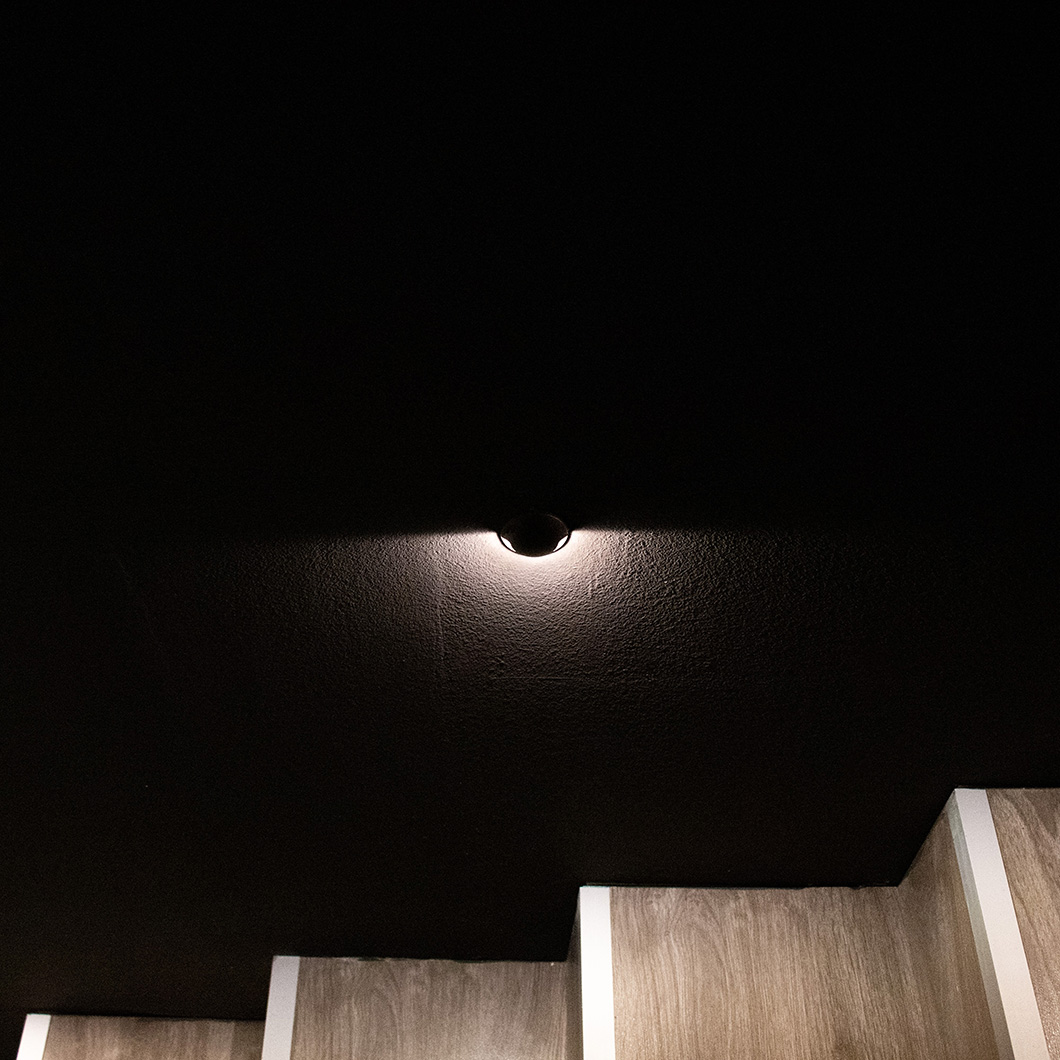

Under 4cm in diameter, the Bia Mini Round is a single emission outdoor recessed path light by LED Luce E Dintorni (LLD) designed specifically to illuminate paths, walkways, gardens and low level outdoor areas. LLD Bia can be installed in either the wall or floor, and is suitable for both private and commercial outdoor lighting projects. The Bia Mini Round can be driven over up to 1500kg and has a rating of IP67.

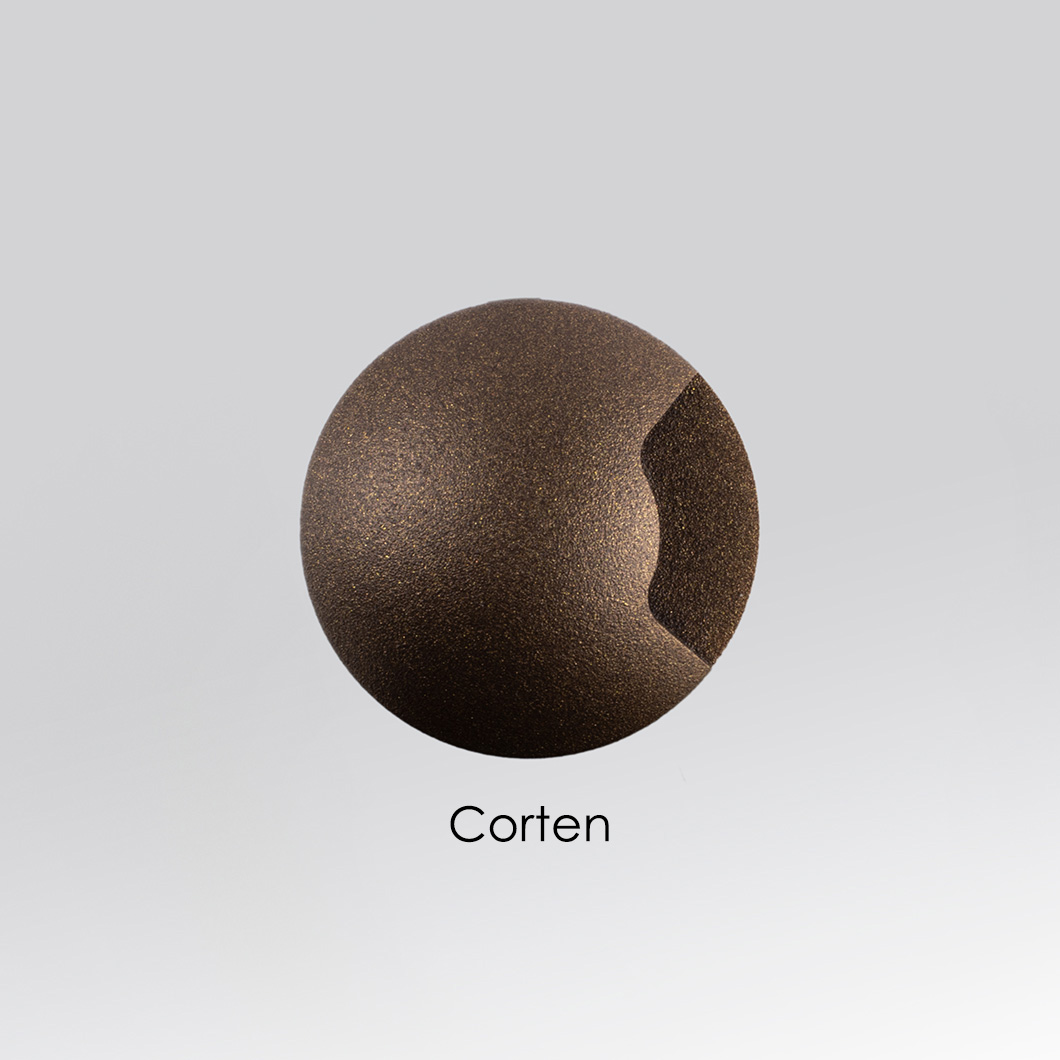

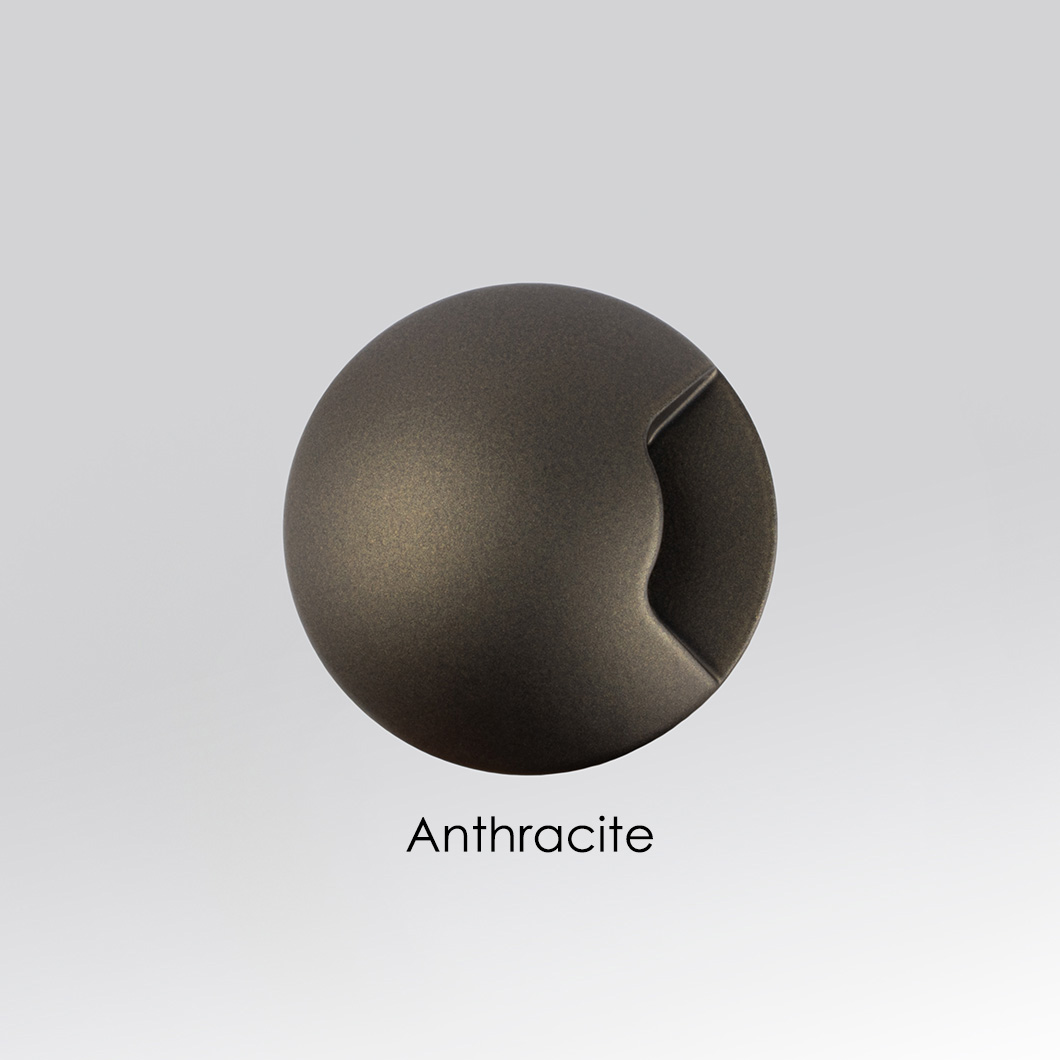

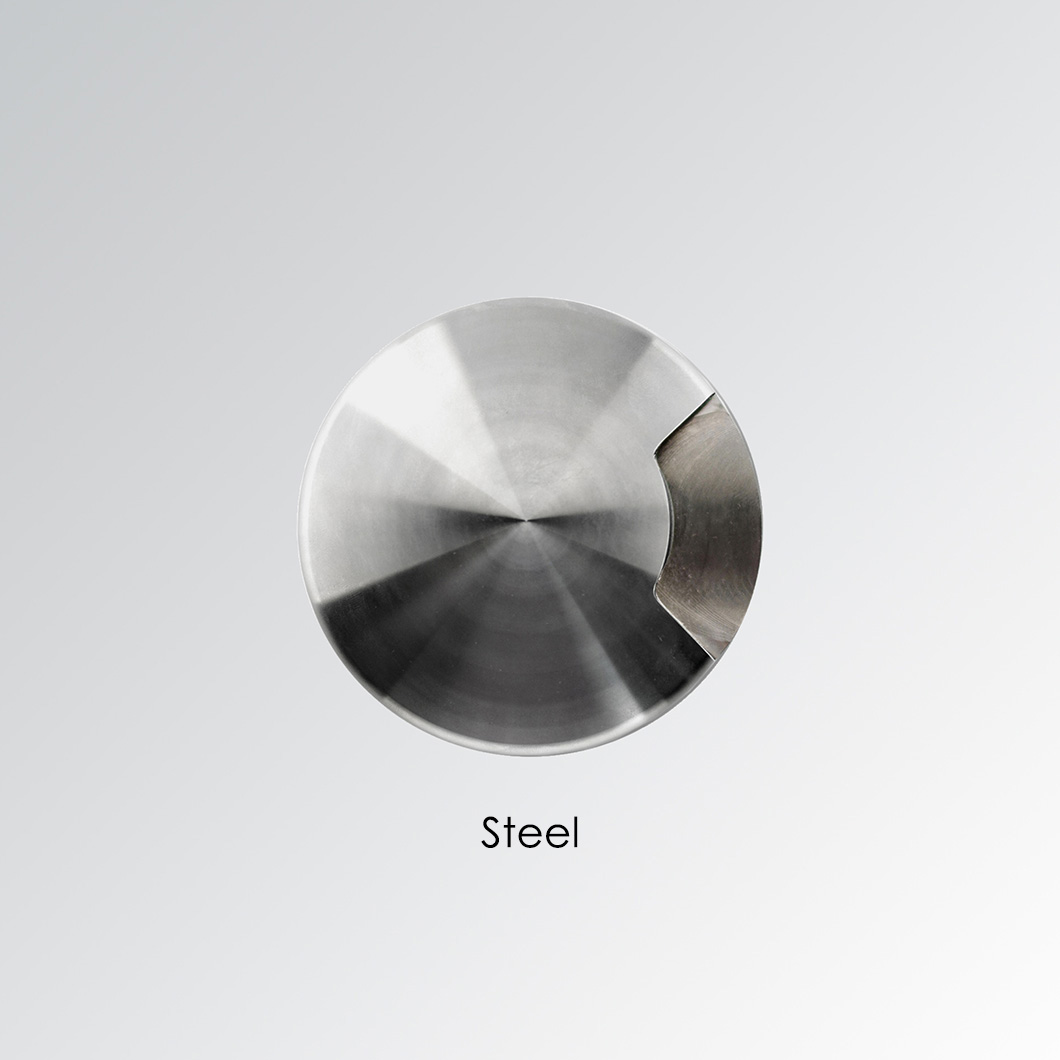

An energy efficient 2W LED produces over 170lm of light from a single emission, lighting only a specific targeted area. The 500mA constant current / 24VDC constant voltage Bia Mini path light has a choice of 2700K, 3000K, 4000K, 5000K, red, green or blue light temperatures. An anticorodal anodized aluminium body and trim is available in anodized aluminium, steel, brushed steel, matt black, anthracite or rusty COR-TEN. The brushed steel and steel finishes have an AISI 316L stainless steel trim. Optic in PMMA.
Supplied with a 500mm cable with WP System connection. The optional housing box should be used for installing the LLD Bia Mini into the ground, allowing 30cm gravel drainage. For recessing into plasterboard or wooden walls the optional spring should be used. 24VDC constant voltage driver (wired parallel) or 500mA constant current driver required. This fitting is compatible with non dim, TRIAC dim, push dim, 1-10V dim, DMX dim and DALI dim drivers. Other sizes and light emissions available - see below.
Delivery usually within 2 weeks
- Specification
-
IP67
2W
Class III
500mm cable with Water Proof connection system
Push, 1-10V, DMX, TRIAC and DALI dimmable with compatible driver (not included)
Exposed lip depth: 10.5mm
Single emission
Cutout: Ø32mm
Weight: 0.16kg CC version, 0.18kg 24VDC version
Drive-over: up to 1500kg
Floor installation: 30cm gravel drainage with housing box
Plasterboard / wood installation: use optional spring
500mA constant current version - wired series
500mA driver required
24VDC constant voltage version - wired parallel
24VDC driver required
CCT | Lumens
2700°K | 146lm
3000°K | 155lm
4000°K | 172lm
5000°K
Red
Green
Blue
Optional spring (ML032): W.60mm D.28mm
Optional housing box (CAW32): Ø42mm D.110mm
Lamp type: LED 2W Lifespan 50,000hrs

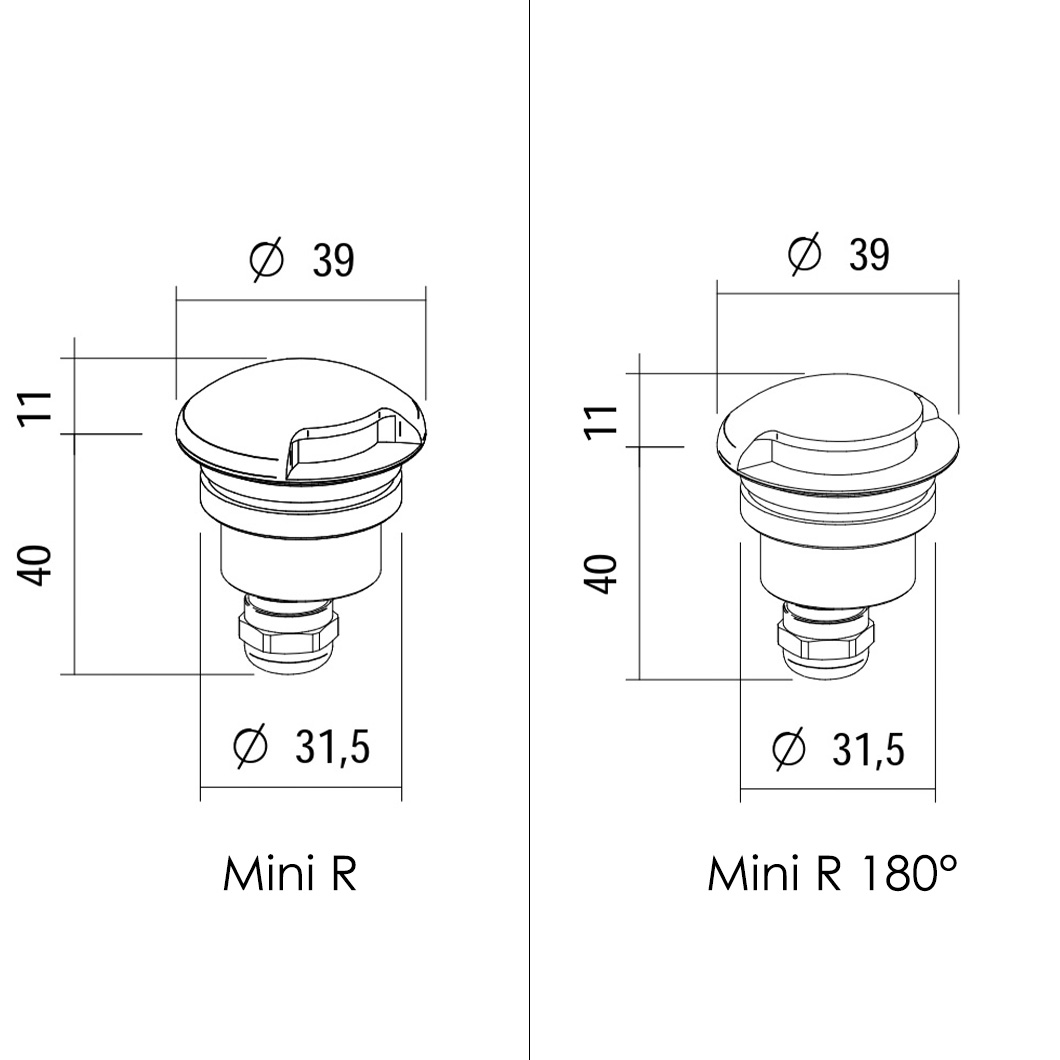

- Dimensions
-
Product dimensions: H.40mm x Diameter.39mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
Browse the full LLD 2021 catalogue
