- Description
-

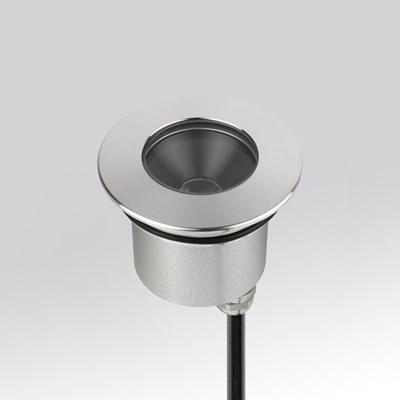

The LLD Altea Round Outdoor IP67 LED Recessed Floor Uplight is a sleek and sophisticated minature outdoor luminaire that can take a walk-over weight up to 500kg. A fixed optic that is suitable for floor, wall or ceiling installation, the Altea has an IP67 rating that makes it suitable for lighting exterior pathways, steps and gardens. This variation has a baffle which recesses the light source further into the fitting, reducing glare.
Altea Round utilises an energy-efficient low-wattage LED light source with a 15°, 28°, 64° or 16°x48° beam angle. Available in constant current or 24VDC constant voltage versions, and with a choice of 2200K, 2700K, 3000K, 4000K, red, green, or blue light temperatures. Constructed from an anticorodal aluminium body with weatherproof AISI 316L stainless steel trim & a tempered transparent glass / PMMA lens. Finished in anodised aluminium, steel, or brushed steel. Optional honeycomb or black & clear antiglare filters are available - please see the technical specification for more information.
Supplied with a 50cm, 5m, 10m, or 15m cable with WP System connection. The optional spring fitting should be used for installation into plasterboard or wood. The optional housing box should be used for installing Altea into the ground.
Other sizes are available - see our 'More Like This' section below.
Constant current driver (wired in series) or 24VDC constant voltage driver (wired parallel) required. This fitting is compatible with non-dim, TRIAC dim, push dim, 1-10V dim and DALI dim drivers.
- Specification
-
IP67
Anticorodal aluminium body
Aluminium or AISI 316L stainless steel trim
Transparent tempered glass and PMMA lens
Cable with WP system: 50cm, 5m, 10m, 15m
C.C.
1W - 1,6W - 2,5W
1W - 350mA not included
1,6W - 500mA not included
2,5W - 700mA not included
Wired in series
24Vdc
2,2W
24Vdc - 2,2W not included
Wired in parallel
2200K / 2700K / 3000K / 4000K / RED / GREEN / BLUE
CRI 80
Optics:
15°, 28°, 64°, 16°x 48°
Installation:
Recessed on ground with housing box (not included)
Recessed on plasterboard or wood with spring (not included)
Recessed on brickwork with housing box (not included)
Accessories:
Torsion spring (ML032): Ø28 x 61 x 25
PVC Housing box (CAW32): Ø39 x 110 x Ø35
ABS Housing box (CAI32): Ø100 x 100 x Ø37
Honeycomb antiglare filter
Black & Clear antiglare filter (with 15°, 28°, 64° lens ONLY)
Lamp type: LED Lifespan 50,000hrs
- Dimensions
-

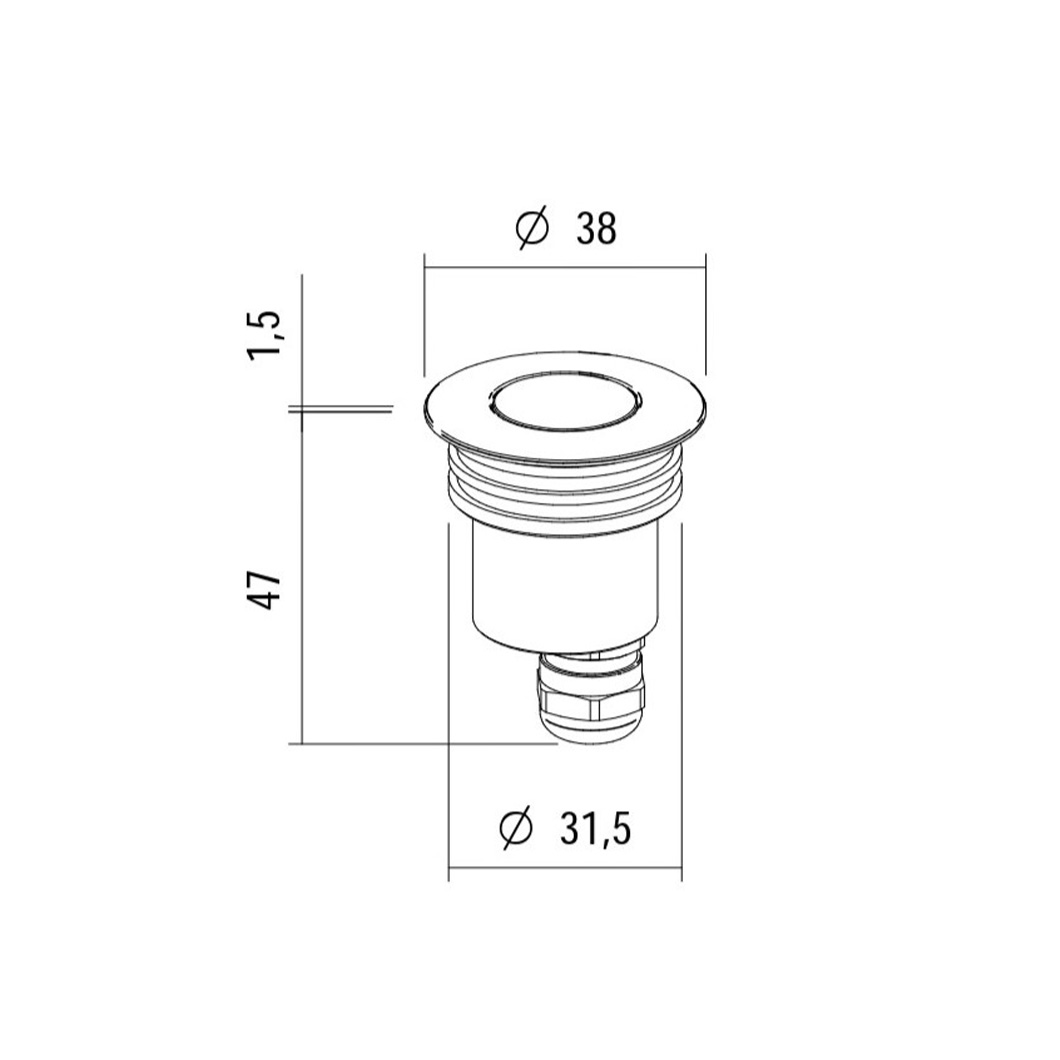

Product dimensions: H.48mm x Diameter.38mm
Cutout dimensions: Dia.32mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
