DLD Alps 3 Phase LED Dimmable Surface Mounted Modular Track System Components

Manufacturer: DLD Architectural

£0.00001

One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

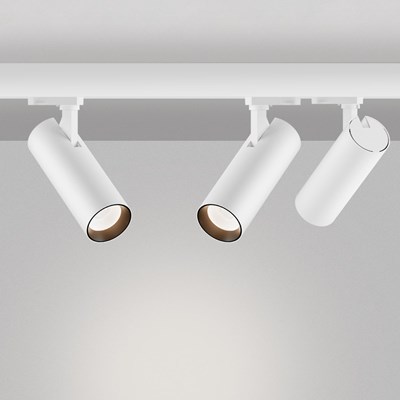

Combining functionality and a minimalist design, the DLD Alps is an architectural track system with multiple modular possibilities. Precision crafted from aluminium, the Alps range boasts a sleek contemporary appearance. The versatility of the collection makes the Alps track perfect for installation in both residential or commercial applications, with a wide selection of modules to build your perfect composition.

Surface or suspended…

The Alps track solution is designed to be surface mounted in contemporary spaces, allowing for easy installation even after decoration. With the use of the suspension kit, the Alps track can be hung from the ceiling as a track profile, perfect for taller spaces and for commercial use. Compile the perfect track system for each individual space of the room, with compatible track modules (see below) which can be installed to light in any direction desired with a range of options such as light intensity and colour temperature. The track and accessories are TRIAC (mains) dimmable. See the Alps Track Datasheet for further info on track accessories.

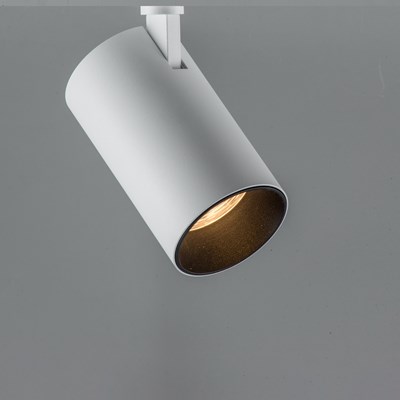

Versatile Spot Light module

The Alps Loco spot light module has an integral driver built into the head. This means the head protrudes more than the base variation but has a sleeker minimalist look with the exemption of a gear box. The spot light module is available in 3 power versions (the length is longer the more powerful the spot light), choose between higher or lower wattage for the desired effect or even mix and match for different situations.

  • Power: 15W Ø60mm L172mm (25W and 35W available on request)
  • Adjustable: 0-90° tilt | 0-355° rotation
  • 3 colour temperatures: 2700K (3000K and 4000K available on request)
  • Multiple beam angles: 36° (15°, 24° available on request)
  • Available in 2 finishes: matt black and matt white. Recess baffle in black
  • Integral driver: non-dimmable or TRIAC (mains) dimmable (0-10V and DALI dimmable versions, and spot light module with horizontal driver available on request)
  • View Alps Loco Track Spot Module Datasheet

Currently in stock:
Orders placed before midday are delivered next working day

Lightbulb with brain filament icon
- Our Top Tips -

Alps Track System is compatible with Casambi bluetooth smart lighting system - see ‘You May Also Need’ below.

Still have track questions?
Contact us on 01189 882294 or [email protected]
We're happy to help :)



Specification

Track

IP20
3 phase/circuit track

Track dimensions:
Width - 35.2mm
Height - 35.5mm
Length - 1m/2m/3m

Modules

Class I
IP20
3-phase track fixation
Diecasting housing and gear box
Cut off angle - 35
Adjustability - 0-90 degree tilt | 355 degree rotation
Integral driver inside base



Alps Loco (horizontal driver):

15W
15W | 1200lm | 80lm per 1W
Beam angle: 15D | 24D | 36D
Dia.62mm, Length 150mm

25W
25W | 2100lm | 84lm per 1W
Beam angle: 15D | 24D | 36D | 45D | 60D
Dia.76mm, Length 170mm

35W
35W | 2600lm | 74lm per 1W
Beam angle: 15D | 24D | 36D | 45D | 60D
Dia.88mm, Length 180mm



Alps Loco (integrated driver):

15W
15W | 1200lm | 80lm per 1W
Beam angle: 15D | 24D | 36D
Dia.62mm, Length 172mm

25W
25W | 2100lm | 84lm per 1W
Beam angle: 15D | 24D | 36D | 45D | 60D
Dia.76mm, Length 210mm

35W
35W | 2600lm | 74lm per 1W
Beam angle: 15D | 24D | 36D | 45D | 60D
Dia.88mm, Length 235mm

Dimensions

Product dimensions: D.35mm x H.35mm

Downloads
Delivery and warranty

Delivery varies for each product, please see product description

About the manufacturer

Tailor-made for lighting designers and architects, the DLD Architectural lighting collection is sourced and manufactured by us to complement our Raw Design decorative lighting range. Our outstanding selection of LED architectural fittings and luminaires combines modern minimalist design with the finest components, and utilises the latest technology. Specialising in contemporary linear profile lighting, discreet yet powerful glare-free recessed downlights, modular track systems and high end exterior lighting solutions, the DLD Architectural collection is perfect for creating inspirational and innovative lighting schemes for domestic and commercial projects.

For more information on our products and services please call 01189 882294 or email [email protected].
