- Description
-

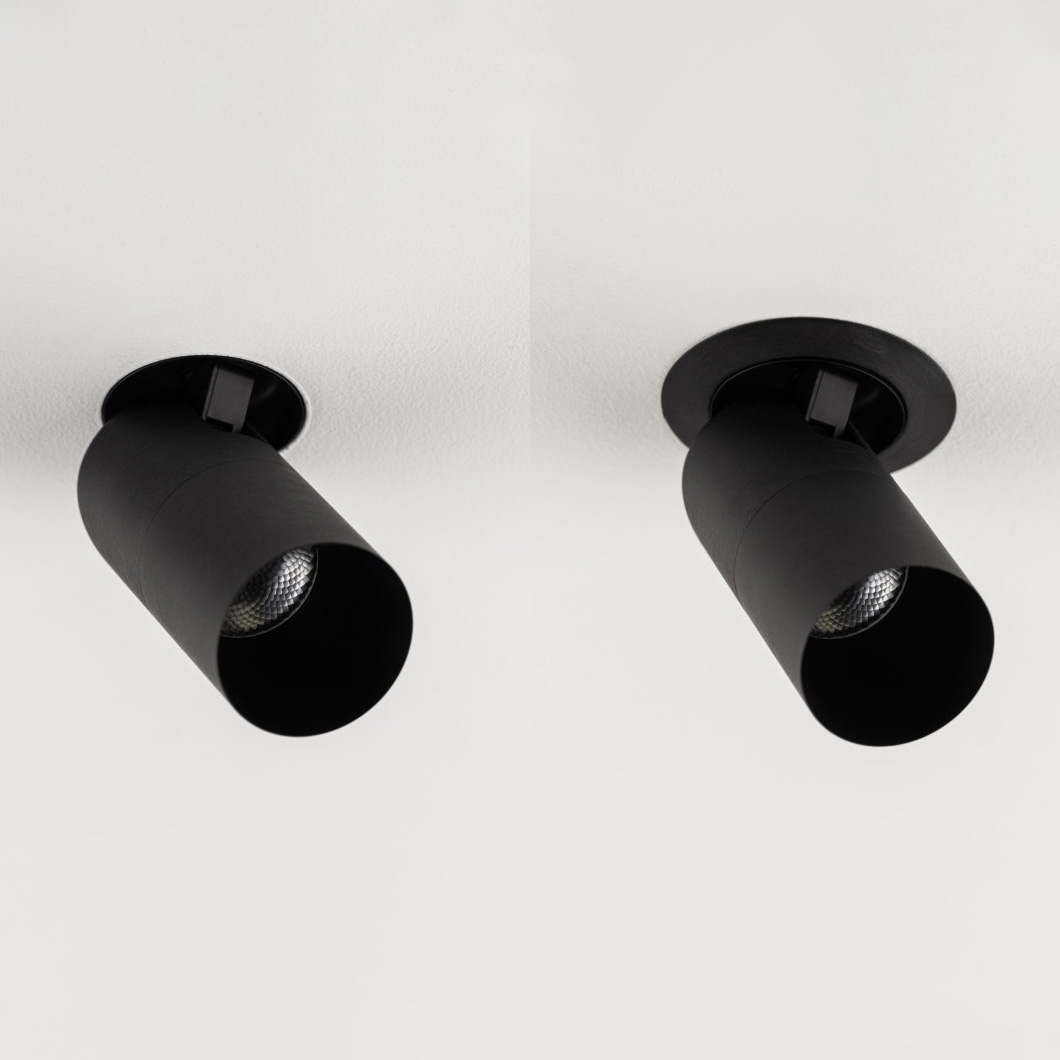

The adjustable semi-recessed spotlight features a sleek Ø38mm diameter, matching the look with the rest of the White Line Dotsi family. Available with matching trim finish for recessed installation or a plaster kit for a seamless finish. The minimalist fitting is available with a small 65mm or large tube 80mm, and uses a 6W LED which offers 425lm in 2700K and 450lm in the 3000K version.

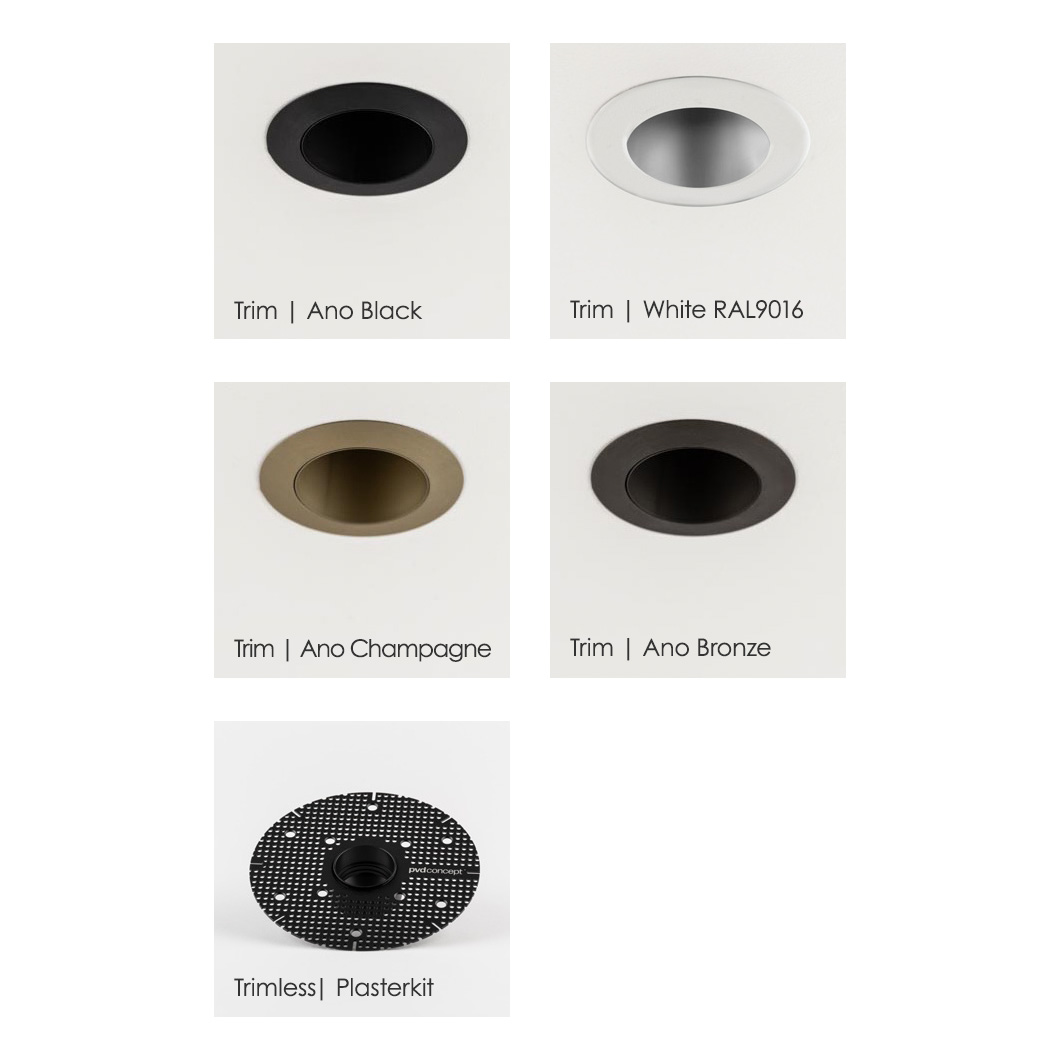

Available in White RAL9016, Ano Black, Ano Champagne, Ano Bronze or Ano Natural. With a choice of 5 lens: 15°, 20°, 30°, 40° or 45x20°, there is a beam angle to cover a narrow spotlight or wider spread of light.
Available in 250mA constant current or constant voltage 24VDC versions. Driver required for both versions - see Specification tab for info and select your required driver.
See 'More Like This' for the rest of the family
- Specification
-

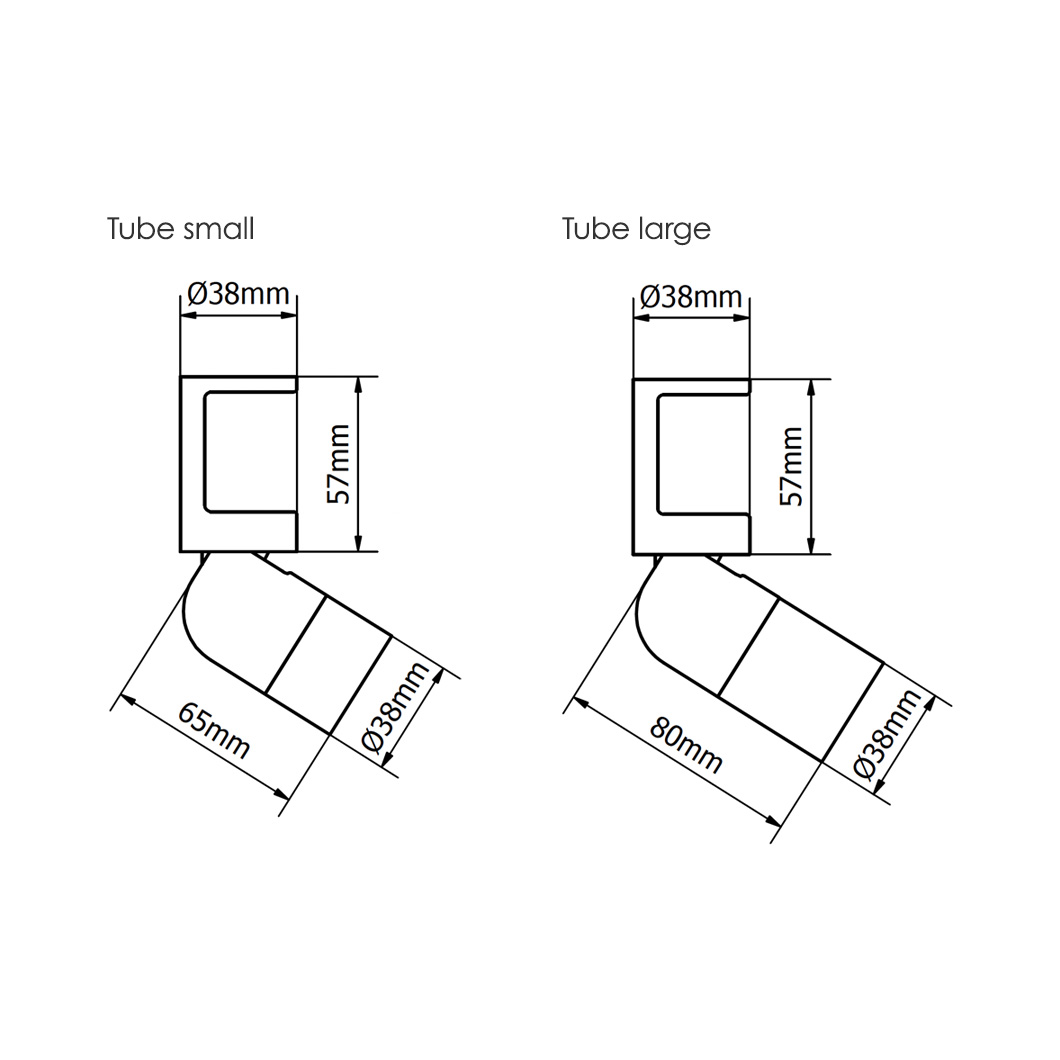

Dimensions
Tube small: Ø38mm x H.65mm
Tube large: Ø38mm x H.80mm
Recessed: Ø38mm x D.57mm
Cutout
Trimless plasterkit: ø48-50mm
Recessed trim frame: ø73-95mm
6W
Constant Current 250mA or Constant Voltage 24VDC
IP20
0-10V / 1-10V
2700K CRI97 (425lm)
3000K CRI97 (450lm)
Driver Options | Constant Current 250mA
Code | Description | Number of Fittings Powered
WL DRIVER10 | 250mA 6W Mains Dim | 1 x min | 1 x max
WL DRIVER11 | 250mA 10W Mains Dim | 2 x min | 2 x max*
WL DRIVER06 | 250-700mA 18W 1-10V/PUSH Dim | 1 x min | 2 x max*
WL DRIVER20 | 250-700mA 30W DALI Dim | 2 x min | 2 x max*
(*) driver doesn't fit through installation opening
Driver Options | Constant Voltage 24VDC
Code | Description | Number of Fittings Powered
WL DRIVER17 | 24VDC 12W Non-Dim | 1 x min | 2 x max
WL DRIVER13 | 24VDC 36W Mains Dim | 1 x min | 5 x max*
WL DRIVER16 | 24VDC 60W Mains Dim | 1 x min | 5 x max*
WL DRIVER14 | 24VDC 70W 1-10V/DALI Dim | 1 x min | 10 x max*
WL DRIVER19 | 24VDC 120W 1-10V/DALI Dim | 1 x min | 15 x max*
(*) driver doesn't fit through installation opening
Lamp type: 6W LED
- Dimensions
-
Product dimensions: Diameter.38mm
- Downloads
-
- Delivery and warranty
-
Delivery approximately 4-5 weeks
- About the manufacturer
-
PVD Concept are a Belgian-based designer and manufacturer which provide innovative indoor and outdoor lighting solutions. With more than 30 years’ experience in the lighting world, PVD produce premium quality luminaires which are 100% made in Belgium. Proud designers of the RED DOT Award-winning White Line and Kessler collections, each of their products are created with the aim of combining high functionality with simplicity.
