LLD Point Submersible M Underwater Pool IP68 LED Adjustable Spot Light

Description

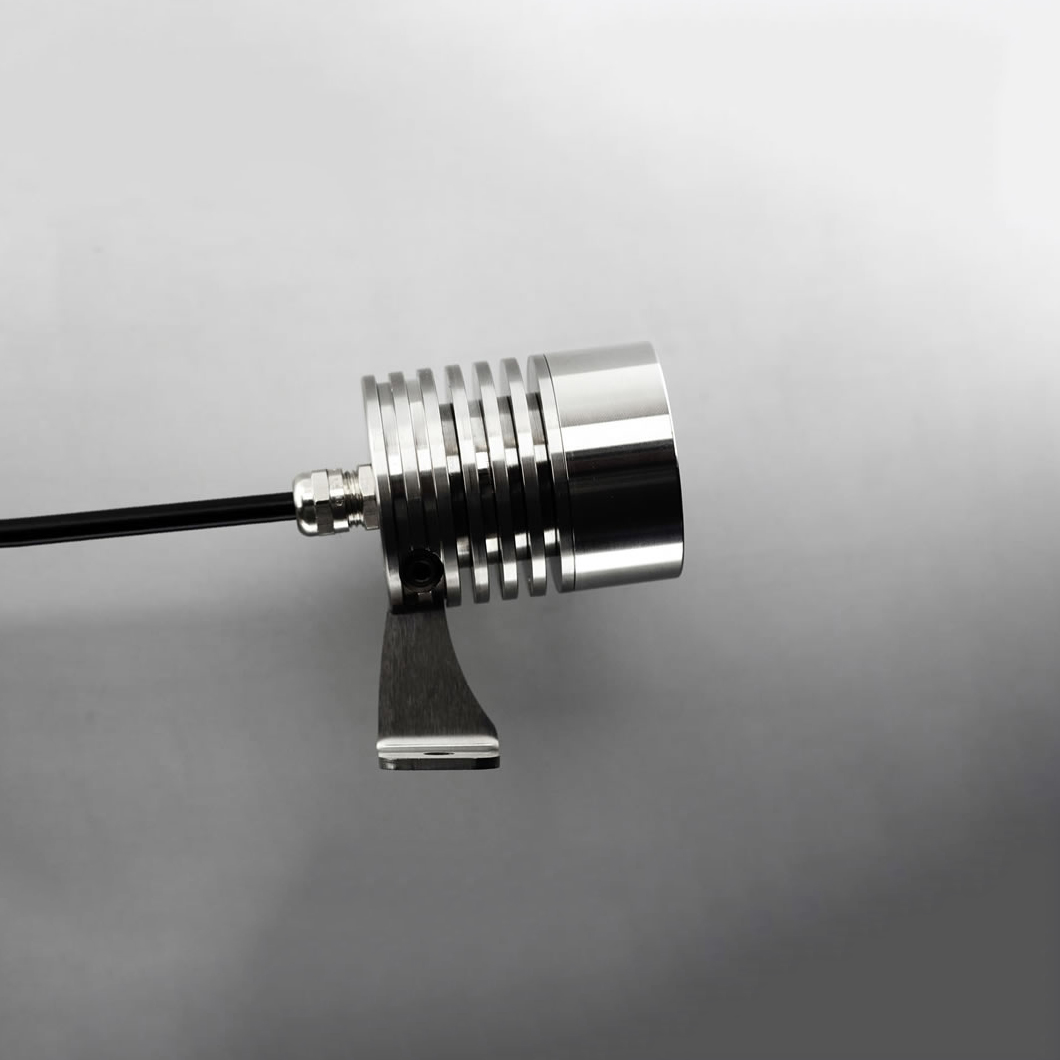

The middle sibling in the family, the LLD Point Submersible M Spot Light is a discreet adjustable permanent immersion projector with a maximum installation depth of 3m. With a diameter of just over 5cm & an IP68 rating, Point Submersible M underwater spotlight is the perfect solution for lighting swimming pools, fountains and water features.

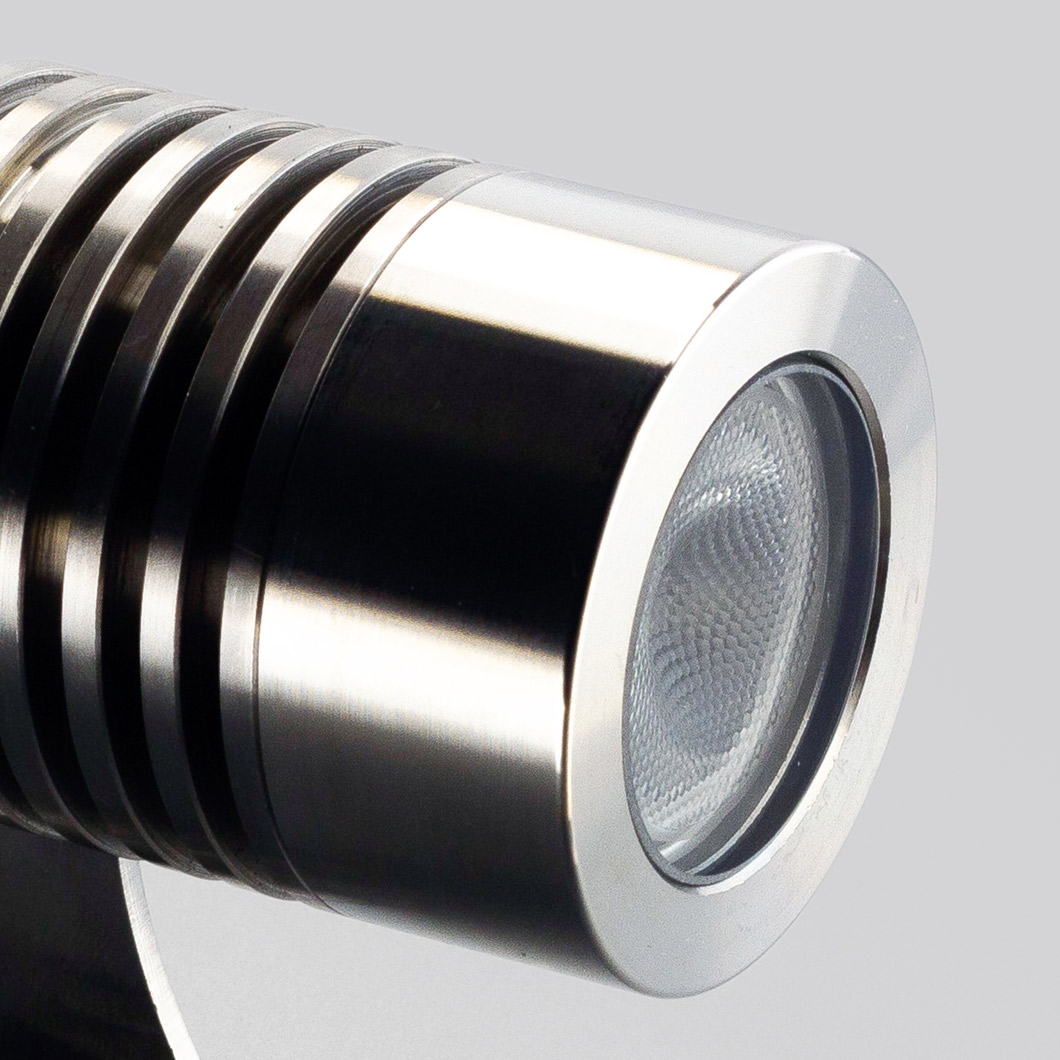

The Point Submersible M uses an energy-efficient LED light source with a choice of beam angles in 8°, 16°, 30°, 40° or 64°. Available in constant current or 24VDC constant voltage versions, and with a choice of 2200K, 2700K, 3000K, 4000K, red, green, or blue light temperatures. Constructed from AISI 316L stainless steel body with a satinized steel bracket & a tempered transparent glass lens.

Supplied with a 3m, 10m, or 15m cable with WP system. Can be fixed to the floor, ceiling or wall with the included fixing bracket, into the ground with the optional 200mm long peg, or on poles/trees with the optional mounting strap.

Other sizes and IP67 spot versions are available - see below.

Driver required. This fitting is compatible with non-dim, TRIAC dim, push dim, 1-10V dim and DALI dim drivers.

- Our Top Tips -

• Point SUB is an IP68 submersible light which can be permanently underwater and is designed for ponds, swimming pools, fountains and water features.
• However this of course can be used above ground and is ideal for areas that might get flooded. Make sure to use IP68 cable joints to maintain the IP rating and warranty.
• Drivers need to be accessible and we advise not burying them under ground in case maintenance is required.
• The Point M Submersible is suitable for smaller ponds, swimming pools and water features up to 5M. For anything bigger, we recommend using the large (L) instead.

Specification

IP68

AISI 316L stainless steel body
Satinized stainless steel bracket
Transparent tempered glass

Cable with WP system: 3m, 10m, 15m

C.C.
4W - 6W
4W - 350mA Not included
6W - 500mA Not included
Wired in series

24Vdc
6,5W
24Vdc - 6,5W not included
Wired in parallel

2200K / 2700K / 3000K / 4000K / RED / GREEN / BLUE
CRI 80

Optics:
8°, 16°, 30°, 40°, 64°

Installation:
Floor, wall or ceiling mounting with bracket (included), in ground with peg (not included), on poles/trees by mounting strap (not included), immersion also with ballast base (not included)

Accessories:
Stainless steel base (BAP01): Ø79 x 30
Stainless steel peg (PI002): 21,5 x 21,5 x 200
Mounting strap (CIN20)
Honeycomb filter (HC)

Lamp type: LED Lifespan 50,000hrs

Dimensions

Product dimensions: D.78mm x H.79mm x Diameter.51mm

Downloads

• Point Sub M Datasheet PDF | C.C.
• Point Sub M Datasheet PDF | 24Vdc
• Point Installation Instructions PDF
• Info on WP Water Protection System PDF

Delivery and warranty

Delivery usually within 2-3 weeks

Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:

• damage caused by transport
• the use of products in unsuitable environmental conditions
• non-standard product use or stress including under/over voltage
• damage caused by negligence or lack of maintenance
• damage caused by the use of power supplies not provided or indicated by LLD Light
• repair attempts or tampering performed by unauthorised staff
