- Description
-

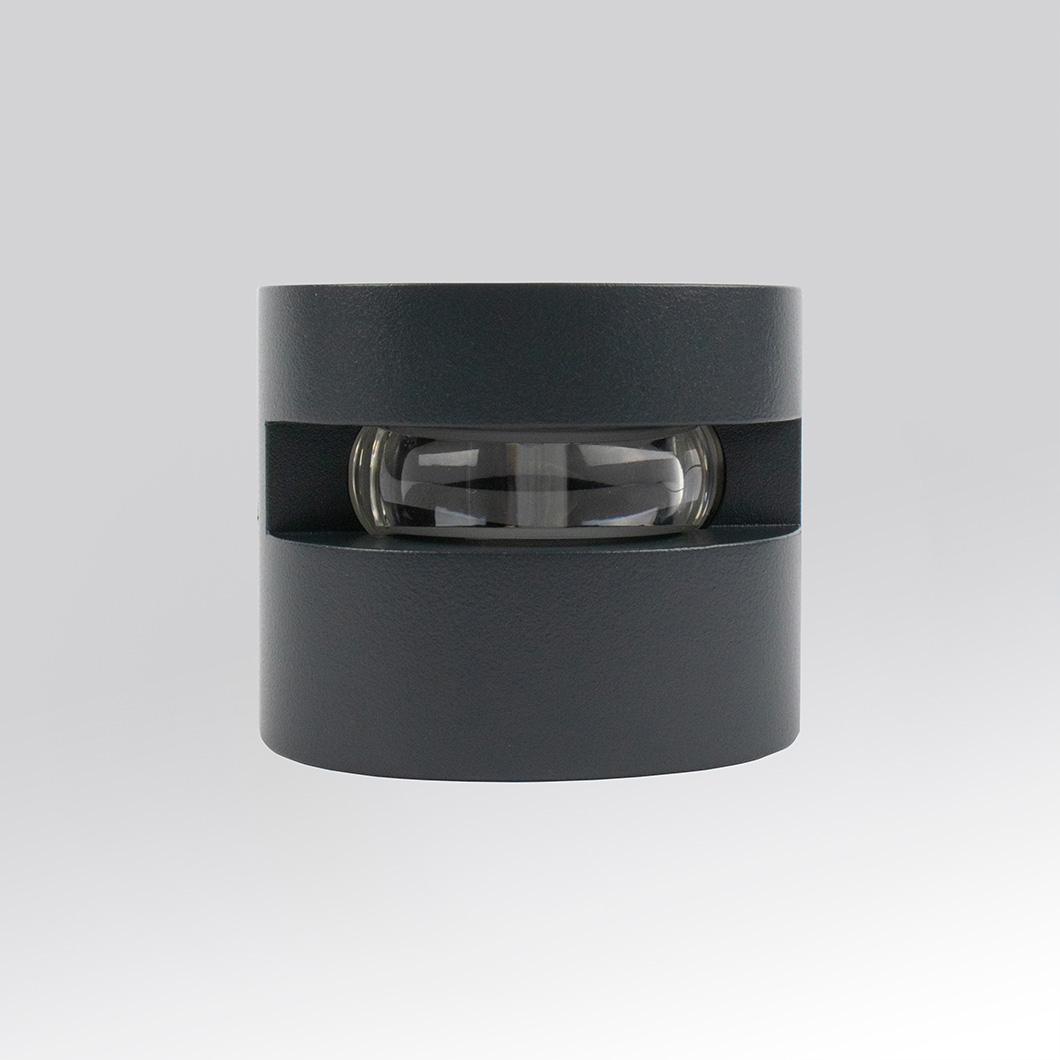

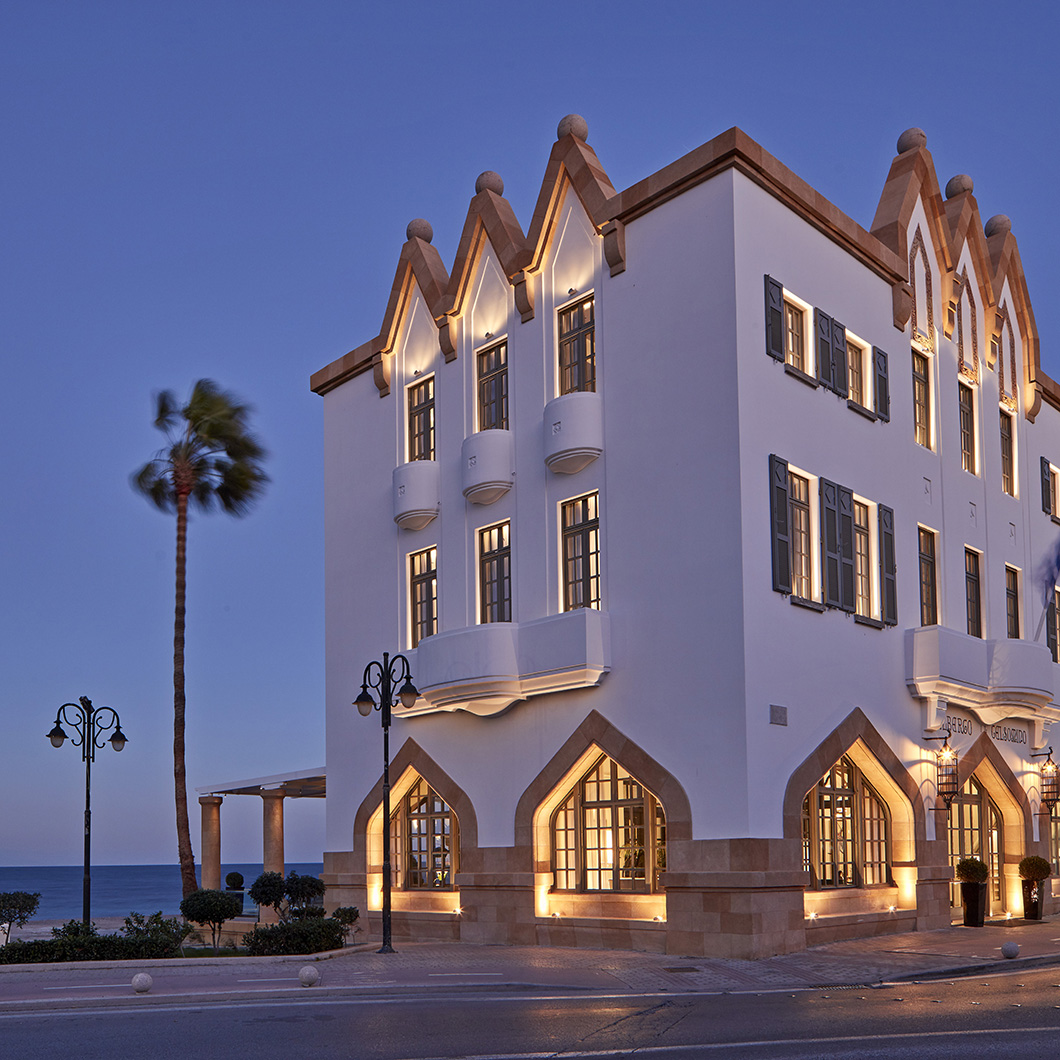

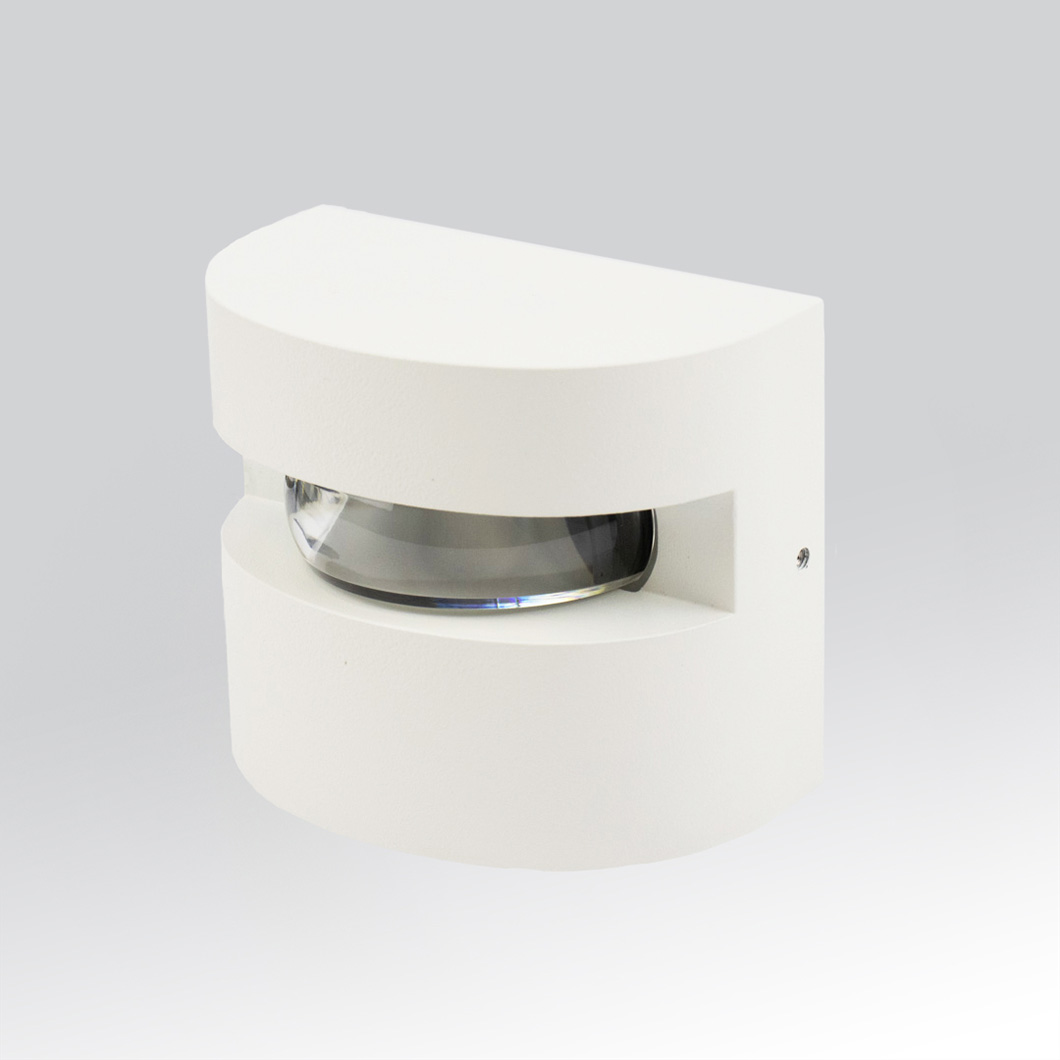

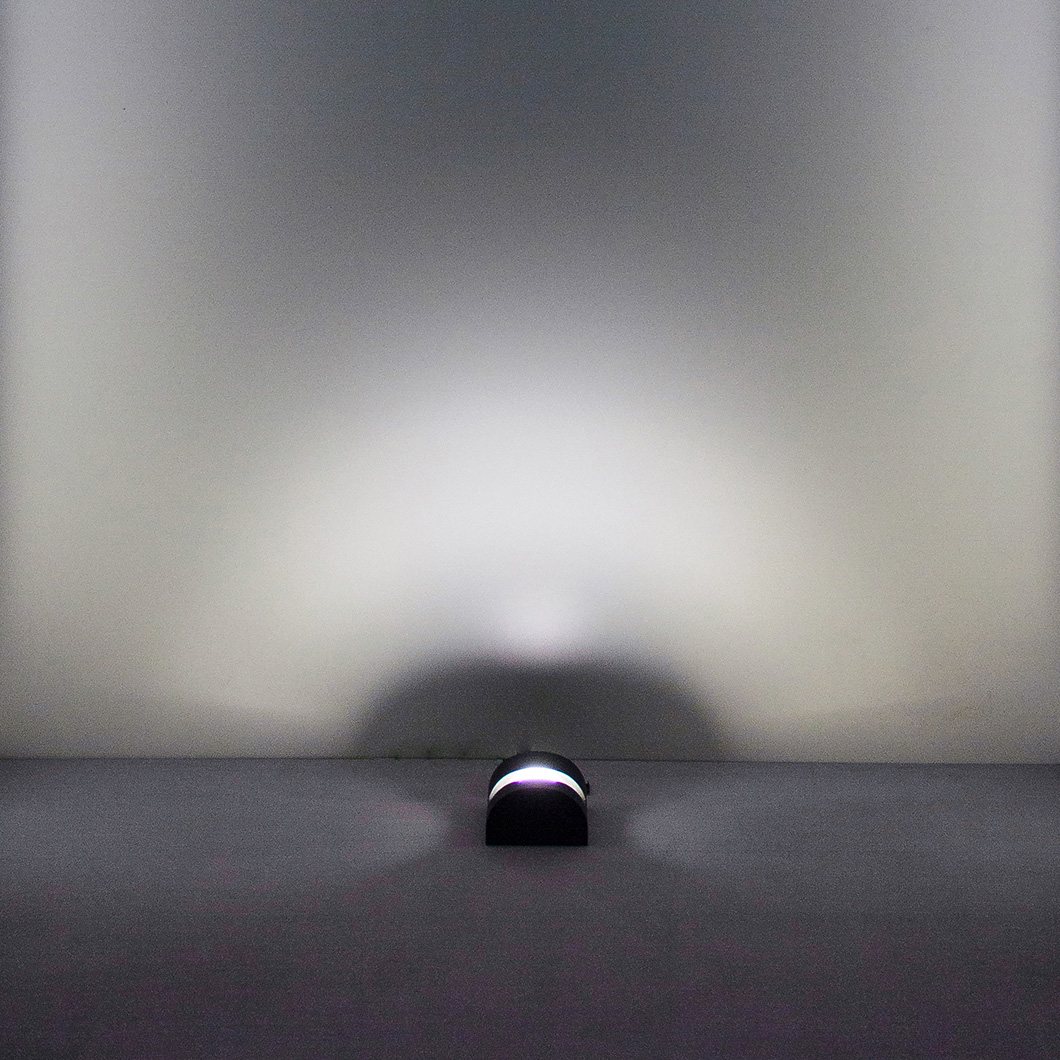

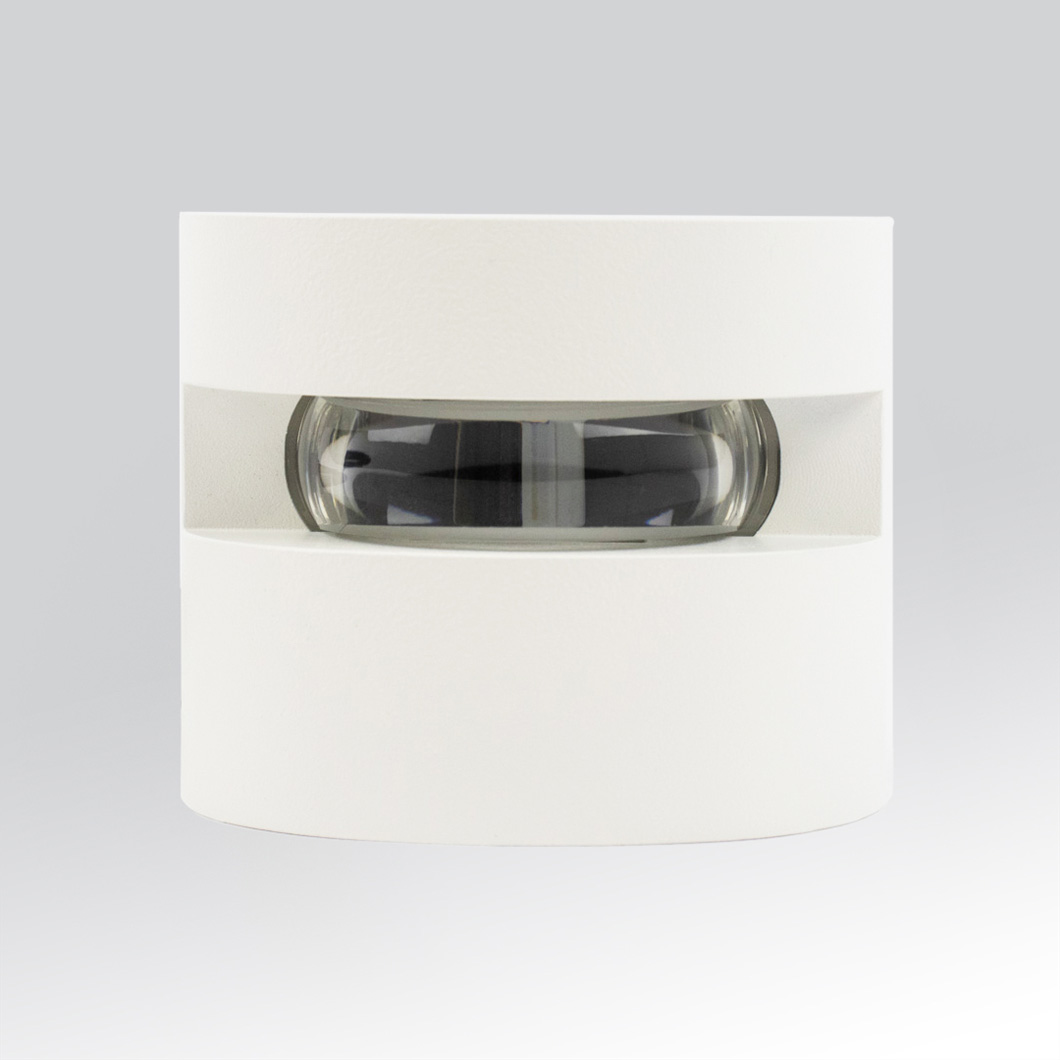

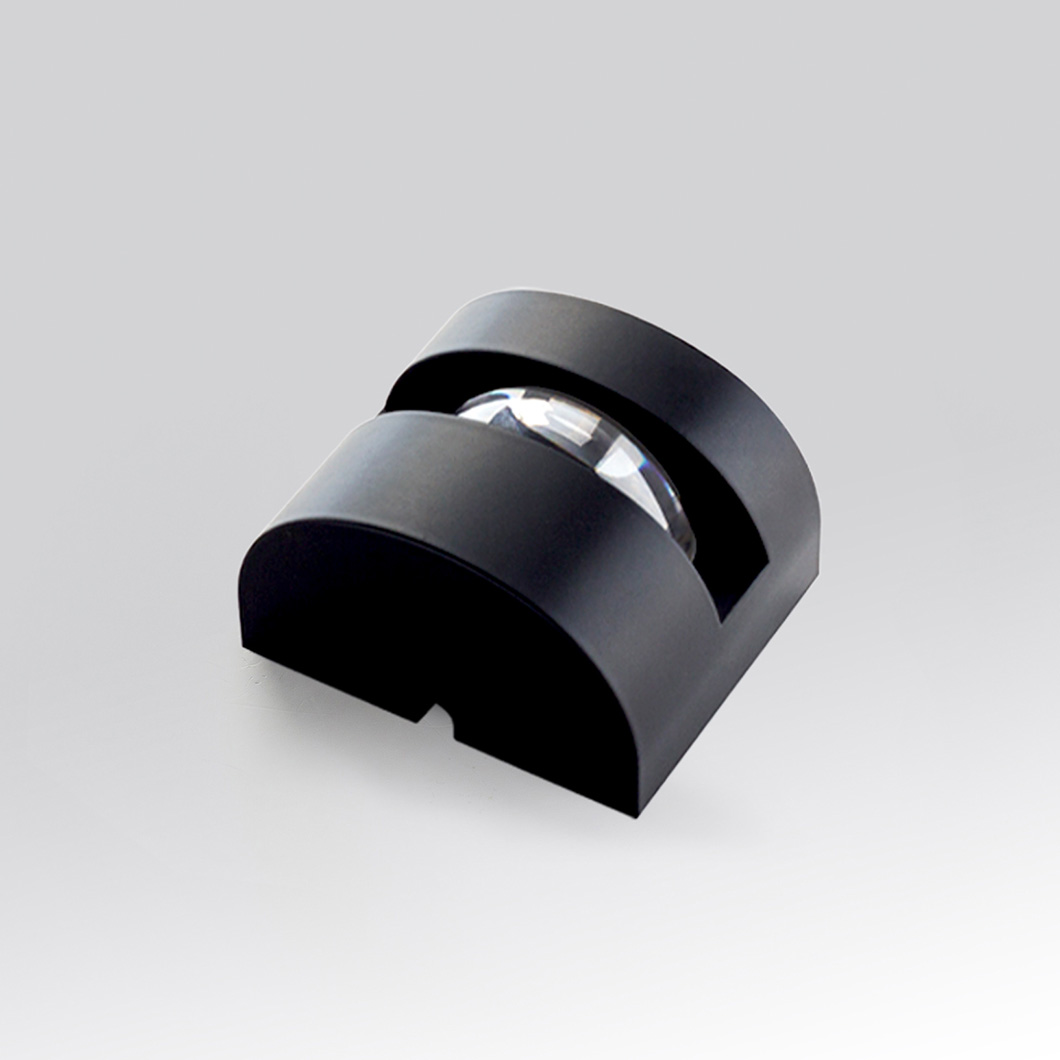

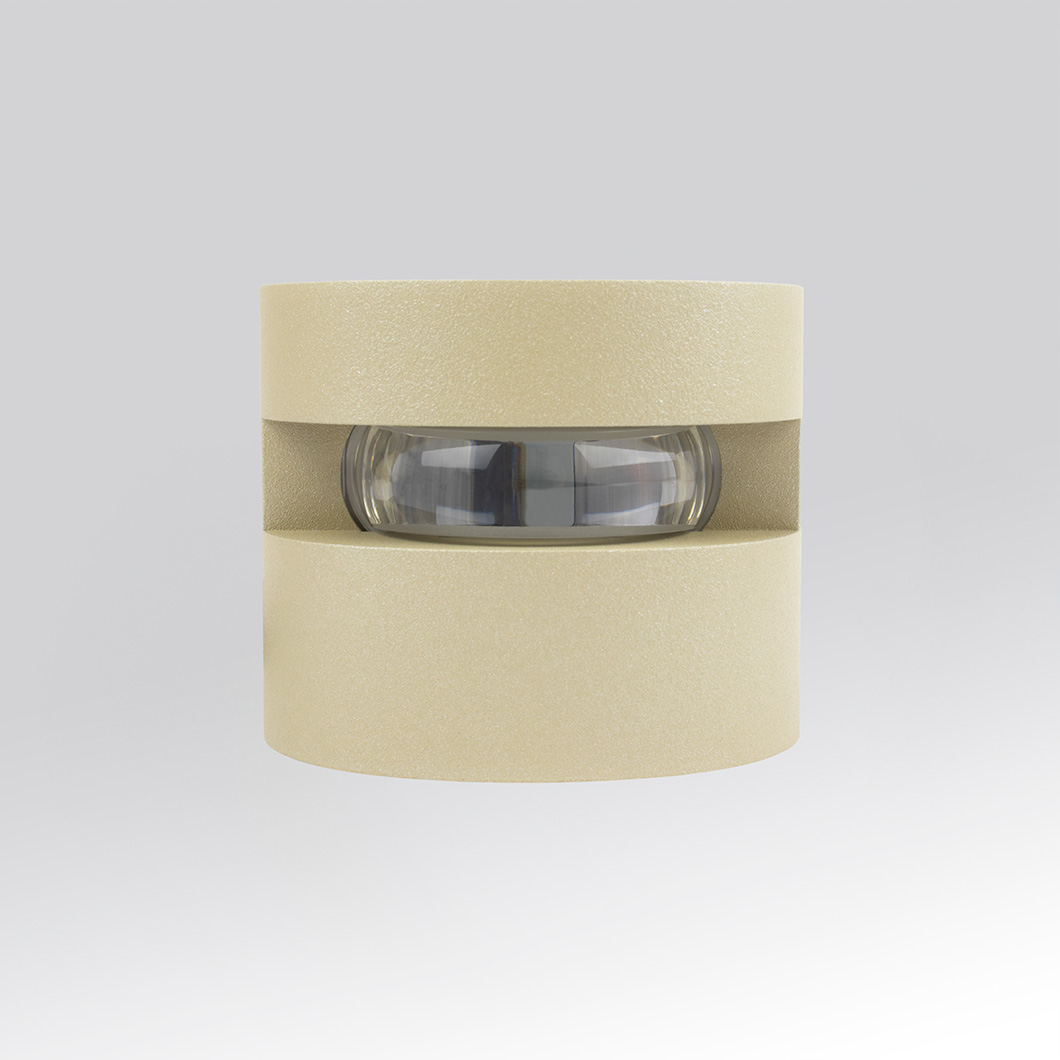

Designed specifically for lighting outdoor windows, arches and alcoves with an arc of light, the Ecate Outdoor IP65 LED Projector by LED Luce E Dintorni (LLD) is a neat and tidy contemporary light fitting. With its compact size and 3 x 115° optics, the LLD Ecate LED projector is perfect for highlighting exterior architectural features with over 200lm of light, achieving the effect of linear profile without the hassle of an intrusive installation. Ecate is available in two versions:
- 700mA constant current version uses an energy efficient 3W LED light source - driver not included, see dropdown
- 24VDC constant voltage version has a 4W LED - driver not included, see optional items below
Both are available in 3000K or 4000K light colour temperatures. The body of the fitting is made from an anticorodal aluminium with a PMMA curved lens. Finished in anodized aluminium, matt white, matt black, COR-TEN (rusted) or anthracite. Ecate is fixed to the ground with the supplied mounting base and screws. Supplied with a 2m cable.

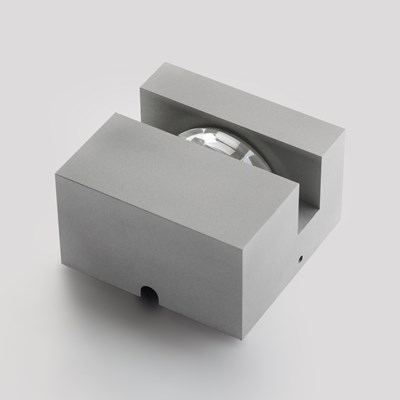

Not suitable for dimming. Ecate 230V mains voltage version available - see below. View the full LLD Light catalogue in the downloads tab.
Delivery usually within 2 weeks
- Specification
-
IP65
2000mm cable
Non-dimming
Optics: 3 x 115°
Weight: 0.47kg
Constant current version:
3W | Class I
Wired in series - 700mA constant current driver required
24VDC constant voltage version:
4W | Class III
Wired parallel - 24VDC driver required
CCT | Lumens
3000°K | 220lm
4000°K | 240lm
Optional C.C. driver (DE70004) - see dropdown:
Constant current | Non-Dim | 4W | 700mA | IP65 | 3-20V
Optional 24VDC Constant Voltage driver - see below
Lamp type: LED 3-4W Lifespan 50,000hrs
- Dimensions
-

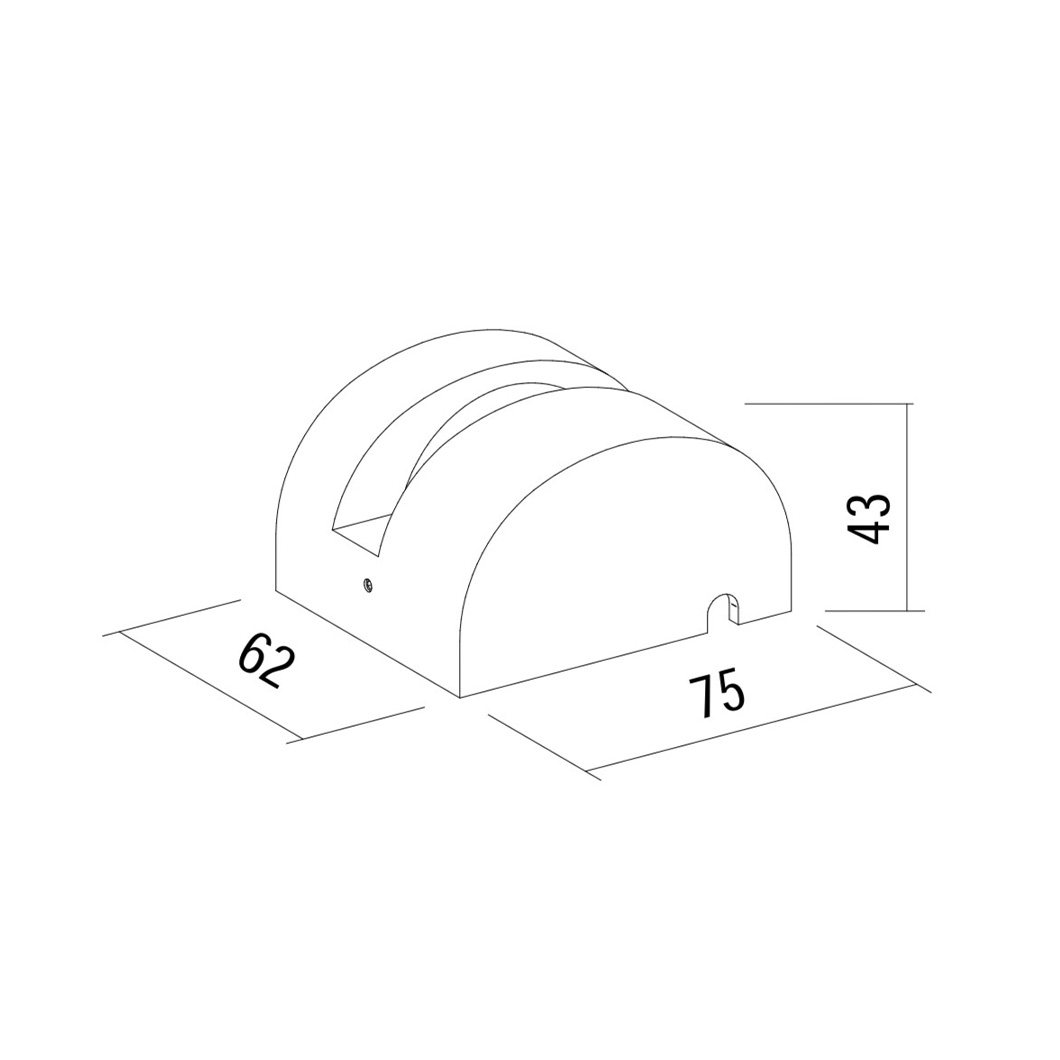

Product dimensions: W.75mm x D.62mm x H.43mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
