- Description
-
The LLD Dedalo square LED step light is a recessed luminaire that's perfect for indoor and outdoor lighting. The Dedalo Square Low Level Light, with its IP65 rating, is the perfect minimal and contemporary light fitting for lighting steps, paths and corridors.

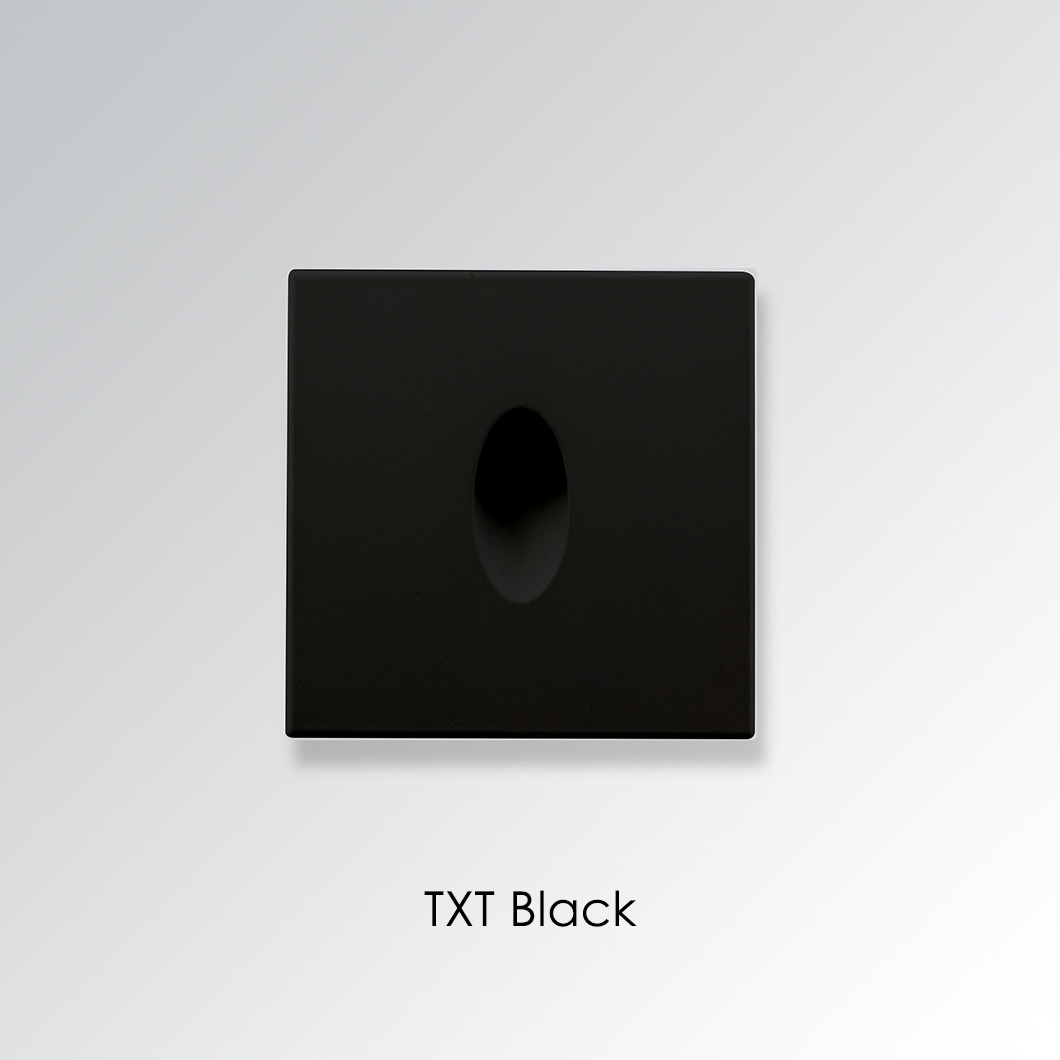

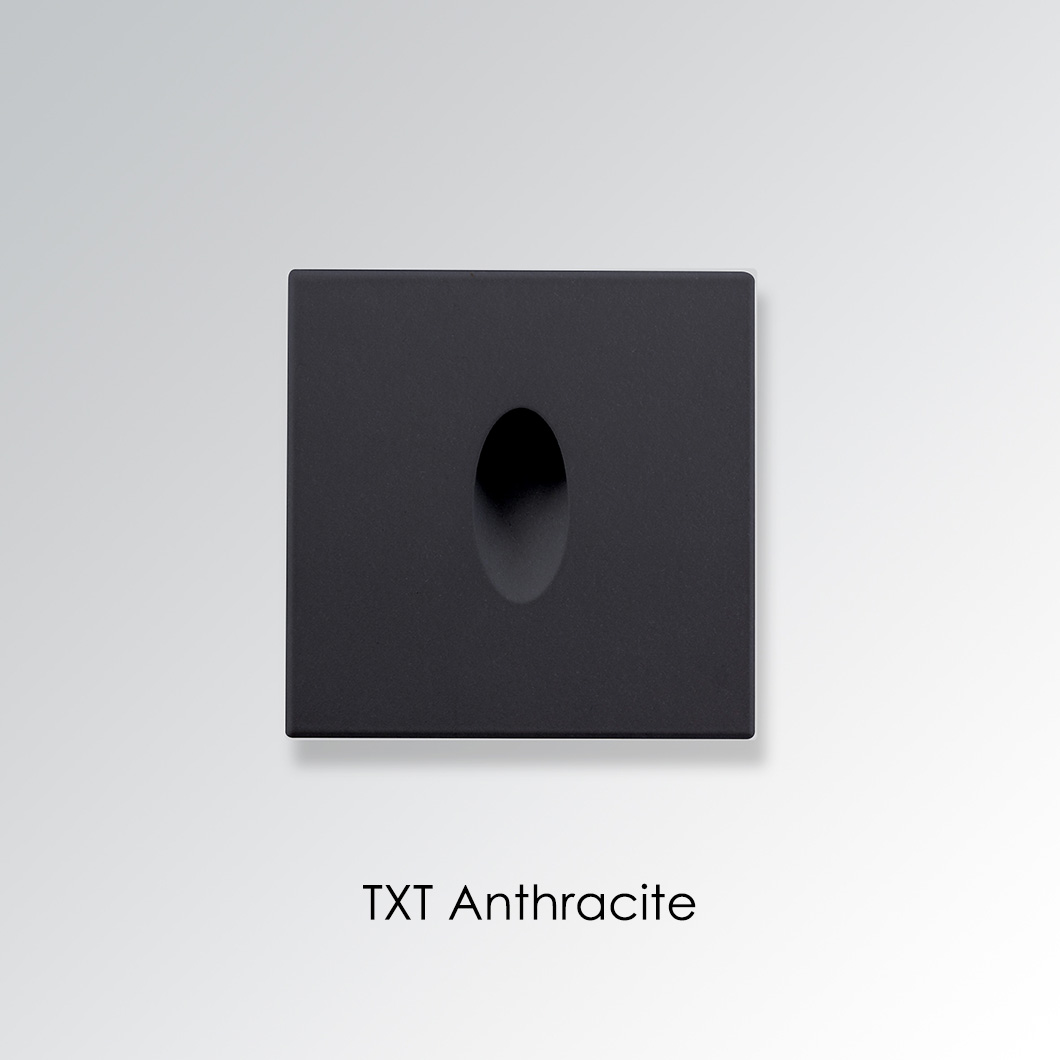

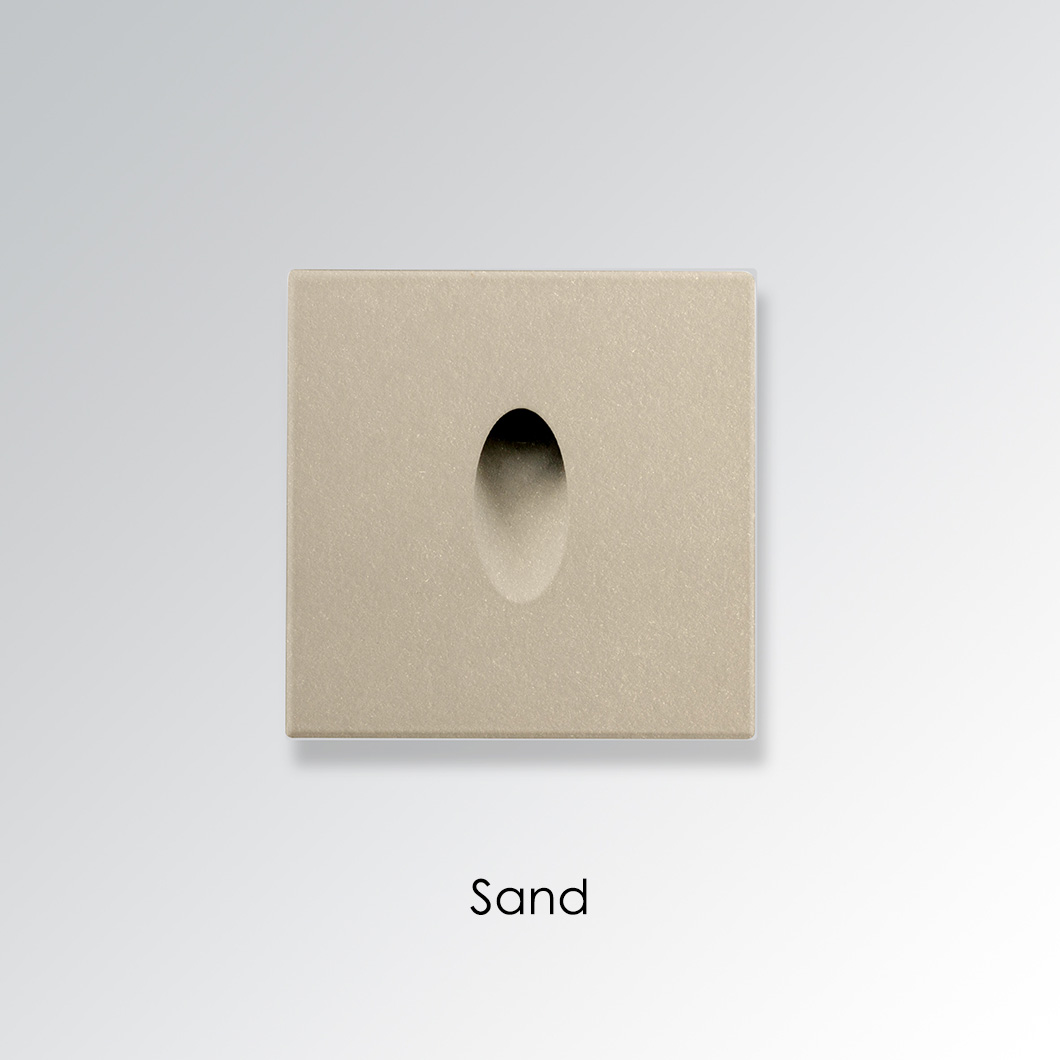

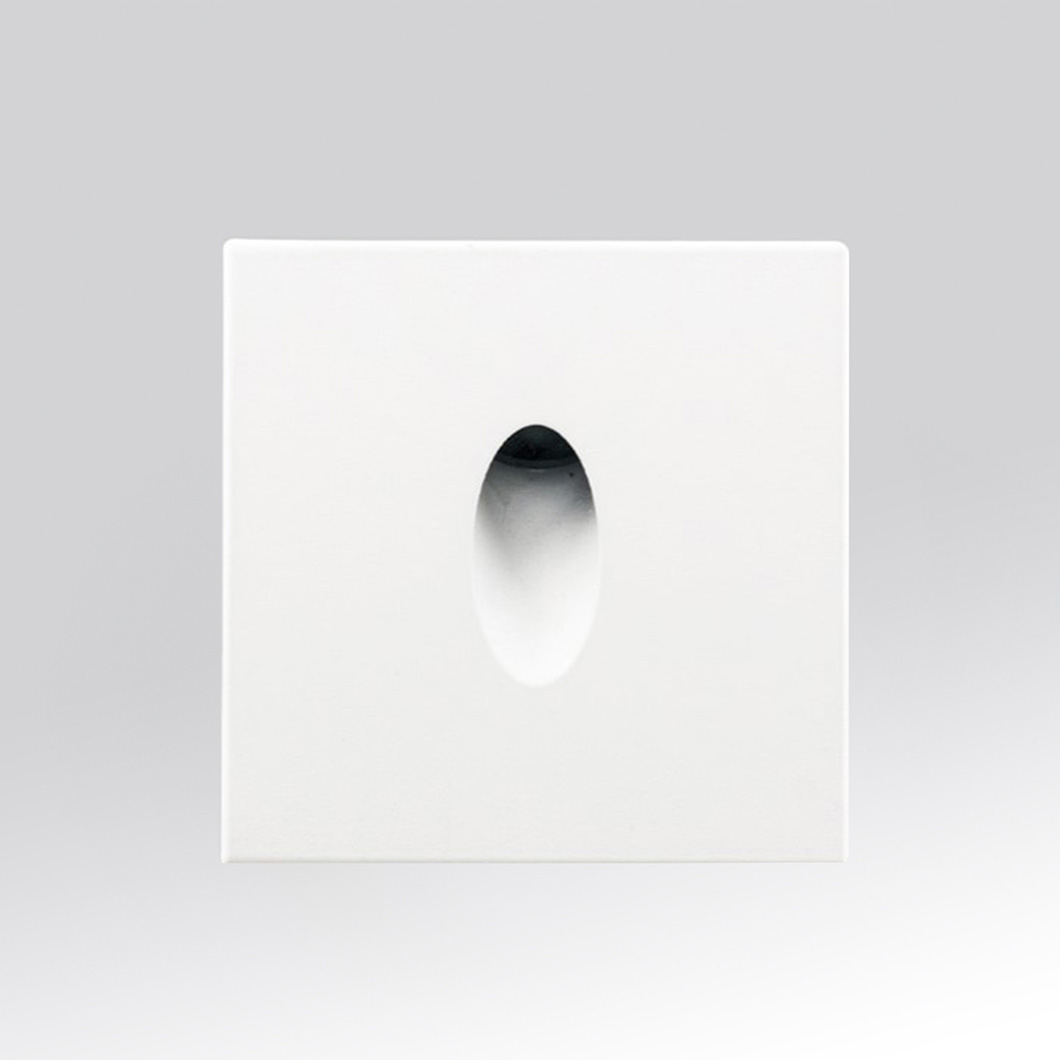

The body is made from anticorodal aluminium with protection glass, and finished in TXT white, TXT black, TXT grey, TXT anthracite, corten, or sand. Dedalo uses an energy-efficient low-wattage LED with a wide 60° beam angle. Available in constant current or 24Vdc versions, Dedalo has a choice of 2200K, 2700K, 3000K, 4000K, red, green, or blue light temperatures. Supplied with 50cm, 5m, 10m, or 15m cable. The spring should be used to install Dedalo into plasterboard or wood, for brickwork use the housing box.
Driver required. This fitting is compatible with non-dim, TRIAC dim, push dim, DMX dim, 1-10V dim and DALI dim drivers.
Dedalo is also available in a round version - see our 'More Like This' section below.
- Specification
-
IP65
Anticorodal aluminium body
Protection glass
Cable: 50cm, 5m, 10m, 15m
C.C.
1W-1,6W
1W - 350mA not included
1,6W - 500mA not included
Connected in series
24Vdc
2,2W
68lm
Connected in parallel
2200K / 2700K / 3000K / 4000K / RED / GREEN / BLUE
CRI 80
Optics: asym
Installation:
Recessed on plasterboard or wood with spring (not included)
Recessed on brickwork through o-ring and housing box (not included)
Accessories:
Torsion spring (ML060): 60 x 20 x 30
Housing box Polyethylene (CA068): Ø75 x 70 x Ø68

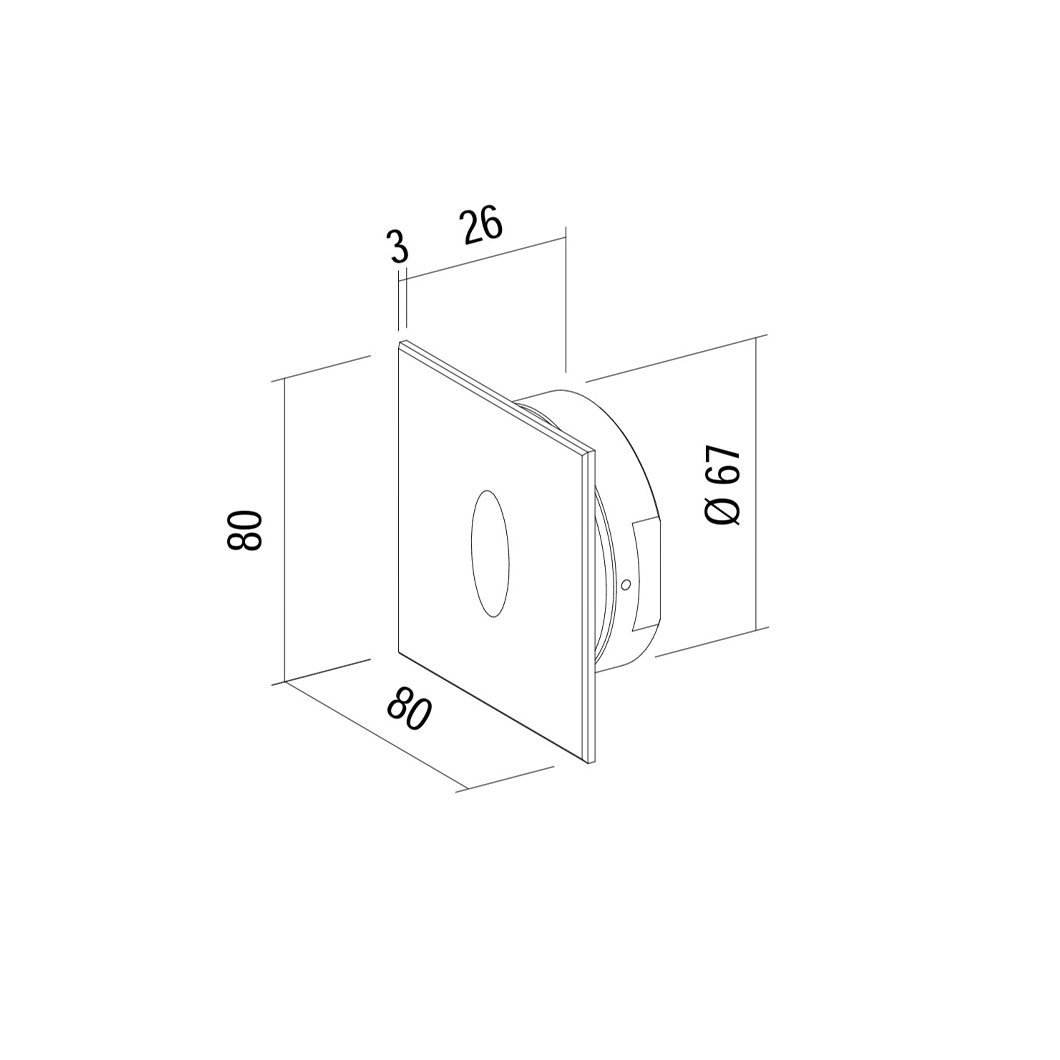

- Dimensions
-
Product dimensions: W.80mm x D.29mm x H.80mm
Cutout dimensions: Dia.68mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
Browse the full LLD 2021 catalogue
