- Description
-
Suitable for both indoor and outdoor lighting projects, the LLD Dedalo is a recessed round LED step light. With an IP65 rating, the Dedalo Round Low Level Light is the perfect choice for lighting steps, paths and corridors with a minimal and contemporary light fitting.
Dedalo uses an energy-efficient low-wattage LED with an asymmetrical beam angle. Available in constant current or 24Vdc versions with a choice of 2200K, 2700K, 3000K, 4000K, red, green, and blue light temperatures. Constructed from an anticorodal aluminium body with protection glass. Finished in TXT white, TXT black, TXT grey, TXT anthracite, corten, or sand. Supplied with 50cm, 5m, 10m, or 15m cable. To install into plasterboard or wood the spring should be used, for brickwork use the housing box.
Driver required. This fitting is compatible with non-dim, TRIAC dim, push dim, 1-10V dim and DALI dim drivers.

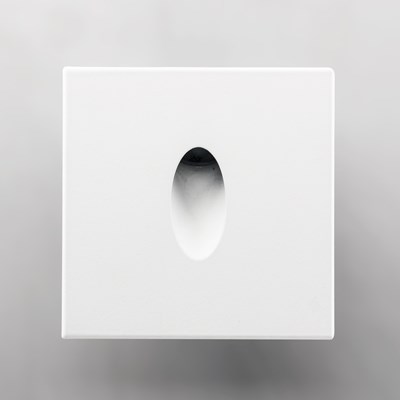

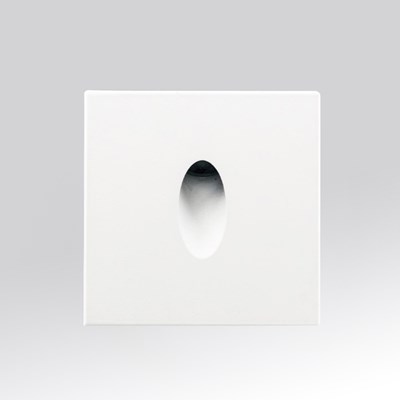

Dedalo is also available in a square version - see our 'More Like This' section below.
- Specification
-
IP65
Anticorodal aluminium body
Protection glass
Cable: 50cm, 5m, 10m, 15m
C.C.
1W-1,6W
1W - 350mA not included
1,6W - 500mA not included
Connected in series
24Vdc
2,2W
68lm
Connected in parallel
2200K / 2700K / 3000K / 4000K / RED / GREEN / BLUE
CRI 80
Optics: asym
Installation:
Recessed on plasterboard or wood with spring (not included)
Recessed on brickwork through o-ring and housing box (not included)
Accessories:
Torsion spring (ML060): 60 x 20 x 30
Housing box Polyethylene (CA068): Ø75 x 70 x Ø68
- Dimensions
-
Product dimensions: D.29mm x Diameter.80mm
Cutout dimensions: Dia.68mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
