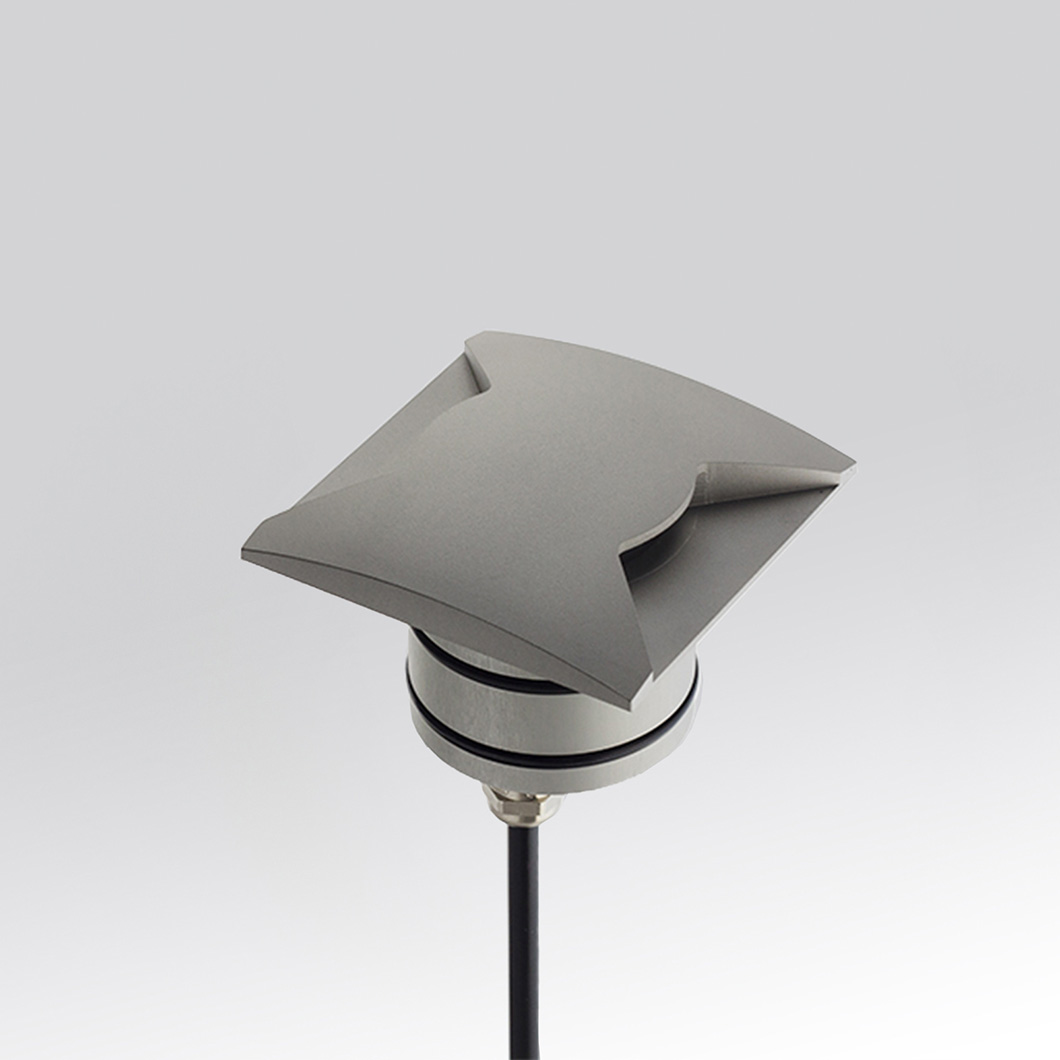

LLD Bia Square Dual Emission Outdoor IP67 LED Recessed Path Light

Description

Twice the size of the mini version, the LLD Bia Square is a dual emission outdoor recessed path light that's under 8cm in size. Suitable for both private garden and commercial outdoor lighting projects, the versatile LLD (LED Luce E Dintorni) Bia can be installed in the wall as a low level or step light or into the floor as a path light. The Bia Square can be driven over up to 1500kg and has a rating of IP67.

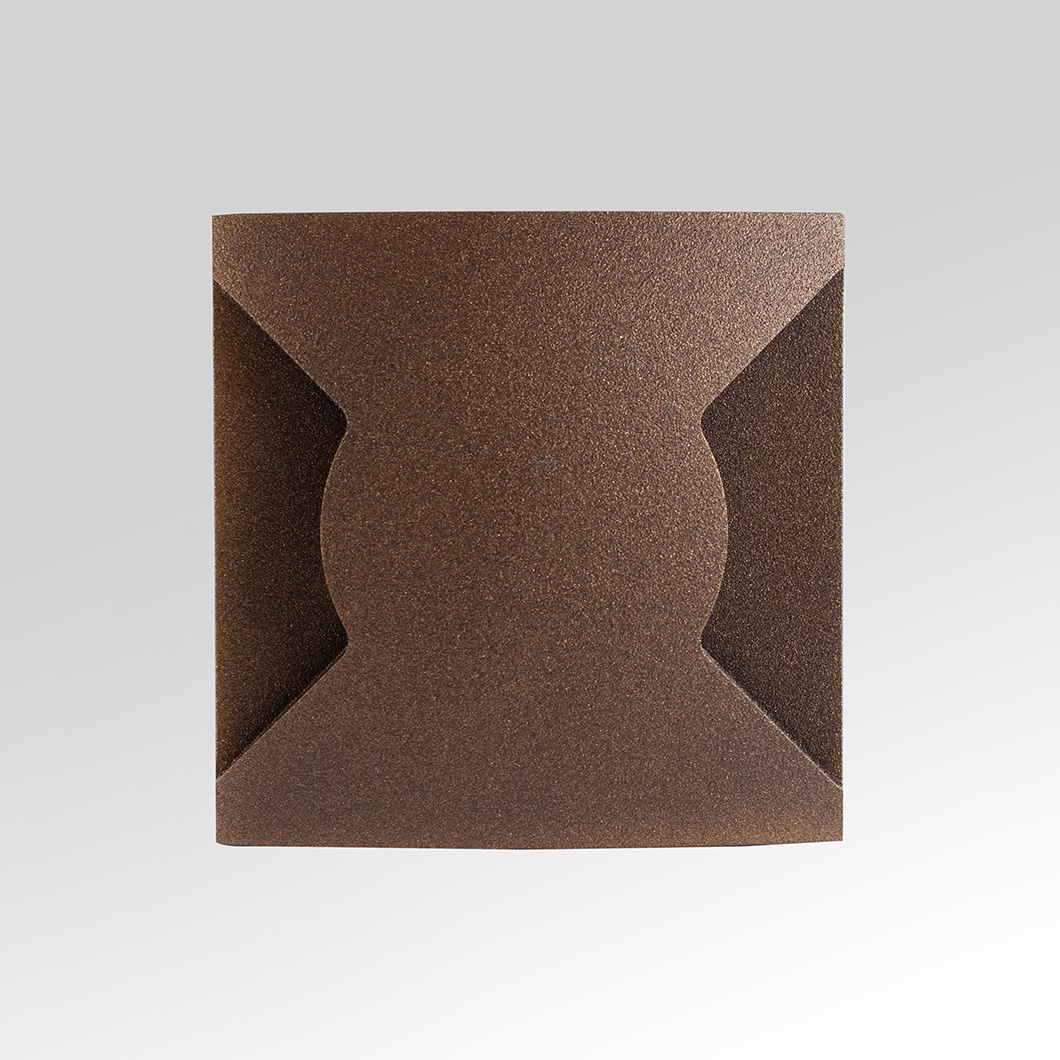

Available in constant current or 24Vdc versions, the twin emission lights only two specific targeted area. Bia path light has a choice of 2200K, 2700K, 3000K, 4000K, red, blue, or green light temperatures. The anticorodal aluminium body and trim is available in anodised aluminium, steel, brushed steel, TXT black, TXT anthracite, corten, or sand.The brushed steel and steel finishes have an AISI 316L stainless steel trim. Optic in PMMA.

Supplied with a 50cm, 5m, 10m, or 15m cable with WP System connection. The optional housing box should be used for installing the LLD Bia into the ground, allowing 30cm gravel drainage.

Driver required. This fitting is compatible with non dim, TRIAC dim, push dim, 1-10V dim, DMX dim and DALI dim drivers.

Other sizes and light emissions are available - see our 'More Like This' section below.

Specification

IP67
Water-proof cable: 50cm, 5m, 10m, 15m
Anticorodal aluminium body
Anticorodal aluminium or AISI 316L stainless steel trim
PMMA optics or PC

C.C.
2 x 1W - 1,6W
2x1W 2x34lm - 2x1,6W 2x48lm
1W - 350mA not included
1,6W - 500mA not included
Connected in series

24Vdc
2 x 2,2W
2x2,2W 2x48lm
Connected in parallel

2200K / 2700K / 3000K / 4000K / BLUE / RED / GREEN
CRI 80

Optics: Radial

Accessories:
Housing box PVC (CAW53): Ø60mm x 120 x Ø57mm
Housing box ABS (CAI53): Ø100mm x 100 x Ø58mm

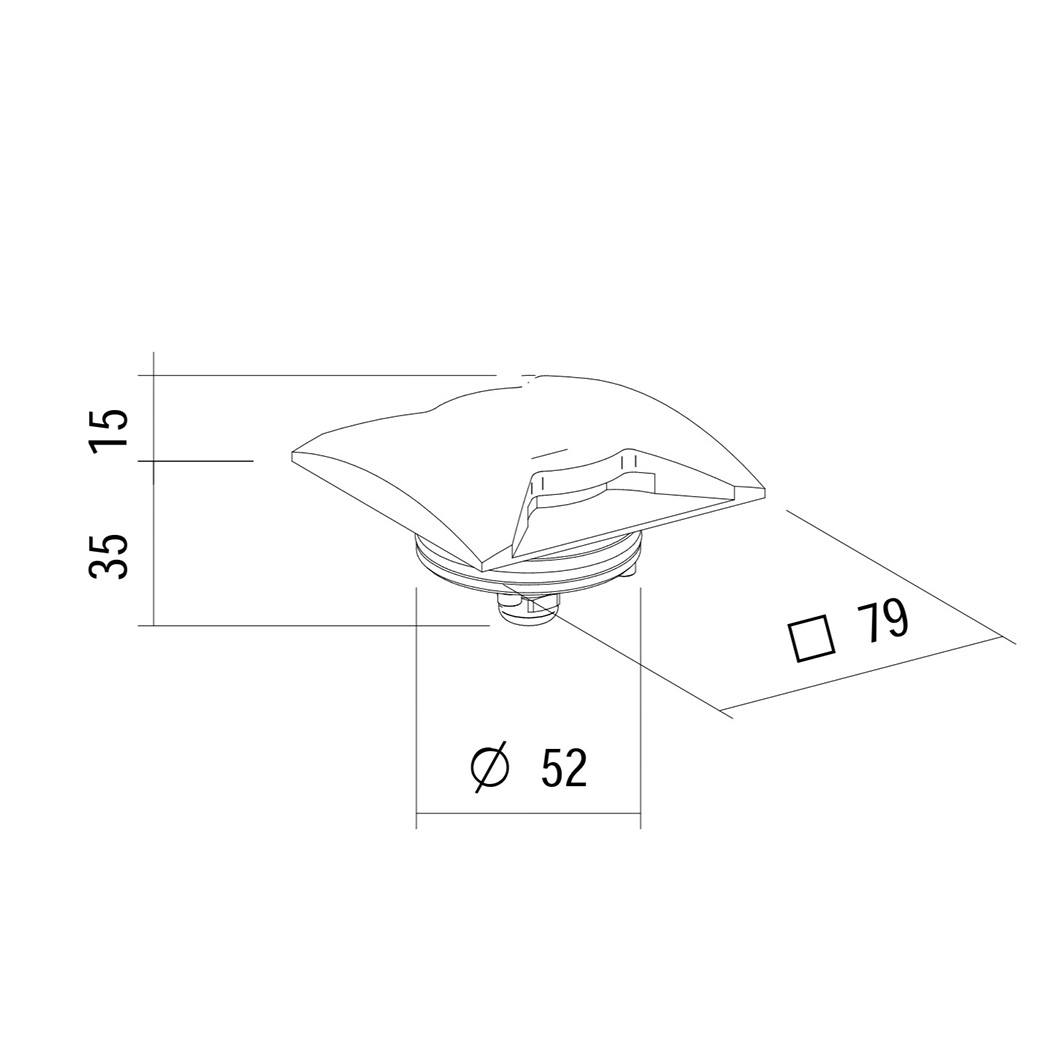

Dimensions

Product dimensions: W.79mm x D.79mm x H.50mm

Downloads

• Bia S Dual Em. Datasheet PDF | C.C.
• Bia S Dual Em. Datasheet PDF | 24Vdc
• Bia Installation Instructions PDF
• Info on WP Water Protection System PDF

Delivery and warranty

Delivery usually within 2-3 weeks

Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:

• damage caused by transport
• the use of products in unsuitable environmental conditions
• non-standard product use or stress including under/over voltage
• damage caused by negligence or lack of maintenance
• damage caused by the use of power supplies not provided or indicated by LLD Light
• repair attempts or tampering performed by unauthorised staff

About the manufacturer

With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
