- Description
-

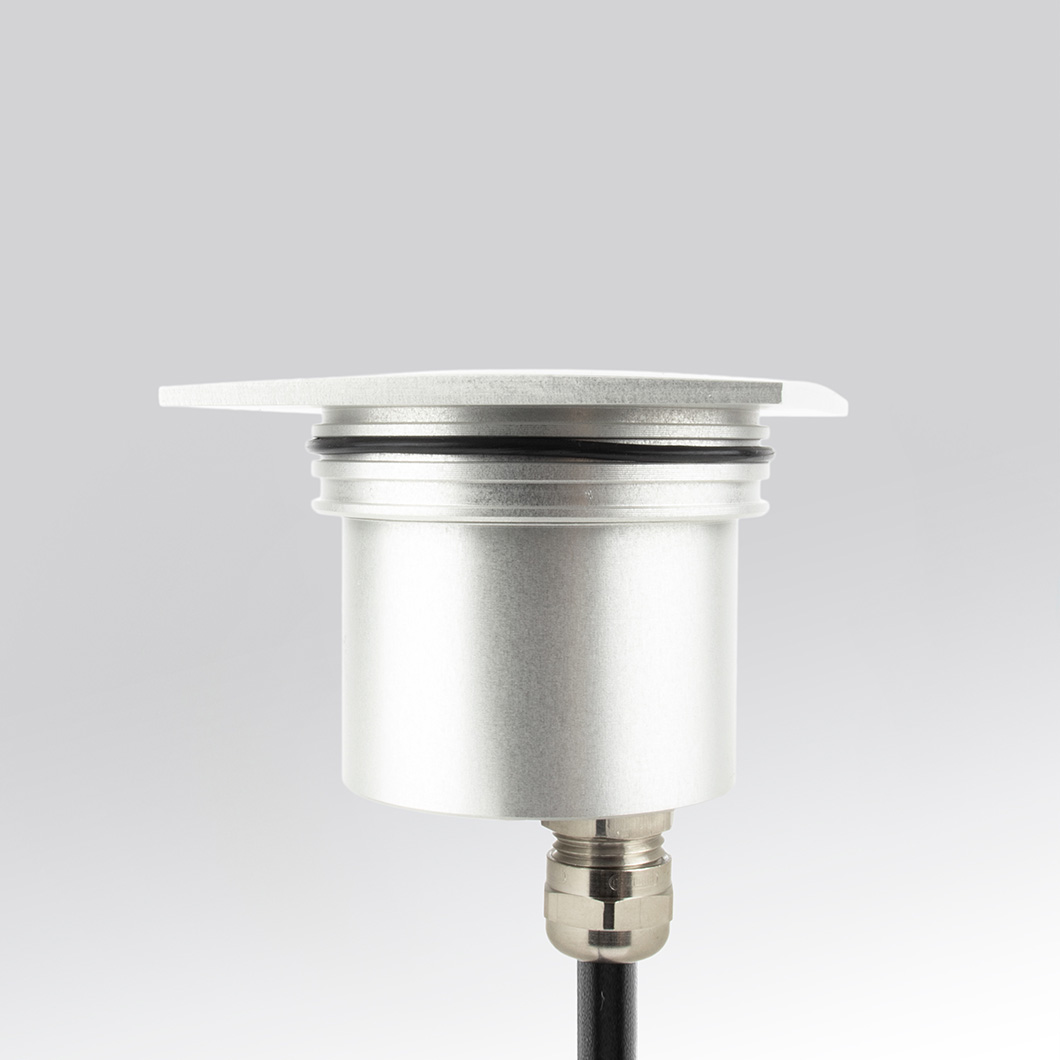

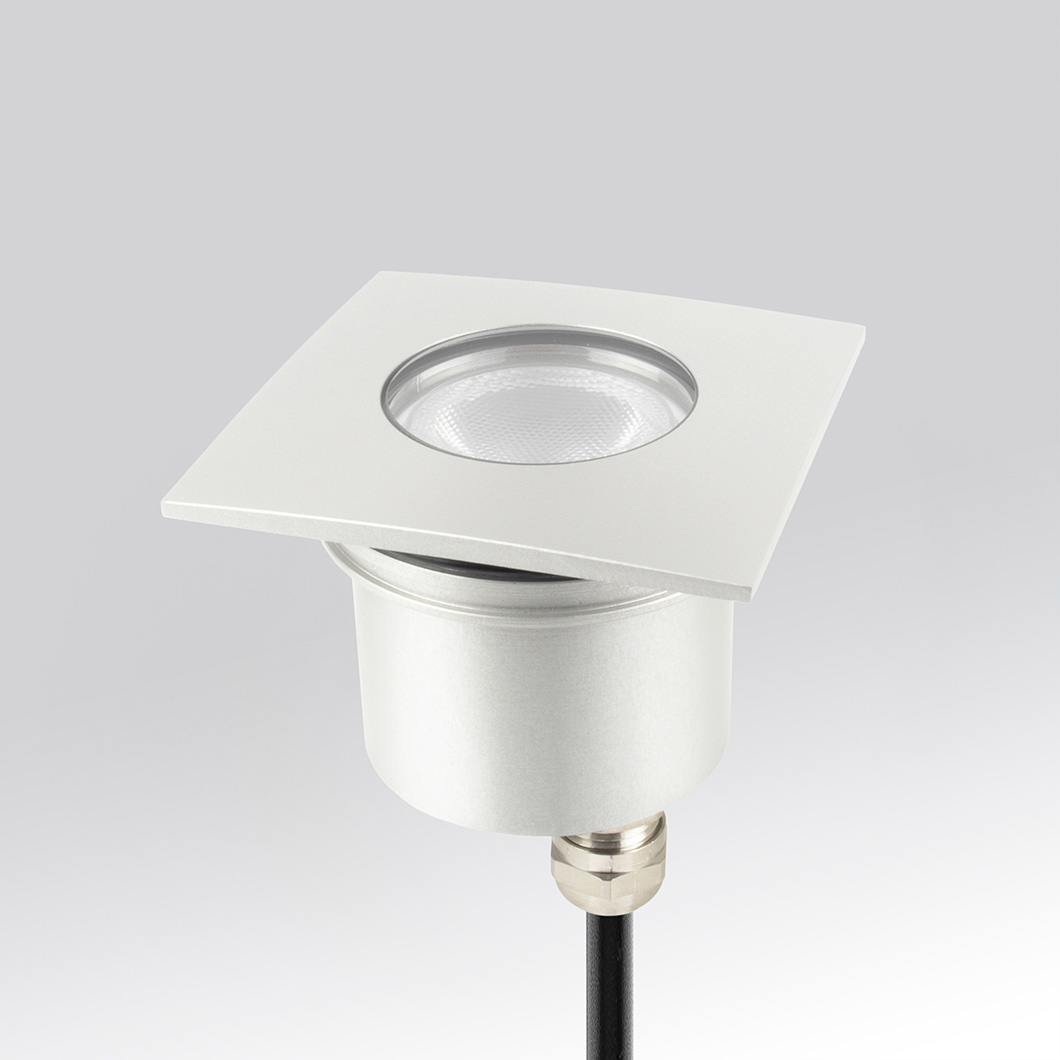

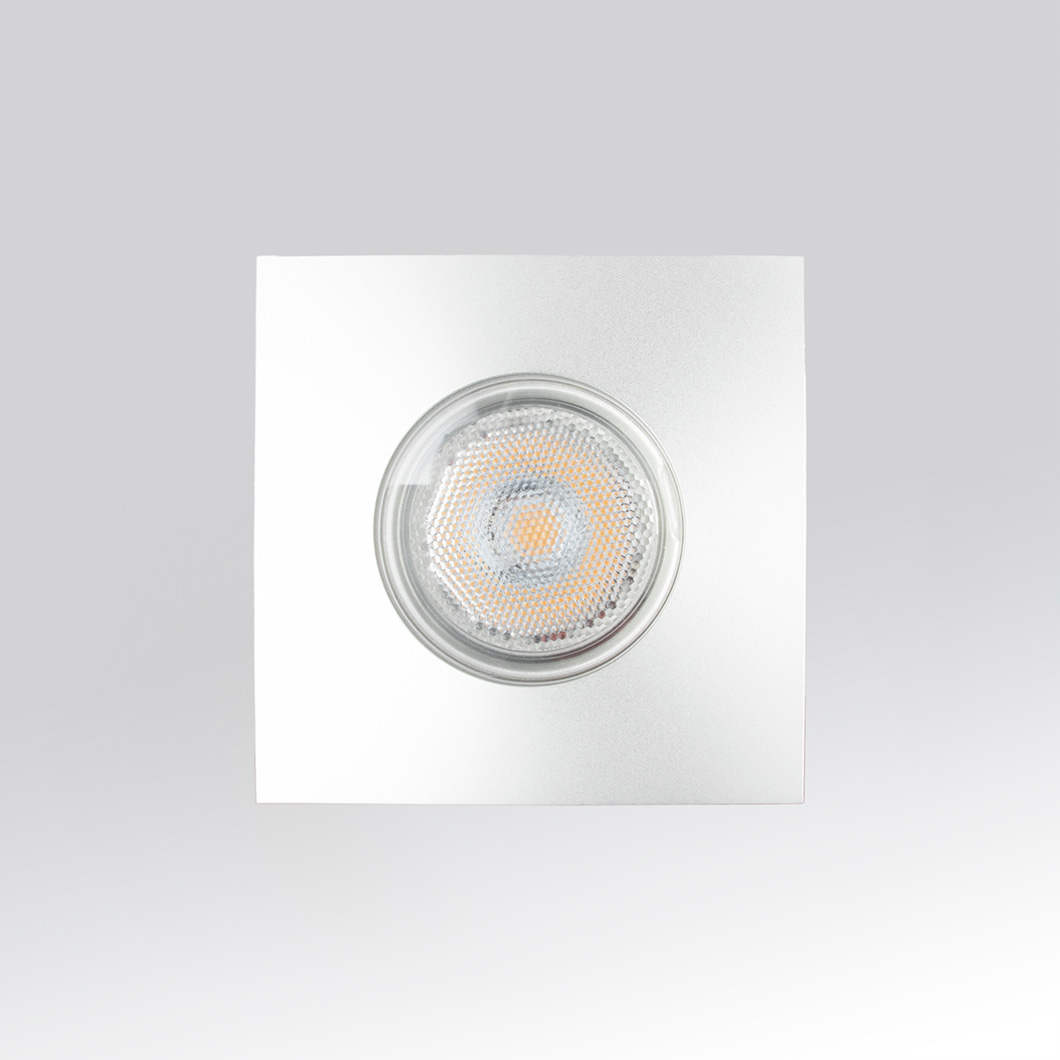

The LLD Altea Maxi Square Outdoor IP67 LED Recessed Floor Uplight is a sleek and sophisticated outdoor luminaire that can take a walk-over weight up to 500kg. A fixed optic that is suitable for floor, wall or ceiling installation, the Altea has an IP67 rating that makes it suitable for lighting exterior pathways, steps and gardens.
Altea Round utilises an energy efficient low wattage 4-6W LED light source with a narrow 8° / 16, medium 30° / 40°, wide 64° or diffused beam angle. Available in constant current or 24VDC constant voltage versions, and with a choice of 2700K, 3000K, 4000K, 5000K, red, green or blue light temperature. Constructed from an anticorodal aluminium body with weatherproof AISI 316L stainless steel trim & a tempered transparent glass / PMMA lens. Finished in anodised aluminium, steel or brushed steel. Supplied with a 500mm cable with WP System connection. The optional spring fitting should be used for installation into plasterboard or wood. The optional housing box should be used for installing Altea into the ground. Other sizes available - see below.
350mA (4W) or 500mA (6W) constant current driver (wired in series) or 24VDC constant voltage driver (wired parallel) required. This fitting is compatible with non dim, TRIAC dim, push dim, 1-10V dim and DALI dim drivers.
View the full LLD Light catalogue in the downloads tab.
Delivery usually within 2 weeks
- Specification
-
IP67
CC 4W 350mA or 6W 500mA | CV 6W 24VDC
Class III
500mm cable with Water Proof connection system
Push, 1-10V and DALI dimmable with compatible driver (not included)
Lens diameter: Ø35mm

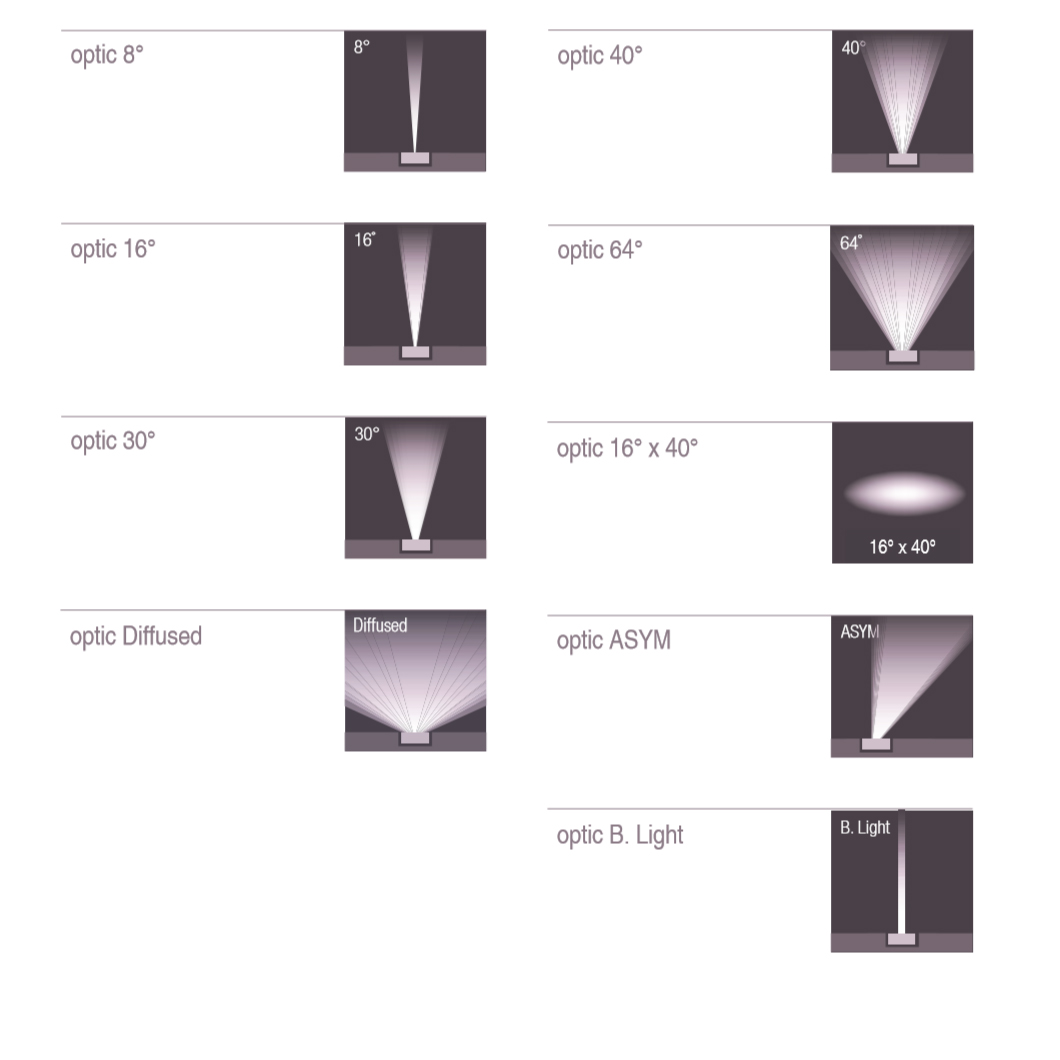

Beam angle: 8° | 16° | 30° | 40° | 64° | Diffused
Cutout: Ø53mm
Walk-over: up to 500kg
30cm gravel drainage
Constant current version - wired in series
350MmA (4W) or 500mA (6W) driver required
24VDC constant voltage version - wired parallel
24VDC (6W) driver required
Supply | CCT | Lumens (4W-6W)
CC | 2700°K | 400-560lm
CC | 3000°K | 440-600lm
CC | 4000°K | 480-640lm
CC | 5000°K
CC | Red
CC | Green
CC | Blue
24VDC | 2700°K | n/a-560
24VDC | 3000°K | n/a-600lm
24VDC | 4000°K | n/a-640lm
24VDC | 5000°K
24VDC | Red
24VDC | Green
24VDC | Blue
Optional housing box (CAW53): Ø60mm D.120mm
Optional spring (ML053): W.78mm D.19mm
Lamp type: LED 4-6W Lifespan 50,000hrs
- Dimensions
-
Product dimensions: W.65mm x D.65mm x H.58mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
