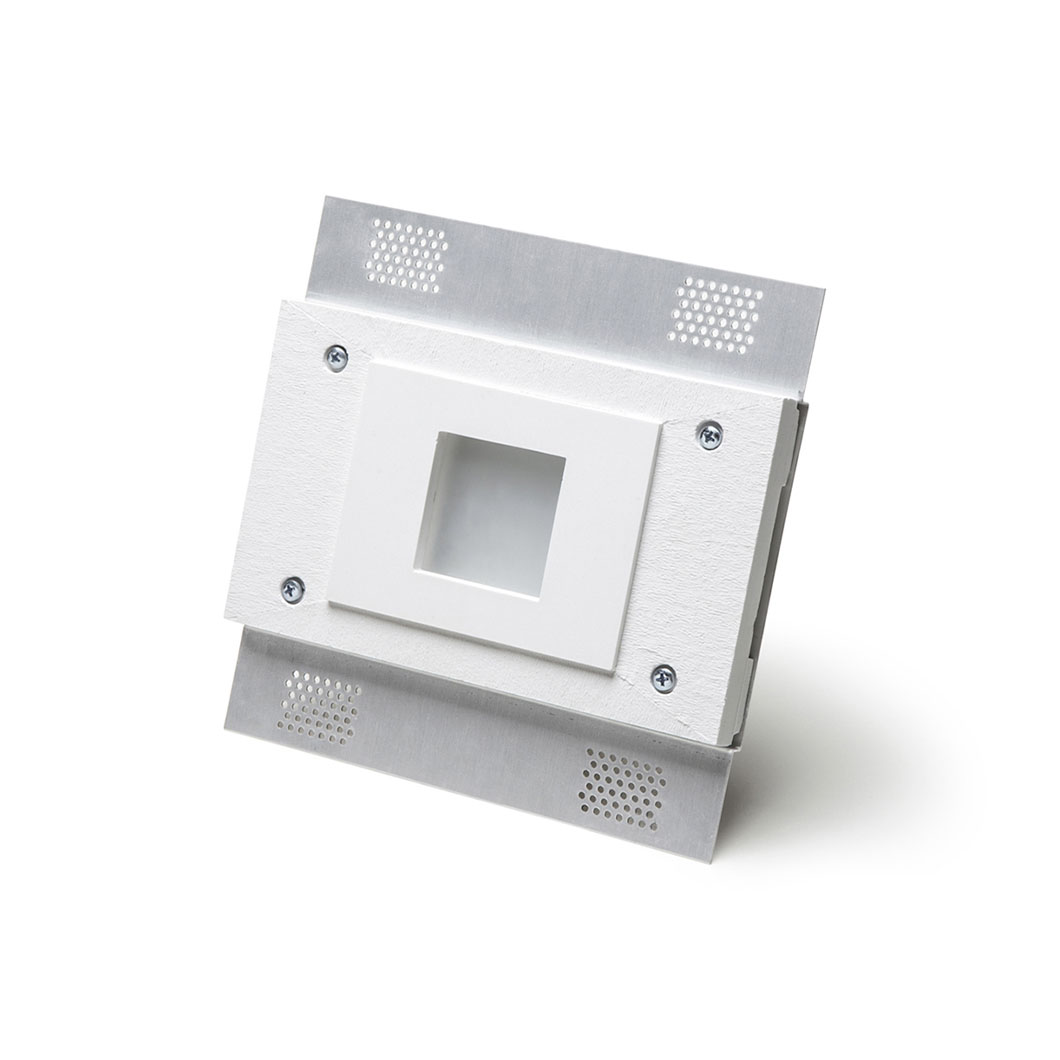

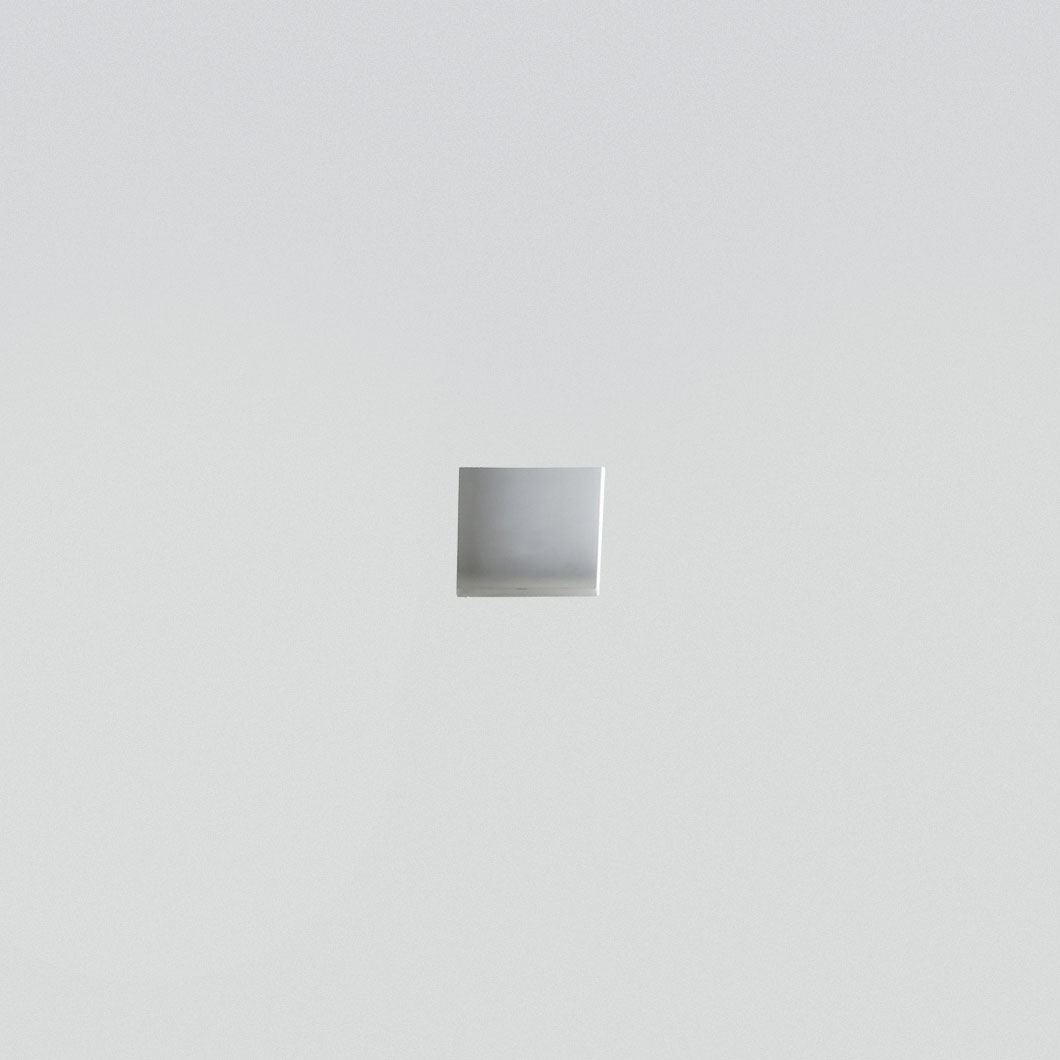

9010 Milli 4193 LED Plaster In Recessed Ceiling / Wall Light

Description

Meet Milli 4193 - a recessed plaster-in ceiling or wall light with a thickness of just 15mm! Designed specifically for installations where the distance between the plasterboard and wall/ceiling is minimal, Milli uses high performance LEDs and aluminium plate heat diffuser to radiate a soft, warm light. Available in 2700K, 3000K and 4000K, Milli is also available in 6.5W (offering 800-900 lumen output) or 13W with a output of 1500-1700 lumen.

Handmade in Italy, Milli is plastered seamlessly into the ceiling or wall and can be painted with any water-based paint, allowing the fitting to blend with the architecture. Made from an advanced compound technology developed by 9010 called CRISTALY® - see below.

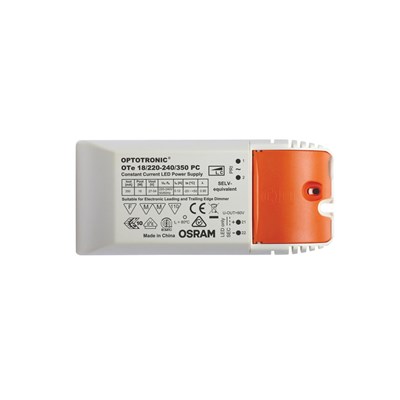

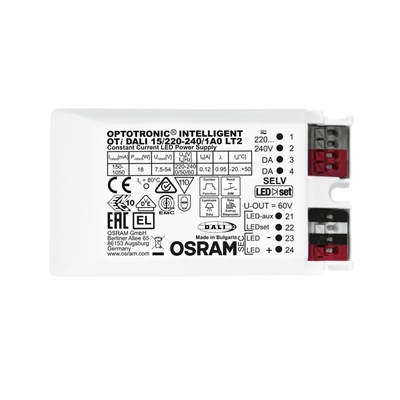

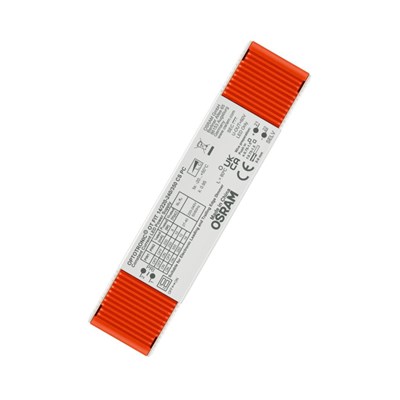

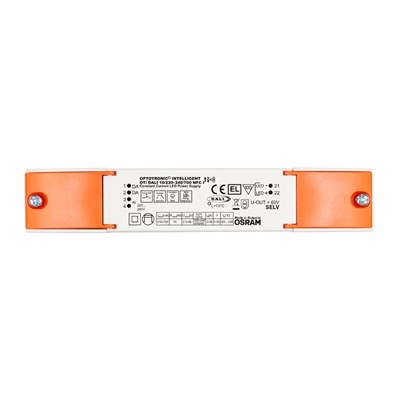

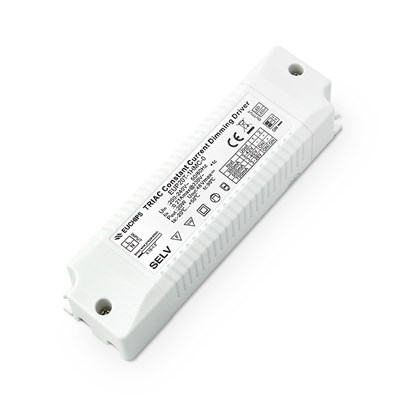

LED driver required - see 'You May Also Need' for compatible drivers (check driver supports 700mA for 13W version)

CRISTALY® - A compound that enhances light

Handmade in Italy from CRISTALY®, a new compound invented by 9010 Novantadieci that combines mineral elements and stabilizers to create a sensation of pureness and a matt surface finish. Compatible with plasterboard installations, the compound is:

• Non-toxic, chemically inert and hypoallergenic
• Air purification - transforms harmful bacterial substances in the air into harmless substances with a process similar to chlorophyll photosynthesis (the process works both in light and in dark)
• UV resistant
• Low thermal conductivity
• Non-deforming
• Non-flammable
• Dust repellent
• Perfect pure white surface
• Suitable for decoration with any water-based paint

This creates a material that combines strength, lightness and durability whilst being eco-friendly, non-toxic, recycled and solvent free.

Learn more about CRISTALY® by 9010 Novantadieci in the Downloads tab.



Specification

CRI 90
IP20/44
Class III
Power/Constant Current: 6.5W/350mA | 13W/700mA

4193-2706: LED 6.5W 2700K 800lm 350mA

4193-3006: LED 6.5W 3000K 850lm 350mA

4193-4006: LED 6.5W 4000K 900lm 350mA

4193-2708: LED 13W 2700K 1500lm 700mA

4193-3008: LED 13W 3000K 1600lm 700mA

4193-4008: LED 13W 4000K 1700lm 700mA

Video - how to install:

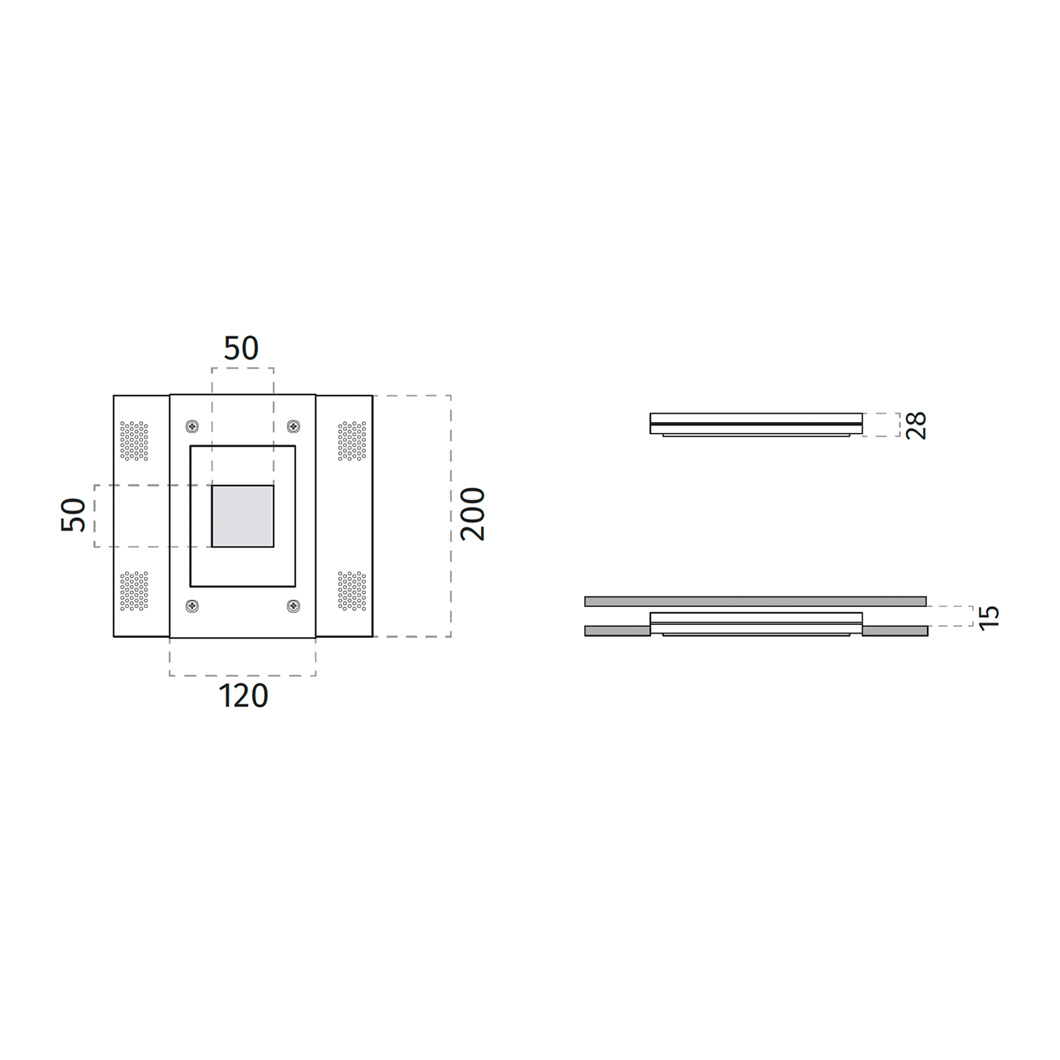

Dimensions

Product dimensions: W.200mm x D.15mm x H.120mm

Cutout dimensions: W.205mm x H.125mm

Downloads

• Milli 4193 | LED 2700K | 6W | Data Sheet PDF
• Milli 4193 | LED 2700K | 13W | Data Sheet PDF
• Milli 4193 | LED 3000K | 6W | Data Sheet PDF
• Milli 4193 | LED 3000K | 13W | Data Sheet PDF
• Milli 4193 | LED 4000K | 6W | Data Sheet PDF
• Milli 4193 | LED 4000K | 13W | Data Sheet PDF
• Milli 4193 Install Instructions PDF
• Lighting File Milli 4193 LDT

Delivery and warranty

Handmade in Italy - delivery usually within 4-5 weeks

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

About the manufacturer

The 9010 Novantadieci collection is a benchmark in recessed plaster-in lighting - evolving into an ever more complete range utilising innovative designs, creative lighting applications and the ultimate generation of LEDs. Vast experience as a leading Italian ceramic and lighting company has led to the creation of Alpha Plus® - successfully combining mineral elements and stabilizers to create a matt surface finish with high UV and thermal resistance, and is non-allergenic, non-toxic and paintable with any water based paint. It is this fusion of tradition with technology that puts 9010 at the forefront of plaster in lighting.
