- Description
-

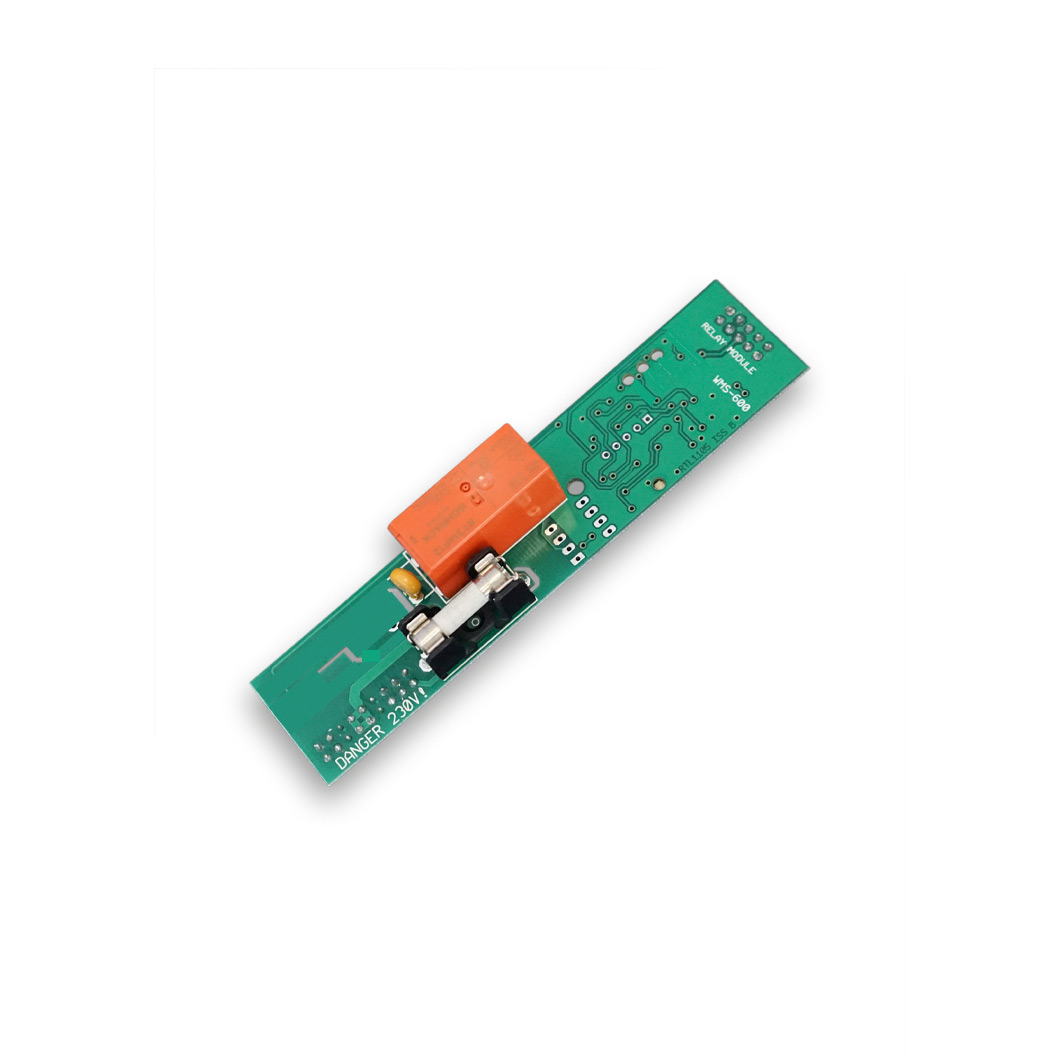

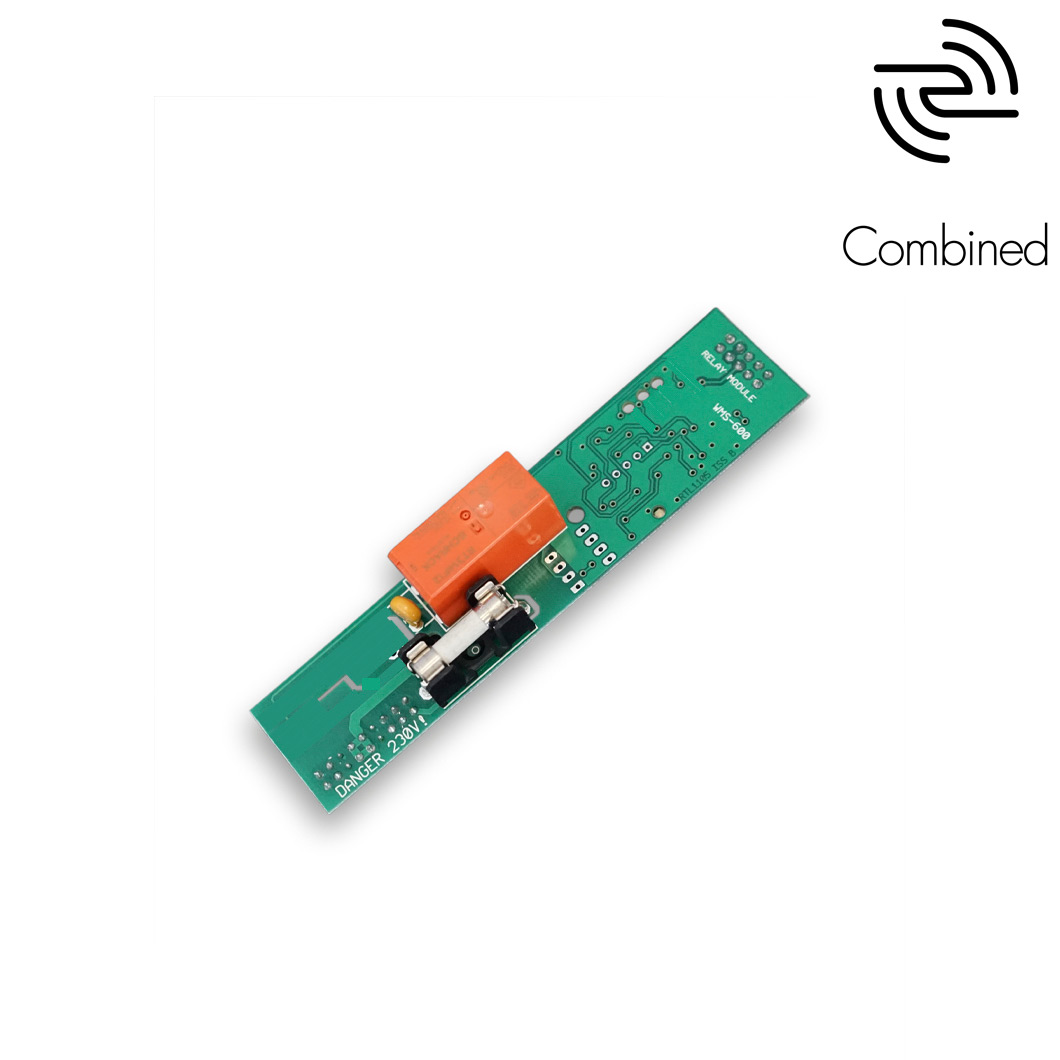

The Rako WMS-600 pluggable module is for non-dimmable loads or other outputs that require mains switching - for use with the RAK8-MB motherboard.
- The WMS-600 is a pluggable switching module to be used with the RAK8-MB.
- The unit is plugged directly into one of the slots on the RAK8- MB.
- The WMS-600 is for use with non dimmable lighting loads, extractor fans or any other switched mains output applications.
The WMS-600 combines with the RAK8-MB to provide a centralised lighting control system that can integrate with either wireless or wired Rako products. As with all RAK8 pluggable modules no memory is stored on the WMS-600. All programming is stored on the motherboard meaning the WMS-600 can be swapped with any other module without the need to be reprogrammed.
For install enquiries contact us on:
[email protected]
01189 882294
or on our website Live Chat
- Specification
-
Maximum Loading: 600W
Minimum Loading: 1W
Weight: 55g
Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing
Standards:
Emissions - EN61000-6-3 : 2001
Immunity - EN61000-6-1 : 2001
Communication:
RS485 to other RAKs, RX-Link and RAK-Link
Connections: Pluggable module
- Dimensions
-

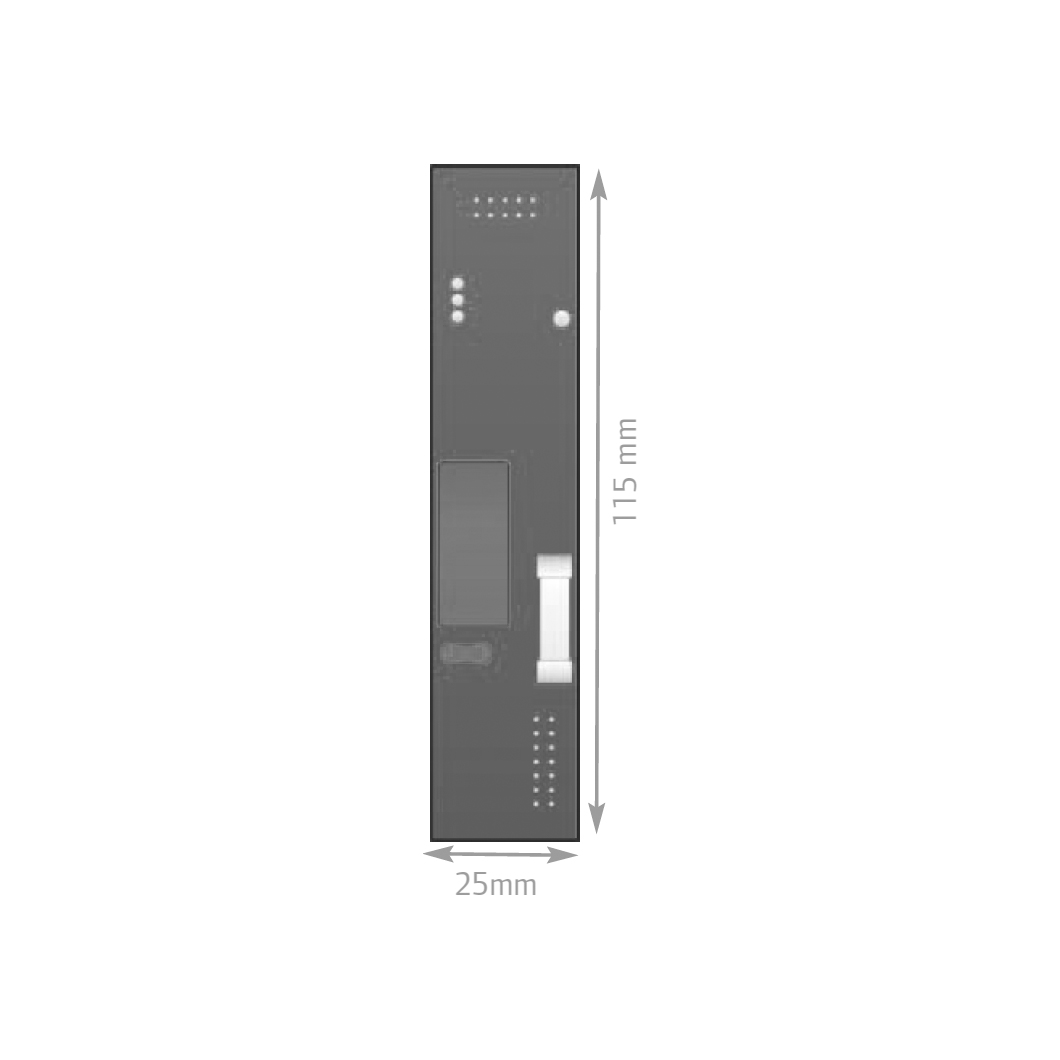

Product dimensions: W.25mm x D.115mm x H.24mm
- Downloads
-
- Delivery and warranty
-
Delivery usually in 1-2 weeks
Supplied with a 3 year 'return to base' warranty
