Rako WML-300 Combined Leading Edge Plug-In Dimmer for RAK8-MB

Description

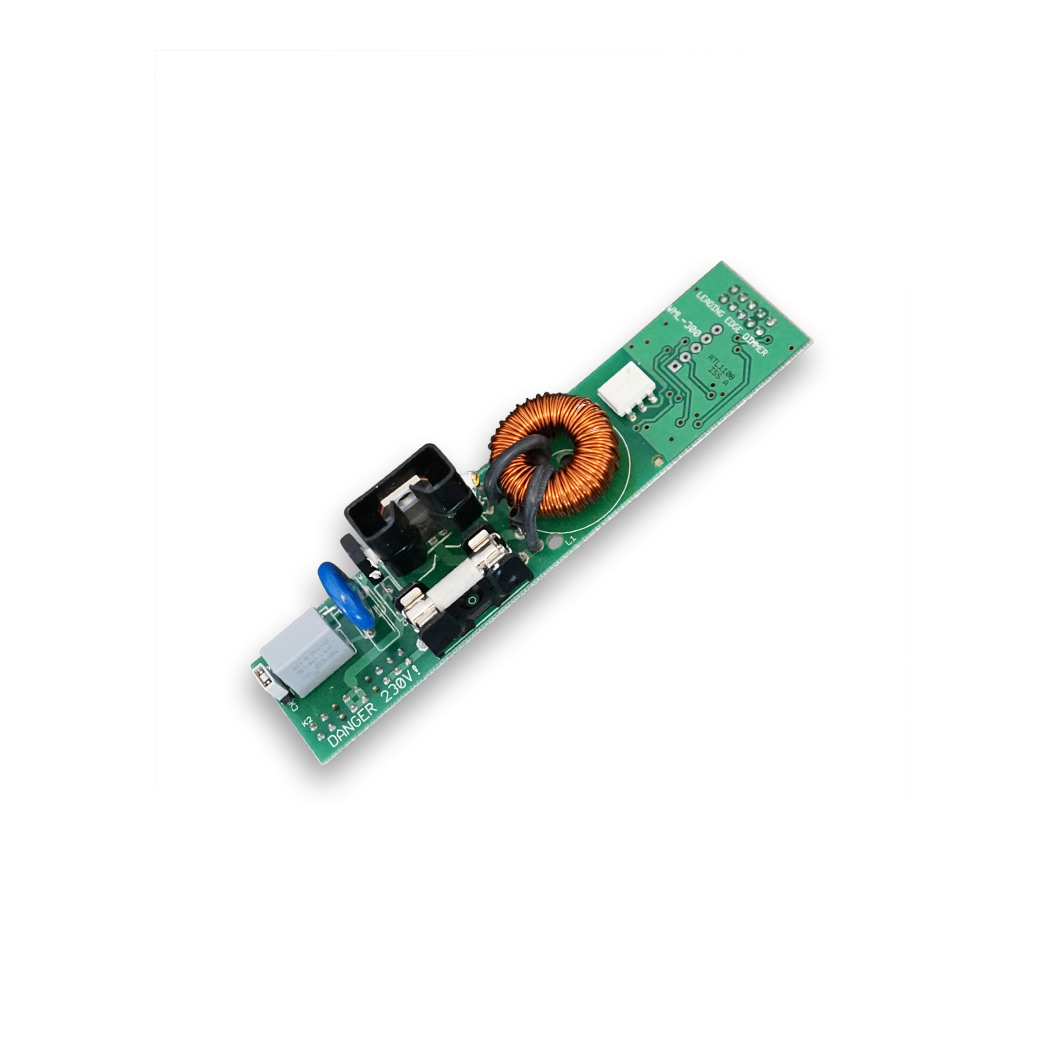

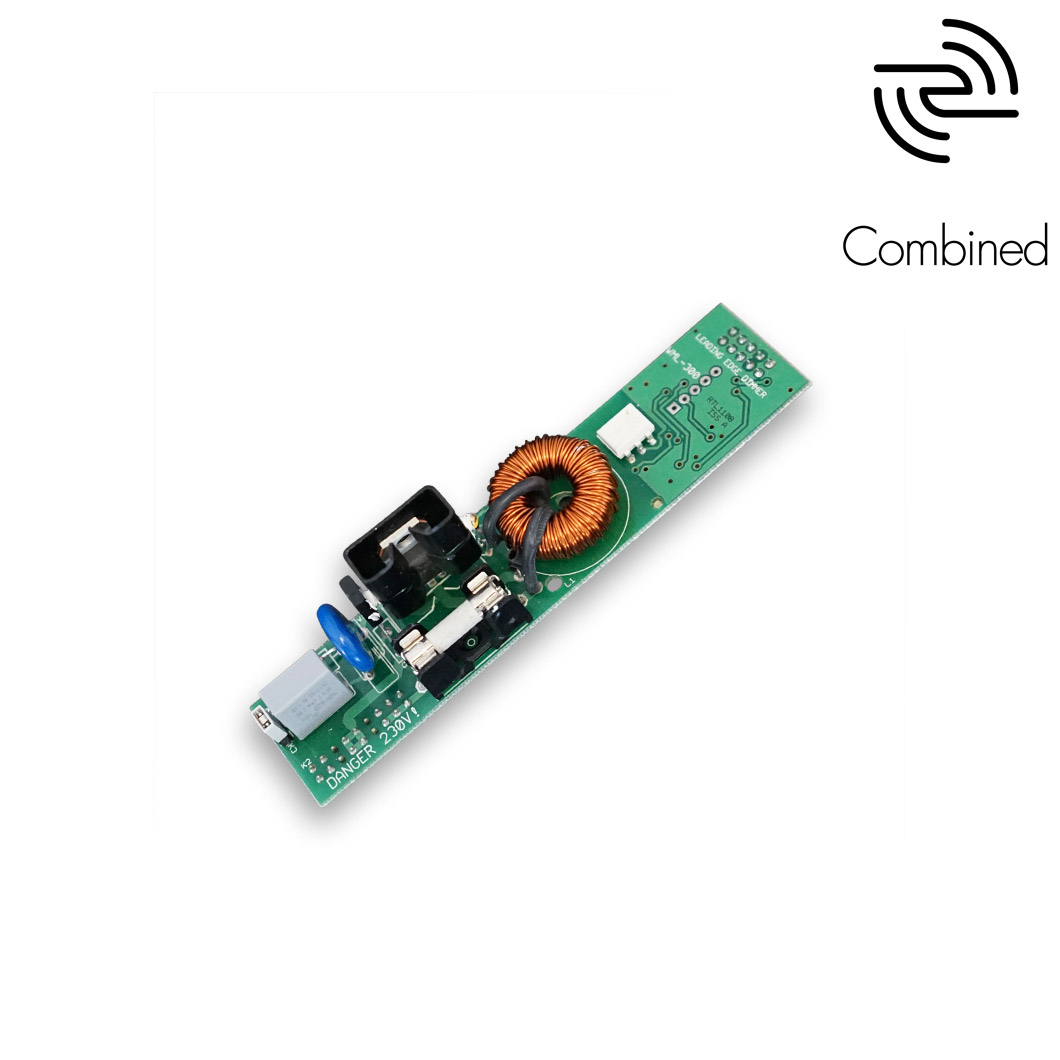

The Rako WML-300 pluggable module is suitable for Tungsten, Low Voltage Halogen and other leading edge dimmable loads with the RAK8-MB motherboard.

• A pluggable leading edge dimmer module to be used with the RAK8-MB.
• The unit is plugged directly into one of the slots on the RAK8-MB.
• The WML-300 can be used in combination with any of the other modules compatible with the RAK8 allowing for greater flexibility during both specification and installation.

The WML-300 combines with the RAK8-MB to provide a centralised lighting control system that can integrate with either wireless or wired Rako products. The WML-300 is compatible with all leading edge dimmable loads such as incandescent mains voltage lamps, leading edge dimmable transformers and leading edge dimmable cold cathode fittings. If the load is inductive (any form of wire-wound transformer) the WML-300 must be used as they will damage trailing edge dimmers.

As with all RAK8 pluggable modules no memory is stored on the WML-300. All programming is stored on the motherboard meaning the WML-300 can be swapped with any other module without the need to be reprogrammed.

For install enquiries contact us on:

    [email protected]

    01189 882294

or on our website Live Chat

Specification

Maximum Loading: 300W

Minimum Loading: 20W

Weight: 50g

Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing

Standards:
Emissions - EN61000-6-3 : 2001
Immunity - EN61000-6-1 : 2001

Communication:
RS485 to other RAKs, RX-Link and RAK-Link

Connections: Pluggable module

Dimensions

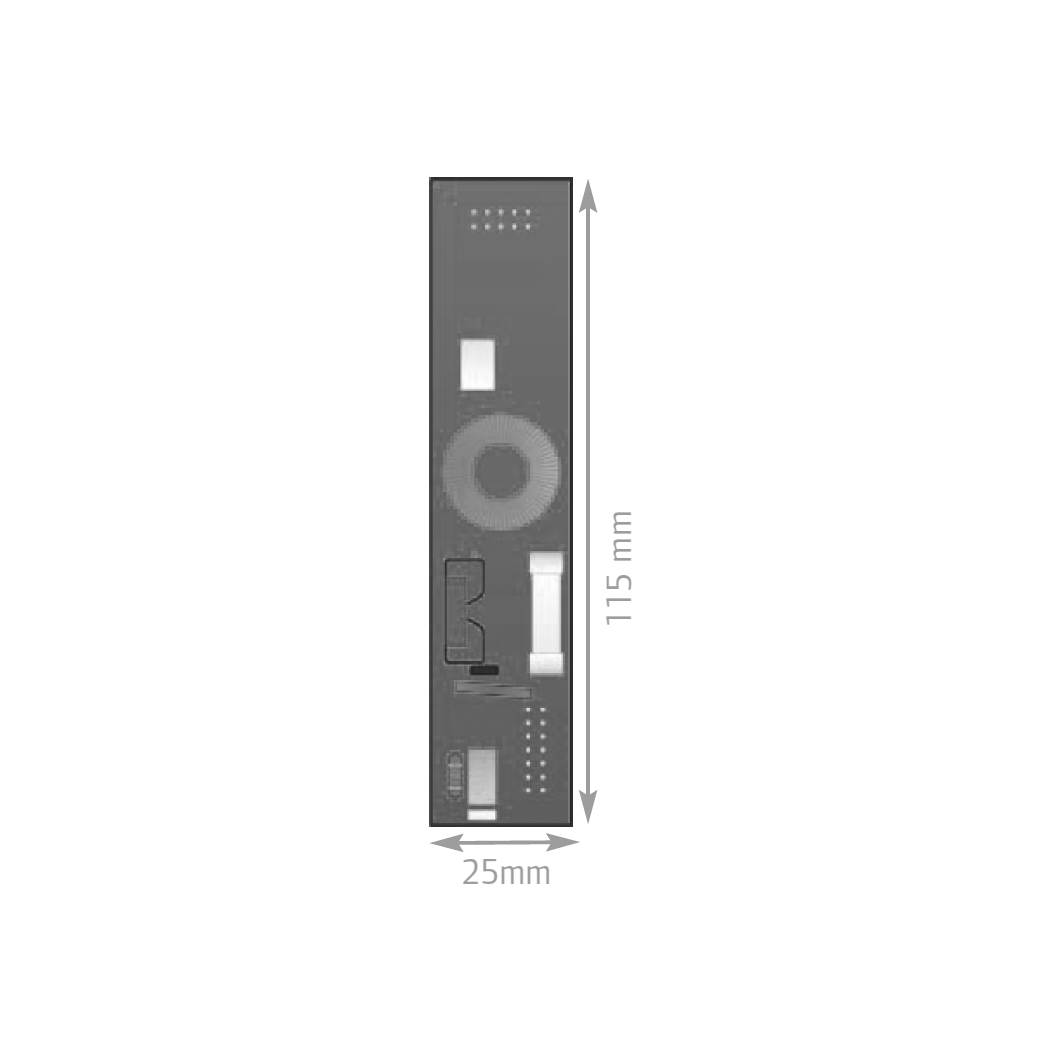

Product dimensions: W.25mm x D.115mm x H.28mm

Downloads

• Rako WML 300 Data Sheet PDF

Delivery and warranty

Delivery usually in 1-2 weeks

  Supplied with a 3 year 'return to base' warranty
