- Description
-

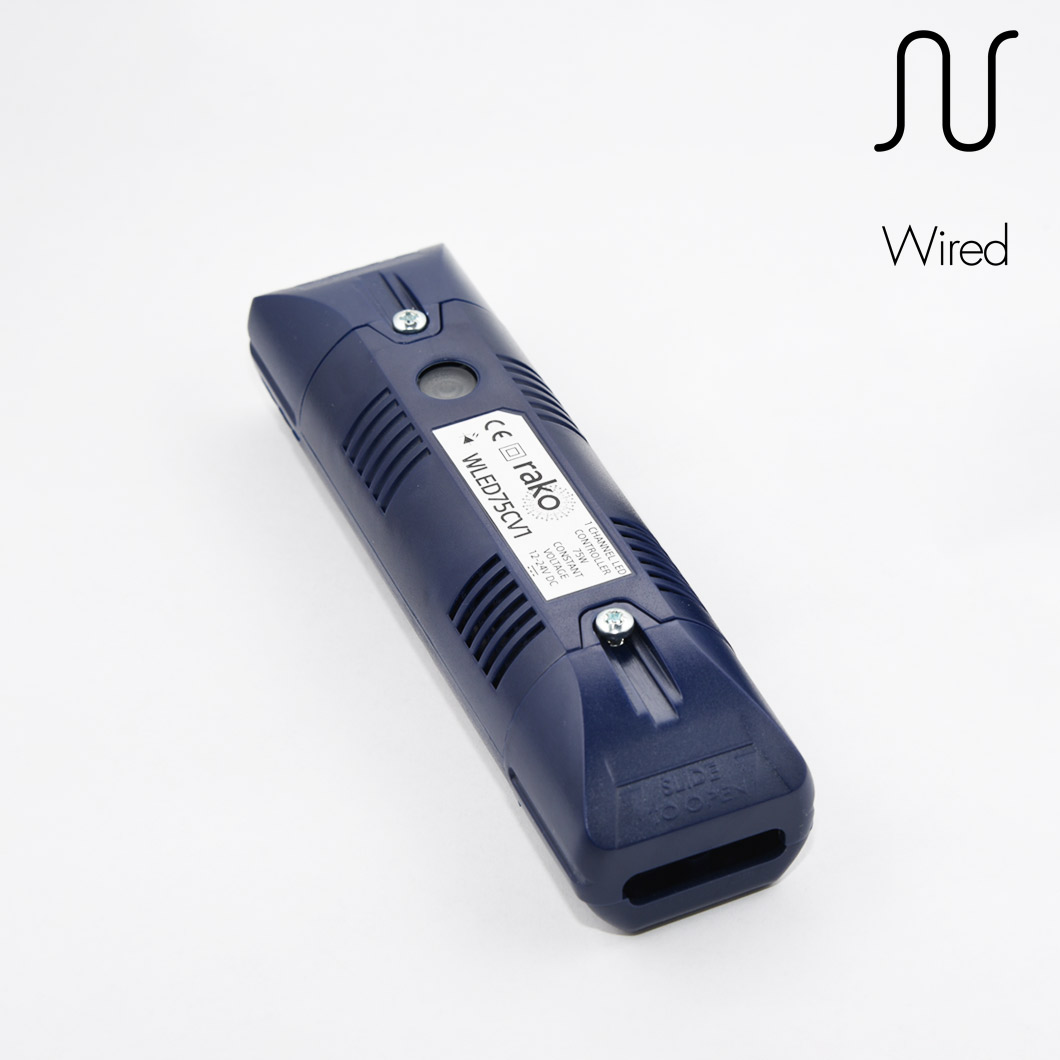

Suitable for ceiling or cupboard mounting, the WLED75CV1 is a wired 75W constant voltage dimming LED driver.
- A compact single channel 75W constant voltage LED dimmer with in-built wired receiver and Rako processor for control of single channel constant voltage LED fittings.
- Controlled from any Rako Wired device, e.g. WCM, WAPIR or from wireless devices via a WA/WTC-Bridge or a WRB100.
Designed for use with single channel constant voltage LED fittings and single channel LED tape light. Maximum wattage of 75W for 12VDC fittings or 150W for 24VDC fittings. Requires a suitable external DC power supply (normally the power supply that would be supplied with the fitting for a non-dimming application).
Programmed using the RASOFT PC software suite, the unit stores the house, room and channel address plus 16 preset scene levels in non volatile memory.
Connection to the Rakom wired network can be via the RJ11 lead, plugging into a RAKLink or RAKStar unit. Alternatively a WPCON or WPCONC unit can be used as a remote plug in connection point. Installing a Bridge or WRB100 as part of the wired system will allow the WLED75CV1 to receive commands from wireless devices as part of a “combined” or “hybrid” system.
For install enquiries contact us on:
[email protected]
01189 882294
or on our website Live Chat
- Specification
-
Input Supply:
12V/24V DC power supply depending on load 12-18V DC supply from Rako wired network for control
Housing:
UL V0 ABS
Weight:
175g
Climate Range:
Temperature +2C to +40C
Humidity +5% to 90% non condensing
Connections:
2 way screw terminals for 12-24V DC supply
2 way screw terminals for load connections
Protection:
Reverse polarity input protection
Output current limit protection
Load Type:
Single channel constant voltage LED fittings and tape
Min/Max Loads:
Min: 1W
Max: 75W @ 12V DC / 150W @ 24V DC
Terminal Sizes:
4 mm2
Standards:
Emissions - EN61000-6-3 : 2007
Immunity - EN61000-6-1 : 2007
Communication:
Rakom wired network
Memory:
Flash memory (non volatile)
- Dimensions
-

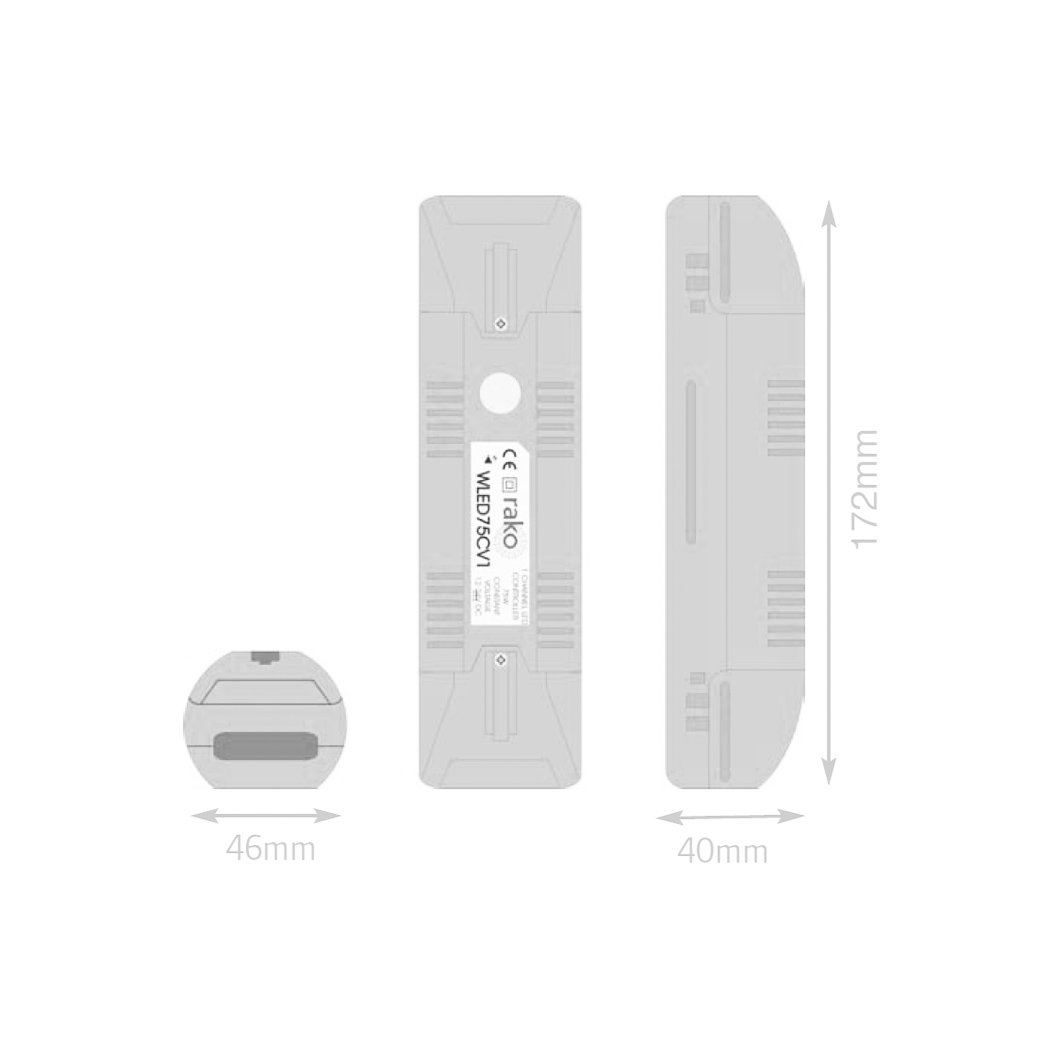

Product dimensions: W.46mm x D.172mm x H.40mm
- Downloads
-
- Delivery and warranty
-
Delivery usually in 1-2 weeks
Supplied with a 3 year 'return to base' warranty
