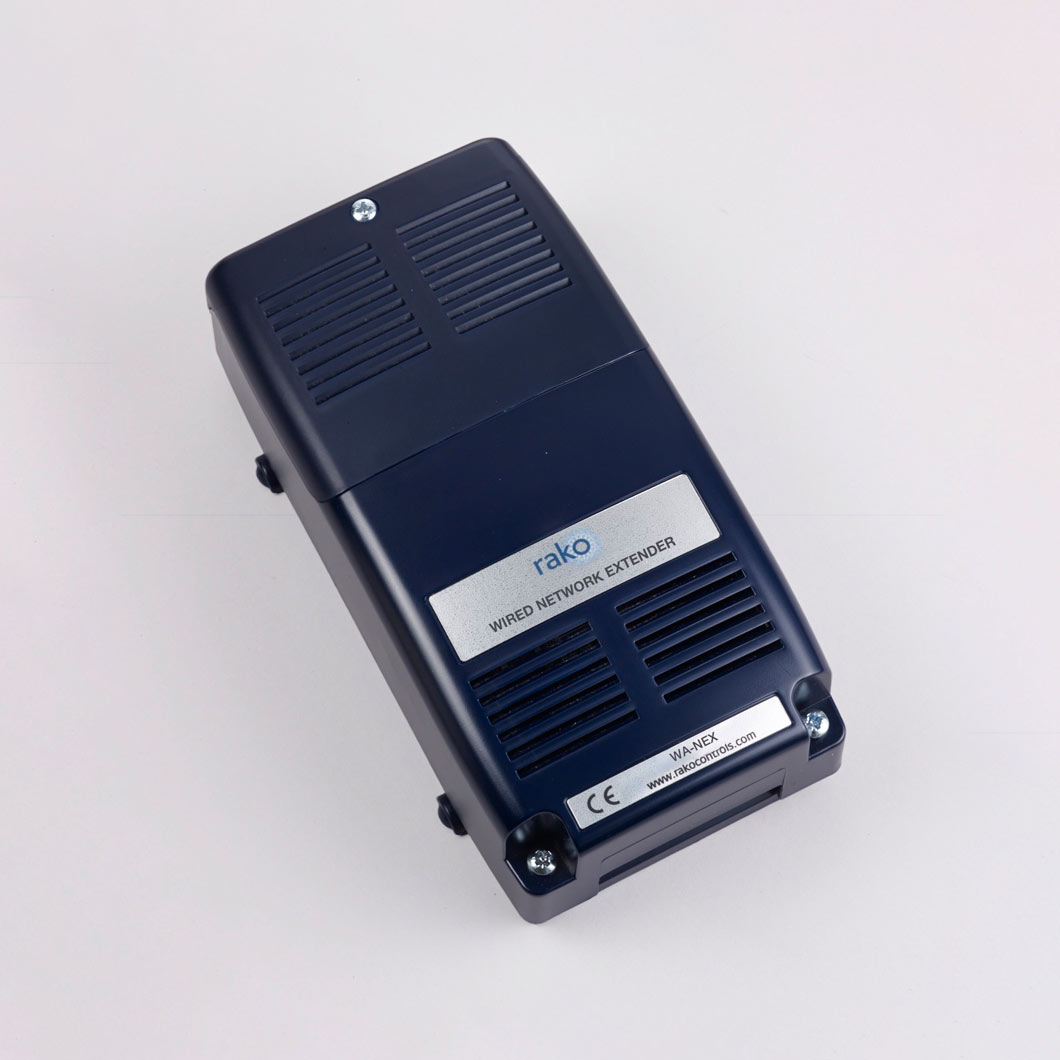

Rako WANEX Wired Network Extender

Description

The Rako WANEX is a network extender for large Rakom networks, creating two linked Rakom networks. Can be used when the maximum data cable length of 3km is exceeded (more common when using RAK-STAR units).

The WA-NEX can also be used when site wiring prohibits the correct connection of a daisy chain system creating a second network for a connection that would otherwise form a spur on the network.

For install enquiries contact us on:

    [email protected]

    01189 882294

or on our website Live Chat

Specification

Housing:
UL V0 ABS

Weight:
280g

Climate Range:
Temperature +2C to +40C
Humidity +5% to 90% non condensing

Connections:
RJ11 or Krone punch-down connections for each network - Rakom wired network

Standards:
Emissions - EN61000-6-3 : 2007
Immunity - EN61000-6-1 : 2007

Memory:
Flash memory (non volatile)

Dimensions

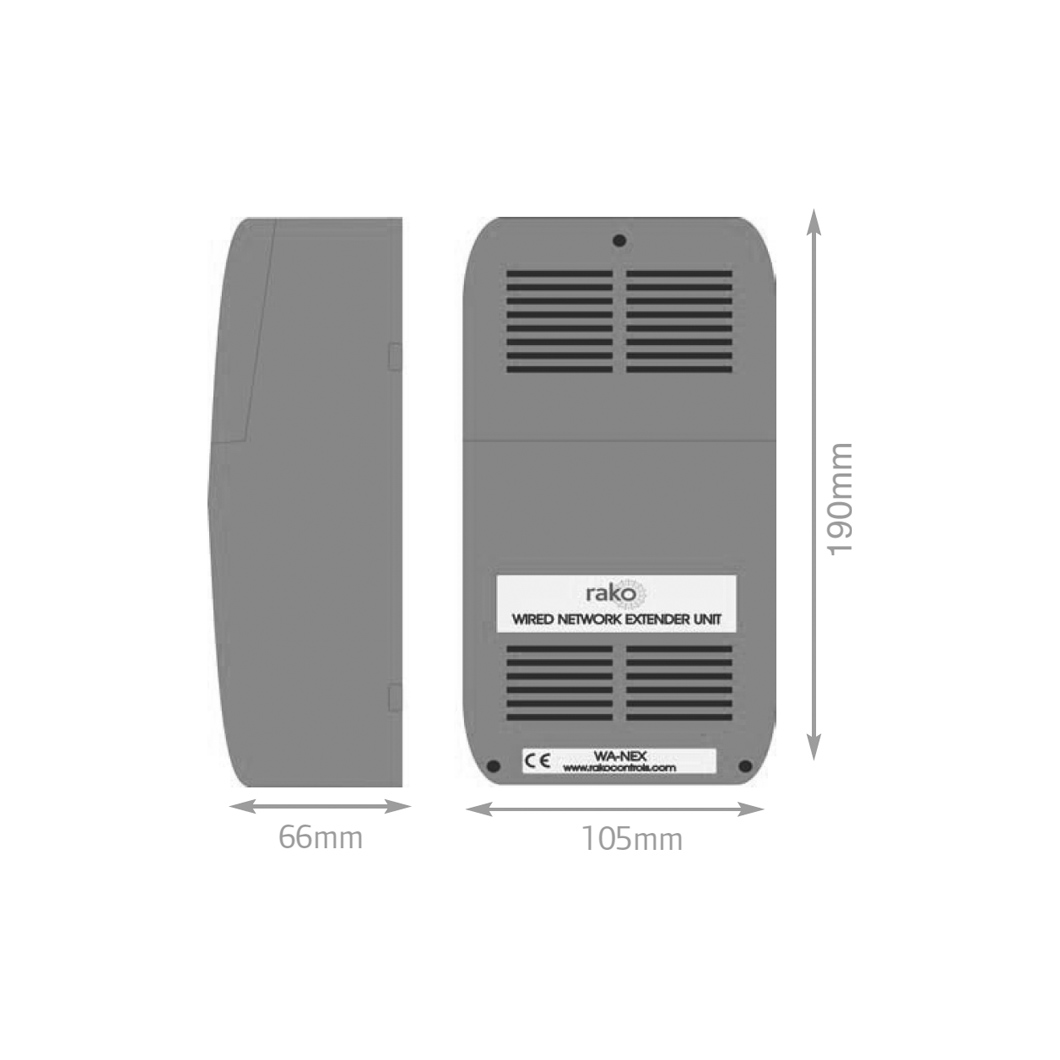

Product dimensions: W.105mm x D.190mm x H.66mm

Downloads

• Rako WANEX Data Sheet PDF
• Rako WANEX Install Instructions PDF

Delivery and warranty

Delivery usually in 1-2 weeks

  Supplied with a 3 year 'return to base' warranty
