- Description
-

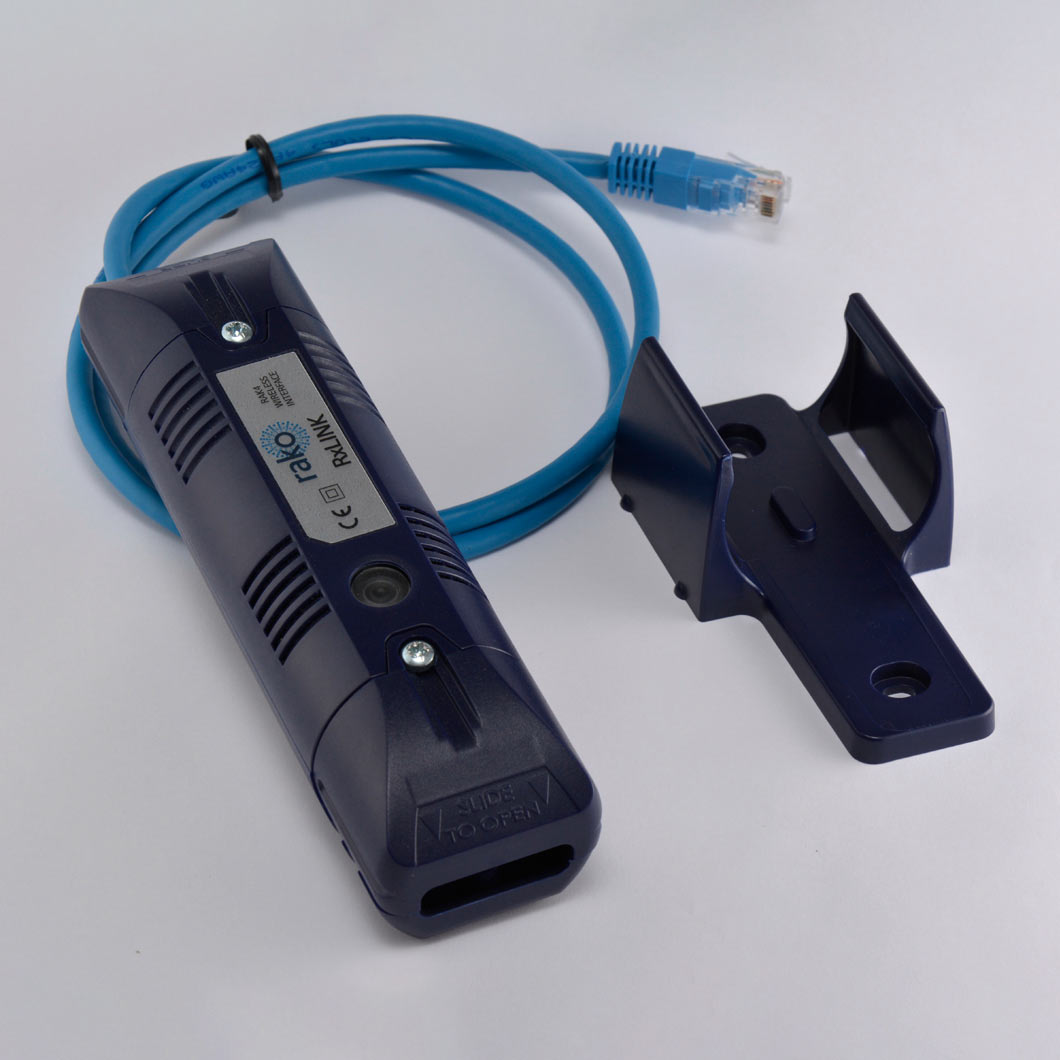

The RX-LINK module provides RF reception for the RAK8-MB motherboard in a wireless system
- Designed to be the gateway between Rako transmitter devices and the RAK8-MB motherboard in a wireless system.
- Can only be configured using the Rako RASOFT programming software.
- Can be connected to a stack of up to 2 RAK8-MB motherboards to provide up to 16 dimming channels.
The RX LINK module allows control of RAK8-MB motherboard via the RJ45 connection, from any Rakom device. The supplied 1 metre RJ45 patch lead can be replaced with longer lengths of standard UTP CAT5 cable, allowing the RX-LINK to be located up to 100 meters from the RAK8-MB motherboard.
Configured using the Rako RASOFT software, the RX-LINK can be connected to a stack of up to 2 RAK8-MB motherboards to provide up to 16 dimming channels.
For install enquiries contact us on:
[email protected]
01189 882294
or on our website Live Chat
- Specification
-
Input Supply:
200-260V AC 50/60Hz
6A Type B MCB protection required
Supply Output: 12V DC regulated (from RAK4 dimmers)
Housing: UL V0 material
Weight: 165g
Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing
Connections:
4 way punch-down IDC connector
Unit comes complete with 1m RJ45 patch lead attached
Standards:
Emissions - EN61000-6-3 : 2007
Immunity - EN61000-6-1 : 2007
LVD - EN 60950-1 :2006
Communication:
Rakom coded fm radio, 433.9MHz
Connections:
Flash memory (non volatile)
- Dimensions
-
Product dimensions: W.171mm x D.46mm x H.40mm
- Downloads
-
- Delivery and warranty
-
Delivery usually in 1-2 weeks
Supplied with a 3 year 'return to base' warranty
- About the manufacturer
-
Made in Britain, Rako smart lighting controls and systems are easy to use, easy to install & cost effective. Leading the way in providing state-of-the-art digital dimming technology, Rako provides innovative solutions for both wired systems (perfect for new build projects), wireless systems (ideal when it isn't possible to replace wiring) or a hybrid of both.
Perfect for modern living, Rako systems can be easily controlled with tablets, smartphones and smartwatches. Set up lighting scenes that allow you to select a pre-set lighting scene or change the mood lighting at the touch of a button. Rako offer a full suite of control panels, cover plates, control modules and dimmers, hubs and interfaces. If you're looking for fully integrated smart home mood lighting systems, you're in the right place.
Rako won the Smart Building Awards for Best Lighting Control product and the CEDIA EMEA Award for Best New Hardware for 2022.
