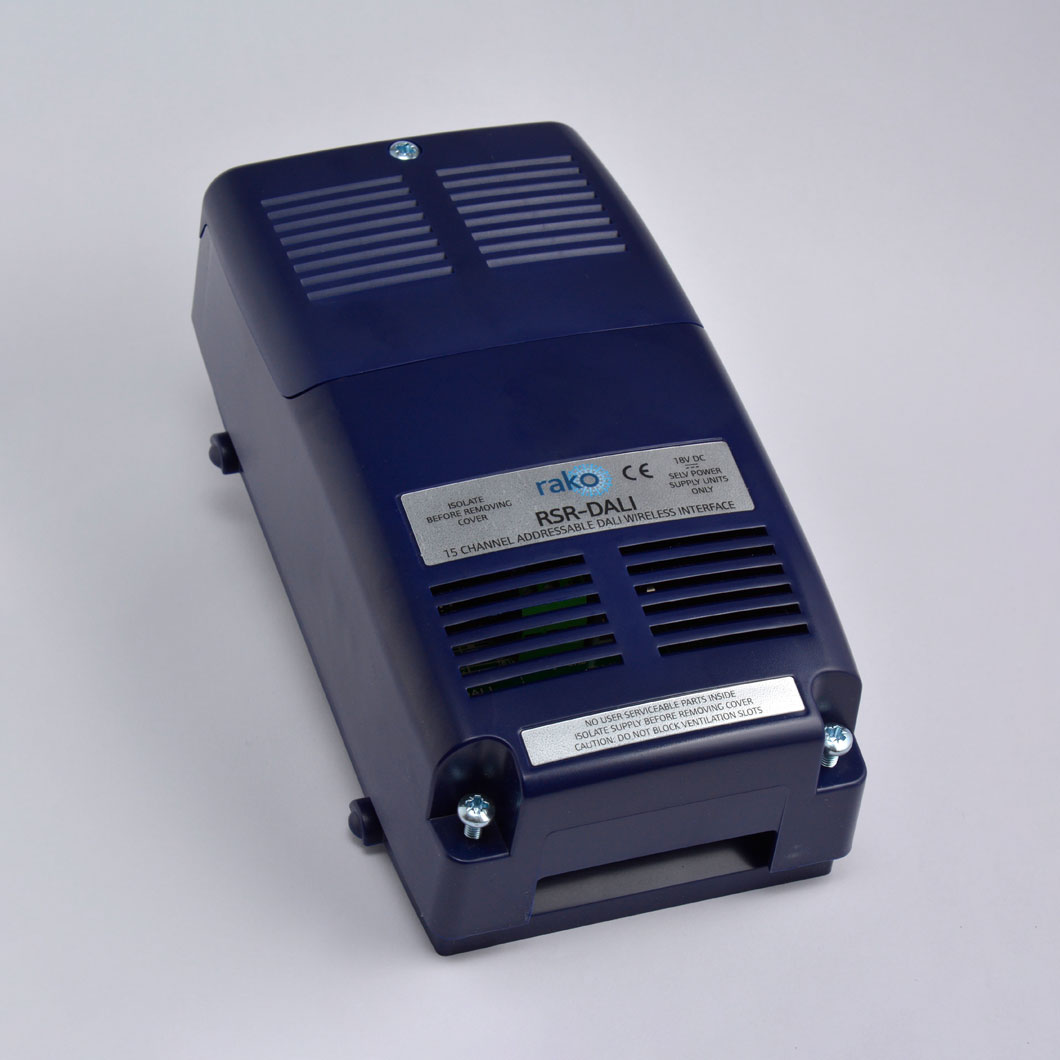

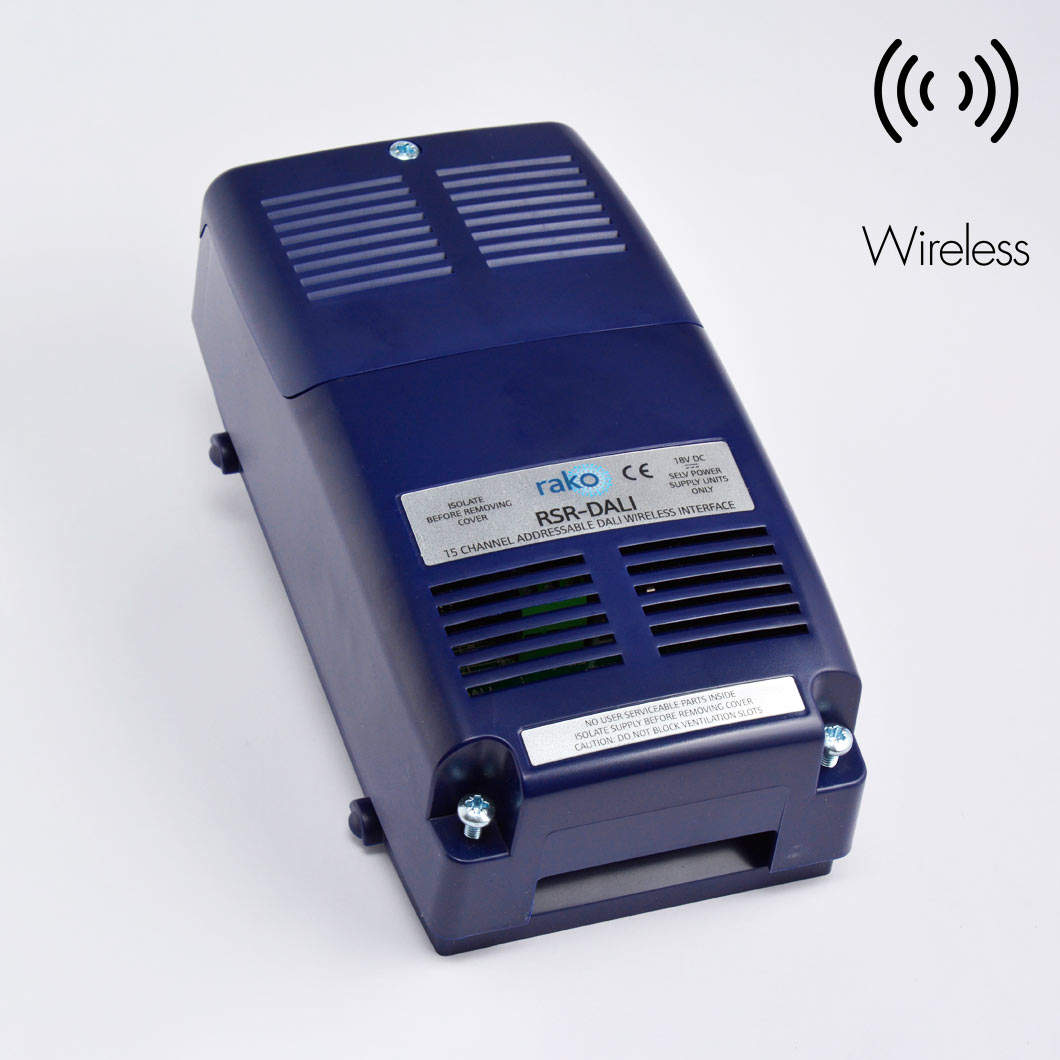

The Rako RSR-DLI is a wireless control module giving control of up to 15 addressable channels of DLI controllable fittings in a single Rako Room.
- Individual DLI fittings can be grouped to Rako channels and the unit includes an address recovery function allowing should one DLI fitting need replacing.
- Controlled from any Rako Rakom RF device, for example the RCM/RNC push button RF wallplates.
The RSR-DLI allows a wireless Rako system to have addressable control of Digital Addressable Light fittings. The module is complete with an 18V DC power supply that powers the DLI network.
Programming is achieved with Rasoft Pro and allows Auto addressing of DLI devices. Swap, Move and Group functions allow the user to achieve a logical arrangement of devices for programming.
The RSR-DLI controls up to 64 DLI devices grouped to 15 channels of control in a single Rako Room. Note: The RSR-DLI is not supported by Rasoft Classic Software.
For install enquiries contact us on:
[email protected]
01189 882294
or on our website Live Chat
- Specification
-
Input supply: 18V DC
Weight: 340g
Housing: UL V0 ABS
Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing
Connections: 4 way screw terminal for loop in loop out
Standards:
Emissions - EN61000-6-3: 2007
Immunity - EN61000-6-1: 2007
LVD - EN 60950-1: 2006
Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)
- Dimensions
-

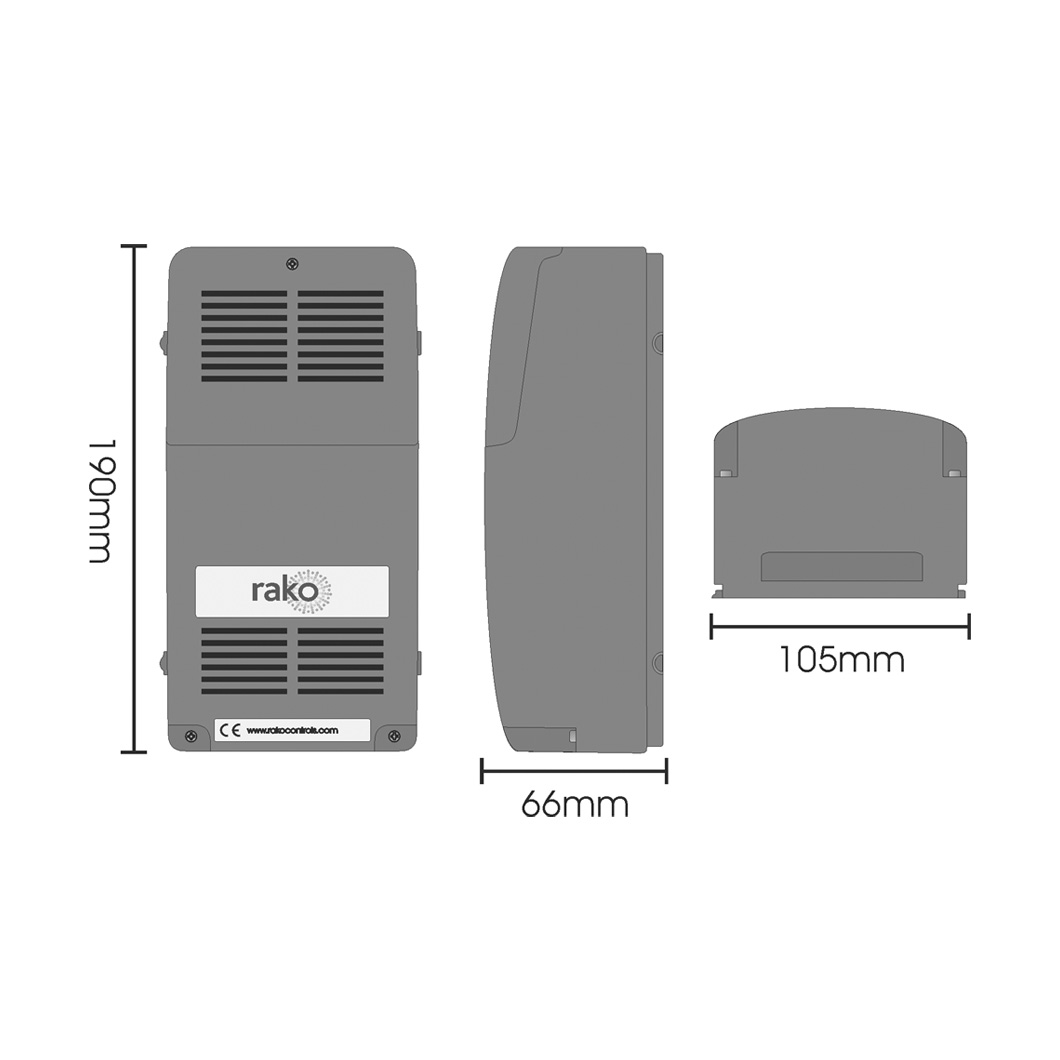

Product dimensions: W.105mm x D.190mm x H.66mm
- Downloads
-
- Delivery and warranty
-
Delivery usually in 1-2 weeks
Supplied with a 3 year 'return to base' warranty
