Rako RLED45CCI Wireless 45W Constant Current Dimming Module

Description

The Rako RLED45CC1 is a wireless 45w constant current dimming LED module, suitable for ceiling or cupboard mounting.

• A compact 45W constant current LED dimmer with in-built RF receiver and Rako processor for constant current LED fittings.
• Selectable outputs of 350, 500, 600, 700 and 1000mA with a forward voltage range of 3-45V DC.
• The module is designed to fit through a ceiling cut-out of 50mm diameter or greater.
• The module is connected in-line before the first fitting and can control up to 13 LEDs in series (note: some fittings may use multiple LEDs, if in doubt refer to Rako's technical department) with a maximum wattage of 45W.
• Controlled from any Rako Rakom device, e.g. RCM wall plates or Bridge interface units.

Designed to fit through a ceiling cut-out of 50mm diameter or greater, the RLED45CC1 is fed from a suitable DC power supply to provide an adequate forward voltage. The RAPSU48 is recommended.

The unit can also be used for exterior lighting control applications with the use of a weatherproof IP rated enclosure. Programmed using either an RCM RF wallplate or the RASOFT software suite, the unit stores the house, room and channel address plus 16 preset scene levels in non volatile memory. The RLED45CC1 dimmer can be controlled from any Rako transmitter such as RCM wallplates, RAH hand helds and Bridge modules and forms the foundation of any Rako scene-set system.

NOTE: Requires a suitable external power supply such as the Rako RAPSU48.

For install enquiries contact us on:

    [email protected]

    01189 882294

or on our website Live Chat

Specification

Input supply: 48V DC max

Weight: 177g

Housing: UL V0 ABS

Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing

Connections:
4 way screw terminals for supply
2 way screw terminals for load connections

Load Types: Constant Current LED Fittings (up to 13 LEDs)

Minimum Load: 1W

Maximum Load: 45W

Terminal Sizes: 4mm2

Standards:
Emissions - EN61000-6-3: 2007
Immunity - EN61000-6-1: 2007

Communication: Rakom coded fm radio, 433.9MHz

Memory: Flash memory (non volatile)

*Requires a suitable external power supply such as the Rako RAPSU48

Dimensions

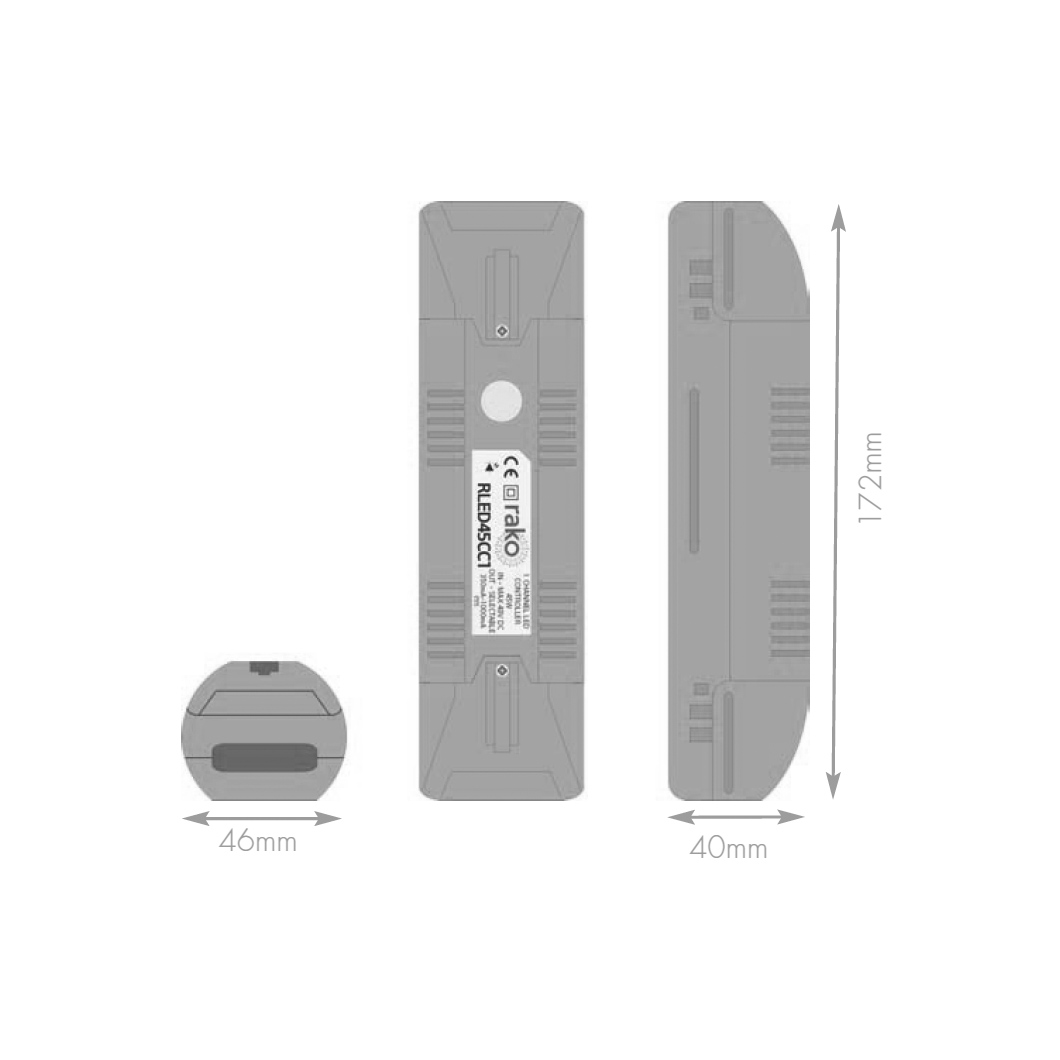

Product dimensions: W.46mm x D.172mm x H.40mm

Downloads

• Rako RLED45CC1 Data Sheet PDF
• Rako RLED45CC1 Installation Instructions PDF

Delivery and warranty

Delivery usually in 1-2 weeks

  Supplied with a 3 year 'return to base' warranty
