- Description
-

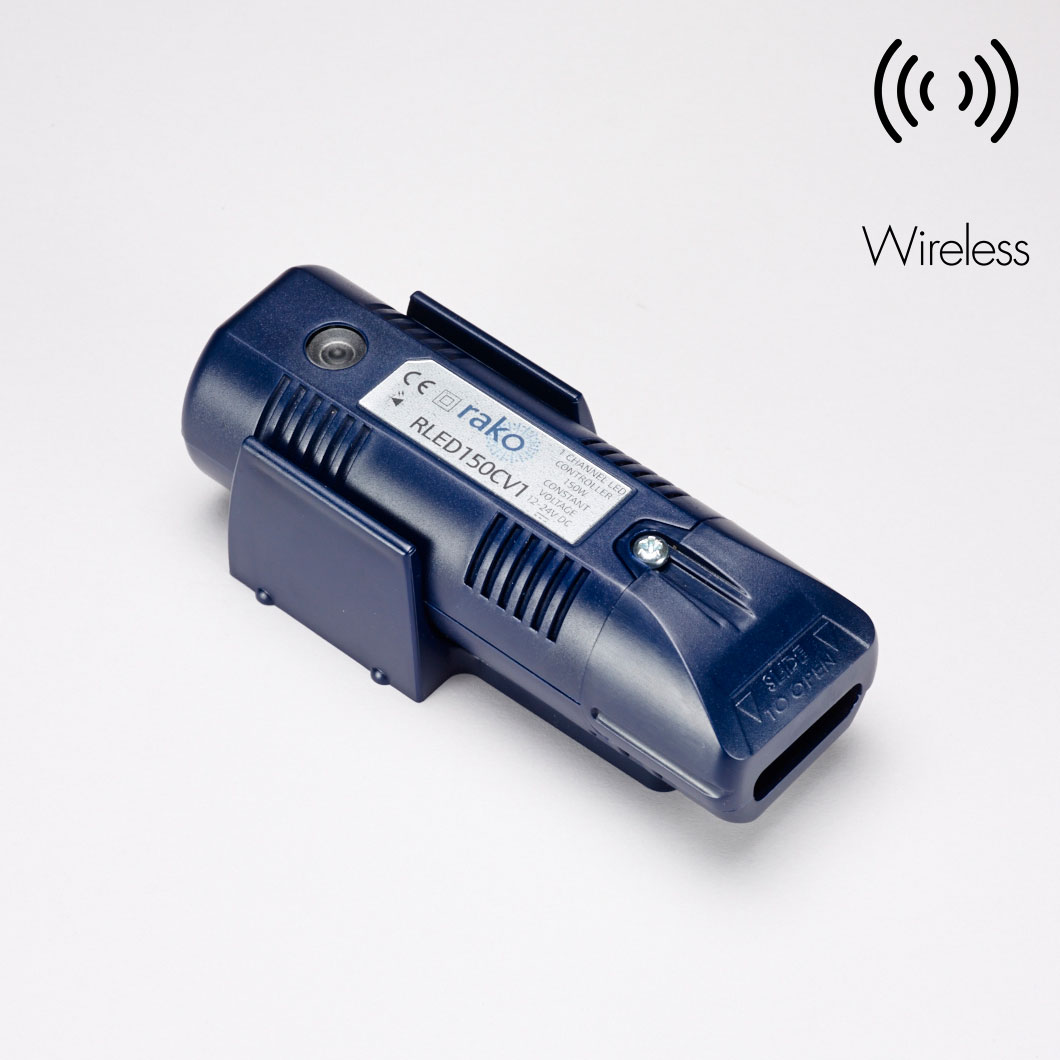

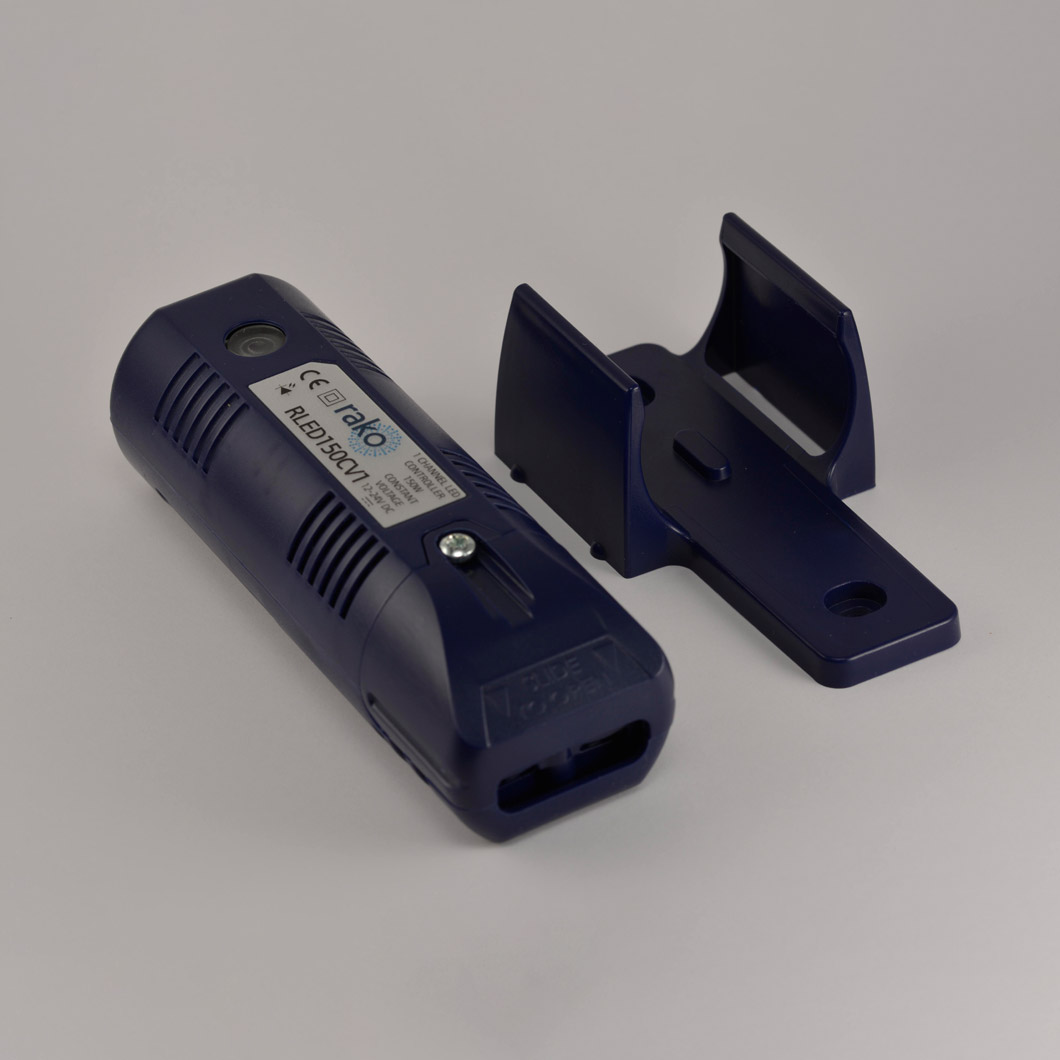

The Rako RLED150CV1 wireless 150W constant voltage dimming LED driver is suitable for ceiling or cupboard mounting.
- A compact single channel 150W constant voltage LED dimmer
- In-built RF receiver and Rako processor for control of single channel constant voltage LED fittings
- Controlled from any Rako Rakom device, e.g. RCP/RCM wall plates or Bridge interface units
- Requires a suitable external D.C. power supply (normally the power supply that would be supplied with the fitting for a non-dimming application)
Designed for use with single channel constant voltage LED fittings and single channel LED tape light. Maximum wattage of 150W for 12V D.C. fittings or 300W for 24V D.C. fittings.
Programmed using either an RCM/RCP RF wallplate or the RASOFT PC software suite, the unit stores the house, room and channel address plus 16 preset scene levels in non volatile memory. The RLED75CV1 dimmer can be controlled from any Rako transmitter such as RCM/RCP wallplates, RAH hand helds and Bridge modules and forms the foundation of any Rako scene-set system.
Separate 12V or 24V DC power supply (LED driver) required, suitable for the total connected lighting load. EG: RLED150CV1 would typically require a 150W 12VDC or 300W 24VDC LED driver.
For install enquiries contact us on:
[email protected]
01189 882294
or on our website Live Chat
- Specification
-
Input supply: 12V or 24VDC
Weight: 107g
Housing: UL V0 ABS
Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing
Connections:
2 way terminals for 12-24VD.C. supply
4 way screw terminals for load connections
Protection:
Reverse polarity input protection
Output current limit protection
Load Types: Single channel constant voltage LED fittings & tapelight
Minimum Load: 1W
Maximum Load:
150W @ 12VDC
300W @ 24VDC
Terminal Sizes: 4mm2
Standards:
Emissions - EN61000-6-3: 2001
Immunity - EN61000-6-1: 2001
Communication: Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)
*Requires a suitable external power supply
- Dimensions
-

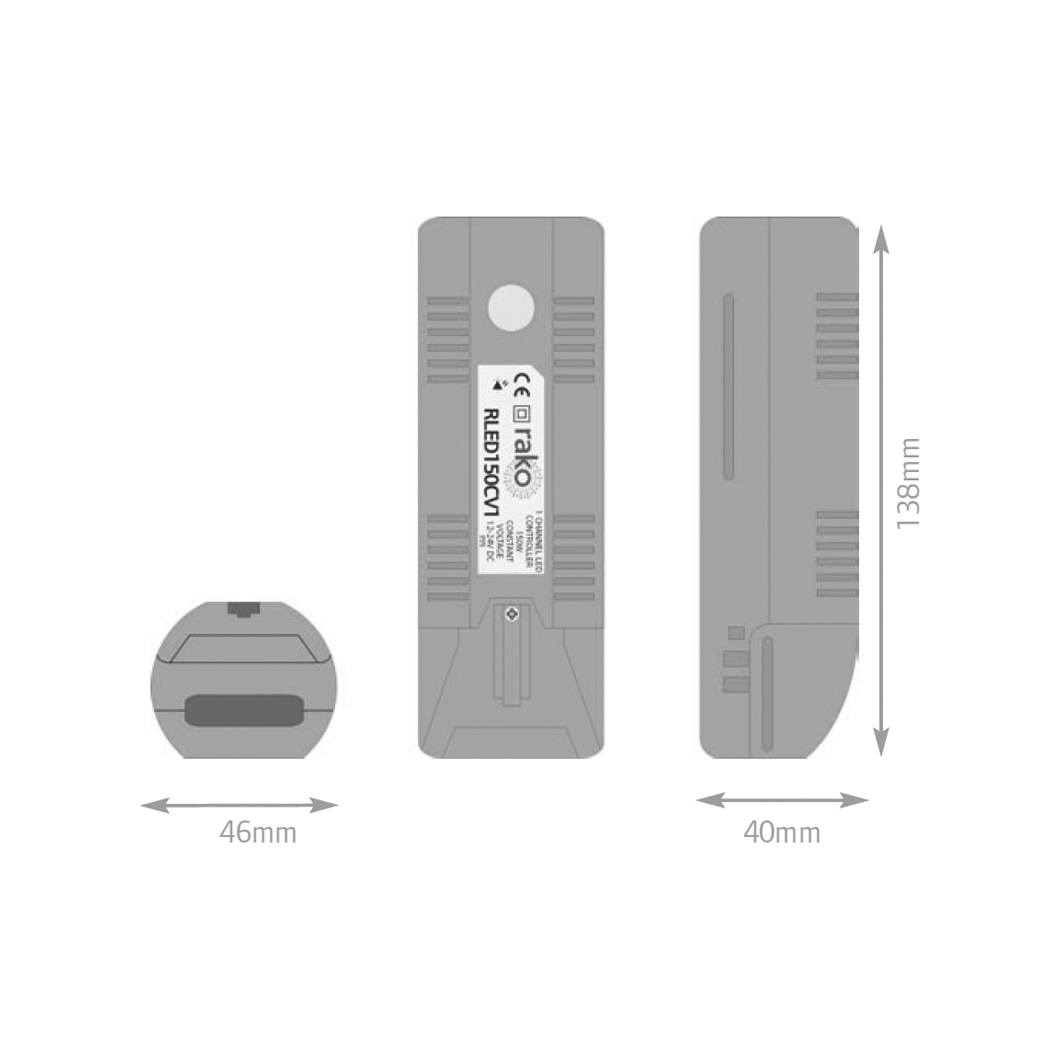

Product dimensions: W.138mm x D.46mm x H.40mm
- Downloads
-
- Delivery and warranty
-
Delivery usually in 1-2 weeks
Supplied with a 3 year 'return to base' warranty
