- Description
-

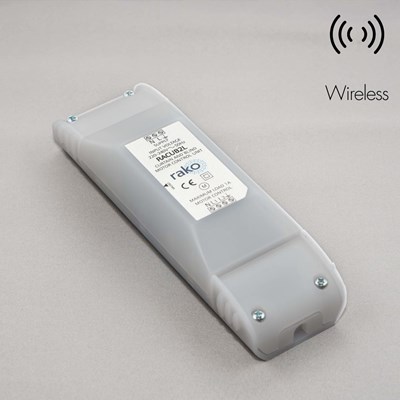

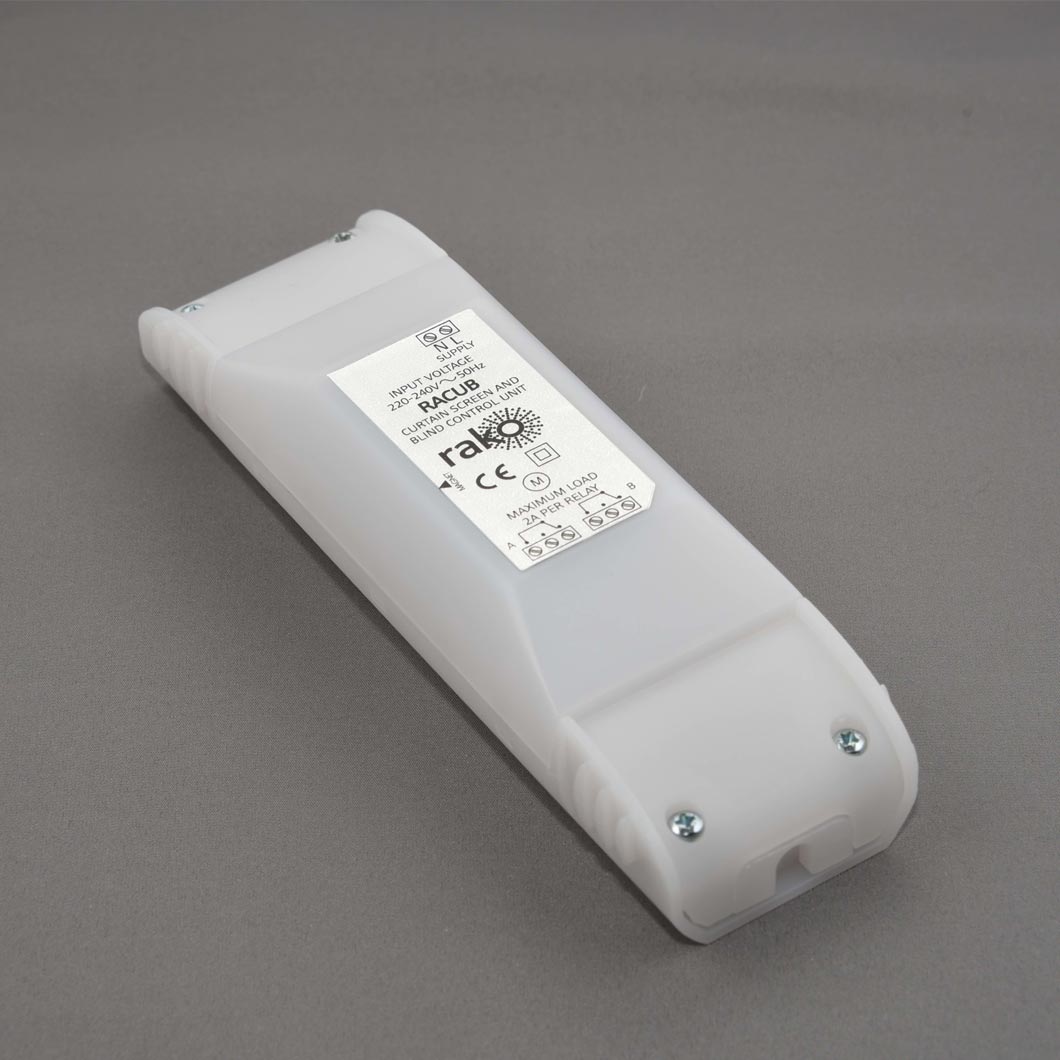

The Rako RACUB in-line RF relay module for motorised curtains, screens and blinds.
- A compact dual relay RF switching module.
- Ideal for integrating motorised curtains, blinds and projector screens with the lighting control system.
- Controlled from any Rako Rakom RF device, for example the RCM three or six button RF wall plates.
Designed to fit local to a motor, the RACUB relay module can control motorised window treatments and home cinema equipment such as projector screens. The robust microprocessor design ensures reliable switching with dual relays enabling open, close and stop functions. Intelligent motor protection funtion stops harmful back currents from damaging the relays.
Programmed using either an RCM/RPS03 RF wallplate or the RASOFT PC software suite, the unit stores the house, room and channel address in non volatile memory.
The RACUB relay module can be controlled from any Rako transmitter such as RCP wallplates, RAH hand helds, MB1s and forms the ideal accessory to any Rako scene-set system.
For install enquiries contact us on:
[email protected]
01189 882294
or on our website Live Chat
- Specification
-
Input Supply:
230V AC +/-10% 50Hz
Weight: 240g
Housing: UL V0 material
Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing
Connections:
2 way screw terminals for mains power
6 way screw terminals for relay outputs
Load Types:
240vac Motors
12VDC Motors
Motors with volt-free contact inputs
Minimum Load: n/a
Maximum Load: 2A
Terminal Sizes:
1.5mm2 - Stranded
2.5mm2 - Solid
Standards:
Emissions - EN61000-6-3 : 2001
Immunity - EN61000-6-1 : 2001
Communication:
Rakom coded fm radio, 433.9MHz
Memory: Flash memory (non volatile)
- Dimensions
-
Product dimensions: W.50mm x D.160mm x H.36mm
- Downloads
-
- Delivery and warranty
-
Delivery usually in 1-2 weeks
Supplied with a 3 year 'return to base' warranty
