Rako Classic WCM Wired Wall Plate Control Module

Description

The Rako WCM wired push button wall plate with up to 10 push buttons. Connects to the Rakom wired CAT5 network.

• A hard wired push button control module that has multiple button layouts.
• Several fixing options.
• Based upon the widely used 50x50mm Euro Module switch plate accessory standard.
• Available hand finished in the following:
  - White ABS (W)
  - White Metal (WM)
  - Mirrored Stainless Steel (MSS)
  - Brushed Stainless Steel (SS)
  - Polished Brass (PB)

The WCM-100 push button control module comes pre-configured for selecting 7 scenes, off and master raise & lower. Each button is complete with a blue LED indicator and day-night etched buttons.

Easy connection to the Rakom wired CAT5 network is by a removable 8 way Krone punch down module that can be installed at first fix stage prior to the push button front control module. This protects the control module from being damaged while building works are being finished.

The module is suitable for installation in any of the standard Rako fixing solutions and is also suitable for all switch accessory plates that use a 50x50mm grid and cover plate arrangement.

Using RASOFT programming software it is possible to configure each button individually to carry out a number of different tasks, for example:
- Scene selection
- Scene toggle on/off
- Channel toggle on/off
- Master raise & lower
- Channel raise & lower
- Macro start/stop
- Local room or global off

LED indicators are individually programmable to follow the logic of the above functions. Custom button laser engraving is available to match.

Wireless version available.

Contact us for other screw less face plate options.

For install enquiries contact us on:

    [email protected]

    01189 882294

or on our website Live Chat

Specification

Dimensions:
Flush mount: 50x50x36mm

Fixing:
Flush mounting into standard UK single gang back box, minimum 35mm deep.

Weight:
50g

Climate Range:
Temperature +2C to +40C
Humidity +5% to 90% non condensing

Cable Type:
UTP CAT5e or CAT6

Terminal Type:
8 way Krone punch down (screw terminal option available)

Communication:
Rakom wired network

Standards:
Emissions - EN61000-6-3 : 2001
Immunity - EN61000-6-1 : 2001

Memory:
Flash memory (non volatile)
Firmware upgrades via RASOFT programming software

Dimensions

Product dimensions: W.92mm x D.36mm x H.92mm

Downloads

• Rako WCM100 Data Sheet PDF
• Rako WCM100 Installation Instructions PDF

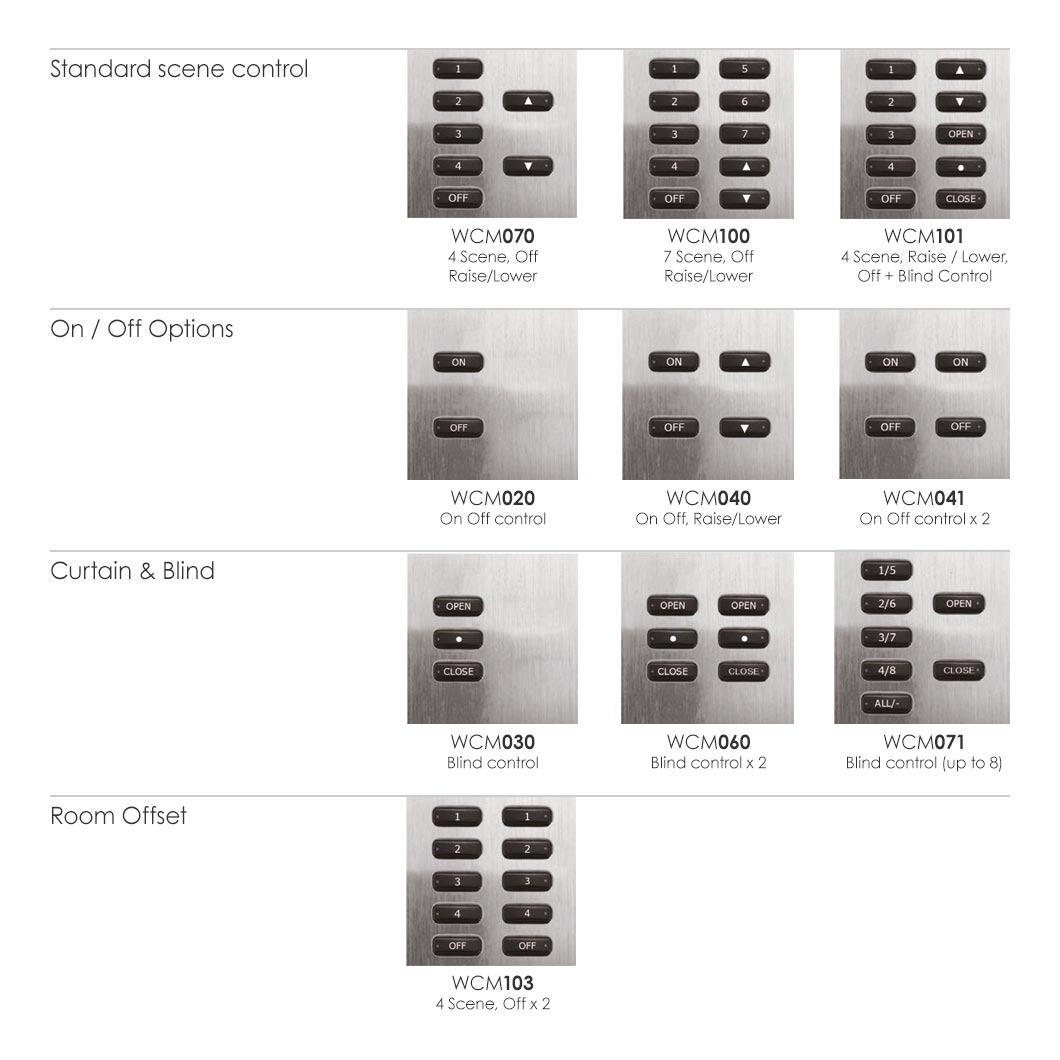

• Wired Button Layout PDF
• Wired Cover Plates PDF
• WLM Screwless Cover Plates Data Sheet PDF

Delivery and warranty

Delivery usually in 1-2 weeks

  Supplied with a 3 year 'return to base' warranty
