Rako Classic RNC Wireless NFC Wall Plate Control Module

Description

The Rako RNC wireless push button wall plate with up to 10 push buttons. Customisable and programmable via NFC (Near Field Communication).

• A wireless push button control module that has multiple button layouts.
• Several fixing options.
• Lithium battery powered so can be mounted anywhere without having to run cabling. Customisable and programmable via NFC (Near Field Communication) using Rasoft Pro Software and Rako’s RAMPI programming interface
• Based upon the widely used 50x50mm Euro Module switch plate accessory standard.
• Available hand finished in the following:
  - White ABS (W)
  - White Metal (WM)
  - Mirrored Stainless Steel (MSS)
  - Brushed Stainless Steel (SS)

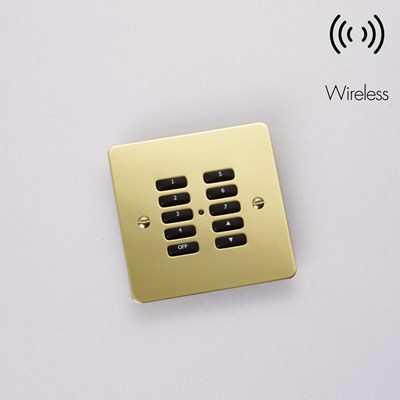

  - Polished Brass (PB)

The RNC push button control module is programmable via Rako's patented NFC (Near Field Communication) technology allowing each of the buttons to trigger a single or multiple commands. Each input is fully customisable, can be addressed to separate Rako Rooms or Channels and activate on press, or release which gives a 'Press and Hold' function. Additionally each input can trigger an internal macro function.

This product can only be programmed with a laptop using Rako’s Rasoft Pro software and the Rako RAMPI programming interface.

The wall plate controllers are designed to be mounted anywhere, be it flush mounting to UK back-boxes or simply surface mounted to any flat surface using the pattress provided**. It is also suitable for all switch accessory plates that use a 50x50mm grid and cover plate arrangement.

** Surface mounting is only suitable for screwfixing flat plates and NOT screwless plate options.

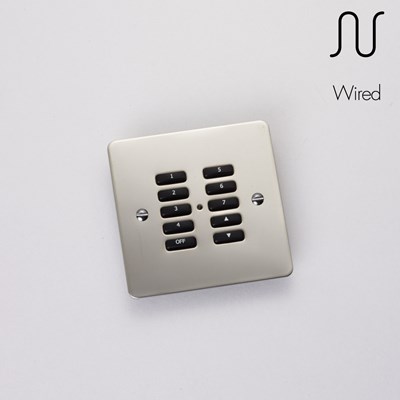

Wired version available.

Contact us for other screw less face plate options.

For install enquiries contact us on:

    [email protected]

    01189 882294

or on our website Live Chat

Specification

Dimensions:
Flush mount: 50x50x12mm
Surface mount: 92x92x14mm

Fixing:
Flush mounting into standard UK single gang back box, minimum 12mm deep.
Surface mounting on standard single gang UK or European back box or direct to flat surface.

Input supply:
6V DC - 2x 3V Lithium coin cell CR2016 (remote power supply version available)

Weight:
100g

Battery Life:
Greater than 3 years

Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing

Communication:
Rakom coded FM radio 433.9MHz

Standards:
Emissions - EN61000-6-3 : 2007
Immunity - EN61000-6-1 : 2007

Memory:
Flash memory (non volatile)

Dimensions

Product dimensions: W.92mm x D.14mm x H.92mm

Downloads

• Rako RNC070 Data Sheet PDF
• Rako RNC Installation Instructions PDF
• Wireless Button Layout PDF
• Wireless Cover Plates PDF
• RLM Screwless Cover Plates Data Sheet PDF

Delivery and warranty

Delivery usually in 1-2 weeks

  Supplied with a 3 year 'return to base' warranty
