- Description
-

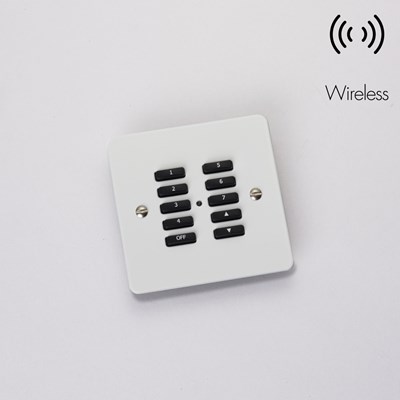

The Rako RCM wireless push button wall plate with up to 10 push buttons.
- A wireless push button module that can accommodate up to 12 push buttons configurable via NFC.
- Lithium battery powered so can be mounted anywhere without having to run cabling. The unit provides full scene programming.
- Based upon the widely used 50x50mm Euro Module switch plate accessory standard.
- Rako RK-MOD are available hand finished in the following:

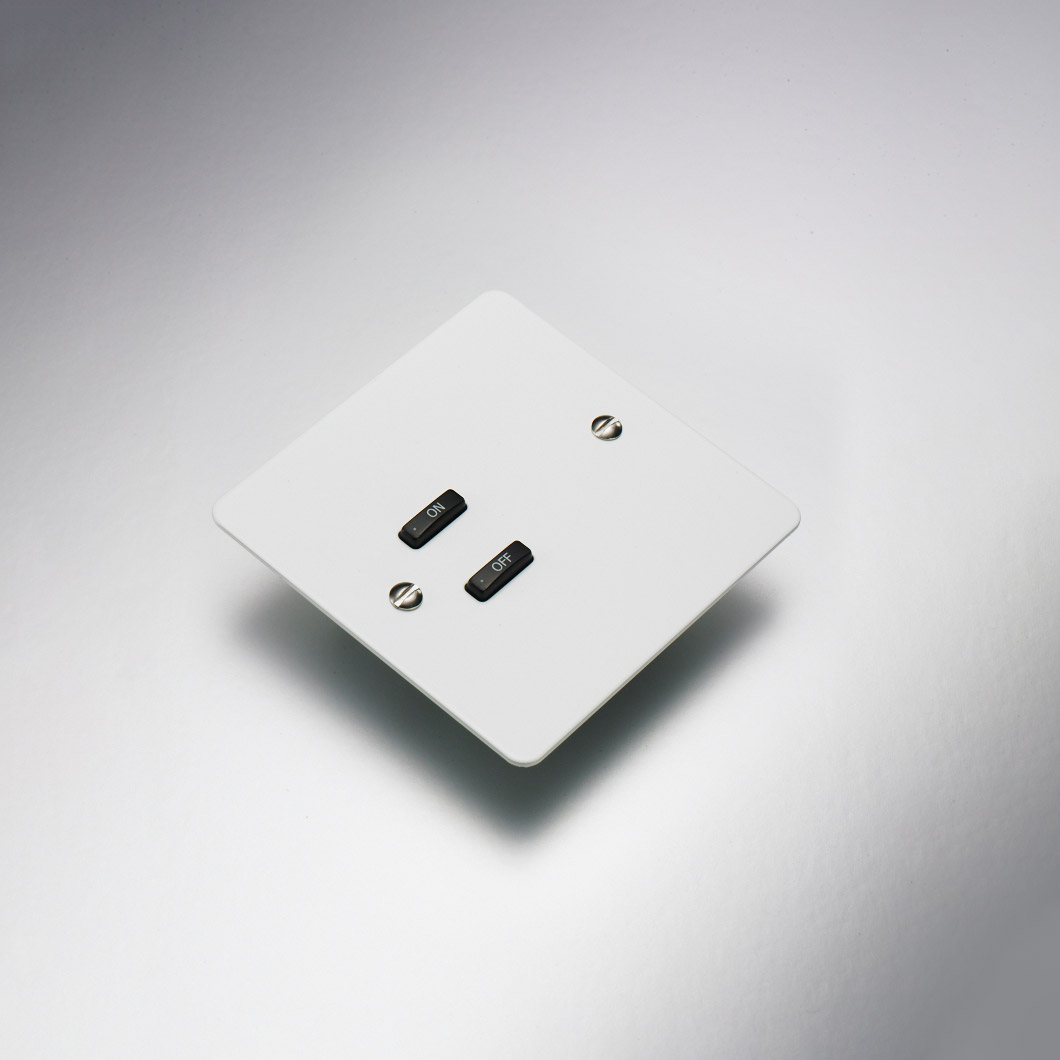

- White ABS (W)
- White Metal (WM)

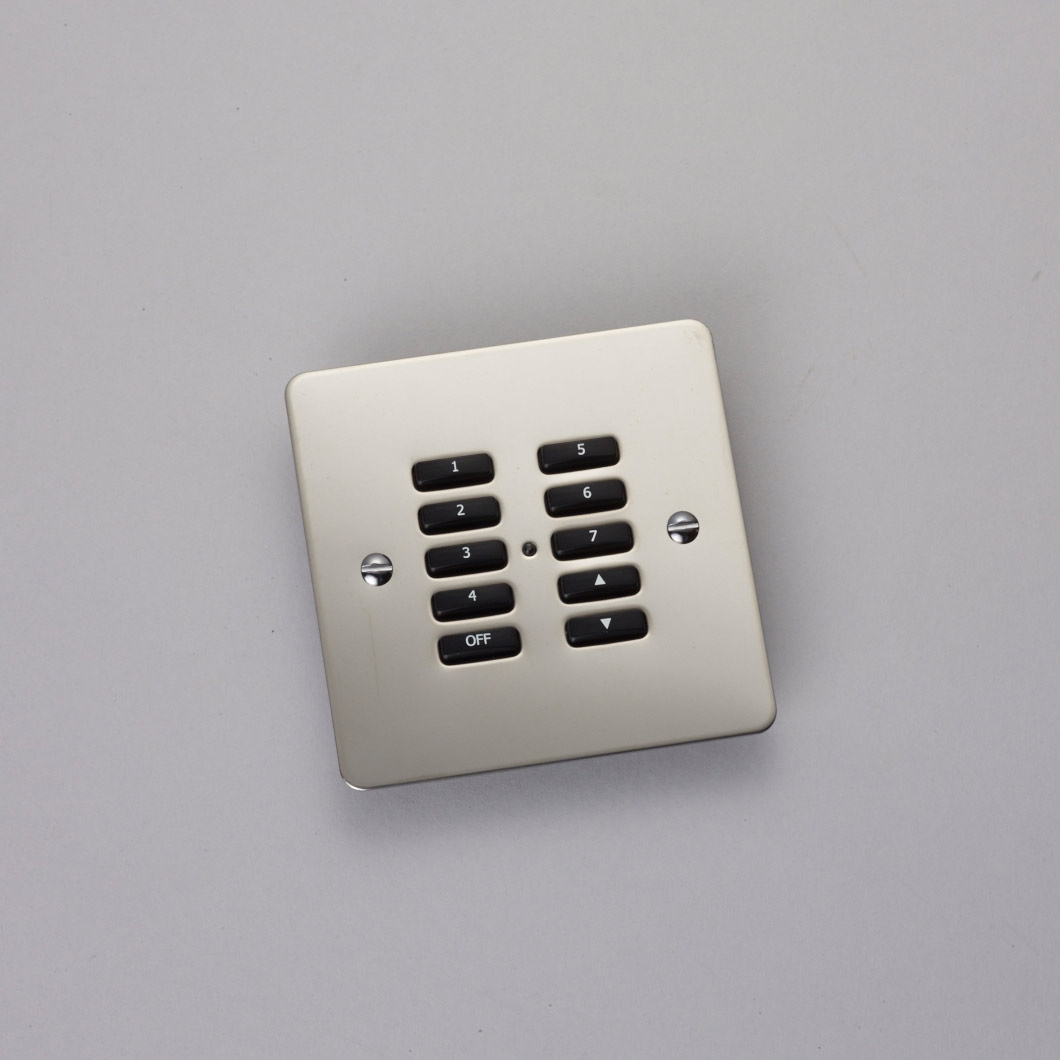

- Mirrored Stainless Steel (MSS)
- Brushed Stainless Steel (SS)

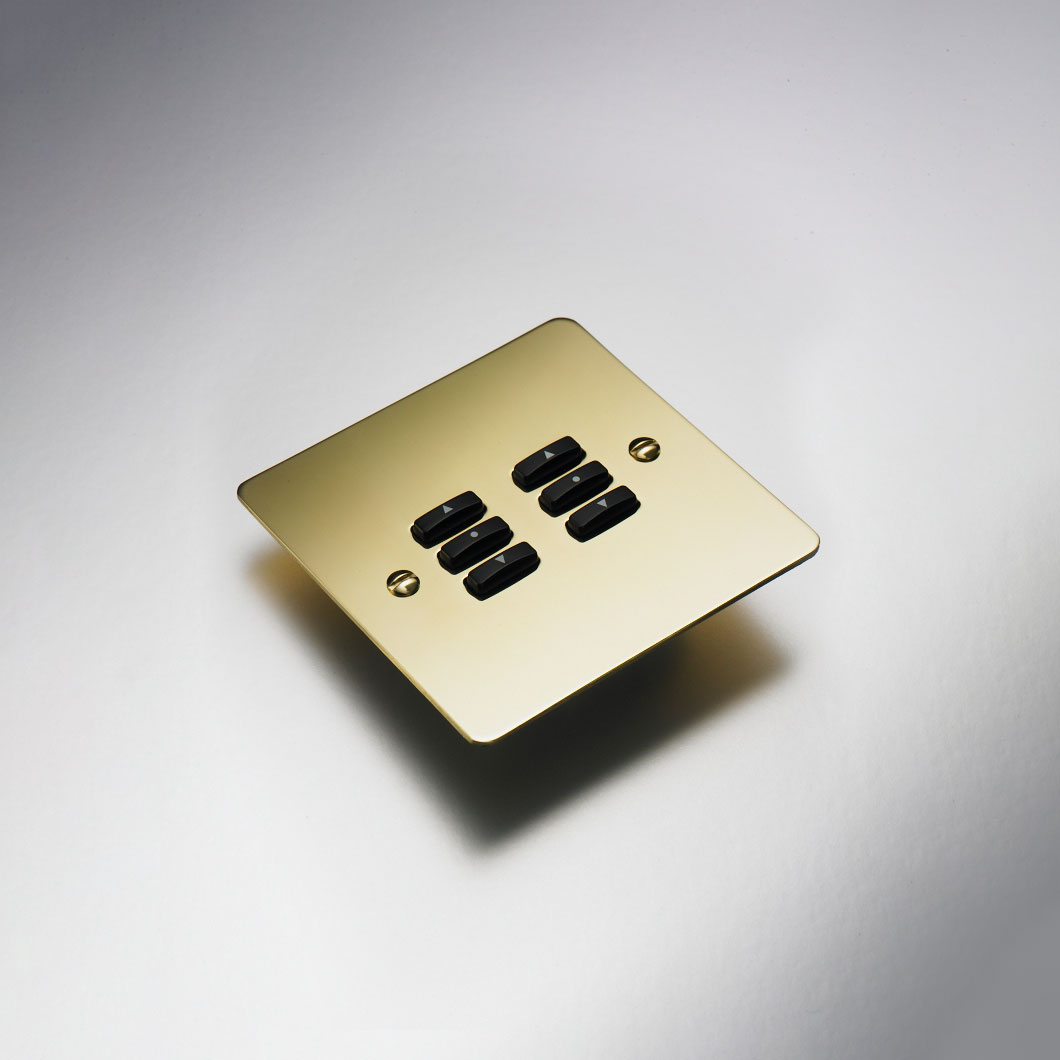

- Polished Brass (PB)
The RCM push button control module comes pre-configured for selecting up to 7 scenes, off and master raise & lower. The wall plate controllers are designed to be mounted anywhere, be it flush mounting to UK back-boxes or simply surface mounted to any flat surface using the pattress** provided. It is also suitable for all switch accessory plates that use a 50x50mm grid and cover plate arrangement.
Rakom coded radio transmission eliminates the need for any data or power cabling ensuring that the system can be installed with minimum fuss and disruption.
** Surface mounting is only suitable for screwfixing flat plates and NOT screwless plate options.
Wired version available.
Contact us for information on screwless plate versions.
For install enquiries contact us on:
[email protected]
01189 882294
or on our website Live Chat
- Specification
-
Dimensions:
Flush mount: 50x50x12mm
Surface mount: 92x92x14mm
Fixing:
Flush mounting into standard UK single gang back box, minimum 12mm deep.
Surface mounting on standard single gang UK or European back box or direct to flat surface.
Input supply:
6V DC - 2x 3V Lithium coin cell CR2016 (remote power supply version available)
Weight:
100g
Battery Life:
Greater than 3 years
Climate Range:
Temperature +2C to +40C
Humidity +5% to 95% non condensing
Communication:
Rakom coded FM radio 433.9MHz
Standards:
Emissions - EN61000-6-3 : 2007
Immunity - EN61000-6-1 : 2007
Memory:
Flash memory (non volatile)
- Dimensions
-
Product dimensions: W.92mm x D.14mm x H.92mm
- Downloads
-
- Delivery and warranty
-
Delivery usually in 1-2 weeks
Supplied with a 3 year 'return to base' warranty
