PVD Concept White Line Dotsi 38 Surface Mounted Rectangular Spotlight

Description

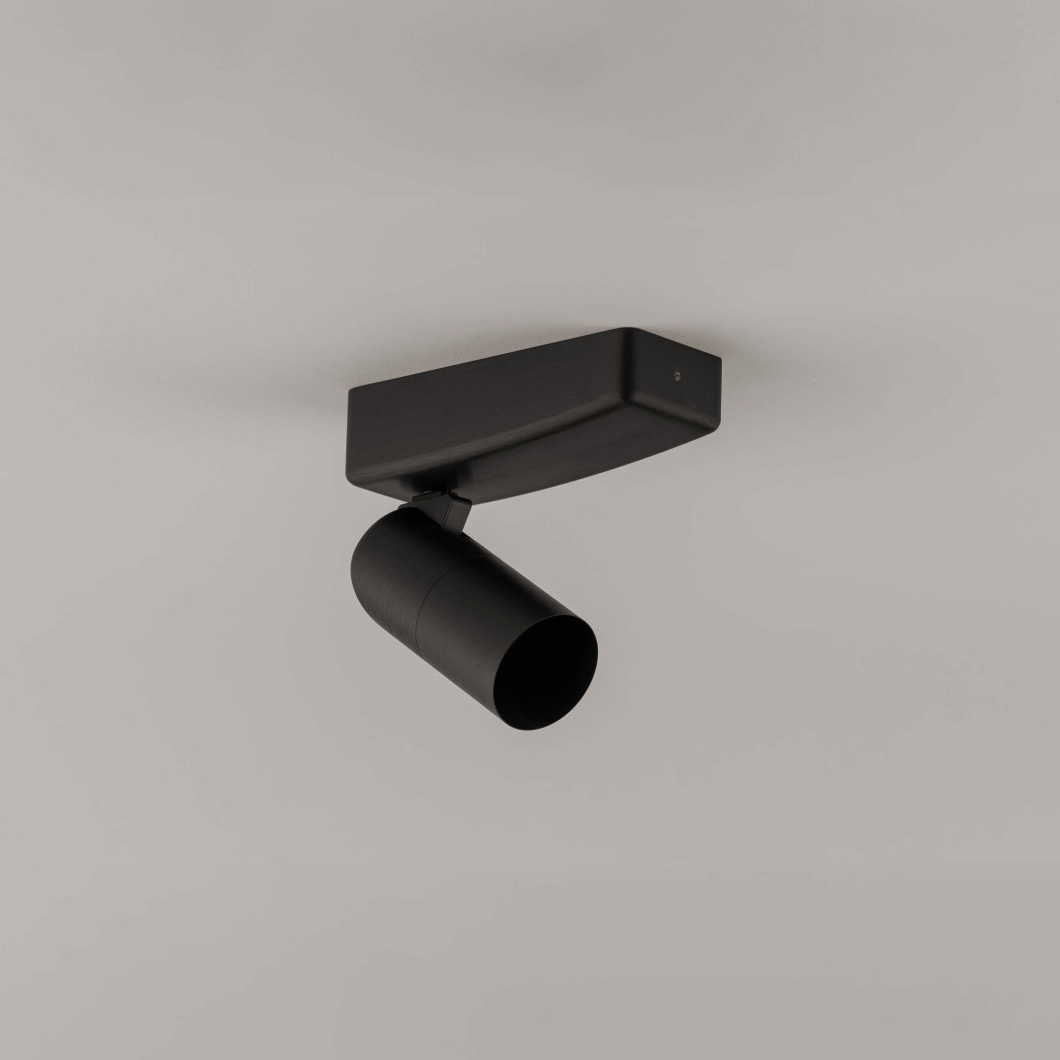

The surface mounted adjustable spotlight version of the White Line Dotsi family - all with a 38mm diameter for an integrated look. The minimalist fitting is available with a small 65mm or large tube 80mm, and uses a 6W LED which offers 425lm in 2700K and 450lm in the 3000K version.

Finished in White RAL9016, Ano Black, Ano Champagne, Ano Bronze or Ano Natural. With a choice of 5 lens: 15°, 20°, 30°, 40° or 45x20°, there is a beam angle to cover a narrow spotlight or wider spread of light.

Available in 250mA constant current. Driver included within the rectangular housing box.

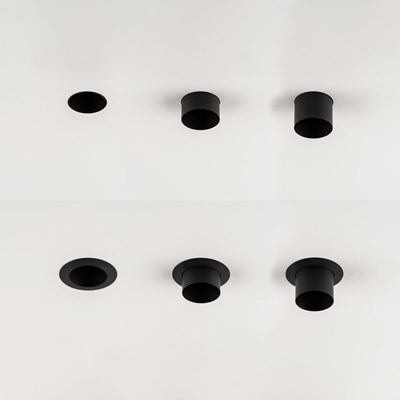

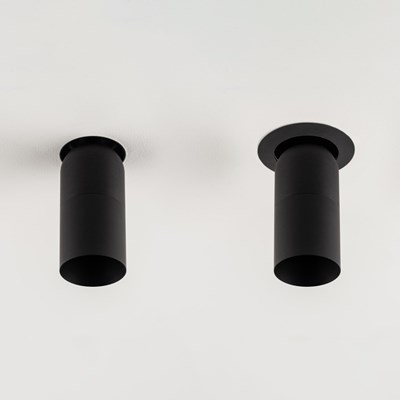

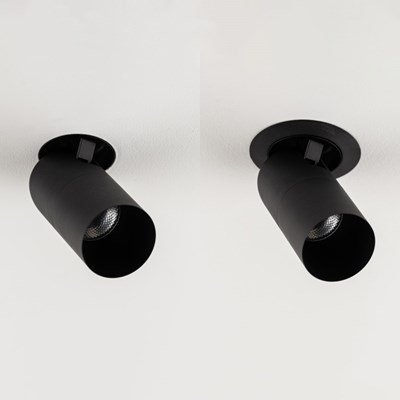

See 'More Like This' for the rest of the family

Specification

Dimensions
Tube small: Ø38mm x H.65mm
Tube large: Ø38mm x H.80mm

6W
Constant Current 250mA
Mains dimmable
IP20
0-10V / 1-10V

2700K CRI97 (425lm)
3000K CRI97 (450lm)

Driver Constant Current 250mA included

Lamp type: 6W LED

Dimensions

Product dimensions: W.115mm x D.45mm x H.30mm x Diameter.38mm

Downloads

• Data Sheet PDF

Delivery and warranty

Delivery approximately 4-5 weeks

About the manufacturer

PVD Concept are a Belgian-based designer and manufacturer which provide innovative indoor and outdoor lighting solutions. With more than 30 years’ experience in the lighting world, PVD produce premium quality luminaires which are 100% made in Belgium. Proud designers of the RED DOT Award-winning White Line and Kessler collections, each of their products are created with the aim of combining high functionality with simplicity.
