Prado Trimless Spot Plaster-In Downlight

Manufacturer: Prado

Finish: Height: Colour Temp.: Beam Angle: CRI: Plaster Kit: Driver (required): Install Tool:

£164

View product details

Description

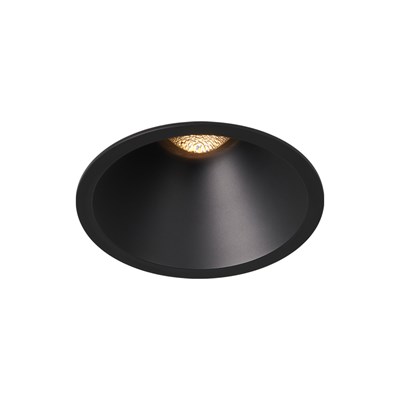

This stunning best-selling trimless spot downlight is made from massive, precision milled, anodised aluminium. To truly understand the quality of this downlighter, one must see it, touch it, feel it. Solid material offers significantly better cooling, increasing durability and lifespan. A deep recessed glass lens brings you that glare free light experience. Absent yet sophisticated. Available in a shorter version.

- The short version delivers over 800 lumen, and with a height of 55mm can be installed in ceilings with smaller installation depths.

- The long version offers up to 1,100 lumen. At 95mm in height, it needs a large space for installation.

Custom finishes
Available for projects only in: brushed nickel, light bronze, dark bronze, canon de fusil light and canon de fusil dark. Contact us for further details.

- Our Top Tips -

This fitting needs a driver. You can pick a driver:

(1) from the dropdown above, or
(2) from ‘You May Also Need' below, or
(3) once you add this product to your basket

Driver questions? Contact us - we're happy to help :)

Specification

Finish: black ano | white struc
Reflector: glass lens

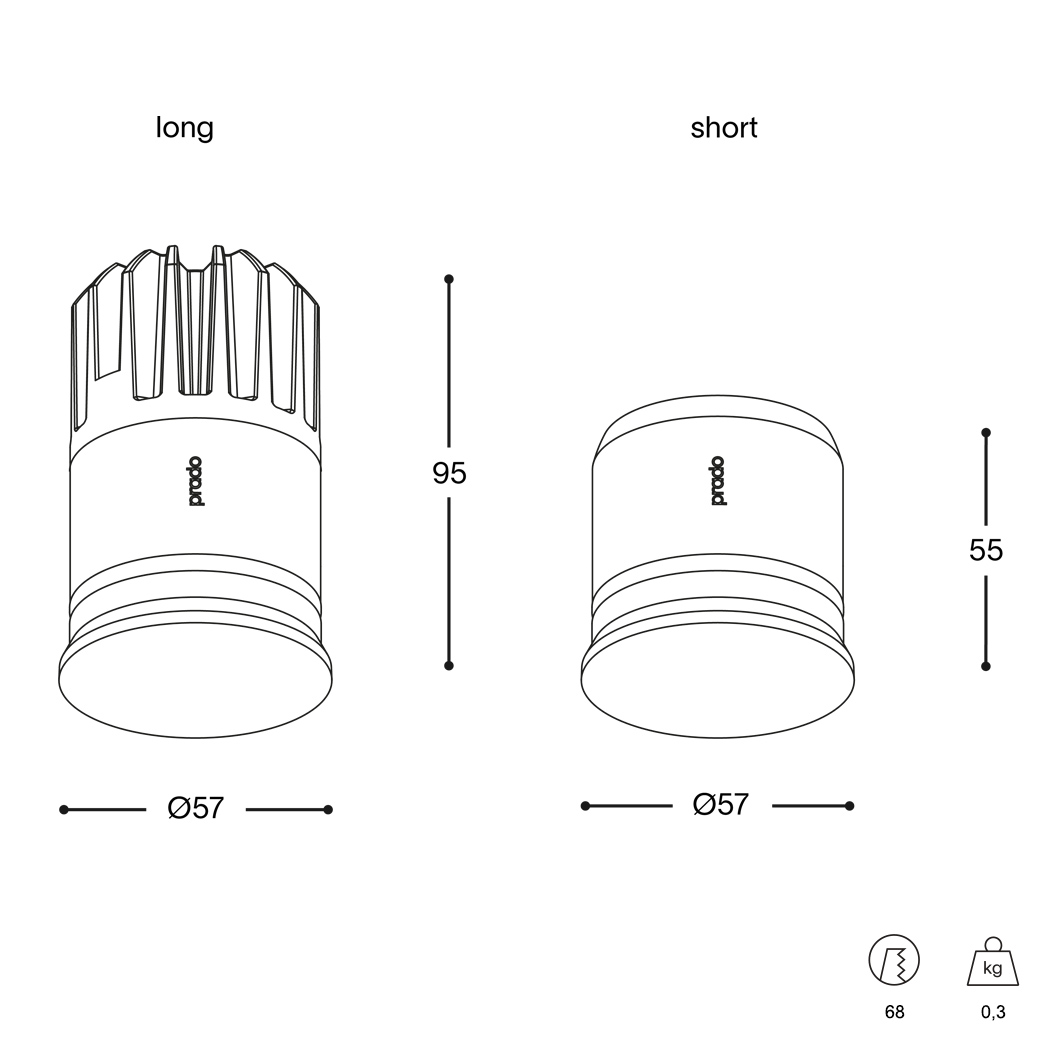

Height: Long - 95mm | Short - 55mm

Beam angle: 15° | 25° | 40° | 60°
Light temperature: 2700K | 3000K

Power supply: max. 700 mA (long) | max. 500 mA (short)
Output: up to 1.100 lumen (long) | up to 800 lumen (short)
CRI: CRI 90+ | CRI 97
IP Rating: IP65
Class III

Plaster Kits: (required)
Data Sheet PDF - Standard plaster ring Ø57 (8000 - 0003)
Data Sheet PDF - Adjustable plaster ring Ø57 (8000 - 0103)
Data Sheet PDF - CLT CSC (cross laminate timber & cold stretch ceiling) ring Ø57 (8000-0013)
Concrete ring cap Ø57 (8000-0113)

Driver: not included - see 'You May Also Need' below
L-Tech 15W 350-700mA CC Phase Dim LED Driver
L-Tech 20W 100-700mA NFC CC 0/1-10V LED Driver
L-Tech 15W 100-700mA CC DALI LED Driver

Lamp type: Integrated LED

Dimensions

Product dimensions: Diameter.57mm

Cutout dimensions: Dia.68mm

Lens dimensions: Dia.57mm

Downloads

Delivery and warranty

Delivery usually within 2-3 weeks

August factory shutdown

Lead times in July and August can be affected by European manufacturer summer shutdowns. Need it in a hurry? Let us know and we'll check availability for you.

- 2 years for conventional products (NON-LED)
- 3 years for the LED light source for devices with LED STRIPS
- 5 years for the LED light source for devices with LED MODULES/LINES

PDF Full guarantee and terms

About the manufacturer

Invisible home technology. Highlighting what really matters and hiding what does not, that's what Prado stands for. By developing invisible home solutions, Prado are helping to create more peaceful home environments. Come home to an interior where function, form and sustainability are in harmony. Functional minimalist lighting with state-of-the-art invisible ventilation. Modern downlights with integrated motion sensors that you cannot see. All using high quality materials for a high-end finish.

Available now for EU but coming soon in UK versions - Rond by Prado applies the same minimalist principles to the wall with a beautiful range of round UK switchless power sockets and data ports with a unique design.
