- Description
-

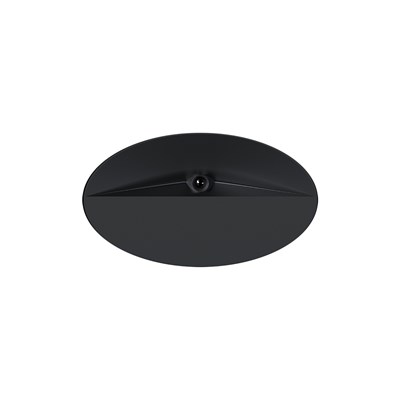

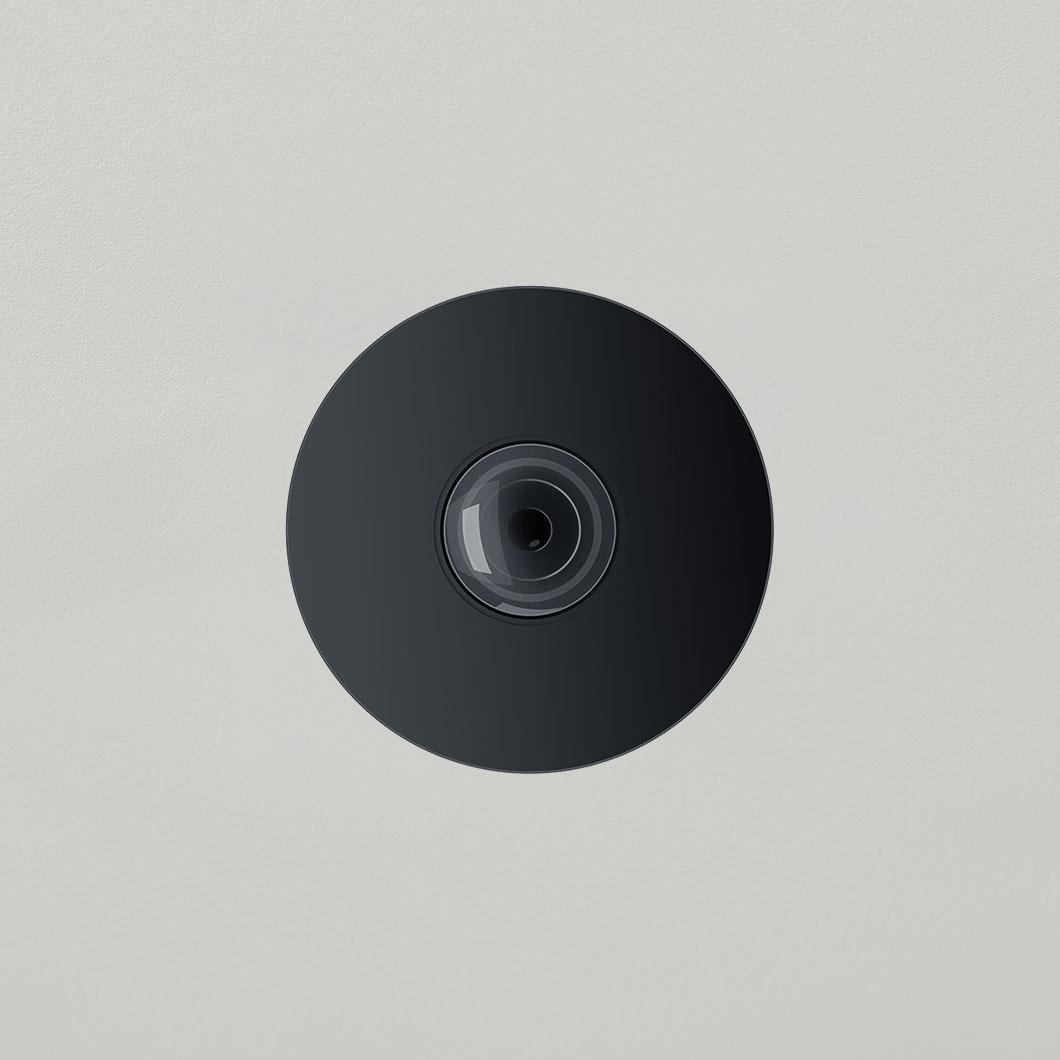

This small fisheye camera (only 38mm) is recessed in the ceiling and thus an aesthetic solution for a secure home or museum. Pradocam 360 trimless mini is available in different finishes. Fits in a Ø38 plaster ring and thus almost indistinguishable from the Prado trimless spot mini. IP67 waterproof rating makes it suitable for outdoor and indoor use. Requires a pradocam 360 main unit - included. The pradocam main unit processes all footage from pradocam and let’s you integrate it into your security system.
Show what you want, hide what you need.
Pradocam Components (all included in price)
Main unit
360 unit 1 camera (8000-2992) or
360 unit 4 cameras (8000-2993)
+
Trimless frame
Black ano (8000-2990) or
white struc (8000-2991)
+
Plaster kit frame
Standard plaster ring Ø38 (8000 - 0004) or
Adjustable plaster ring Ø38 (8000 - 0104)
- Specification
-
Finish: black ano | white struc
Camera Specs
Type: fisheye IP camera
Resolution: 1080p (1920 x 1200)
Frame rate: 50/60 fps
Field of view: h 194° v 113°
Power supply:8-28V DC / PoE
IP: IP67
Location: indoor, outdoor
Smart codec: H.264
Image sensor: CMOS
Wide dynamic range: forensic capture
Network
Network port: RJ-45 (10/100 Base-T)
API: yes
Storage: FTP - SFTP - Micro SD card - NAS
Communication: ONVIV
Plaster Kits: (required)
Data Sheet PDF - Standard plaster ring Ø38 (8000 - 0004)
Data Sheet PDF - Adjustable plaster ring Ø38 (8000-0104)
- Dimensions
-

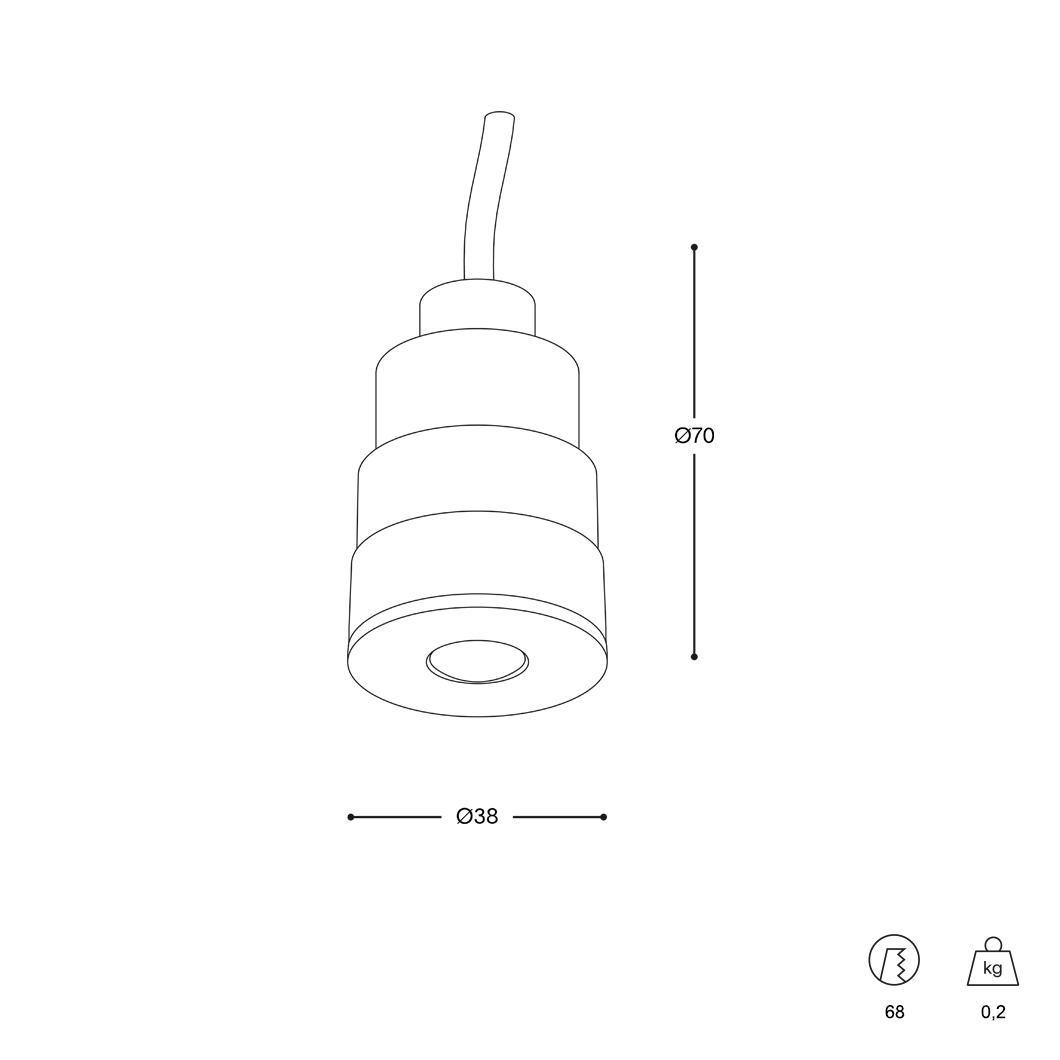

Product dimensions: H.70mm x Diameter.38mm
Cutout dimensions: Dia.68mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
- 2 years for conventional products (NON-LED)
- 3 years for the LED light source for devices with LED STRIPS
- 5 years for the LED light source for devices with LED MODULES/LINES
PDF Full guarantee and terms
- About the manufacturer
-
Invisible home technology. Highlighting what really matters and hiding what does not, that's what Prado stands for. By developing invisible home solutions, Prado are helping to create more peaceful home environments. Come home to an interior where function, form and sustainability are in harmony. Functional minimalist lighting with state-of-the-art invisible ventilation. Modern downlights with integrated motion sensors that you cannot see. All using high quality materials for a high-end finish.
Available now for EU but coming soon in UK versions - Rond by Prado applies the same minimalist principles to the wall with a beautiful range of round UK switchless power sockets and data ports with a unique design.
