Prado Light + Ventilation Trim Long Adjustable Recessed Downlight

Description

The world’s first good looking ventilation valve in an easy to install trim version. Fits in every Ø125 valve adapter. Its IP rating makes it even suitable to ventilate in showers. Works with every other ventilation system.

Award winning design makes ventilation disappear
Invisible air supply and extraction, up to 50m³/h. Waterproof IP65 rated - perfect for your bathroom. Ideal for kitchens. Works for any other room.

Ventilation valves that work with every system

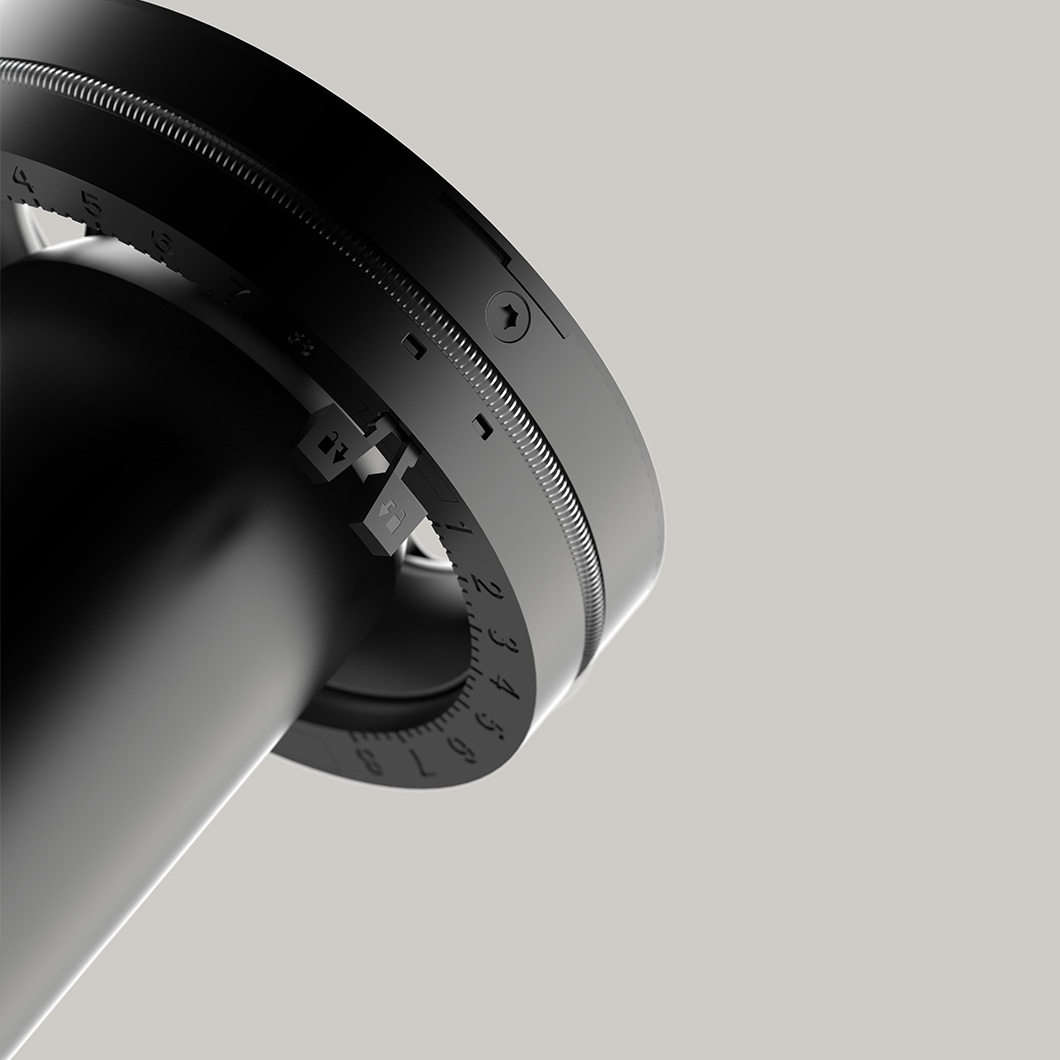

Extract up to 50m³/h. Completely invisible and incredibly quiet. The installation ring fits in every Ø125 ventilation duct, a flow setting scale and rasterized adjustment positions allow easy and accurate adjustment. Simply twist the light to start tweaking. Light and ventilation valve are easily retractable, ideal for maintenance. An integrated lock prevents from accidentally modifying the air flow after installation. Introducing a ventilation valve that effortlessly works with every ventilation system. Works with DUCO, works with Renson, works with every other ventilation system.

Beautiful luminaires that deliver sublime light
Pure cylindrical forms crafted from precision milled anodised aluminium. A custom-built glass lens that brings you a low glare light experience. Industry leading LED technology, delivering up to 1100 lumen. Its ability to rotate – up to 30° of tilt and 360° of rotation – along with its IP rating make it perfect for any type of room. Introducing a fixture that’s stunning in every way you look at it.

Custom finishes
Available for projects only in: brushed nickel, light bronze, dark bronze, canon de fusil light and canon de fusil dark. Contact us for further details.

- Our Top Tips -

This fitting needs a driver. You can pick a driver:

(1) from the dropdown above, or
(2) from ‘You May Also Need' below, or
(3) once you add this product to your basket

Driver questions? Contact us - we're happy to help :)



Specification

Installation Video

Finish: black ano | white struc
Reflector: glass lens

Beam angle: 15° | 25° | 40° | 60°
Light temperature: 2700K | 3000K

Power supply: max. 700 mA
Output: up to 1.100 lumen
CRI: CRI 90+ | CRI 97
IP65
Class III

Ventilation: air extraction
Air flow: max. 50 m³/h
Noise: < 25 dB(A)
Pressure: 7 – 75 Pa

Adjustability: 32 steps
Locking mechanism: integrated
Other: patent pending

Driver: not included - see 'You May Also Need' below
L-Tech 15W 350-700mA CC Phase Dim LED Driver
L-Tech 20W 100-700mA NFC CC 0/1-10V LED Driver
L-Tech 15W 100-700mA CC DALI LED Driver

Lamp type: Integrated LED

Dimensions

Product dimensions: H.134mm x Diameter.150mm

Cutout dimensions: Dia.132mm

Lens dimensions: Dia.59mm

Downloads

• Light + Ventilation Trim Long Data Sheet PDF
• Light + Ventilation Trim Long Install Instructions PDF
• Light + Ventilation Trim Long Illustrative Drawing PDF
• Lighting File Trimless Spot 2790B 25° 500Ma LDT
• Lighting File Trim Spot SE 2790B 40° 500Ma LDT
• Light + Motion Trim 2790B Sbl 48V
• Light + Motion Trim 2790W Sbl 48V
• Bathroom Zones & IP Ratings Explained PDF

Delivery and warranty

Delivery usually within 2-3 weeks

- 2 years for conventional products (NON-LED)
- 3 years for the LED light source for devices with LED STRIPS
- 5 years for the LED light source for devices with LED MODULES/LINES

PDF Full guarantee and terms

About the manufacturer

Invisible home technology. Highlighting what really matters and hiding what does not, that's what Prado stands for. By developing invisible home solutions, Prado are helping to create more peaceful home environments. Come home to an interior where function, form and sustainability are in harmony. Functional minimalist lighting with state-of-the-art invisible ventilation. Modern downlights with integrated motion sensors that you cannot see. All using high quality materials for a high-end finish.



Available now for EU but coming soon in UK versions - Rond by Prado applies the same minimalist principles to the wall with a beautiful range of round UK switchless power sockets and data ports with a unique design.
