Prado Light + Motion + Ventilation Short Trim Adjustable Recessed Downlight

Manufacturer: Prado

£515

One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

The world’s first fully invisible motion sensor is here. Discover the combination of a powerful, diffuse downlight with an invisibly integrated PIR sensor. Works fully autonomous. Also available in combination with ventilation. Made from precision milled, anodised aluminium. Show what you want, hide what you need.

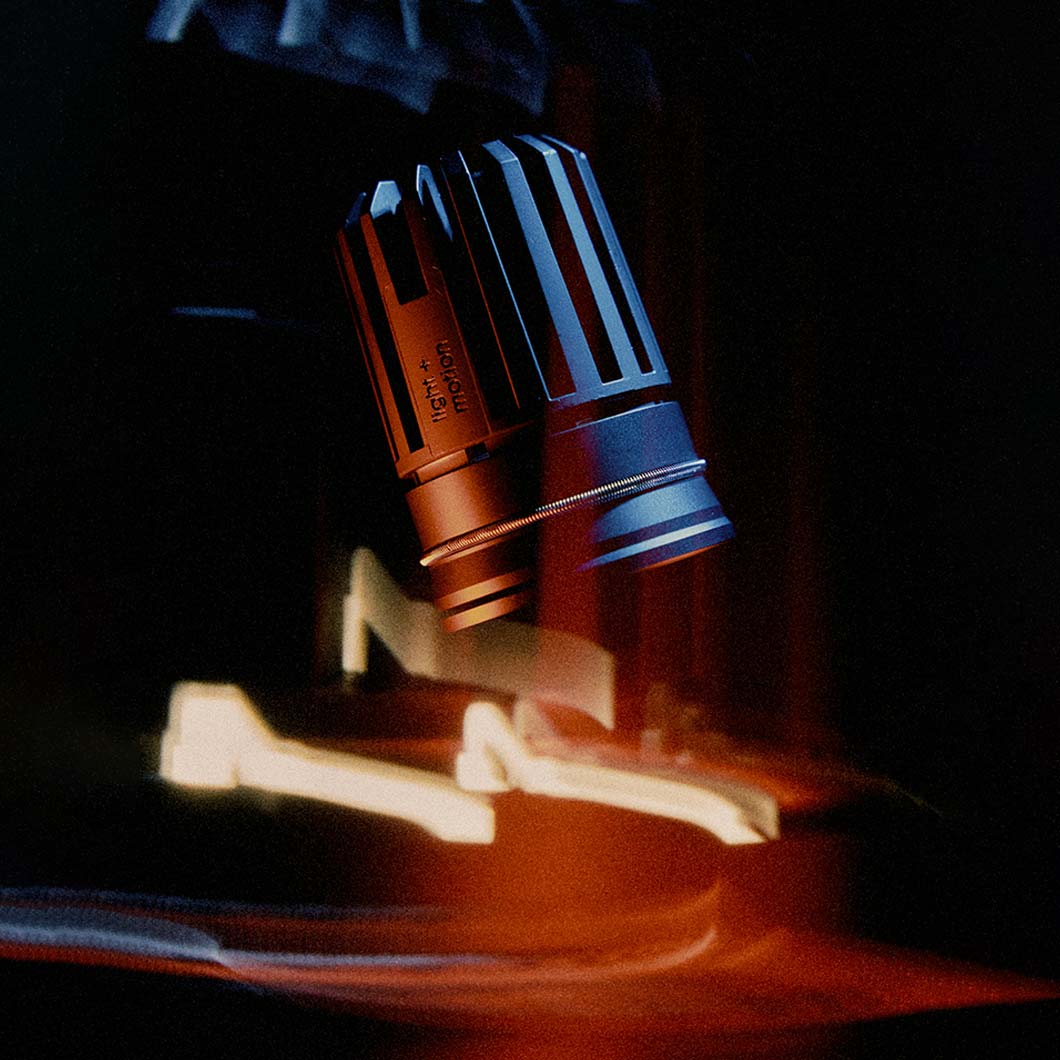

Lights up when you're there. Shuts down when you're gone
Meet light + motion + ventilation. The world's first combination of a downlight, invisible ventilation and an invisible PIR sensor. By hiding ventilation and a PIR sensor in a fixture, we enable architects to create cleaner ceilings, and ultimately more calming homes.

The benefits of a combination product
Combining a luminaire with a motion sensor and ventilation does not only accelerate installation, it also offers sustainability advantages: fewer materials, less wiring and reduced power consumption.

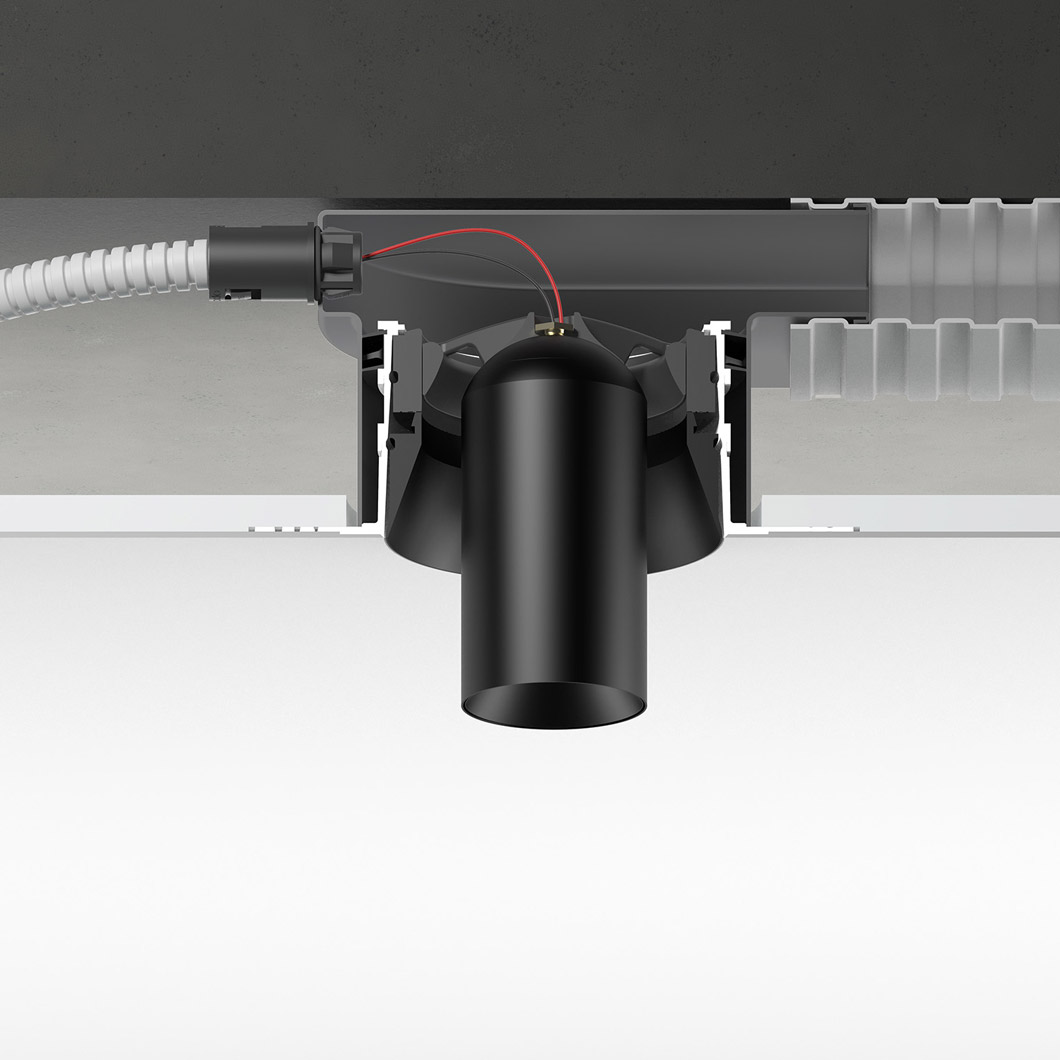

Ventilation valves that work with every system

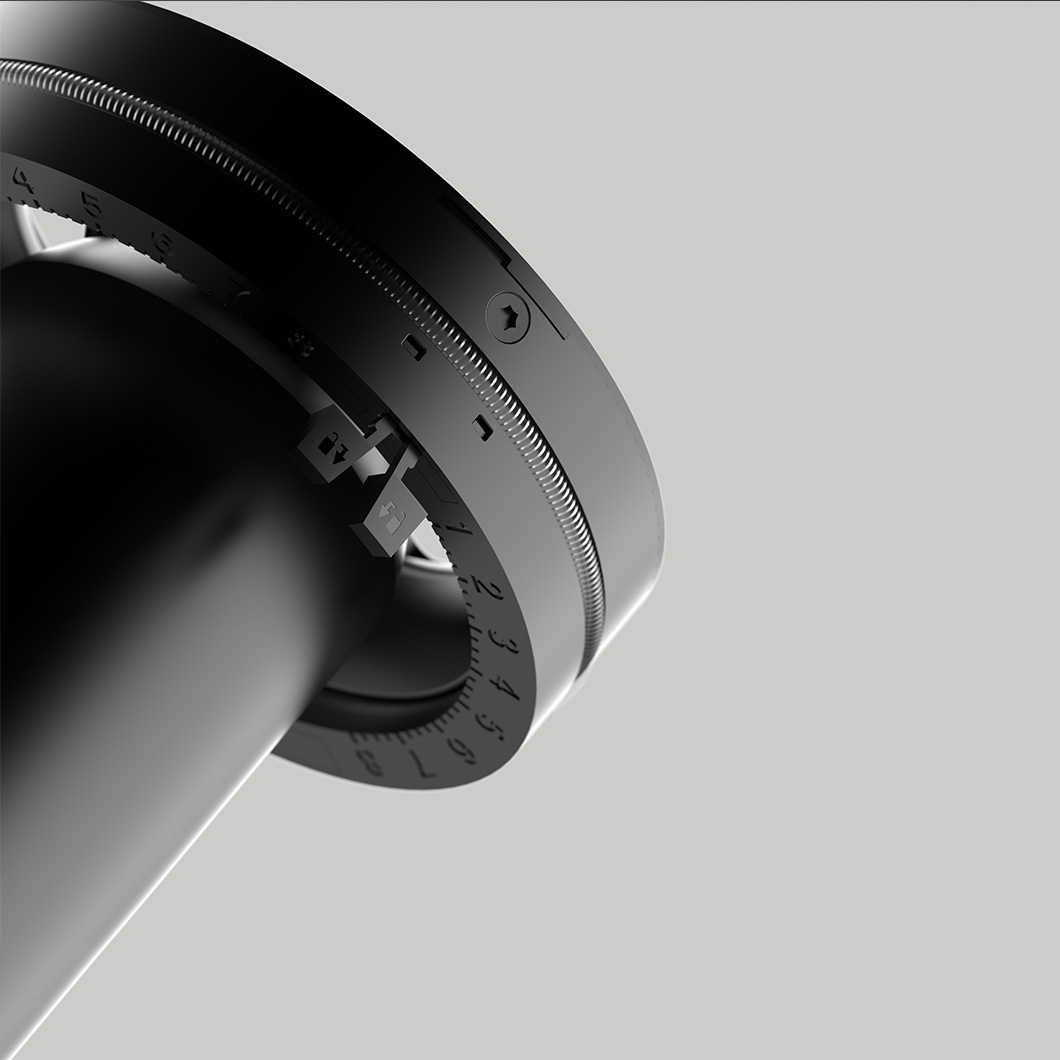

Extract up to 50m³/h. Completely invisible and incredibly quiet. The installation ring fits in every Ø125 ventilation duct, a flow setting scale and rasterized adjustment positions allow easy and accurate adjustment. Simply twist the light to start tweaking. Light and ventilation valve are easily retractable, ideal for maintenance. An integrated lock prevents from accidentally modifying the air flow after installation. Introducing a ventilation valve that effortlessly works with every ventilation system. Works with DUCO, works with Renson, works with every other ventilation system.

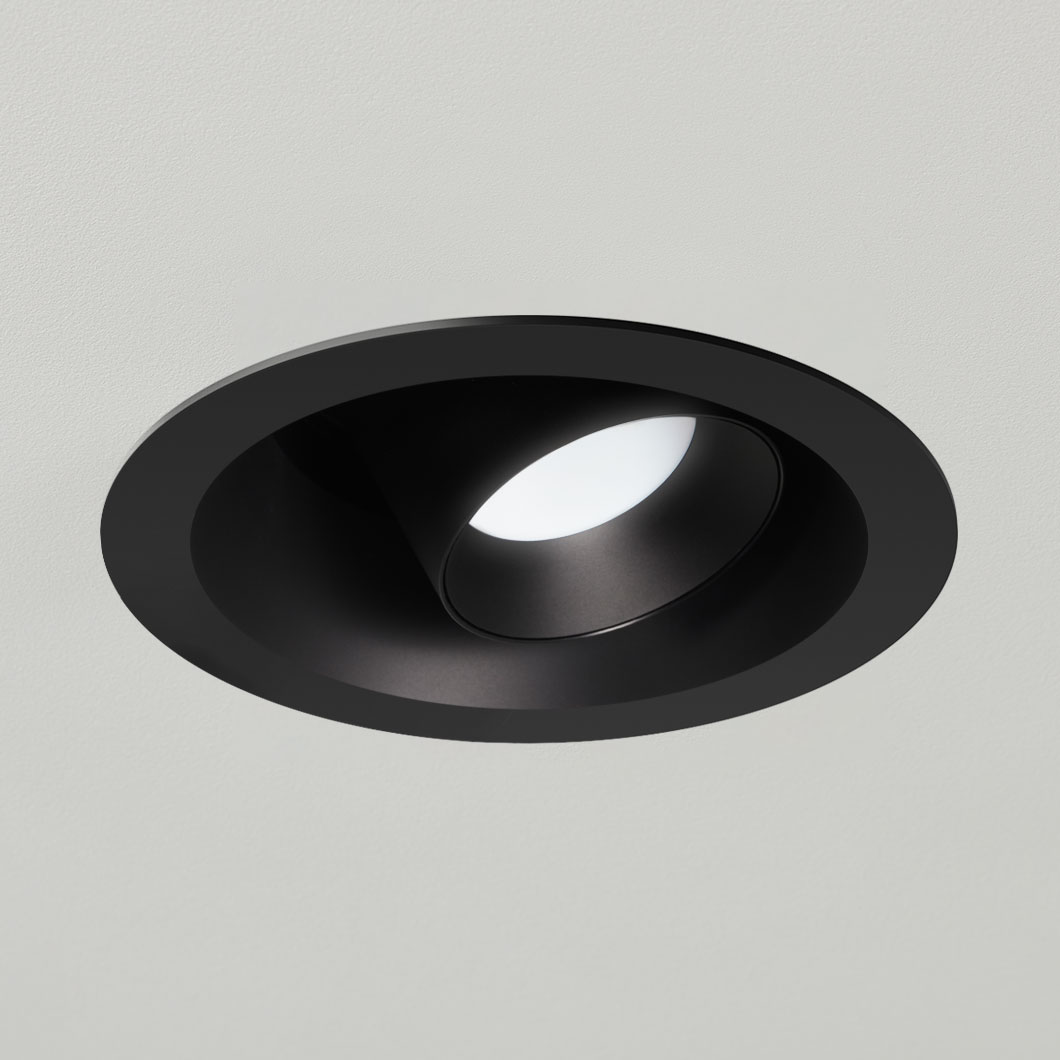

Beautiful luminaires that deliver sublime light
Pure cylindrical forms crafted from precision milled anodised aluminium. A custom-built glass lens that brings you a low glare light experience. Industry leading LED technology, delivering up to 800 lumen. Its IP rating make it perfect for any type of room. Introducing a fixture that’s stunning in every way you look at it.

Custom finishes
Available for projects only in: brushed nickel, light bronze, dark bronze, canon de fusil light and canon de fusil dark. Contact us for further details.

Lightbulb with brain filament icon
- Our Top Tips -

Driver required - see dropdown for options
Driver questions? Contact us - we're happy to help



Specification

Installation Video

Finish: black ano | white struc
Reflector: glass lens

Light temperature: 2700K | 3000K

Power supply: max. 700 mA
Output: up to 700 lumen
CRI: CRI 90+
↓ IP65 ↑ IP20
Class III

Ventilation: air extraction
Air flow: max. 50 m³/h
Noise: < 25 dB(A)
Pressure: 7 – 75 Pa

Adjustability: 32 steps
Locking mechanism: integrated
Motion detection: passive infrared sensor (PIR)
Detection angle
: h 360 v 100
Light sensor
: integrated
Master/slave: integrated
Adjustability motion sensor: time - sensor - lux
Other
: patent pending

Driver: (not included - see dropdown)
48V driver 15W (8000-0029)
48V track driver 70W (8000-0024)
48V track driver 150W (8000-0025)

Accessories:
light + motion | master slave connector (8000-2174)
light + motion | external potential-free contact (8000-2175)

Lamp type: Integrated LED

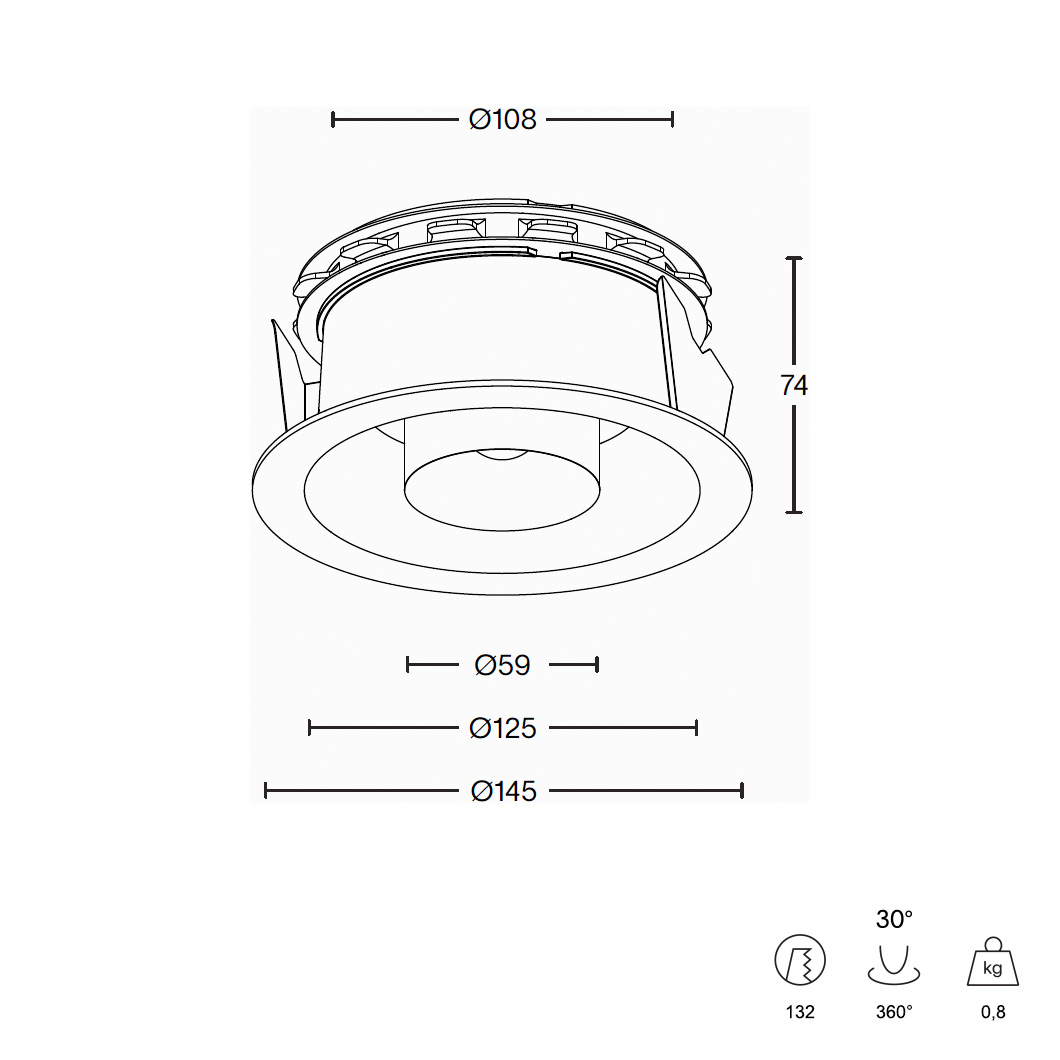

Dimensions

Product dimensions: H.74mm x Diameter.145mm

Cutout dimensions: Dia.132mm

Lens dimensions: Dia.59mm

Downloads
Delivery and warranty

Delivery usually within 2-3 weeks

- 2 years for conventional products (NON-LED)
- 3 years for the LED light source for devices with LED STRIPS
- 5 years for the LED light source for devices with LED MODULES/LINES

PDF Full guarantee and terms

About the manufacturer

Invisible home technology. Highlighting what really matters and hiding what does not, that's what Prado stands for. By developing invisible home solutions, Prado are helping to create more peaceful home environments. Come home to an interior where function, form and sustainability are in harmony. Functional minimalist lighting with state-of-the-art invisible ventilation. Modern downlights with integrated motion sensors that you cannot see. All using high quality materials for a high-end finish.



Available now for EU but coming soon in UK versions - Rond by Prado applies the same minimalist principles to the wall with a beautiful range of round UK switchless power sockets and data ports with a unique design.
