OUTLET DLD Eiger 2 LED IP65 Recessed Downlight True Colour CRI98 - Next Day Delivery

Description

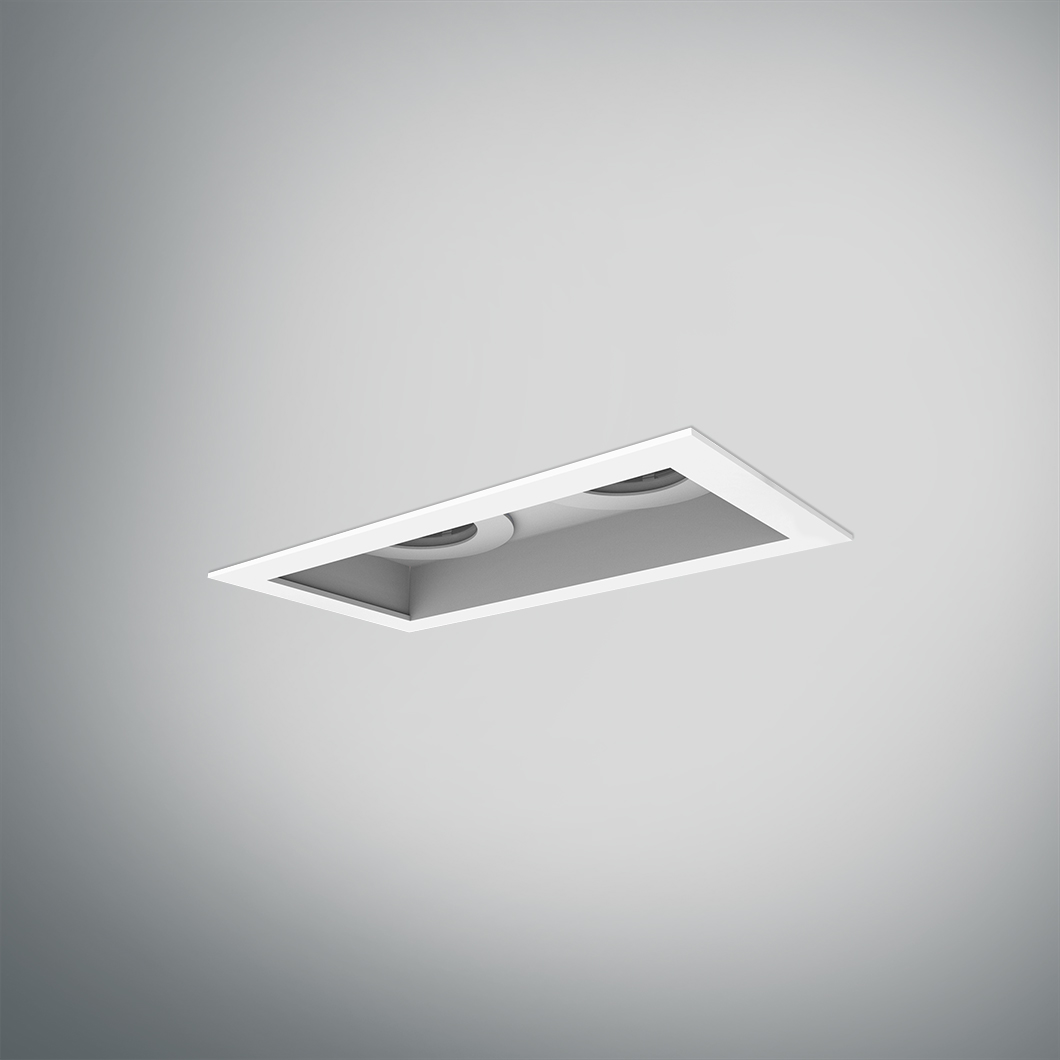

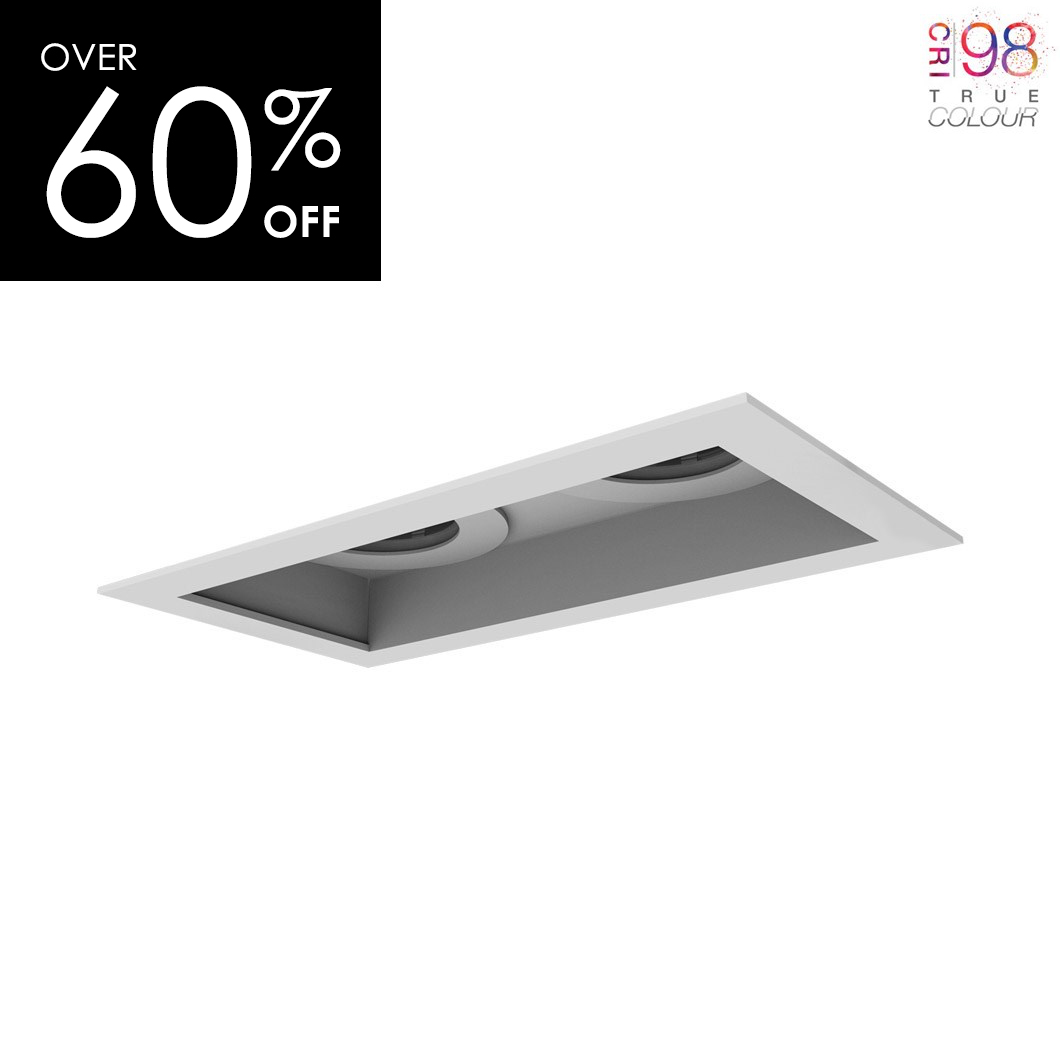

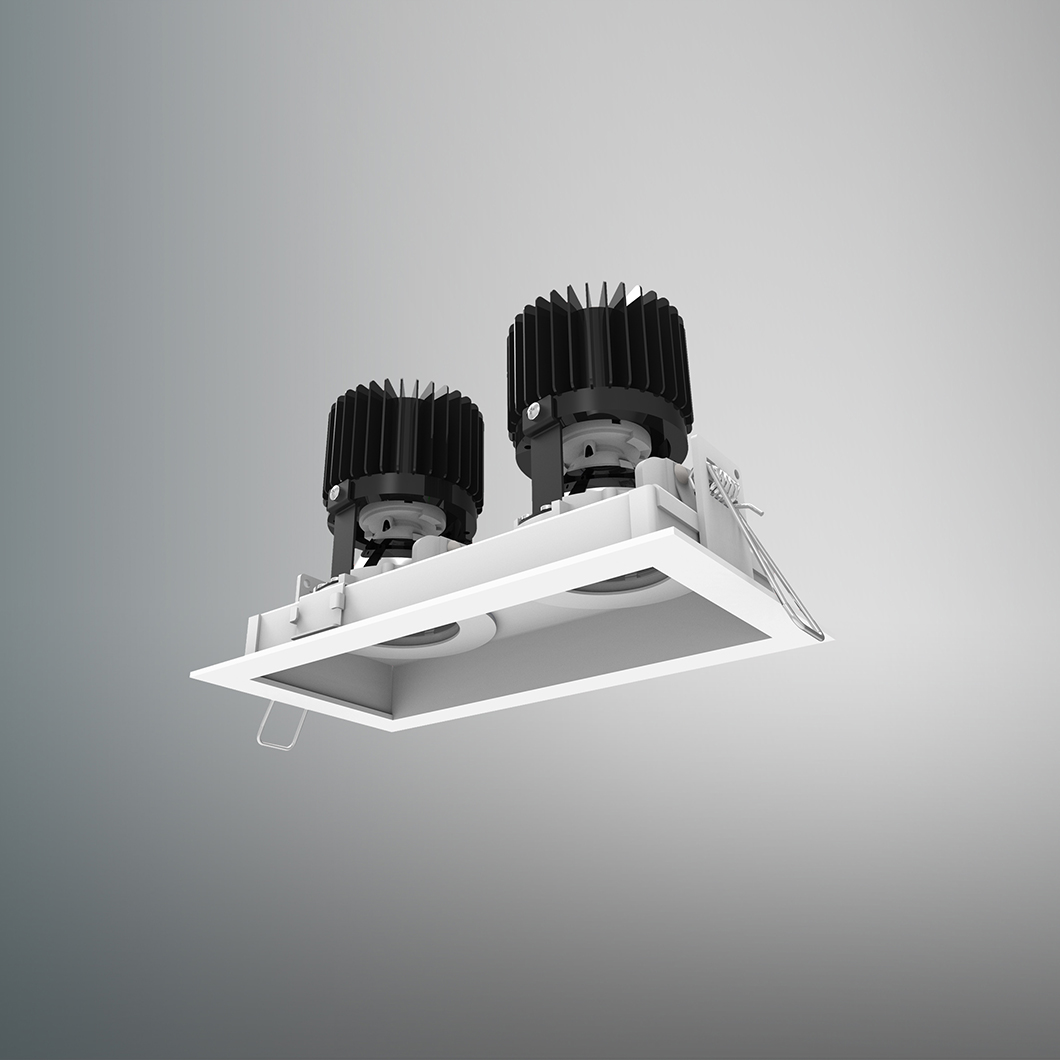

Eiger 2 LED square recessed downlight has a dual lumen output of over 2x 1400lm - making it perfect for installation in residential projects. This paired with our True Colour CRI 98 LED chip creates a powerful light which brings The twin light engines are removable through a simple twist mechanism, which allows for easy maintenance. 15º or a medium 36º beam angles are available. Die-cast aluminium luminaire with steel housing. Heat sink in forged aluminium for optimum heat dissipation. Reflector in plastic PC. In white or black. IP65 rated, suitable for installation in bathroom zones 1, 2 and 3. Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. The Eiger range is fully dimmable, supporting 0-10V, TRIAC or DALI drivers.

4000K colour temperature on demand - please contact for details.

Wireless dimming from your smartphone

This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Emergency lighting compatible

Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Compatible with leading edge and trailing edge dimmers. Dimmable with either 1-10V, TRIAC or DALI dimming drivers - not supplied. Contact us for further details. Eiger is available in multiple versions, and with or without trim. Optional blue connection box available for easy push-fit installation.

Eiger is available in multiple sizes, and with or without trim.

Currently in stock:
All versions - orders placed before midday are delivered next working day
When not in stock: delivery usually with 1-2 weeks

Specification

IP65
Wattage: 2 x 15W
Current: 2 x 350mA
Beam angle: 15º | 24º | 36º
CRI 98

Colour Temperature:
2700ºK | 3000ºK | 4000ºK

Delivered Lumens:
Dependent on beam angle and colour temp - see datasheet in Downloads tab

Driver Options:

• Mains dimmable driver: 2x Osram OT FIT 14W Phase Cut CC Driver
• 0-10V dimmable driver: 2x EldoLED 0-10V ELD/SL0241A2-350
• DALI dimmable driver: 2x L-Tech DALI-15-100-700-E1A1
• See datasheets in Downloads tab for further details

Fire Rated:

60+ minute FR rating
Independently tested by Cambridge Fire Service

Emergency pack (optional)

1 x per light engine
3hr battery life
Low lux emergency light output
Fully compliant with standard building safety regulations

Maintenance & Access

• LED fitting removable from the plaster-in housing post installation
• Driver fits through the cut-out hole diameter
• Driver can be housed remotely from the fitting (check maximum distance with us)

Dimensions

Product dimensions: W.180mm x D.90mm x H.112mm

Cutout dimensions: W.165mm x H.80mm

Downloads

• DLD Eiger 2 Trim Fixed Datasheet PDF
• DLD Eiger Downlight Installation Instructions PDF
• Lighting Info for Bathroom Zones
• Osram OT FIT 14W Phase Cut Driver Data Sheet PDF
• Datasheet 0-10V Dim. Driver - EldoLED SL0241A2 PDF
• L Tech DALI 15 100 700 E1A1 Data Sheet
• FIRE TEST REPORT
• Lighting File Eiger 15D IES
• Lighting File Eiger 15D LDT
• Lighting File Eiger 24D IES
• Lighting File Eiger 24D LDT
• Lighting File Eiger 36D IES
• Lighting File Eiger 36D LDT

Delivery and warranty

Delivery varies for each product, please see product description

About the manufacturer

Tailor-made for lighting designers and architects, the DLD Architectural lighting collection is sourced and manufactured by us to complement our Raw Design decorative lighting range. Our outstanding selection of LED architectural fittings and luminaires combines modern minimalist design with the finest components, and utilises the latest technology. Specialising in contemporary linear profile lighting, discreet yet powerful glare-free recessed downlights, modular track systems and high end exterior lighting solutions, the DLD Architectural collection is perfect for creating inspirational and innovative lighting schemes for domestic and commercial projects.
