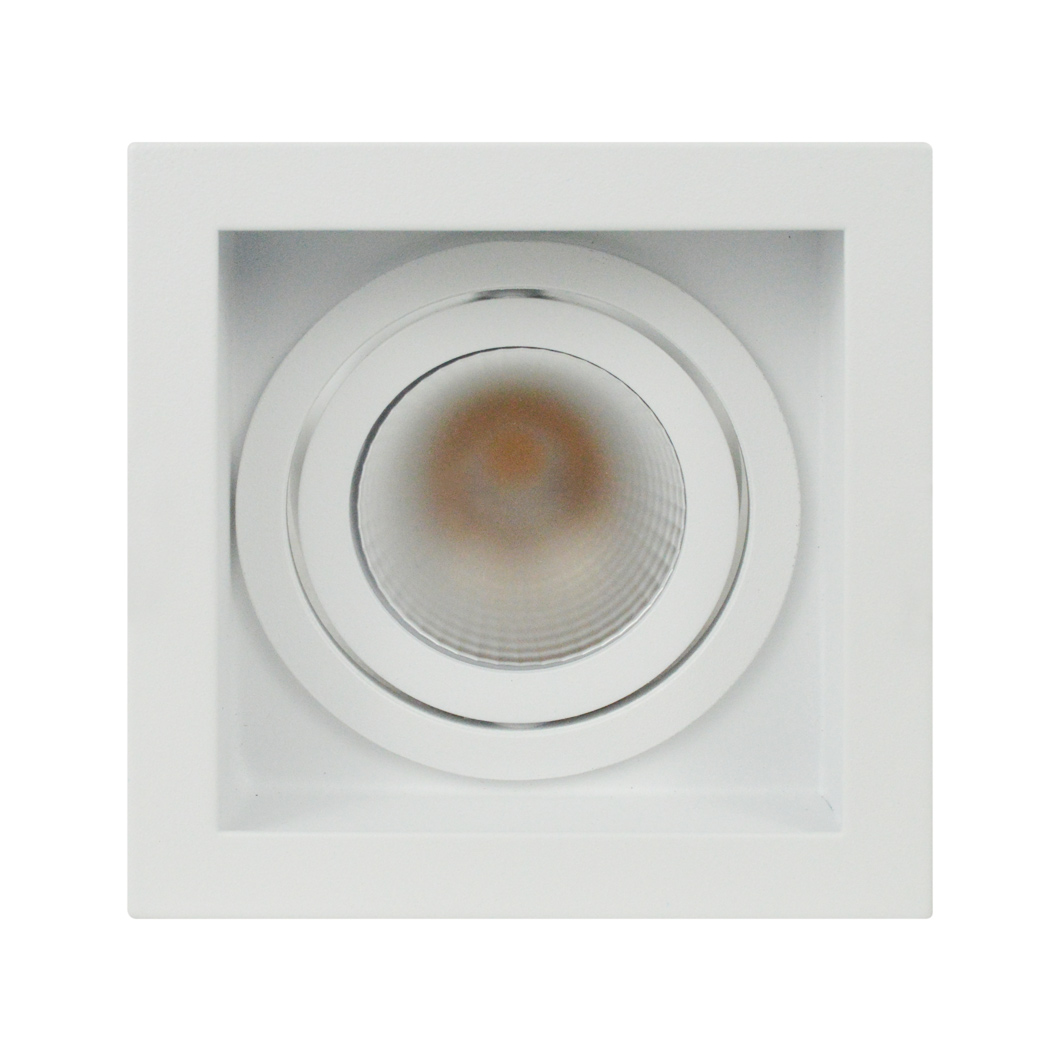

Front on view of the Square Eiger with a adjustable mount

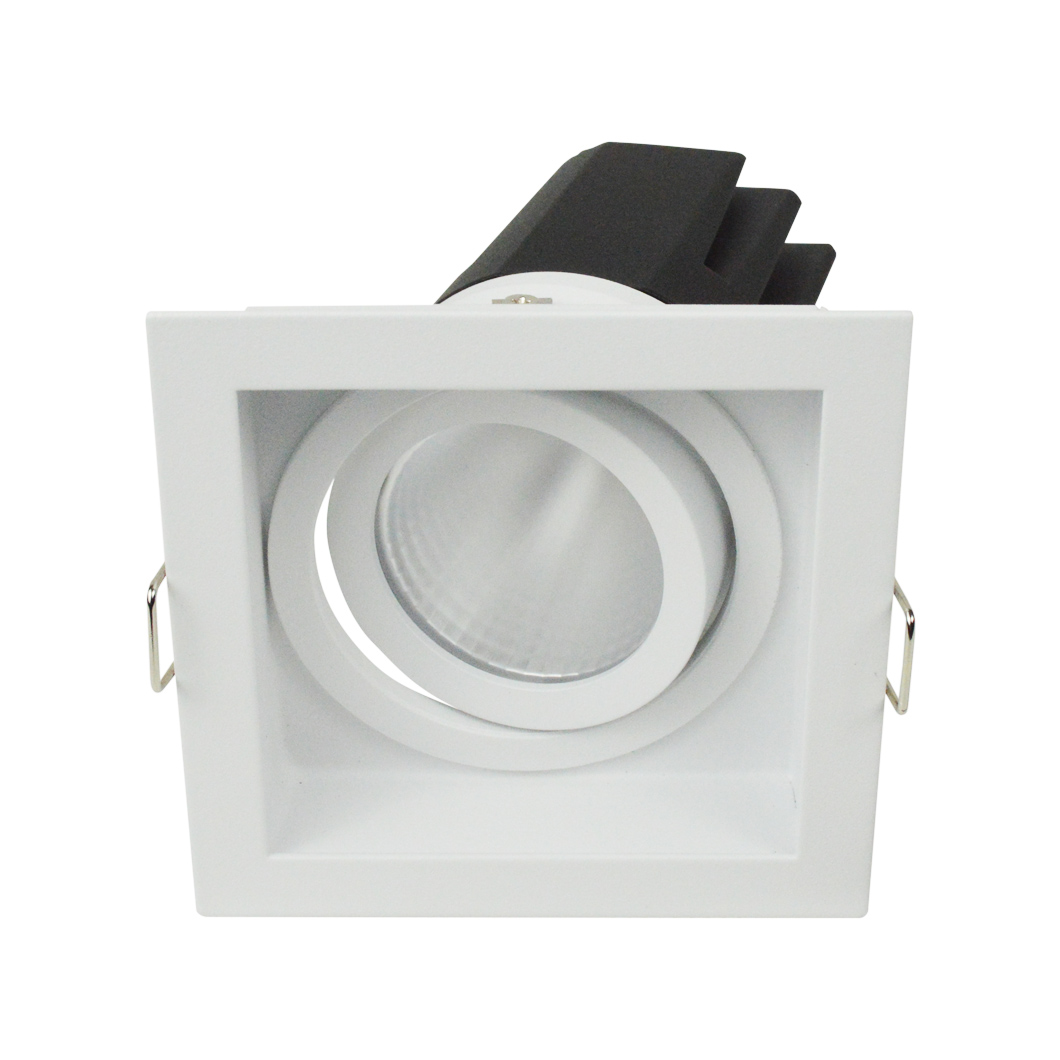

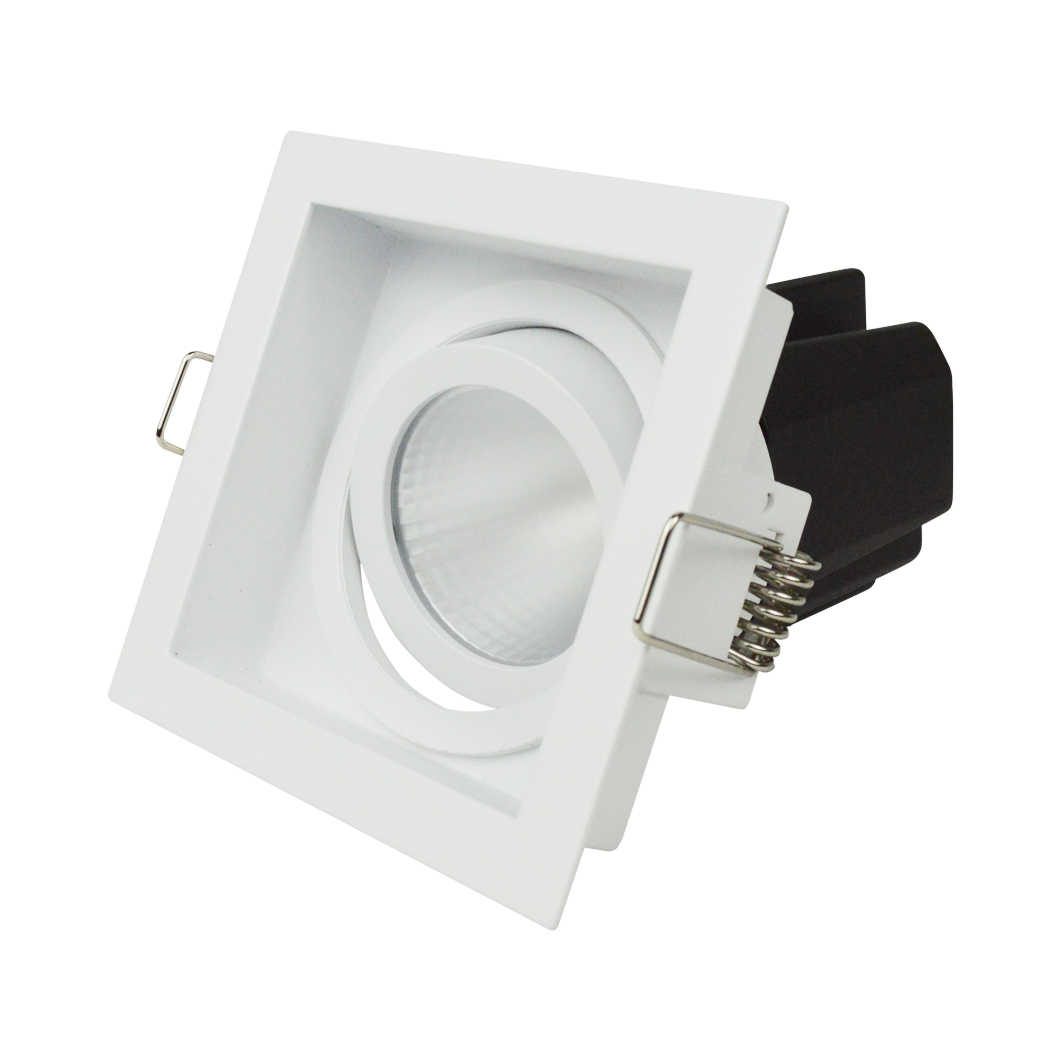

3/4 view of DLD Eiger 1-S Adjustable LED Downlight with white square trim frame with a tilted light engine on a white background

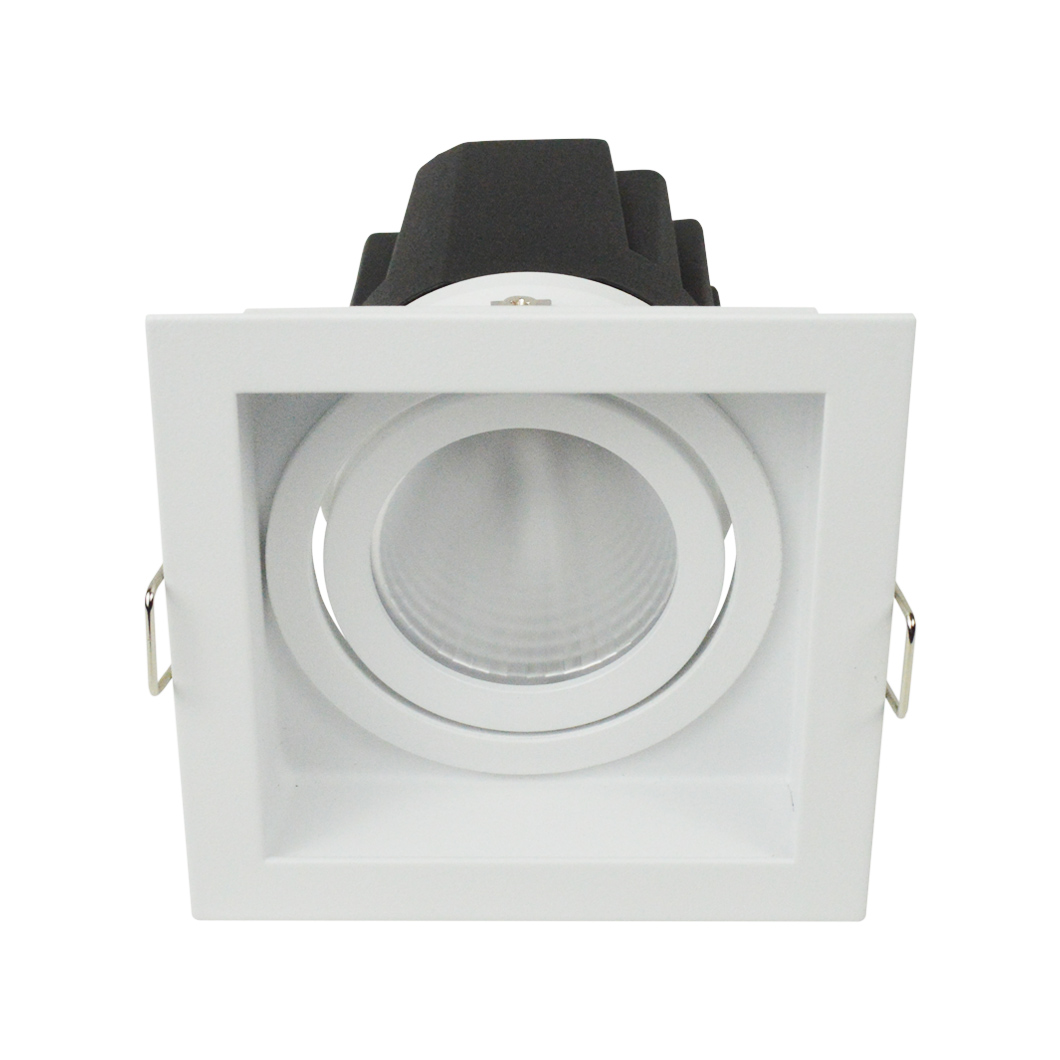

3/4 view of DLD Eiger 1-S Adjustable LED Downlight with white square trim frame with a straight light engine on a white background
3/4 view of DLD Eiger 1-S Adjustable LED Downlight with white square trim frame with a tilted light engine on a white background
3/4 view of DLD Eiger 1-S Adjustable LED Downlight with white square trim frame with a straight light engine on a white background
Straight on view of DLD Eiger 1-S Adjustable LED Downlight with white square trim frame on a white background
3/4 view of DLD Eiger 1-S Adjustable LED Downlight with white square trim frame with a tilted light engine on a white background
Side view of DLD Eiger 1-S Adjustable LED Downlight with white square trim frame with a tilted light engine on a white background

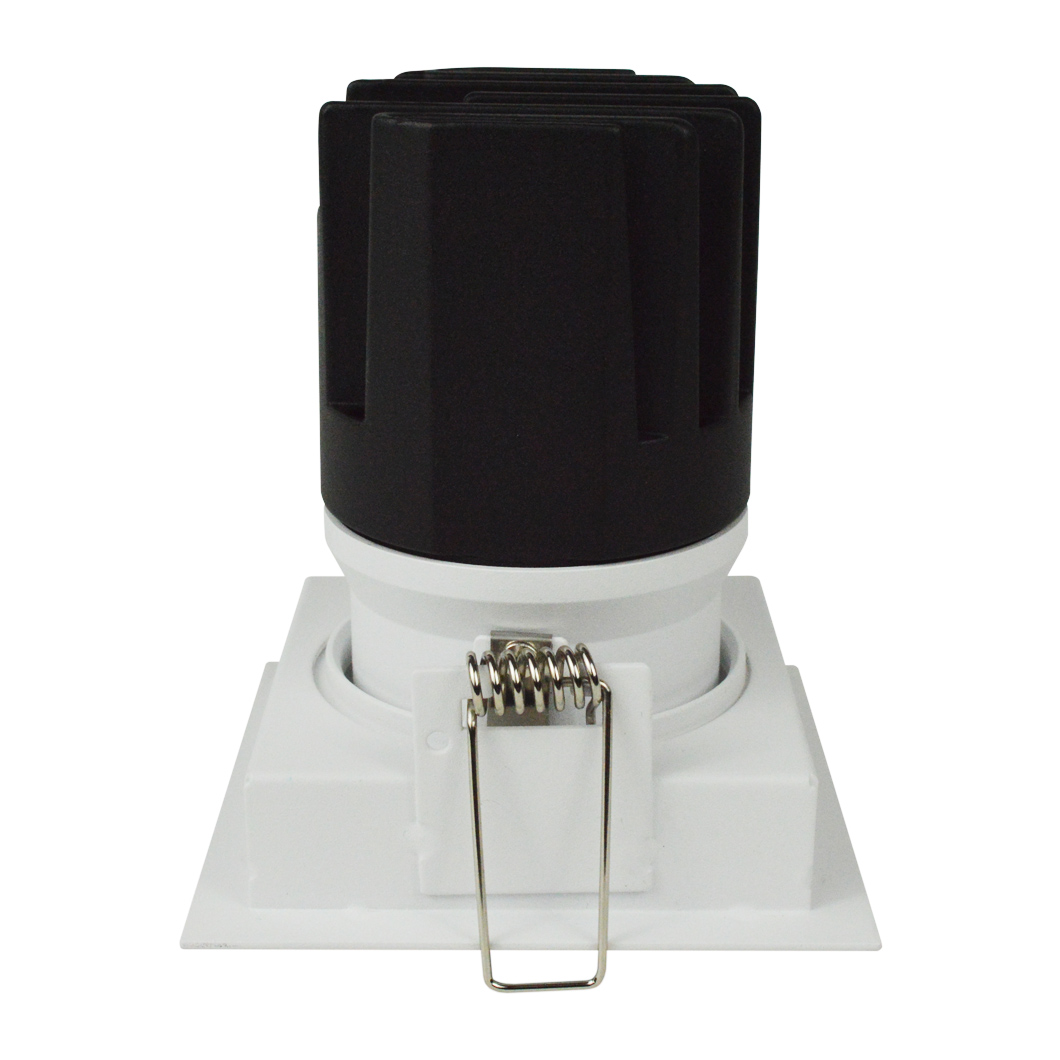

Side view of DLD Eiger 1-S Adjustable LED Downlight with white square trim frame with a straight light engine on a white background

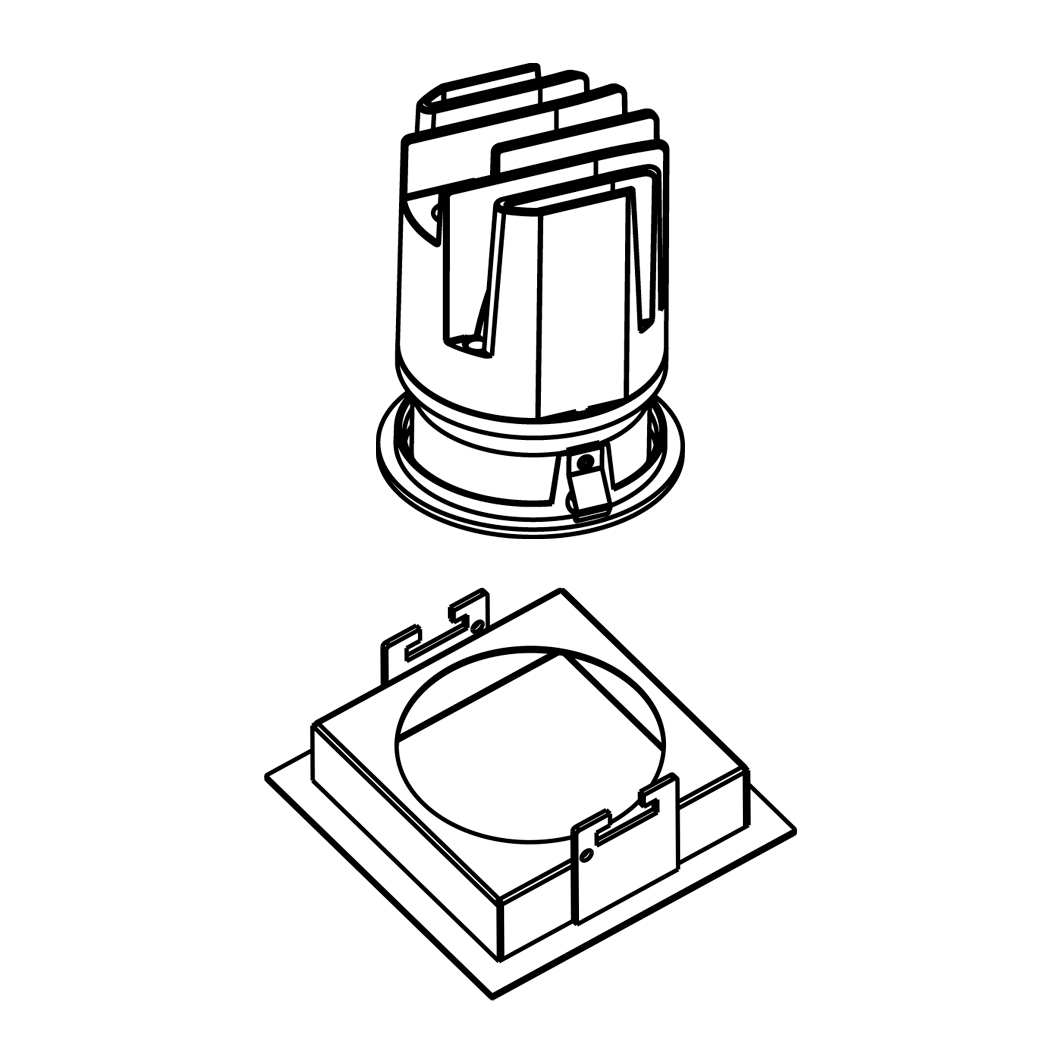

Line drawing of DLD Eiger 1-S Adjustable LED Downlight with white square trim frame

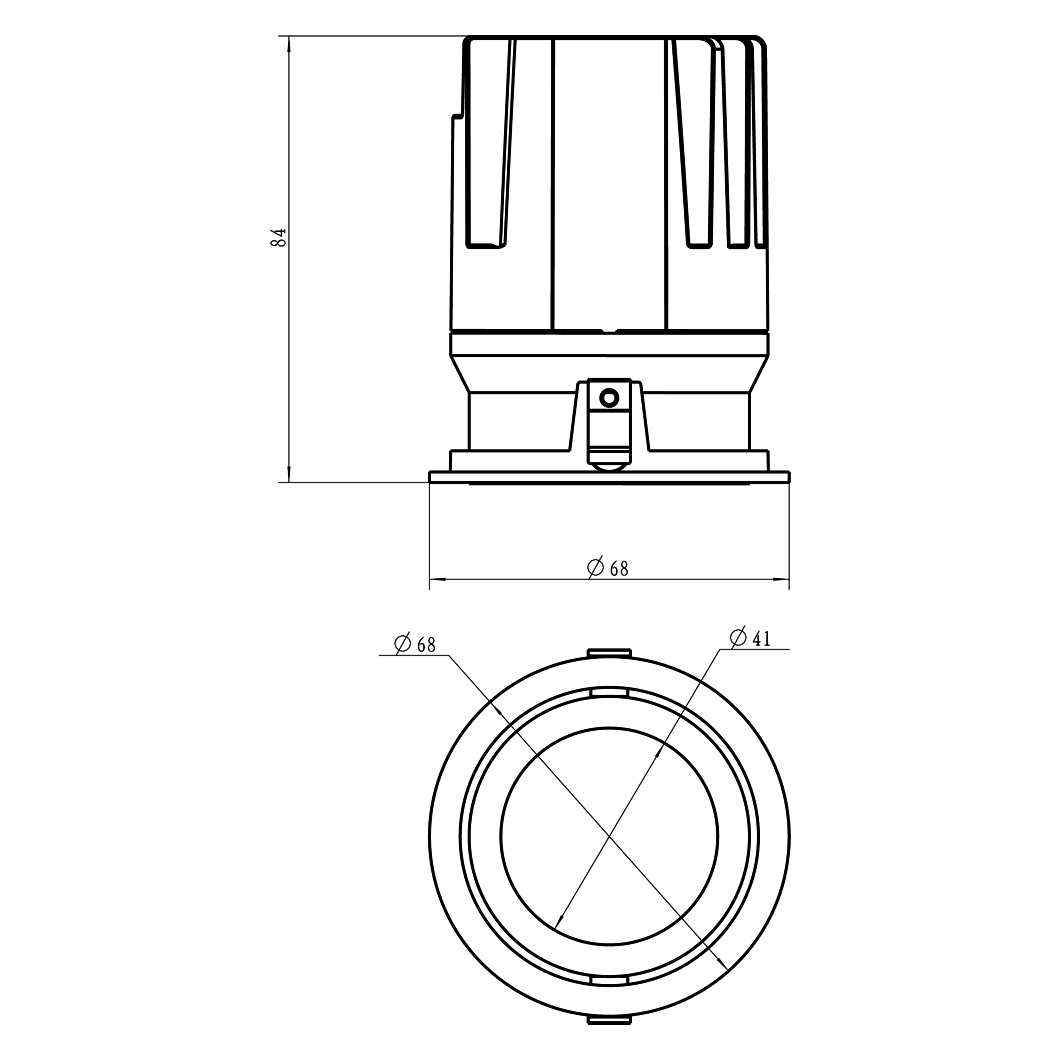

Dimensions diagram of DLD Eiger adjustable LED downlight component

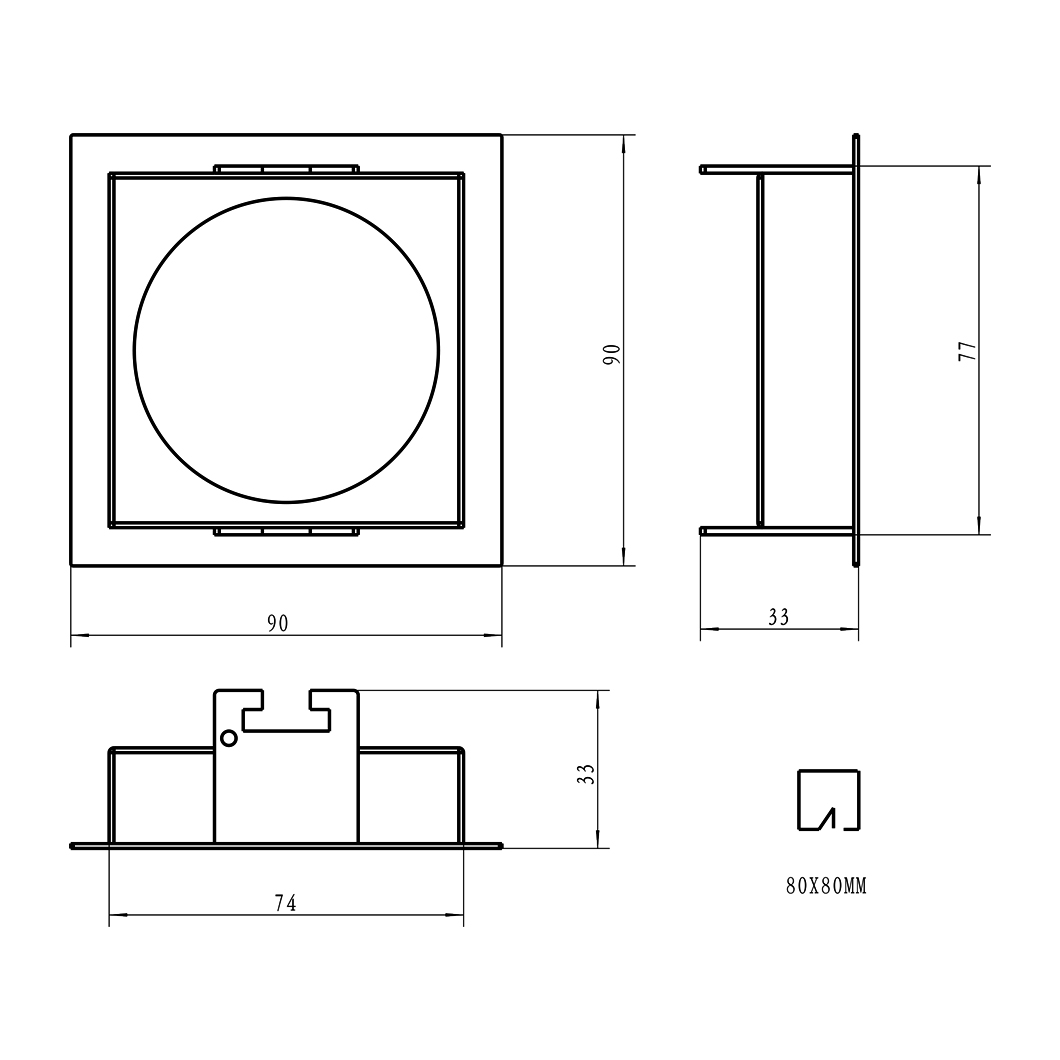

Dimensions diagram of DLD Eiger 1-S square frame with trim component
Front on view of the Square Eiger with a adjustable mount
3/4 view of DLD Eiger 1-S Adjustable LED Downlight with white square trim frame with a tilted light engine on a white background
3/4 view of DLD Eiger 1-S Adjustable LED Downlight with white square trim frame with a straight light engine on a white background
3/4 view of DLD Eiger 1-S Adjustable LED Downlight with white square trim frame with a tilted light engine on a white background
3/4 view of DLD Eiger 1-S Adjustable LED Downlight with white square trim frame with a straight light engine on a white background
Straight on view of DLD Eiger 1-S Adjustable LED Downlight with white square trim frame on a white background
3/4 view of DLD Eiger 1-S Adjustable LED Downlight with white square trim frame with a tilted light engine on a white background
Side view of DLD Eiger 1-S Adjustable LED Downlight with white square trim frame with a tilted light engine on a white background
Side view of DLD Eiger 1-S Adjustable LED Downlight with white square trim frame with a straight light engine on a white background
Line drawing of DLD Eiger 1-S Adjustable LED Downlight with white square trim frame
Dimensions diagram of DLD Eiger adjustable LED downlight component
Dimensions diagram of DLD Eiger 1-S square frame with trim component

OUTLET DLD Eiger 1-S LED Recessed Adjustable Downlight True Colour CRI98 - Next Day Delivery

Manufacturer: DLD Architectural

£45

One tree planted
Trustpilot Rating
Free UK delivery
365 Day returns

View product details

Description

Our flagship downlight, the Eiger 1-S True Colour adjustable downlight is a great all-rounder. By combining amazing colour rendering accuracy with an IP54 rating (suitable for bathroom zones 2 & 3) this version of the Eiger sports a traditional white square frame with bezel. Eiger uses the latest CRI98 LED chip which makes colours appear richer than ever, and the 24º adjustable tilt makes this a downlight that is versatile enough to highlight a piece of art on a wall or provide more general lighting.

The Eiger light engine component emits around 800 lumens, more than ample for most domestic lighting design projects. Maintenance is easy post installation - the LED light engine can be removed separately from the frame through a simple twist mechanism. 15º or a medium 36º beam angles are available. The luminaire is in die-cast aluminium with steel housing, and the heat sink in forged aluminium for maximum heat dissipation. Reflector in plastic PC. In white or black. Our downlights are fire rated as standard, and have lasted over 60 minutes in independent tests by Cambridge Fire Research. Compatible with leading edge and trailing edge dimmers. Dimmable with either 0-10V, TRIAC or DALI dimming drivers - see dropdown for options. Eiger is available in multiple versions, and with or without trim.

4000K colour temperature on demand - please contact for details.

Wireless dimming from your smartphone

This luminaire can also be used with the Casambi dimming units to give flexible control of all the lights in your home. Create the perfect mood for all situations wirelessly via Bluetooth 4.0 and save them as pre-set scenes on the Casambi app from your smartphone. Or control the scene at the touch of a button, either with Casambi wireless wall switches or with an off-the-shelf push dimmable on/off switch.  See the 'You May Also Need...' section below for the available options and technical information.

Emergency lighting compatible

Emergency pack available as an extra. By utilising the optional emergency pack this luminaire can be used as a back-up emergency light fitting that complies with standard building safety regulations. In the event of a power outage this high performance fitting becomes a low lux emergency light, operating at around 10% of it’s original performance with a battery life of 3 hours. Please contact us for details.

Currently in stock:
All versions - orders placed before midday are delivered next working day
When not in stock: delivery usually with 1-2 weeks

Specification

IP54 - suitable for bathroom zone 2

Wattage: 13W
Current: 350mA
Beam angle: 15º | 24º | 36º
Adjustable tilt: 24º
Adjustable rotation: 355º
True Colour CRI 98

Colour Temperature:
2700ºK | 3000ºK | 4000ºK

Delivered Lumens:
Dependent on beam angle and colour temp - see datasheet in Downloads tab

Driver Options:

  • Mains dimmable driver: Osram OT FIT 14W Phase Cut CC Driver
  • 0-10V dimmable driver: EldoLED 0-10V ELD/SL0241A2-350
  • DALI dimmable driver: L-Tech DALI-15-100-700-E1A1
  • See datasheets in Downloads tab for further details

Fire Rated:

60+ minute FR rating
Independently tested by Cambridge Fire Service

Emergency pack (optional)

1 x per light engine
3hr battery life
Low lux emergency light output
Fully compliant with standard building safety regulations

Maintenance & Access

  • LED fitting removable from the plaster-in housing post installation
  • Driver fits through the cut-out hole diameter
  • Driver can be housed remotely from the fitting (check maximum distance with us)
Dimensions

Product dimensions: W.90mm x D.90mm x H.105mm

Cutout dimensions: W.80mm x H.80mm

Downloads
Delivery and warranty

Delivery varies for each product, please see product description

About the manufacturer

Tailor-made for lighting designers and architects, the DLD Architectural lighting collection is sourced and manufactured by us to complement our Raw Design decorative lighting range. Our outstanding selection of LED architectural fittings and luminaires combines modern minimalist design with the finest components, and utilises the latest technology. Specialising in contemporary linear profile lighting, discreet yet powerful glare-free recessed downlights, modular track systems and high end exterior lighting solutions, the DLD Architectural collection is perfect for creating inspirational and innovative lighting schemes for domestic and commercial projects.

For more information on our products and services please call 01189 882294 or email [email protected].

Got a question? Email us or call 01189 882294
