- Description
-

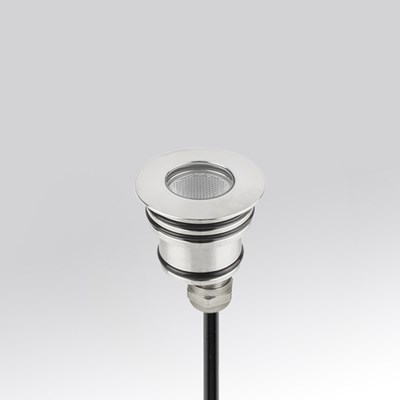

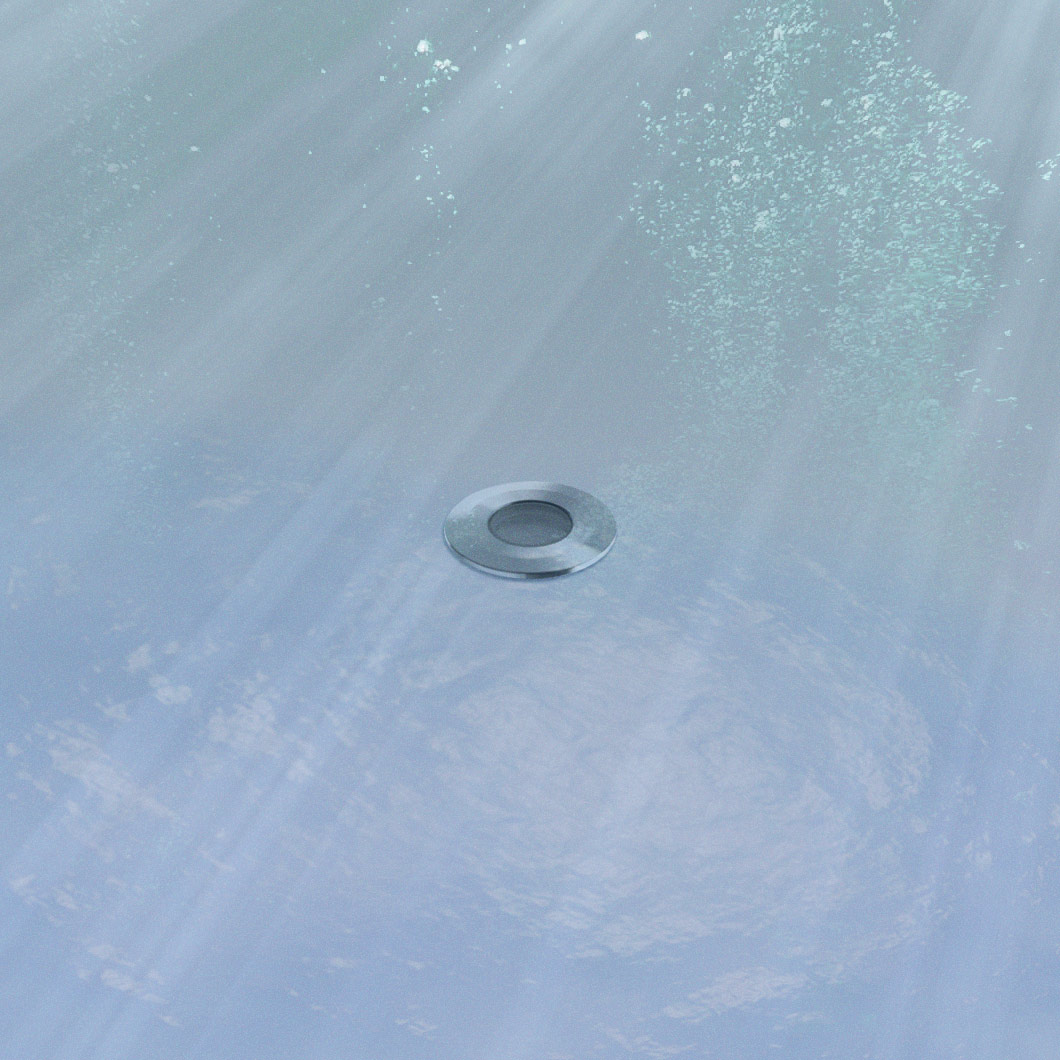

With a mini diameter of just under 3cm, the LLD River Mini Submersible Spot Light is a discreet permanent immersion luminaire with a maximum installation depth of 3m. The IP68 rating makes River Mini an outstanding solution for lighting swimming pools, jacuzzis, fountains and water features. When installed as an uplight out of the water the LLD River Mini Spot Light it suitable for lighting pathways as it can be walked over.
The River Mini Underwater Spot Light uses an energy efficient 1W LED light source with a choice of beam angles in 28° or 42°. Available with a choice of 2700K, 3000K or 4000K light temperature. Constructed from AISI 316L stainless steel body and trim, with a tempered transparent glass and PMMA lens.
Supplied with an 8m neoplene cable. Can be installed with an optional housing box, available as in standard for non-underwater installation or IP68 rated submersible versions. 350mA constant current driver not included. This fitting is compatible with non dim, TRIAC dim, push dim, 1-10V dim and DALI dim drivers.
Other sizes available - see below. View the full LLD Light catalogue in the downloads tab.
Delivery usually within 2 weeks
- Specification
-
IP68 fully submersible
Class III
Max installation depth: 3m
8m neoplene cable
Fitting weight: 0.55kg
Walk over: up to 500kg
Constant current version - wired in series
350mA driver IP rated required
CCT | Lumens
2700°K | 105lm
3000°K | 111lm
4000°K | 125lm
Beam angle: 28° | 42°
Optional housing box (CAE21): H.70mm Ø25mm
Optional IP68 housing box (CA821): H.107mm Ø35mm
Lamp type: LED 1W Lifespan 50,000hrs
- Dimensions
-

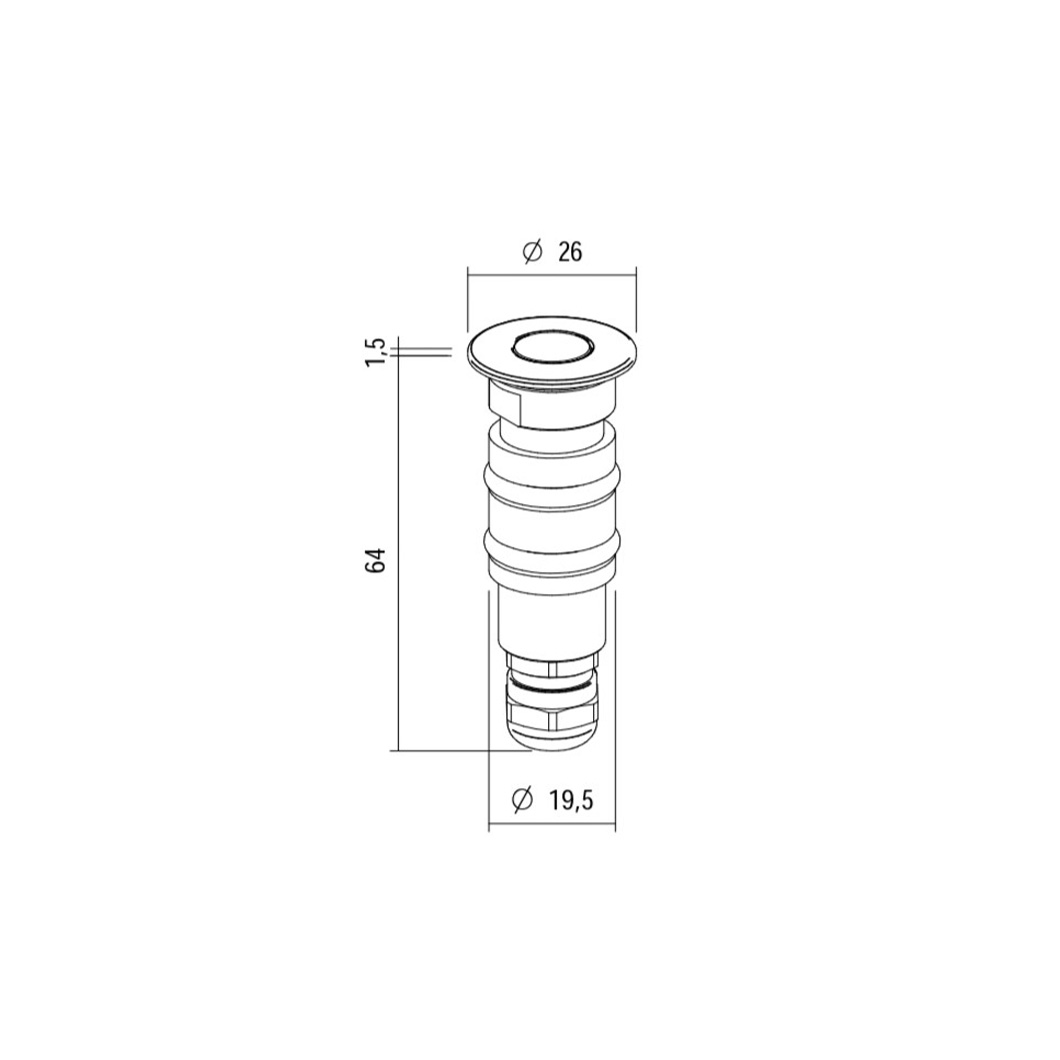

Product dimensions: H.64mm x Diameter.26mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
Browse the full LLD 2021 catalogue
