- Description
-

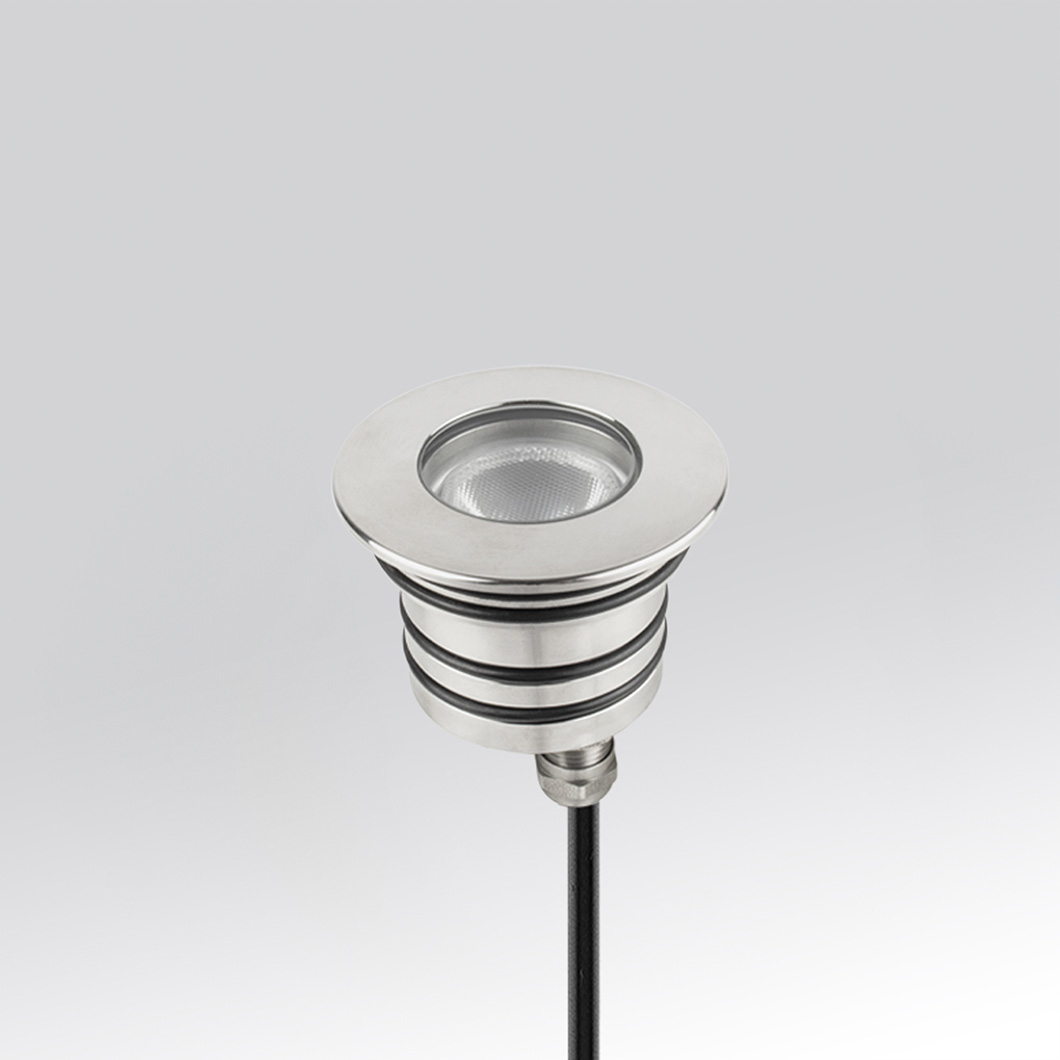

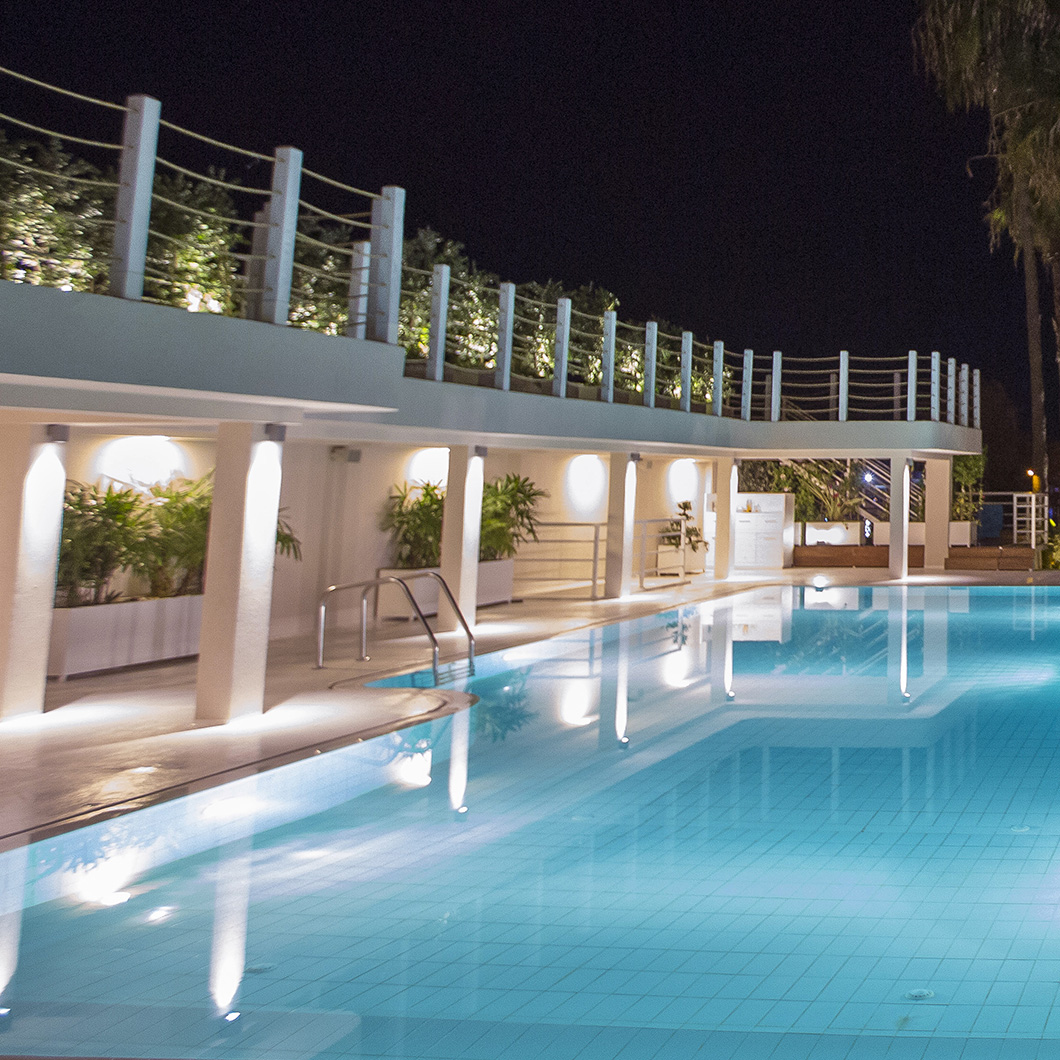

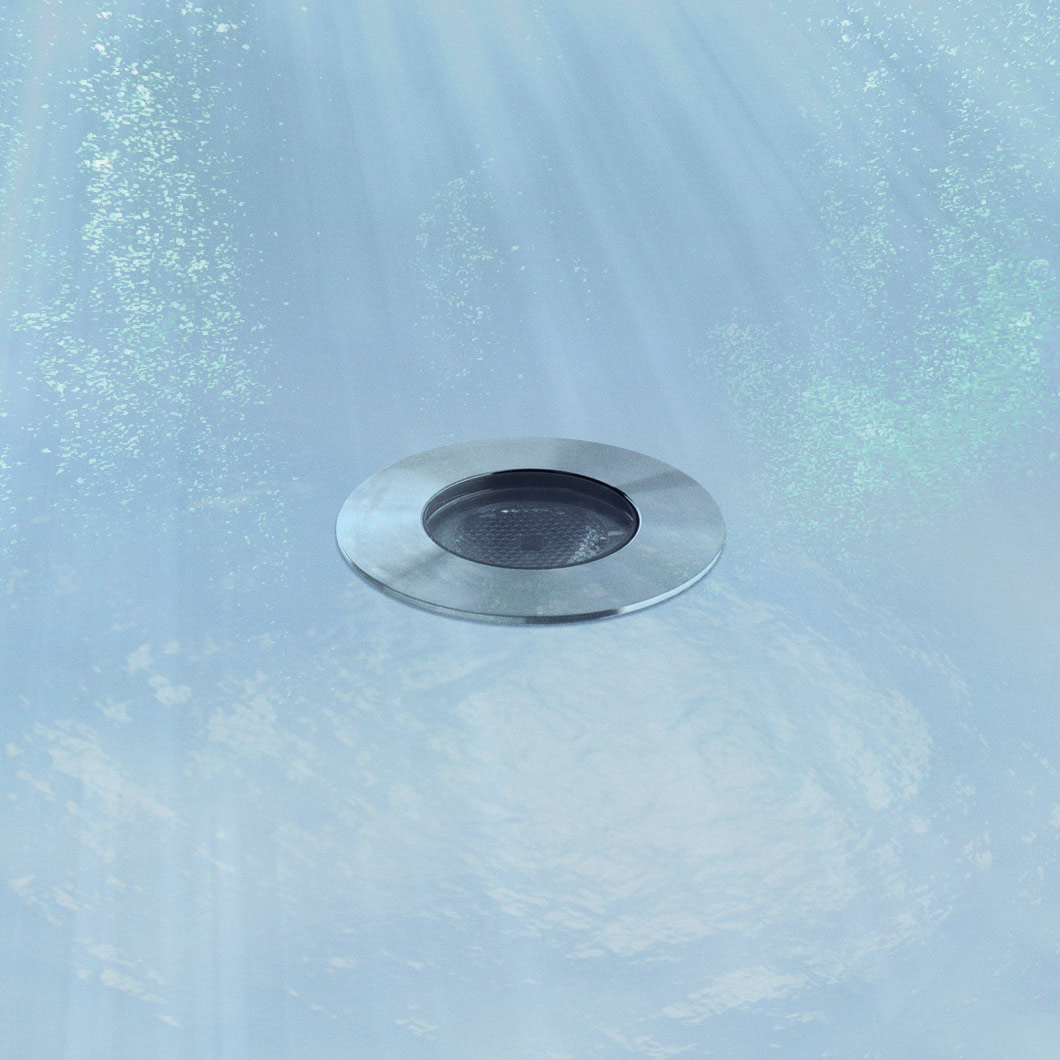

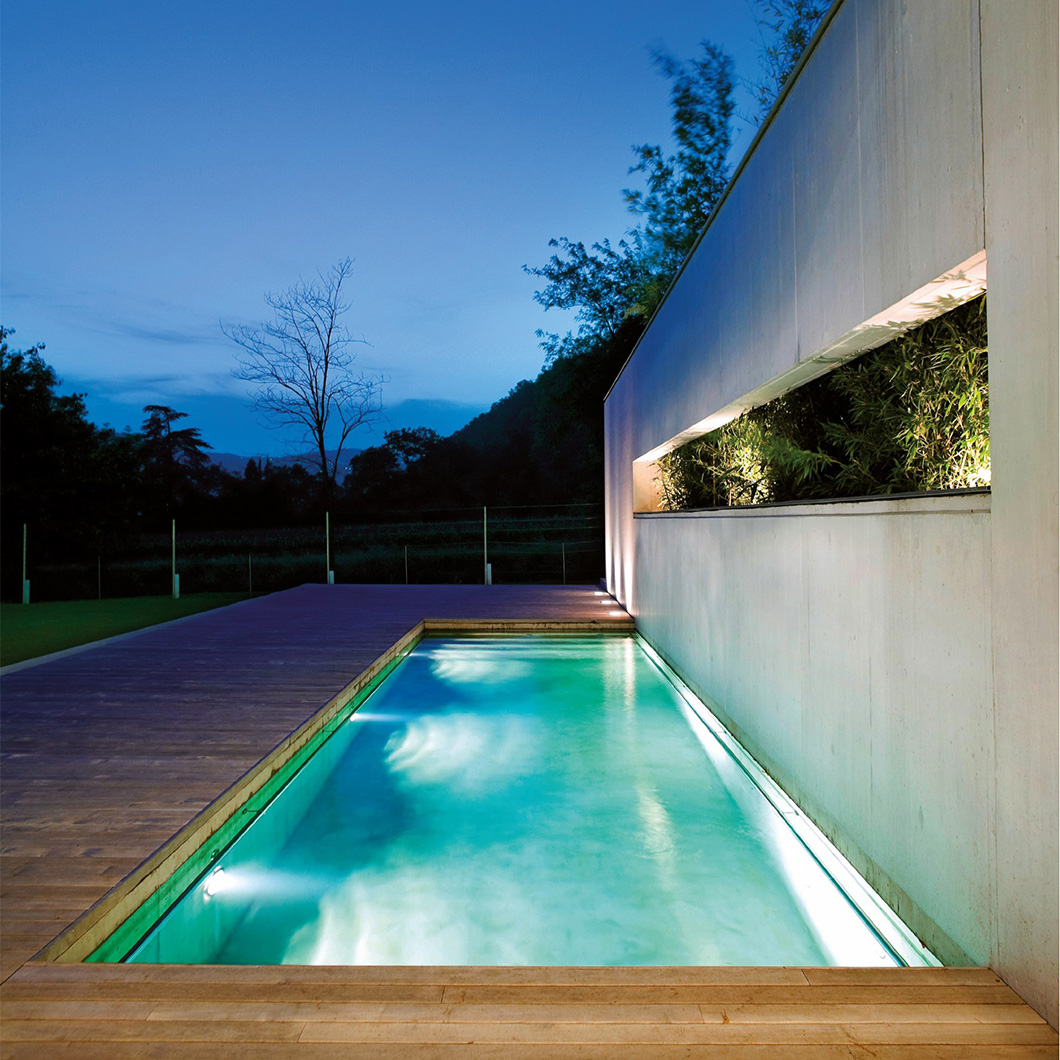

The larger sibling in the family, the IP68-rated LLD River Maxi Submersible Spot Light is a contemporary underwater luminaire for lighting swimming pools, jacuzzis, fountains and water features. A minimal permanent immersion spotlight, the LLD River has a diameter of just under 7cm, a slim 3mm lip and a maximum underwater installation depth of 3m. The LLD River Maxi Spot Light can be walked over when installed as an uplight out of the water, making it suitable for use as an outdoor uplight or path light.
The body and trim are constructed from AISI 316L stainless steel, with tempered transparent glass and PMMA lens. An energy-efficient LED light source powers the fitting, with constant current or 24Vdc versions available. Available with a choice of beam angles in 8°, 16°, 30°, Diffused, 40°, 64° 16° x 40°, ASYM, and with various light temperatures in 2200K, 2700K, 3000K, 4000K, red, green, or blue. See the technical specification for more information on the light temperatures and optics available.
Supplied with a 3m, 10m, or 15m cable with WP system. Can be installed with an optional housing box, available in standard for non-underwater installation or IP68-rated submersible versions. Driver not included. This fitting is compatible with non-dim, TRIAC dim, push dim, 1-10V dim and DALI dim drivers.

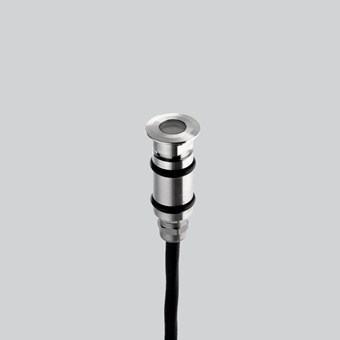

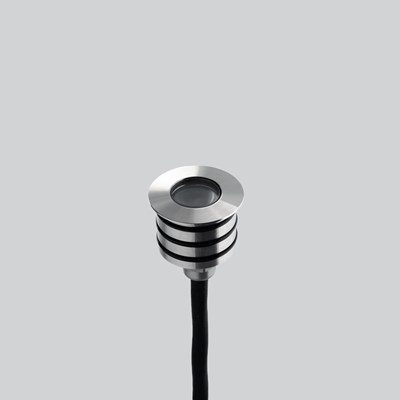

Other sizes are available - see our 'More Like This' section below.
- Specification
-
IP68
AISI 316L Stainless steel body
AISI 316L stainless steel trim
Transparent tempered glass and PMMA lens
Cable with WP system: 3m, 10m, 15m
C.C.
4W - 6W
4W - 350mA Not included
6W - 500mA Not included
Wired in series
24Vdc
6,5W
24Vdc - 6,5W not included
Wired in parallel
2200K / 2700K / 3000K / 4000K / RED / GREEN / BLUE
CRI 80
Optics:
8°, 16°, 30°, Diffused, 40°, 64° 16° x 40°, ASYM
2200K, RED, GREEN, BLUE - 30°, Diffused, 40°, 64°, 16x40°, ASYM ONLY
Installation:
Recessed on ground with housing box (not included)
Recessed on brickwork with housing box (not included),
Recessed on swimming pool with liner with housing box, flange and compensation trim (not included)
Installation out of water with standard housing box,
Permanent immersion installation with IP68 housing box or liner kit
Accessories:
PVC Housing Box (CAW53): Ø60 x 120 x Ø57
ABS Housing Box (CAI53): Ø100 x 100 x Ø58
IP68 Housing Box PVC (CA853): Ø60 x 120
Liner Kit (KT853)
Honeycomb Filter (with 30°, 16°, 40°, 64°, 16°x 40° lens ONLY)
Black & Clear Filter (with 8°, 30°, 16°, 40°, 64°, lens ONLY)
Lamp type: LED Lifespan 50,000hrs
- Dimensions
-

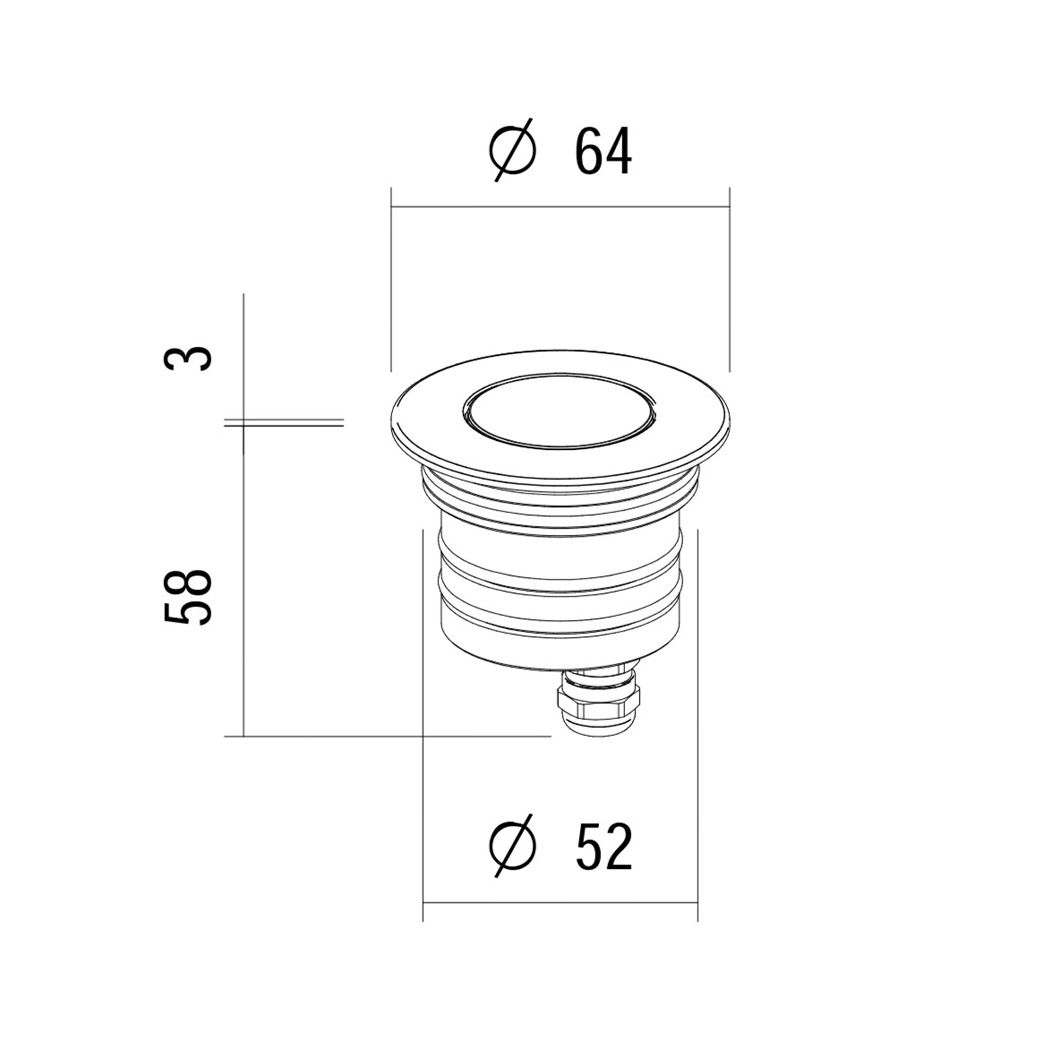

Product dimensions: H.61mm x Diameter.64mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
