- Description
-

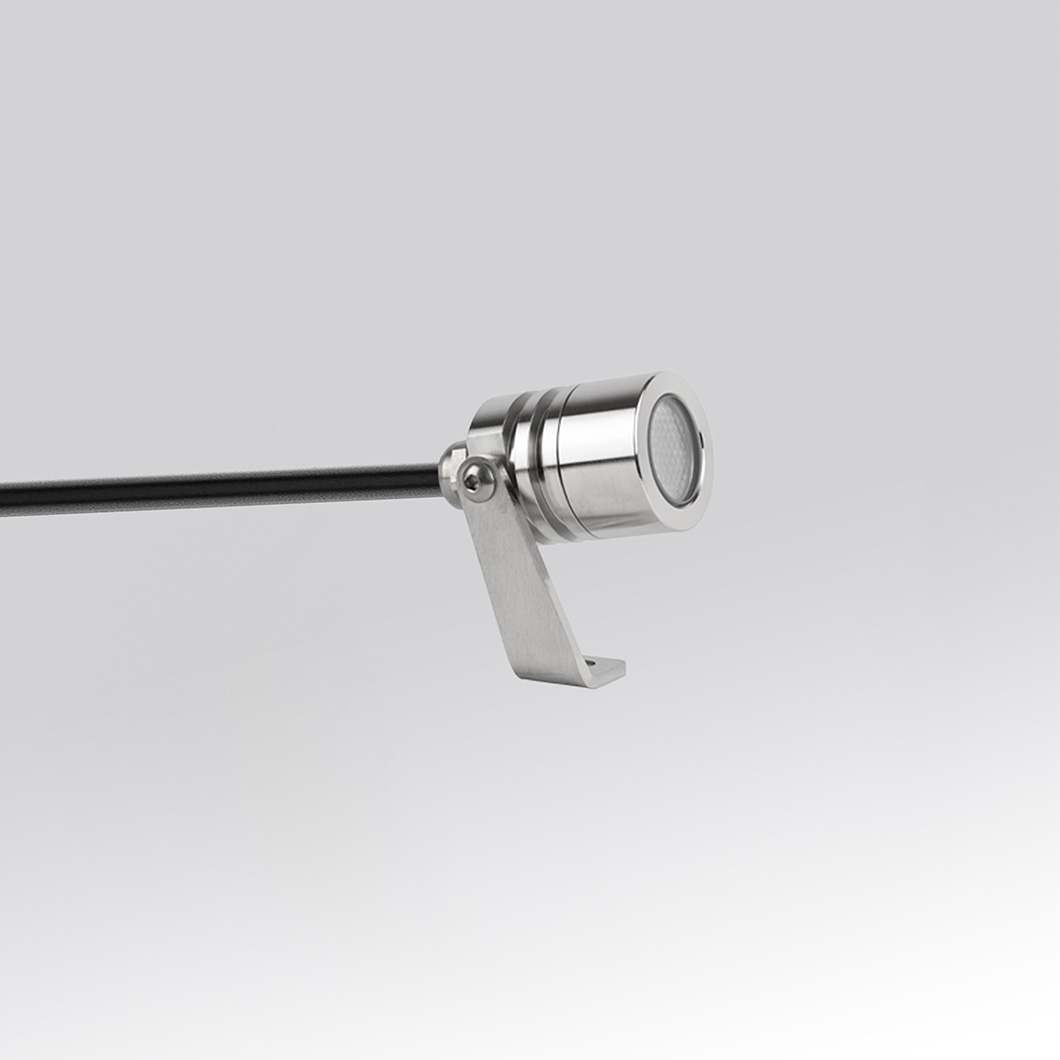

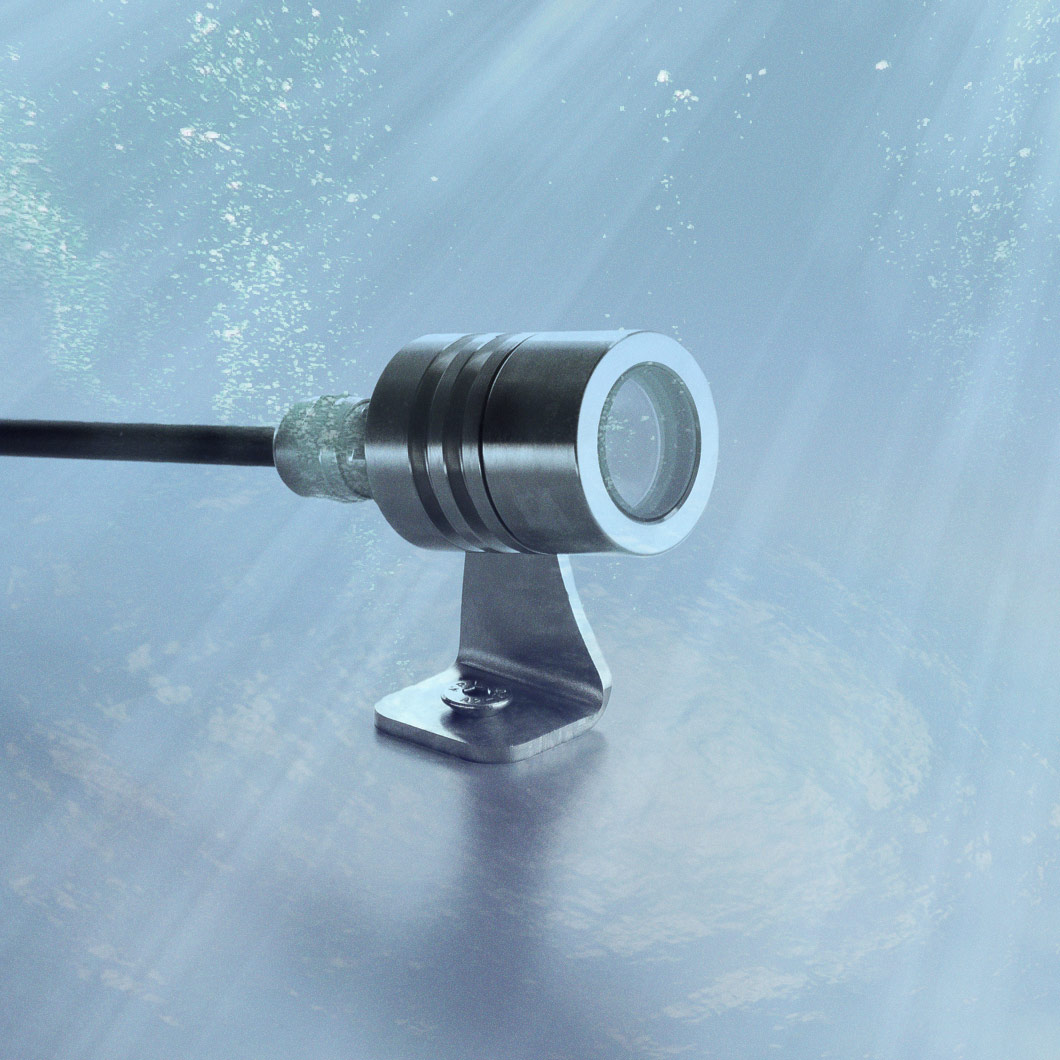

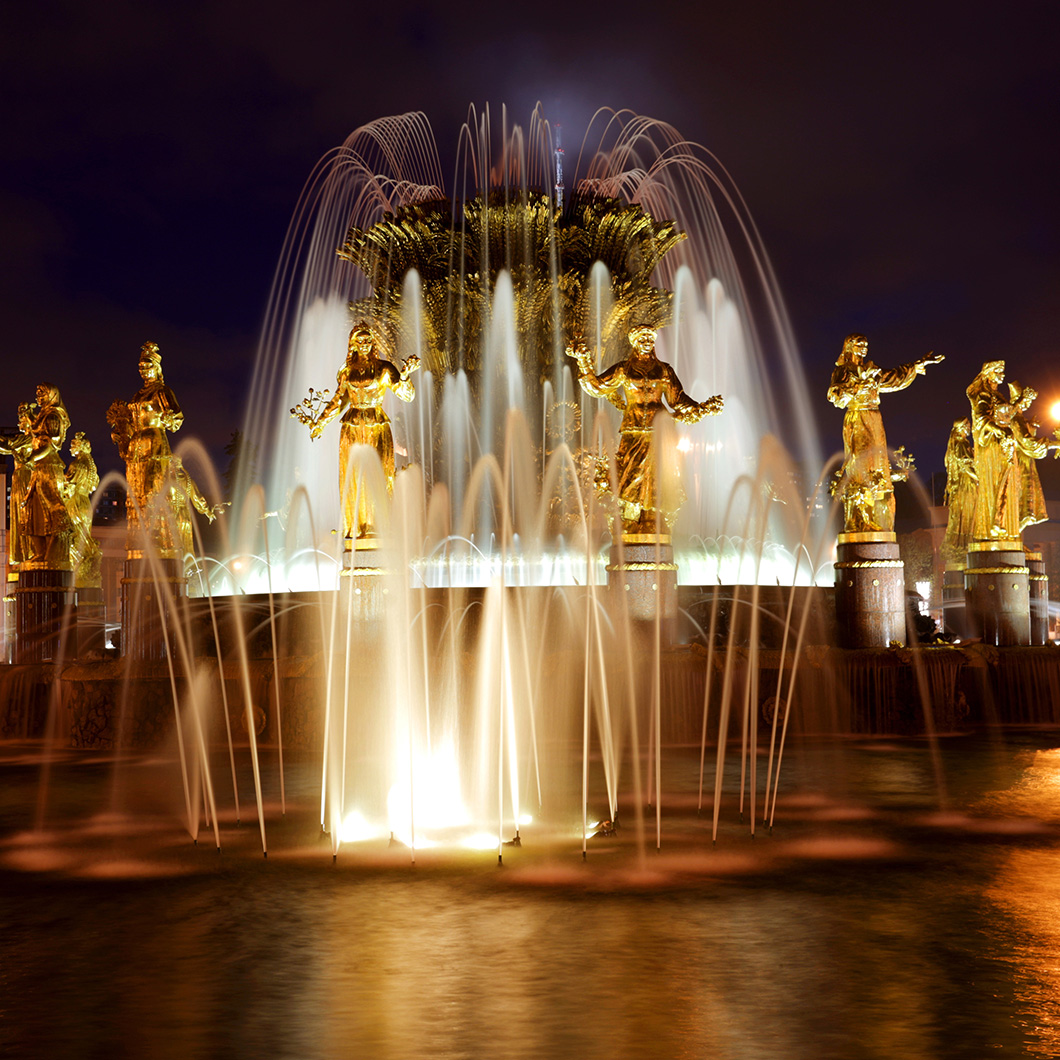

A micro underwater spotlight with a diameter of just under 3cm, the LLD Point Submersible S Spot Light is a discreet adjustable permanent immersion projector with a maximum installation depth of 3m. The IP68 rating makes Point Submersible S the perfect solution for lighting swimming pools, fountains and water features.
The Point Submersible S uses an energy-efficient LED light source with a choice of beam angles in 10°, 36° or 60°. Available with a choice of 2200K, 2700K, 3000K, 4000K, red, green, or blue light temperatures. Constructed from AISI 316L stainless steel body with a satinized steel bracket & a tempered transparent glass lens.
Supplied with a 3m, 10m, or 15m cable with WP system. As well as being fully immersed, Point can be fixed to the floor, ceiling or wall with the included fixing bracket, into the ground with the optional 200mm long peg, or on poles/trees with the optional mounting strap.

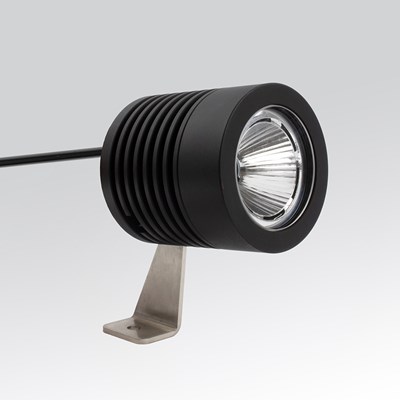

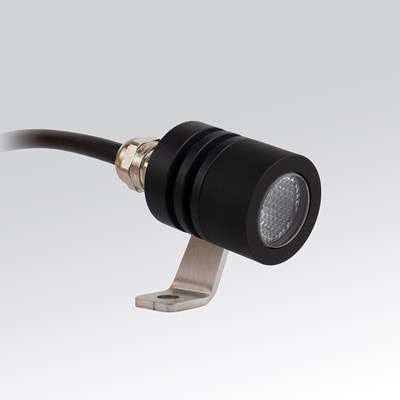

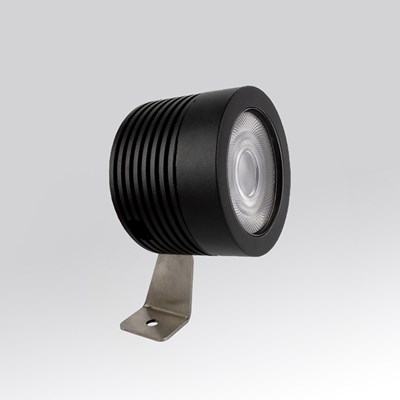

Other sizes and IP67 spot versions are available - see below.

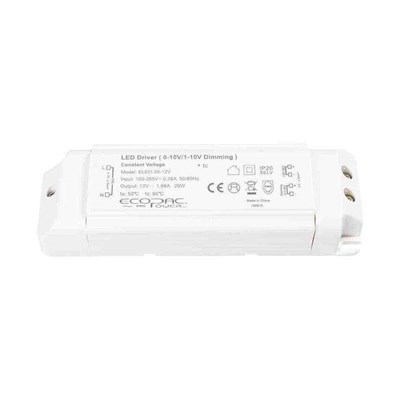

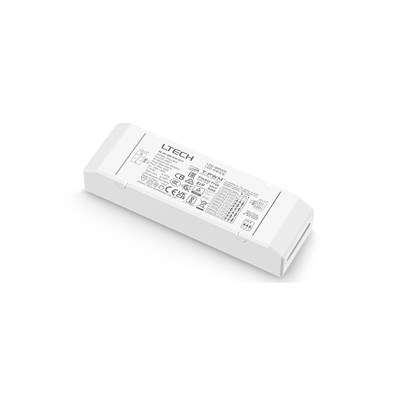

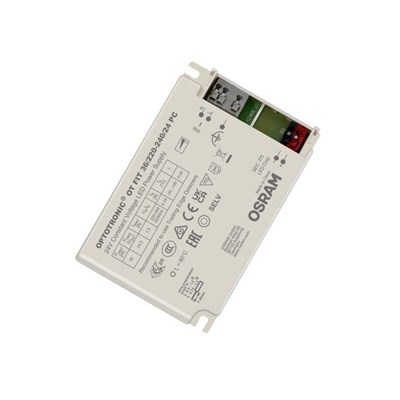

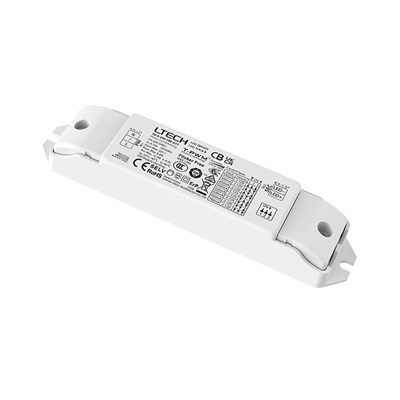

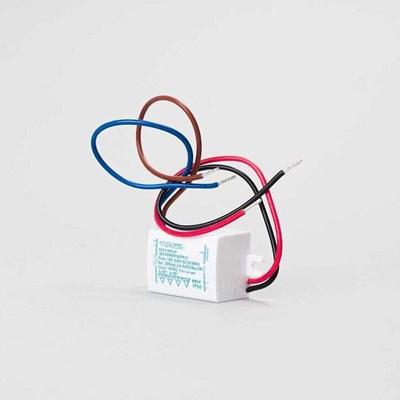

Driver required. This fitting is compatible with non-dim, TRIAC dim, push dim, 1-10V dim and DALI dim drivers.
- Our Top Tips -
-
Point SUB is an IP68 submersible light which can be permanently underwater and is designed for ponds, swimming pools, fountains and water features.
-
However this of course can be used above ground and is ideal for areas that might get flooded. Make sure to use IP68 cable joints to maintain the IP rating and warranty.
-
Drivers need to be accessible and we advise not burying them under ground in case maintenance is required.
-

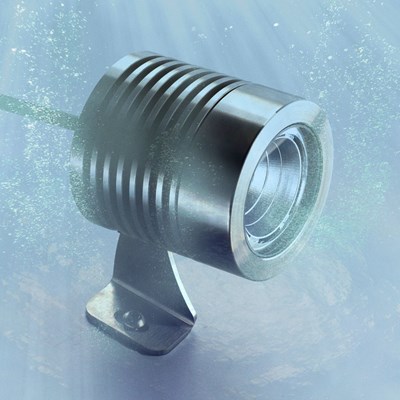

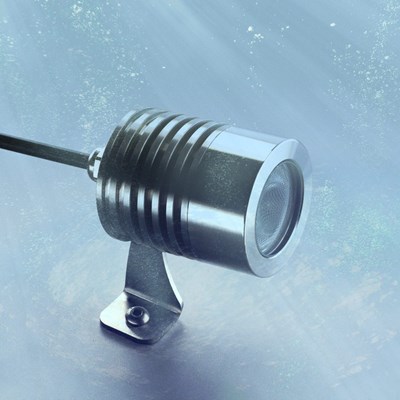

The Point S Submersible is suitable for smaller ponds and water features up to 2M. For anything bigger, we recommend using the medium (M) or large (L) instead.
- Specification
-
IP68
AISI 316L stainless steel body
Satinized stainless steel bracket
Transparent tempered glass
Cable with WP system: 3m, 10m, 15m
C.C.
1W - 1,6W - 2,5W
1W - 350mA Not included
1,6W - 500mA Not included
2,5W - 700mA Not included
Wired in series
24Vdc
2,2W
24Vdc - 2,2W not included
Wired in parallel
2200K / 2700K / 3000K / 4000K / RED / GREEN / BLUE
CRI 80
Optics:
10°, 36°, 60°
Installation:
Floor, wall or ceiling mounting with bracket (included), in ground with peg (not included), on poles/trees by mounting strap (not included), immersion also with ballast base (not included)
Accessories:
Stainless steel base (BAP01): Ø79 x 30
Stainless steel peg (PI002): 21,5 x 21,5 x 200
Mounting strap (CIN20)
Honeycomb filter (HC)
Lamp type: LED Lifespan 50,000hrs
- Dimensions
-

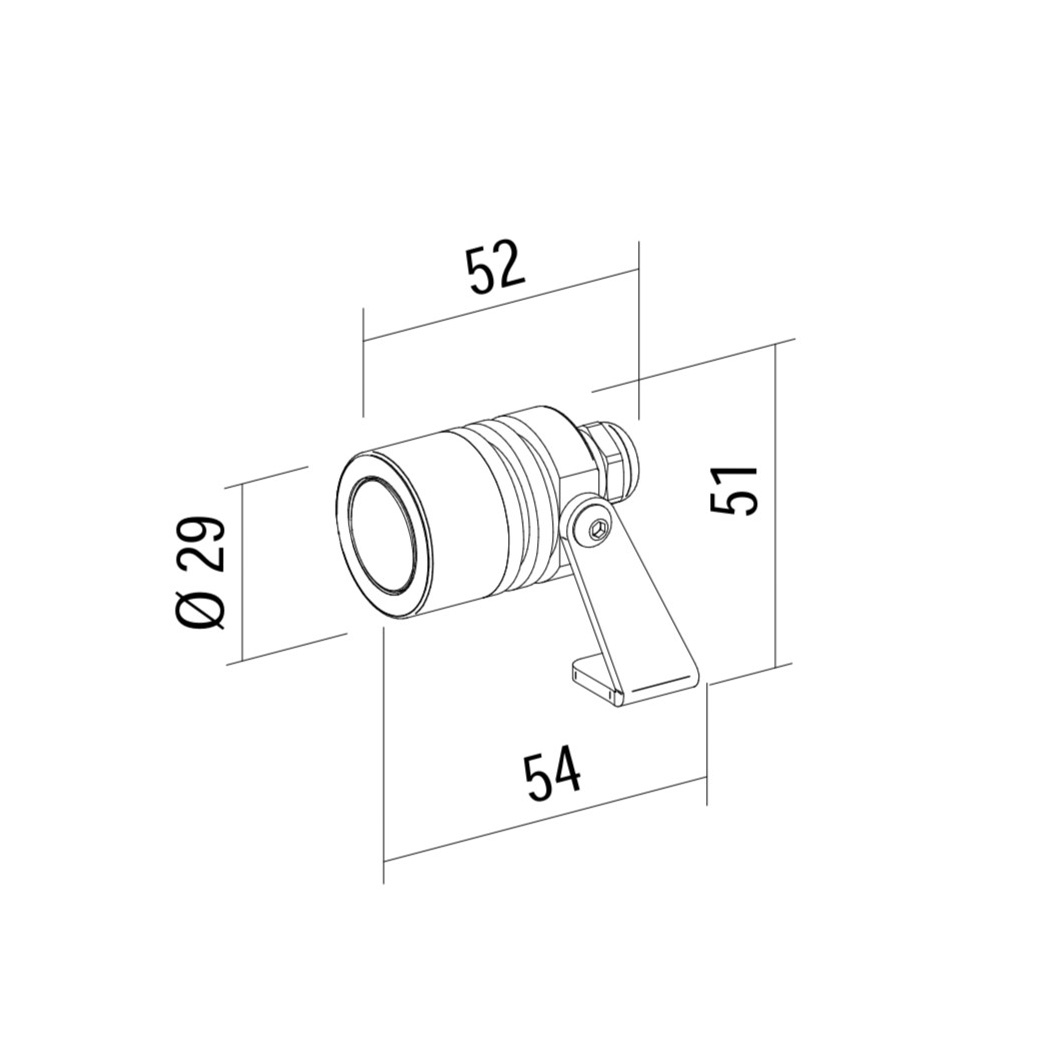

Product dimensions: D.54mm x H.51mm x Diameter.29mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
