- Description
-

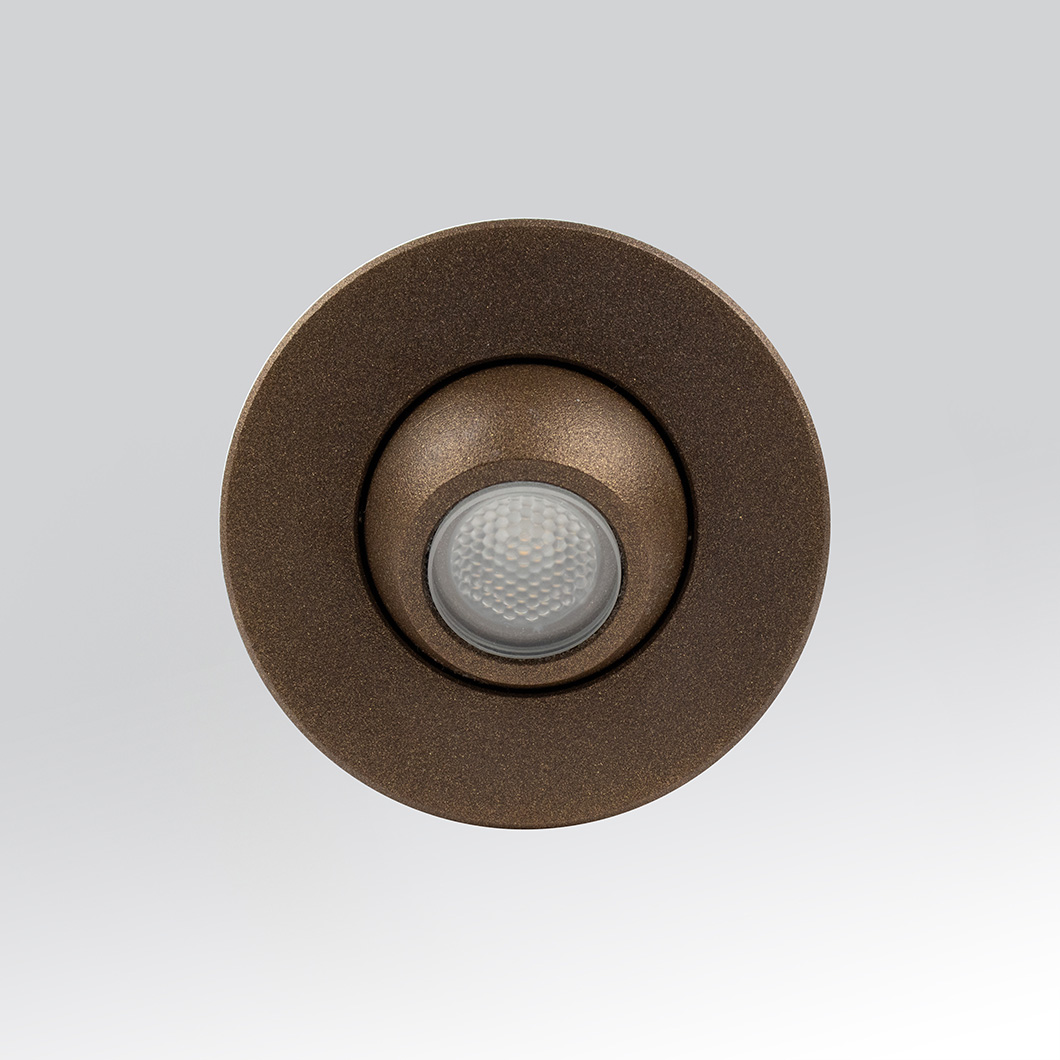

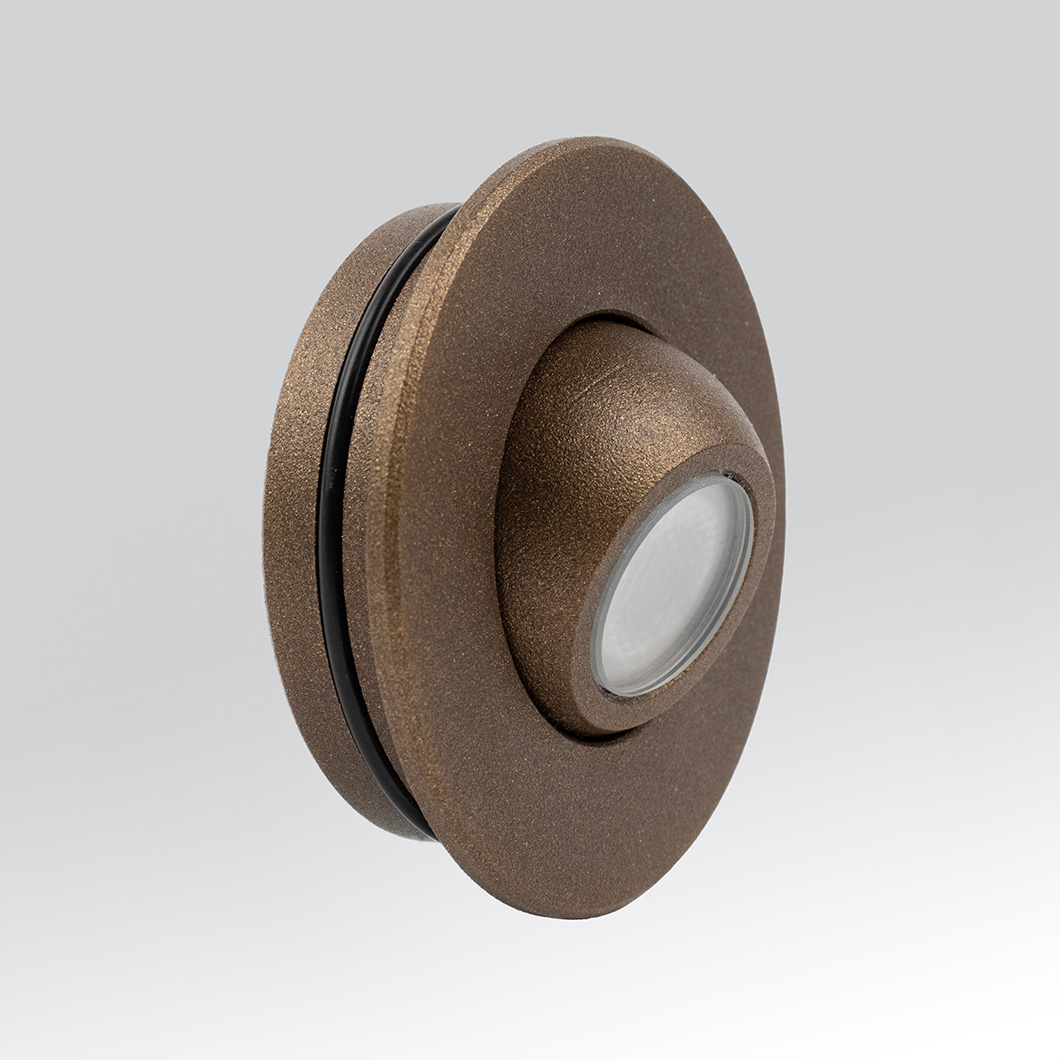

The Pallas Round Outdoor IP65 LED Low Level Step Light by LLD is a contemporary fitting that complements a modern exterior space. Designed to illuminate steps or garden pathways, Pallas's IP65 rating allows for outdoor use throughout the year. The minimal step light has a 50° tilt capability, enabling you to change where the light is directed and create the desired effect on a staircase or along a path.
Pallas is available in constant current or 24Vdc versions, with a choice of a narrow 10°, a medium 36°, or a wide 60° beam angle. Select from 7 colour temperatures: 2200K, 2700K, 3000K, 4000K, red, green, or blue. Anticorodal aluminium body and transparent tempered glass. Finished in TXT white, TXT black, TXT grey, TXT anthracite, corten, sand, or bronze. Supplied with a 50cm, 5m, 10m, or 15m cable. Recessed on plasterboard or wood with springs (not included) or recessed on brickwork through o-ring (included) and housing box (not included).
Constant current or 24Vdc driver required. This fitting is compatible with non-dim, TRIAC dim, push dim, 1-10V dim and DALI dim drivers.
- Specification
-
IP65
Anticorodal aluminium body
Transparent tempered glass
Cable: 50cm, 5m, 10m, 15m
C.C.
1W - 1,6W
1W - 350mA (not included)
1,6W - 500mA (not included)
Connected in series
24Vdc
2,2W
2,2W - 24Vdc (not included)
Connected in parallel
2200K / 2700K / 3000K / 4000K / RED / GREEN / BLUE
CRI 80
Optics:
10°, 36°, 60°
Dimensions:
Ø80mm x 27mm
Cutout: Ø68mm
50° tilt
Installation:
Recessed on plasterboard or wood with spring (not included)
recessed on brickwork through o-ring (included) and housing box (not included)
Accessories:
Torsion spring (ML062):
Polyethylene Housing box (CA068): Ø75 x 70 x Ø68
Lamp type: LED 1-2,2W
- Dimensions
-
Product dimensions: D.27mm x Diameter.80mm
Cutout dimensions: Dia.68mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
