- Description
-

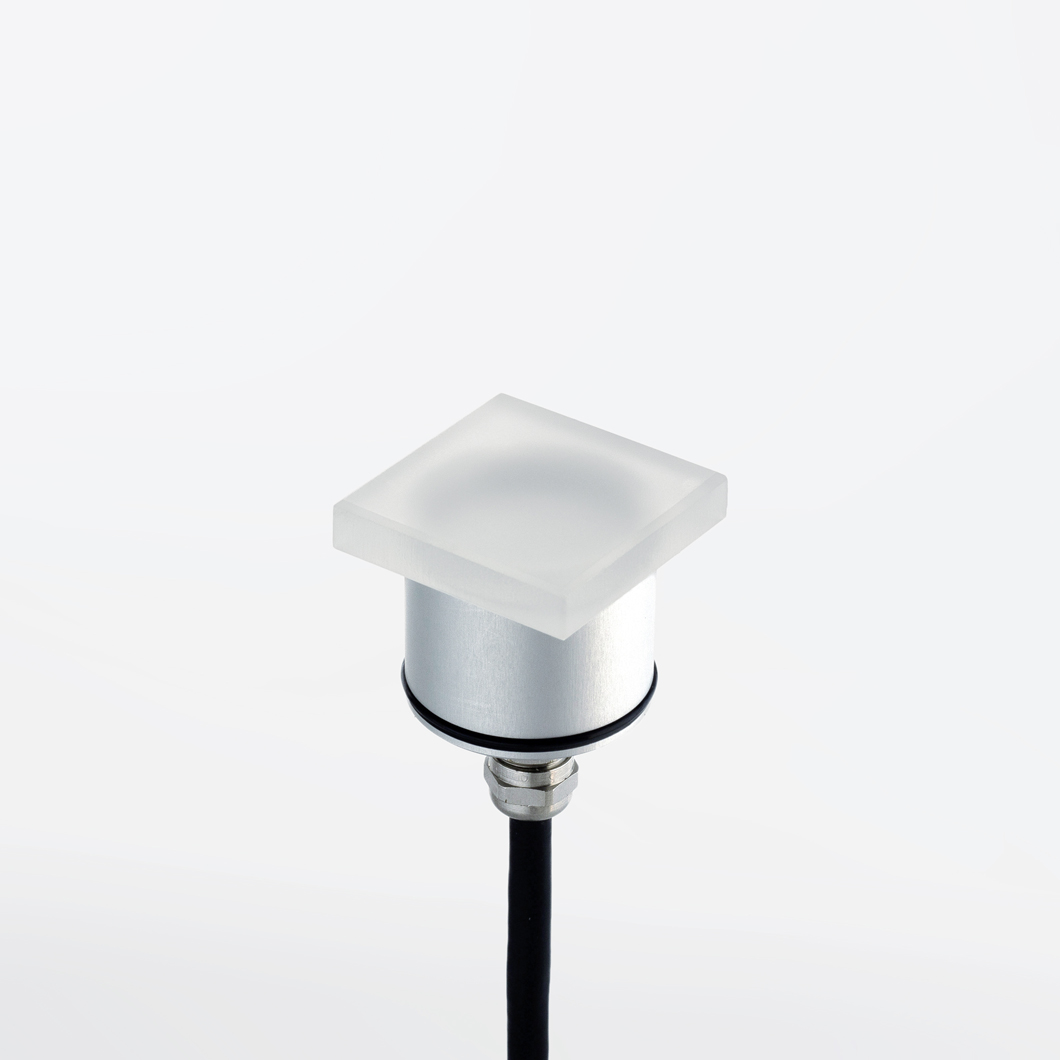

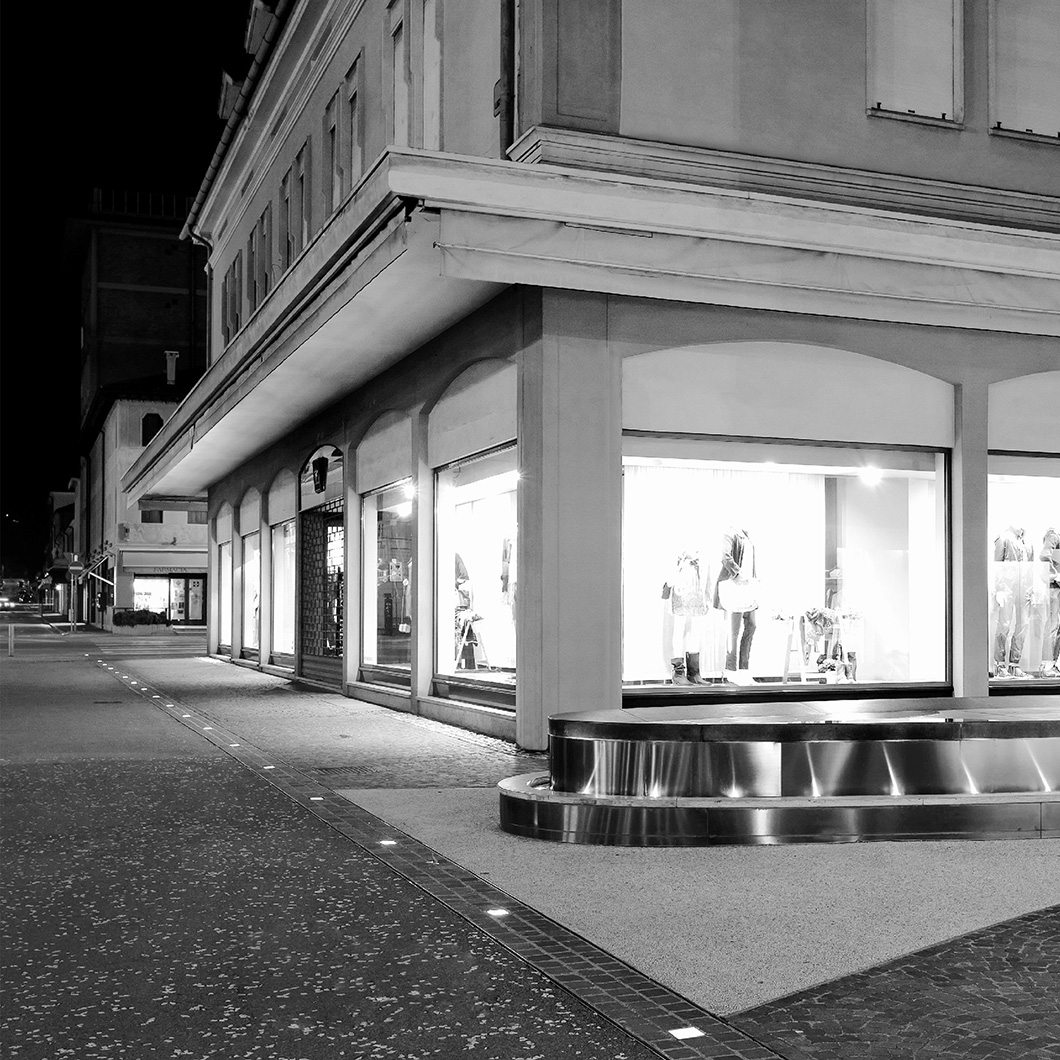

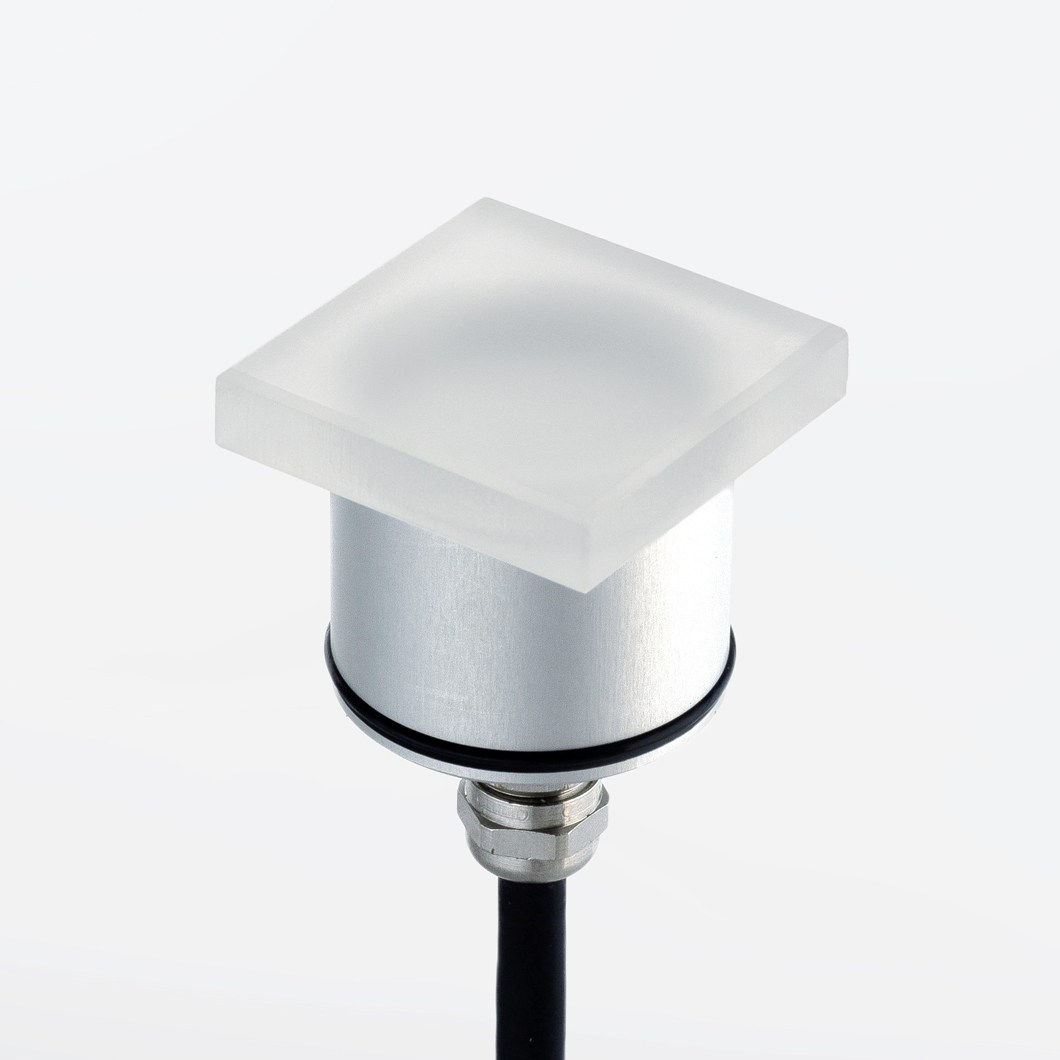

At just under 5cm square, the Ganimede S by LED Luce E Dintorni (LLD) is a small minimal outdoor LED glass path light that recesses flush to the ground. Omitting 120° light, Ganimede S is a fixed optic path light that is suitable for recessed installation into the floor or wall, perfect for lighting exterior pathways, cobbled paths, steps and gardens due to its IP67 rating. The LLD Ganimede S Glass Path Light is can take the weight of a person, making it perfect as a walk-over lighting solution.
The 24VDC constant voltage Ganimede path light uses an energy-efficient 2,2W LED light source. Available with a choice of 2200K, 2700K, 3000K, 4000K, red, green, or blue light colour temperatures. A sandblasted tempered glass diffuser sits on top of an anticorodal anodised aluminium body. Supplied with a 50cm, 5m, 10m, or 15m cable with WP System connection. The optional housing box should be used for installing Ganimede into the ground, allowing 30cm gravel drainage. 24VDC constant voltage driver (wired parallel) required. This fitting is compatible with non-dim, TRIAC dim, push dim, 1-10V dim and DALI dim drivers.
Larger version available - see our 'More Like This' section below.
- Specification
-
IP67
Anticorodal aluminium body
Tempered sandblasted glass
Cable with WP system: 50cm, 5m, 10m, 15m
24Vdc
2,2W
2,2W - 24Vdc not included
Connected in parallel
2200K / 2700K / 3000K / 4000K / RED / GREEN / BLUE
CRI 80
Optics: Diffused
Installation:
Recessed on ground with housing box (not included)
Recessed on brickwork with housing box (not included)
Accessories:
Housing box PVC (CAQ41): Ø45 x124
Lamp type: LED 2,2W
- Dimensions
-
Product dimensions: W.45mm x D.45mm x H.55mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
