- Description
-

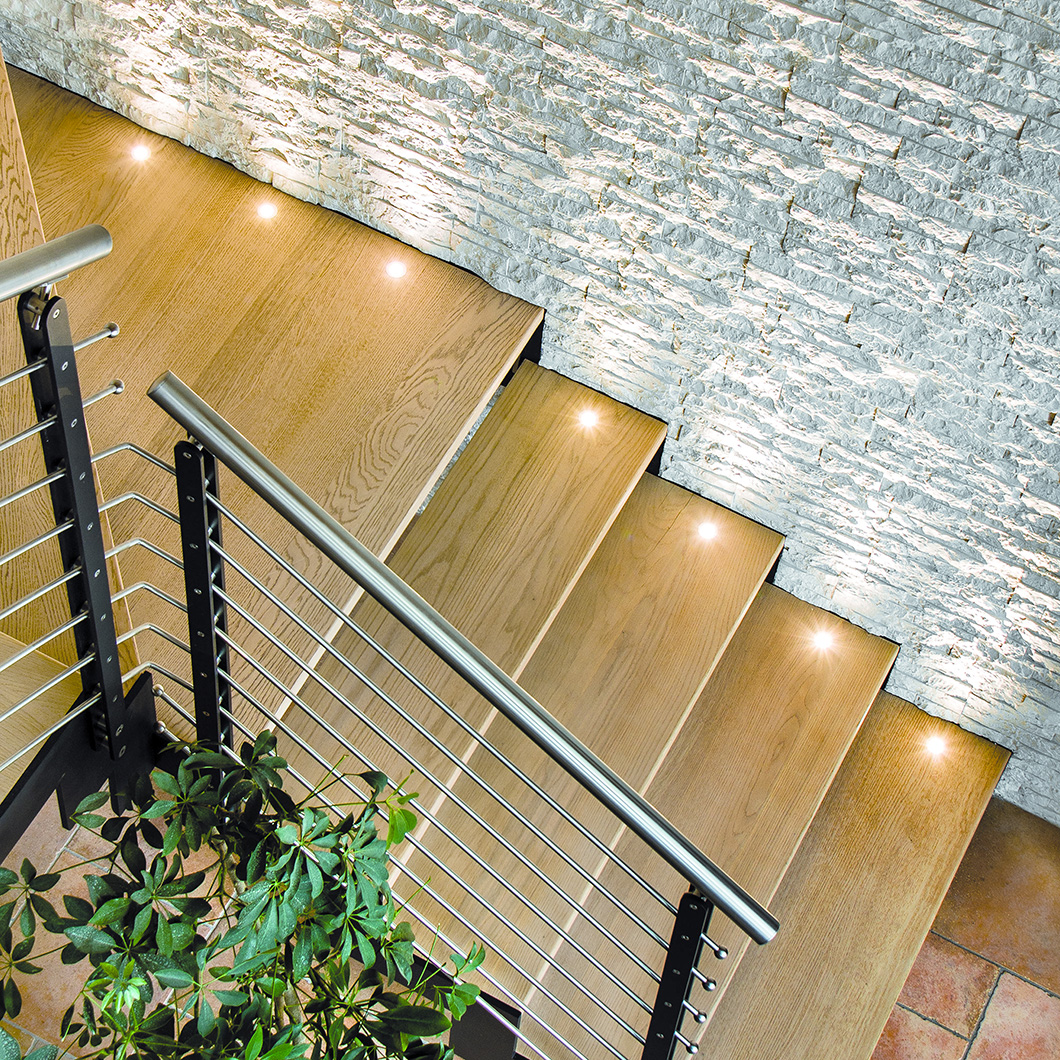

The LLD Eco is a versatile light fitting which can be utilised in a variety of ways. Whether you use it as a niche light due to its small size, low-level lighting around stairways through its wide beam angle or even as uplighters in corridors as it’s resistant to being walked over (IK07).
Crafted from anti-corrosive aluminium and a PMMA lens. With a round bezel at 30mm in diameter, choose between 3 finishes: anodised aluminium, TXT white, or TXT black. With an IP54 rating, Eco can be installed in indoor environments where there may be some steam, including bathrooms.
Equipped with an energy-efficient integral 1W LED light source and a diffused beam. Constant current and wired in series with a choice of 2200K, 2700K, 3000K, 4000K, red, green, or blue light temperatures.
Supplied with a 50cm, 5m, 10m, or 15m cable. Can be installed in plasterboard or wood using the spring, or installed into brickwork using the housing box.
350mA driver required.
- Our Top Tips -
- With a shallow depth, Eco is versatile as to where it's installed - even in recesses with limited space
- At IK07, the fixture can be walked over - suitable for floor installations
- Series wiring with constant current will enable you to have the driver a longer distance from the fittings, up to 30m from the lights with the correct cable size
- Specification
-
IP65
Anticorodal aluminium body
PMMA diffuser
Sandblasted protection glass
Cable: 50cm, 5m, 10m, 15m
C.C.
1W
1W -350mA not included
Connected in series
2200K / 2700K / 3000K / 4000K / RED / GREEN / BLUE
CRI 80
Optics: Diffused
Installation:
Recessed on ground with housing box (not included)
Recessed on plasterboard or wood with spring (not included), recessed on brickwork with housing box (not included)
Accessories:
Torsion spring (ML025): Ø22,5 x 56 x 24
Housing box polypropylene (CAE27): Ø32 X 53 X Ø27
Lamp type: Integral LED: 1W, 350mA, CRI80+

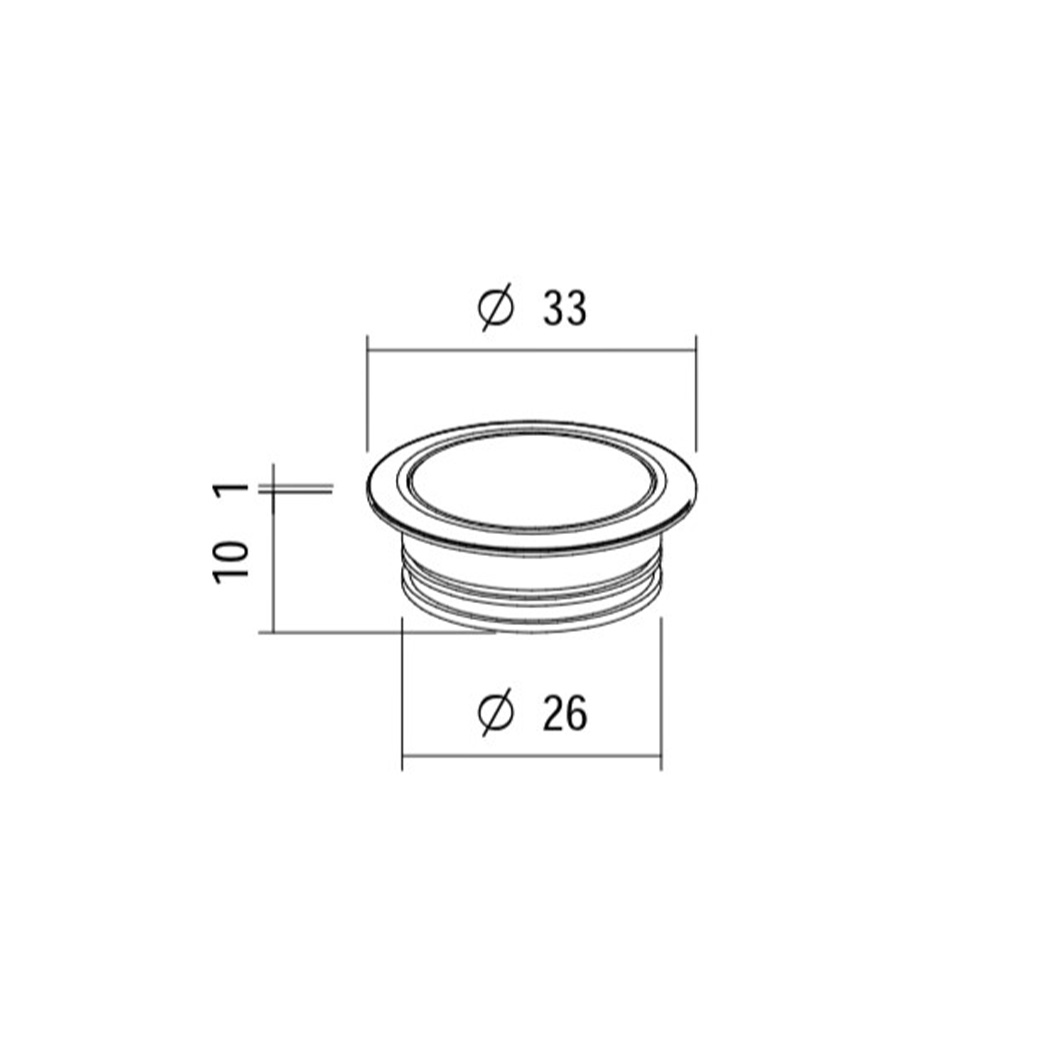

- Dimensions
-
Product dimensions: H.11mm x Diameter.33mm
Cutout dimensions: Dia.27mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
