- Description
-

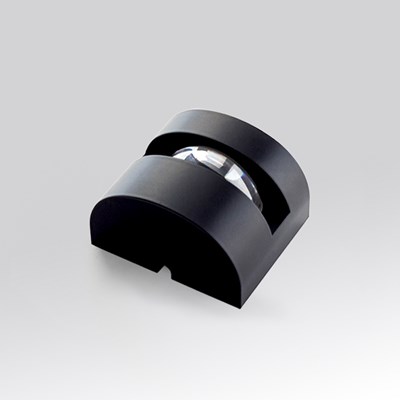

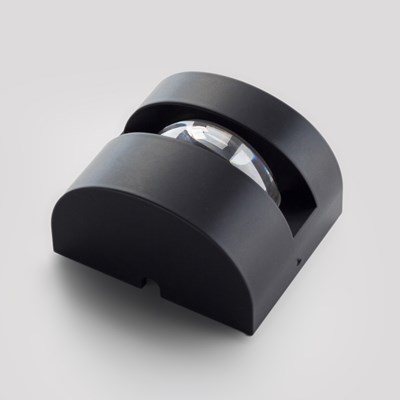

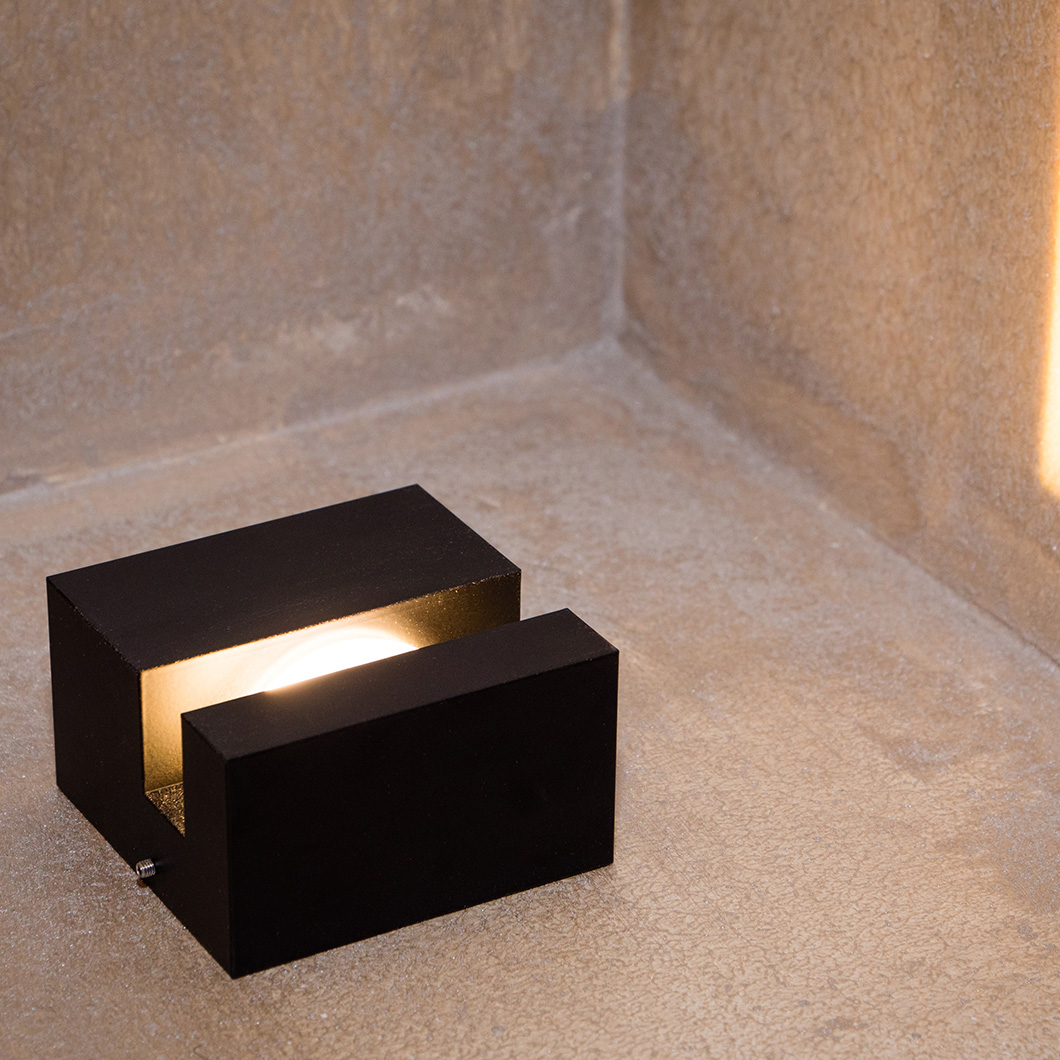

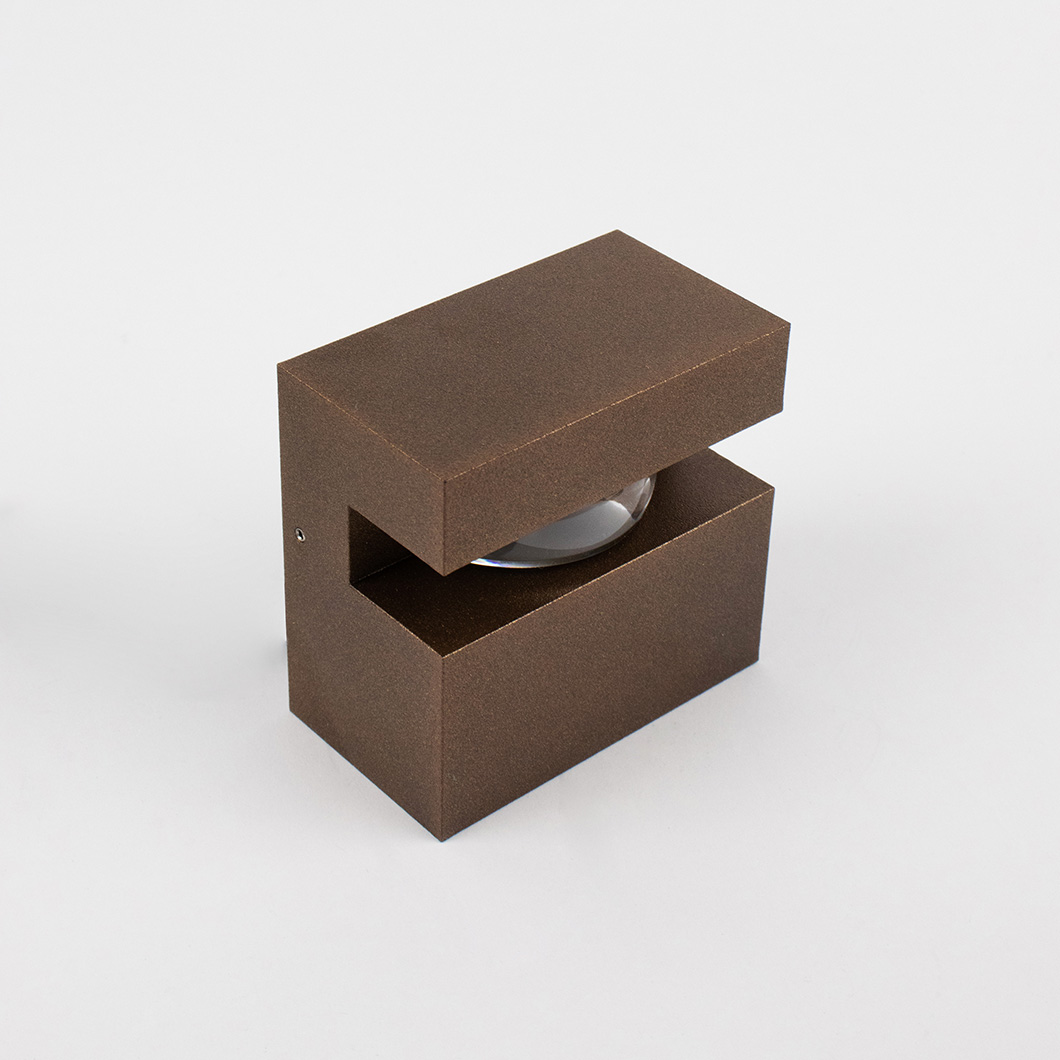

The Ecate 230V Outdoor IP65 LED Projector by LED Luce E Dintorni (LLD) is a neat and tidy contemporary light fitting that is specially designed to light outdoor windows, arches and alcoves with an arc of light. As a 230V mains voltage fitting, the Ecate combines a compact size with 3 x 180° optics and an integrated power supply - no need for an external driver. The LLD Ecate 230V LED projector is perfect for highlighting exterior architectural features with over 100lm of light, achieving the effect of a linear profile without the hassle of an intrusive installation.

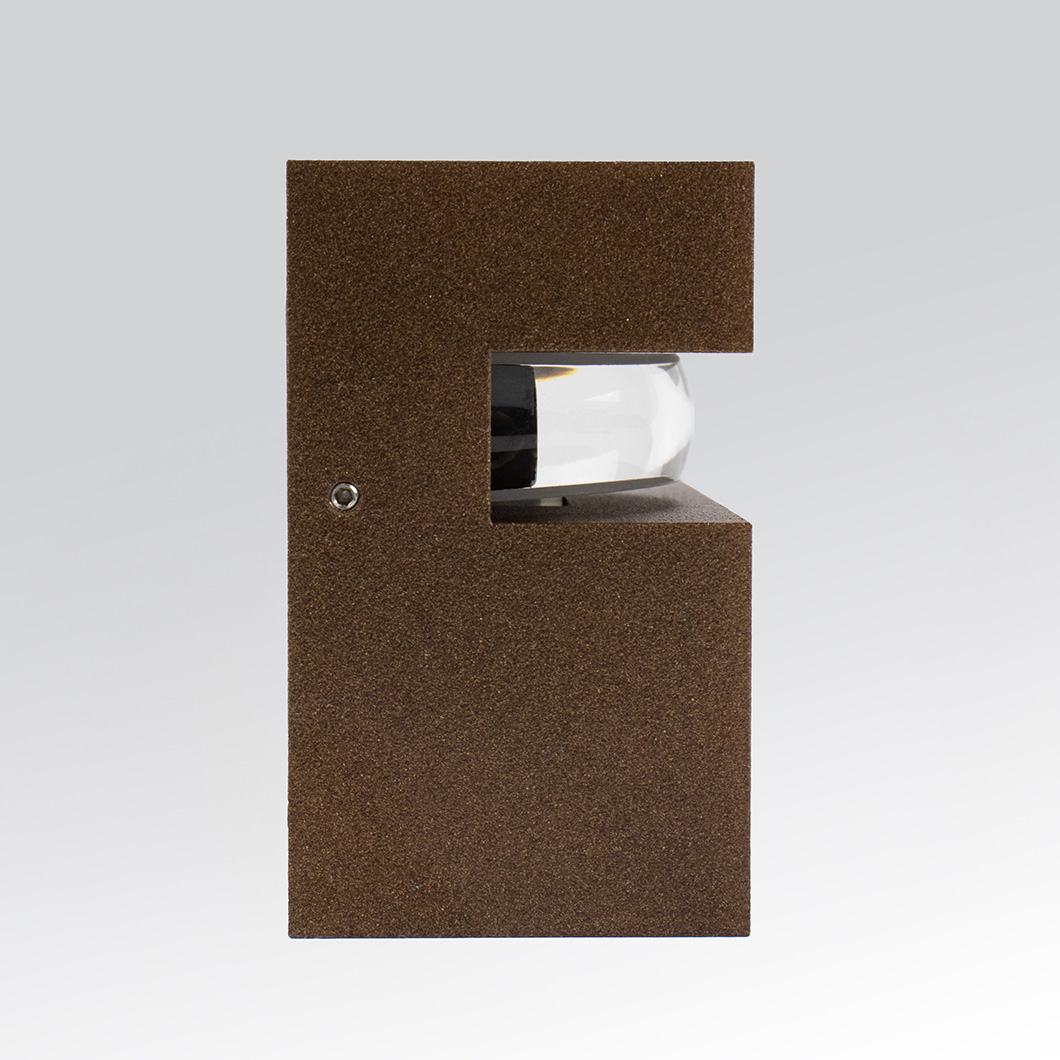

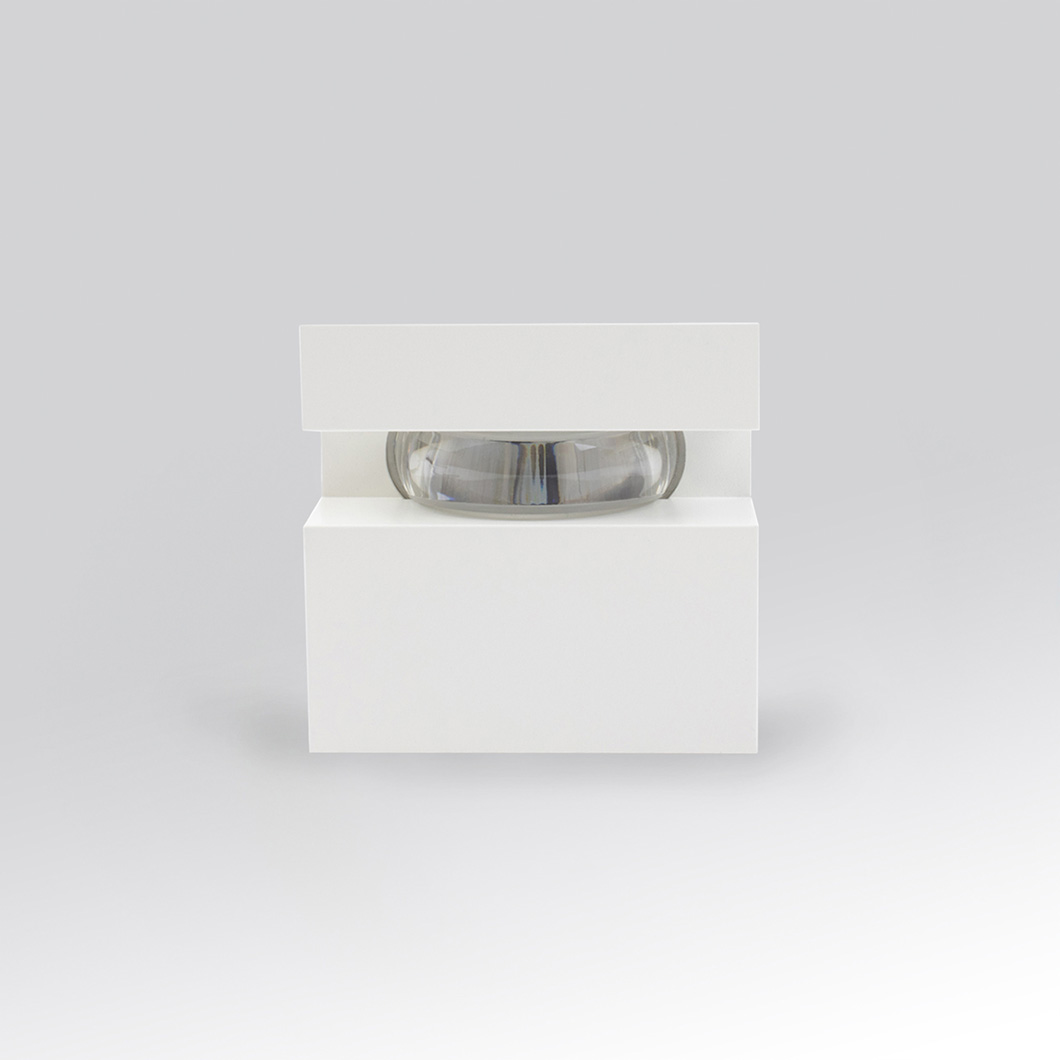

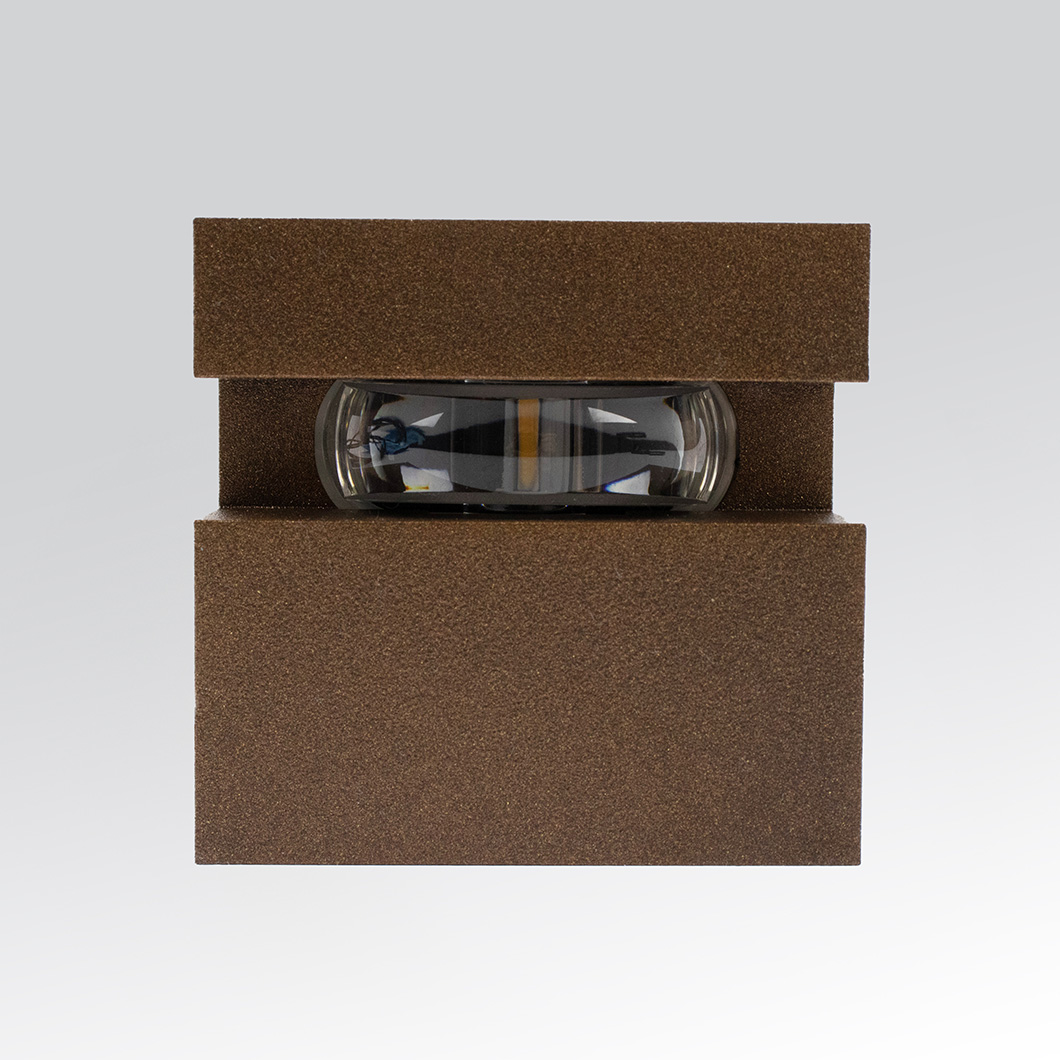

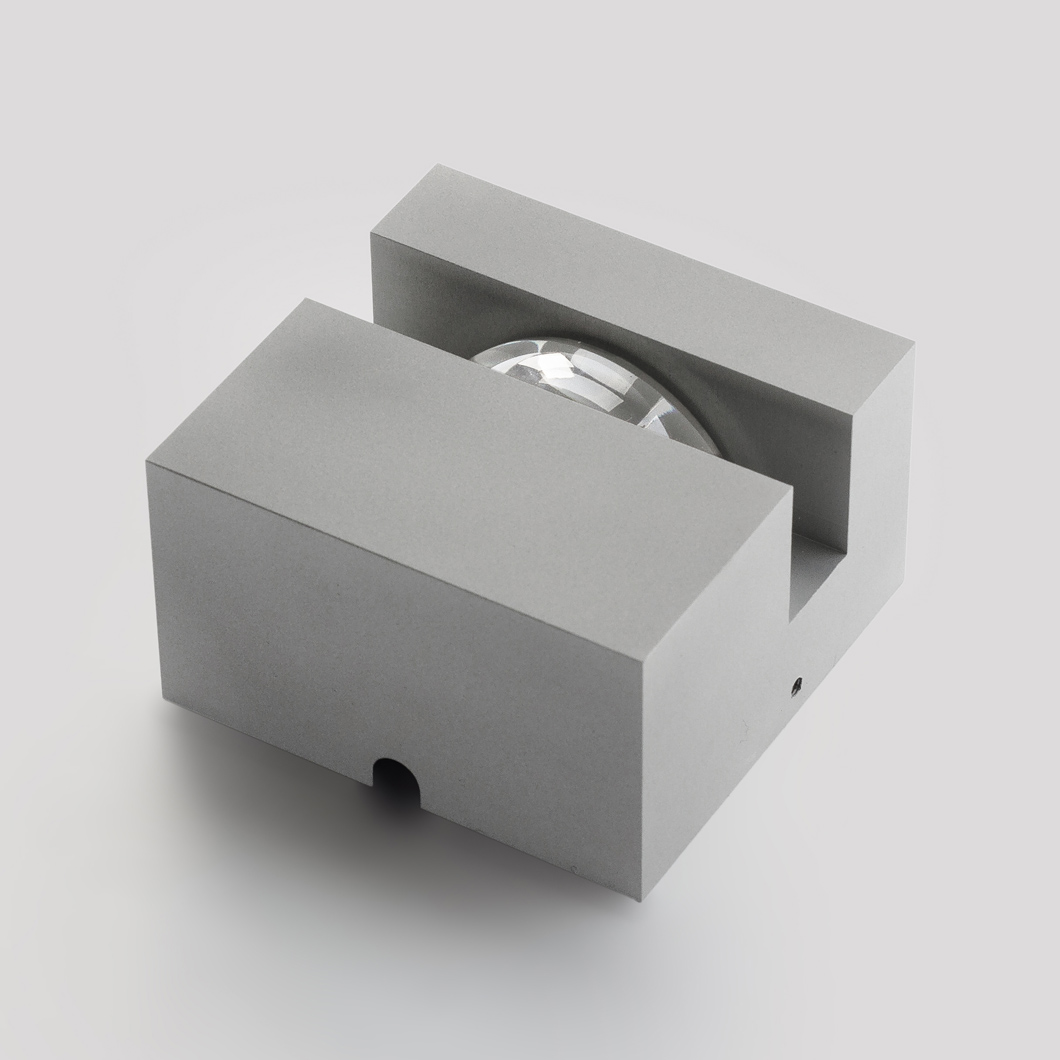

Using an energy-efficient 4W LED, Ecate 230V is available in 2200K, 2700K, 3000K, 4000K, red, green, or blue light colour temperatures. The body of the fitting is made from an anticorodal aluminium with a PMMA curved lens. Finished in TXT white, TXT black, TXT grey, TXT anthracite, corten, or sand. LLD Ecate 230V is surface mounted with the supplied fixing base and screws (not included). Supplied with a 50cm, 5m, 10m, or 15m cable.
Ecate constant current and 24VDC constant voltage version available - see our 'More Like This' section below.
- Specification
-
IP65
Anticorodal aluminium body
PMMA lens
Cable: 50cm, 5m, 10m, 15m
230Vac
4W 111lm
50/60Hz
Integrated power supply
Mains voltage
2200K / 2700K / 3000K / 4000K / RED / GREEN / BLUE
CRI 80
Optics: 3x180°
Installation:
Surface mounted with fixing base (included) and screws (not included)
Accessories:
Stainless steel angular base (BAE01): 62 x 56 x 56
Aluminium base for installation on porous surfaces (BAE03): 75 x 72 x 10
Please enquire for more information on the above
Lamp type: LED 4W
- Dimensions
-
Product dimensions: W.75mm x D.43mm x H.72mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
