- Description
-

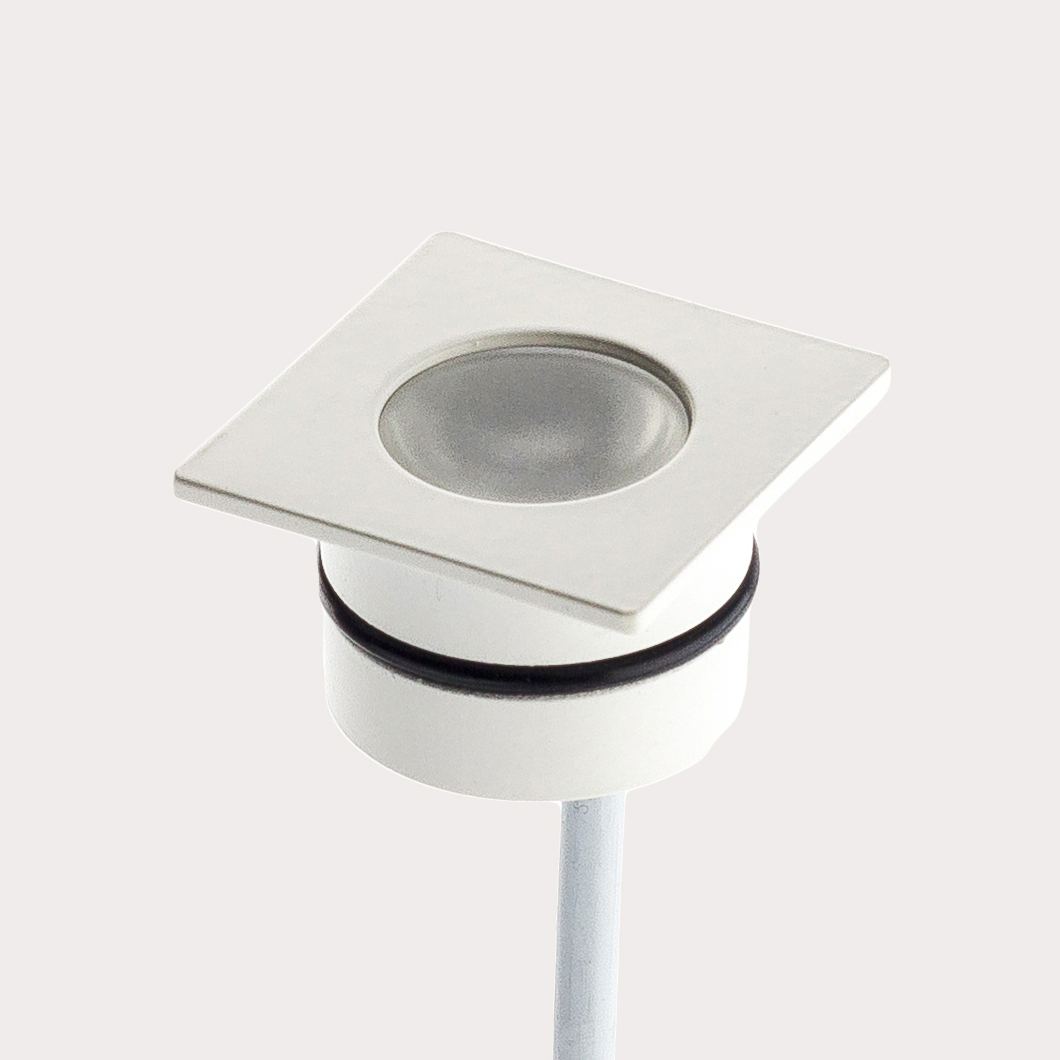

The LLD Crio Square is a lighting solution as a niche light for ceiling or false ceiling installations, suitable for illuminating shop windows, displays, bookcases, shelves, steps and more. Equipped with energy-efficient integral LED’s in either a narrow 10°, medium 36° or wide 60° beam angle. Constant current and wired in series, Crio is available in 7 colour temperatures: 2200K, 2700K, 3000K, 4000K, red, green, or blue.
Crafted from anticorodal aluminium and a PMMA lens. With a square bezel at 30x30mm, choose between 3 finishes: TXT black, TXT grey, or TXT white. Crio Round and other versions are also available.
Supplied with a 25cm, 5m, or 10m cable. Can be installed in plasterboard or wood using the spring, or installed into brickwork using the housing box.
350mA or 500mA driver required.
- Specification
-
IP40
Anticorodal aluminium body
PMMA lens
Cable: 25cm, 5m, 10m
C.C.
1W-1,6W
1W - 350mA not included
1,6W - 500mA not included
Connected in series
2200K / 2700K / 3000K / 4000K / RED / GREEN / BLUE
CRI 80 (2200K)
CRI 90 (2700K, 3000K, 4000K)
Optics: 10°, 36°, 60°
Installation:
Recessed on plasterboard or wood with spring (not included)
Recessed on brickwork with housing box (not included)
Accessories:
Torsion spring (ML025): Ø22,5 x 56 x 24
Housing box PVC (CAS25): Ø28 x 81 x Ø25

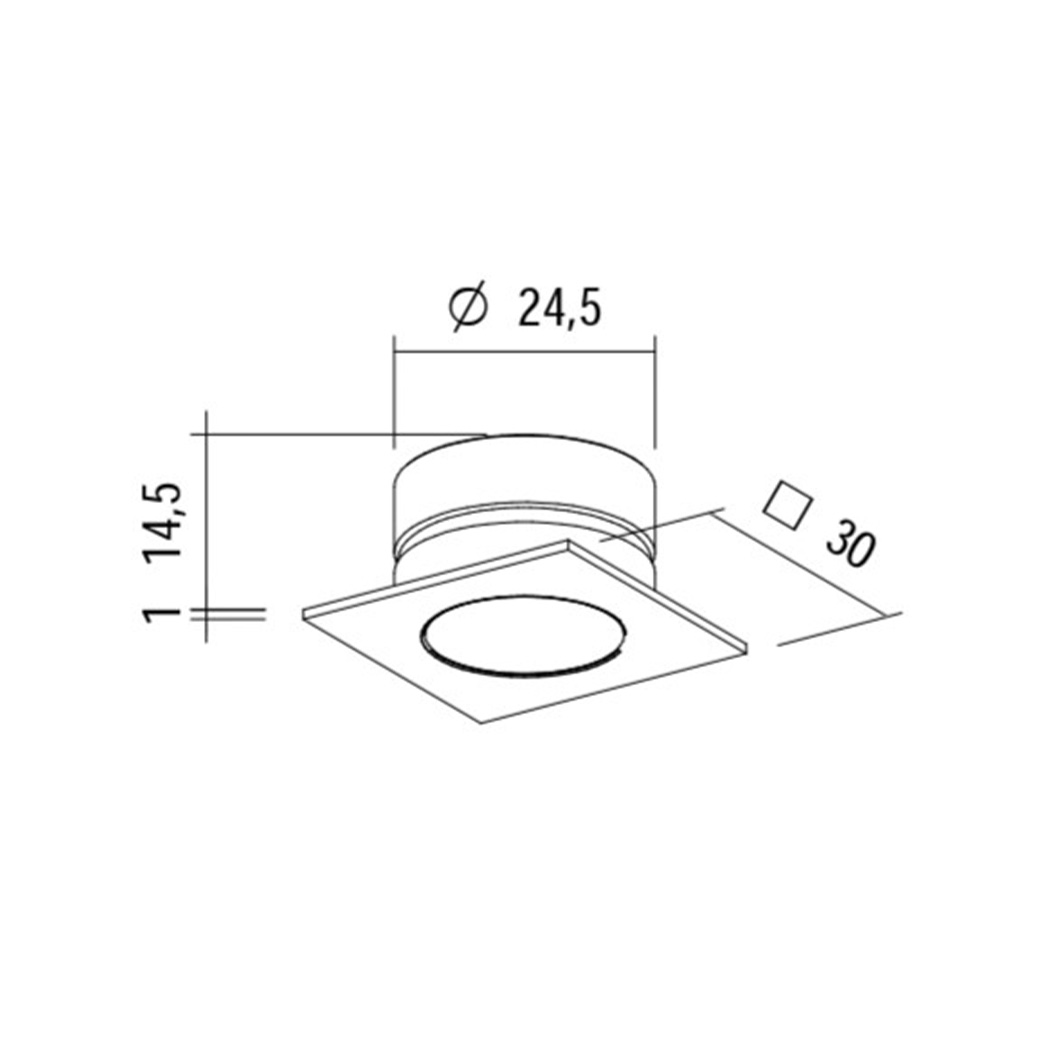

- Dimensions
-
Product dimensions: W.30mm x D.30mm x H.15mm
Cutout dimensions: Dia.25mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
Browse the full LLD 2021 catalogue
