LLD Bia Square Single Emission Outdoor IP67 LED Recessed Path Light

Description

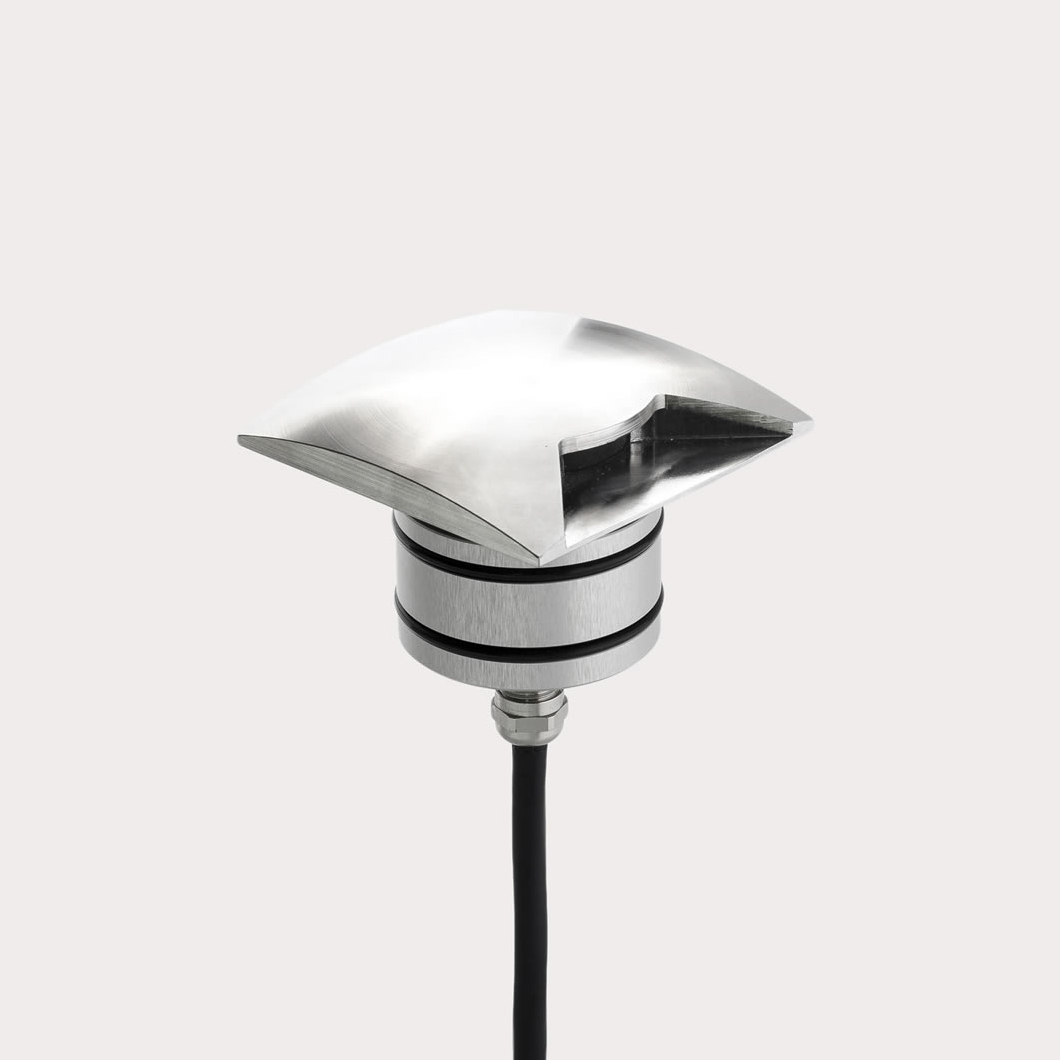

Twice the size of the mini version at just under 8cm in width and depth, the Bia Square is a single emission outdoor recessed path light by LLD (LED Luce E Dintorni). Suitable for both private garden and commercial outdoor lighting projects, the versatile LLD Bia can be installed in the wall as a low level or step light or into the floor as a path light. The Bia Square can be driven over up to 1500kg and has a rating of IP67.

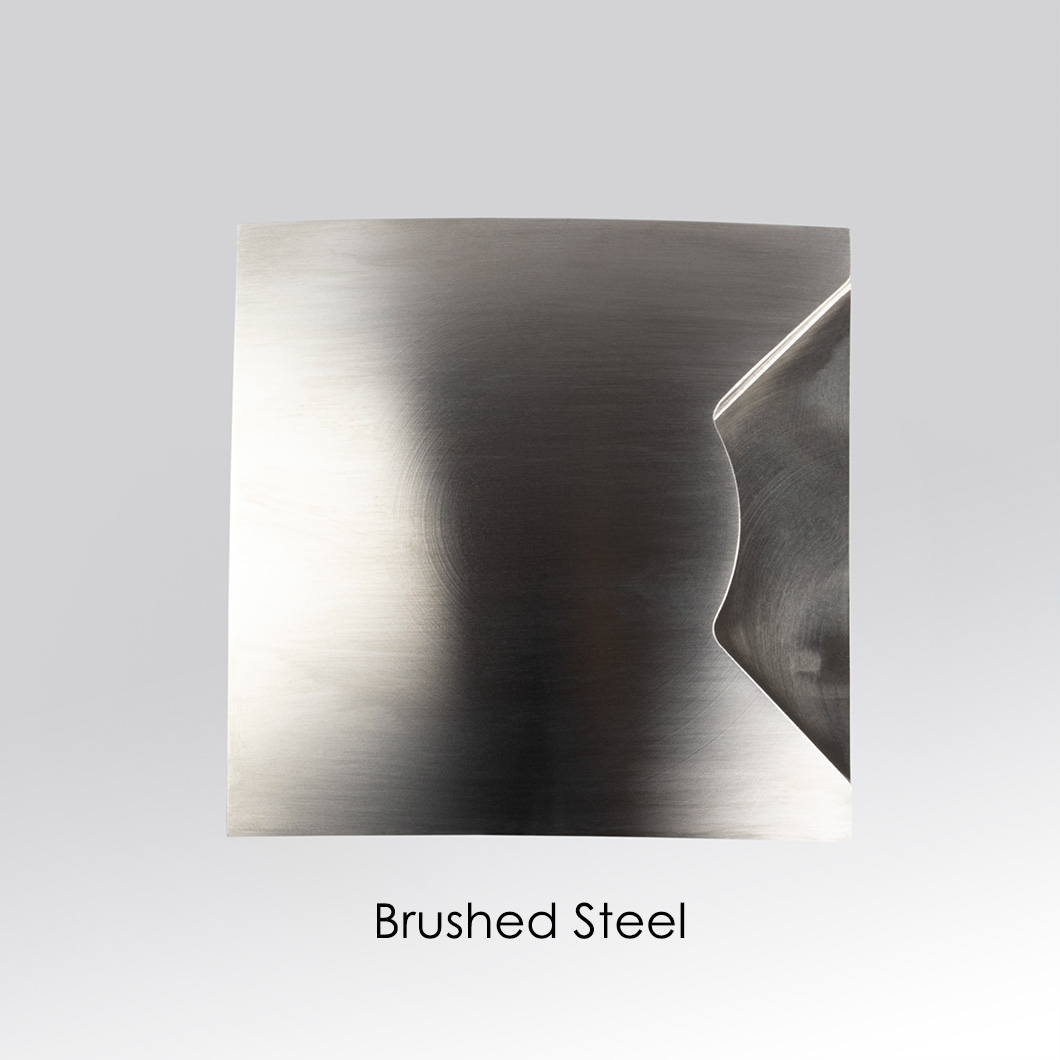

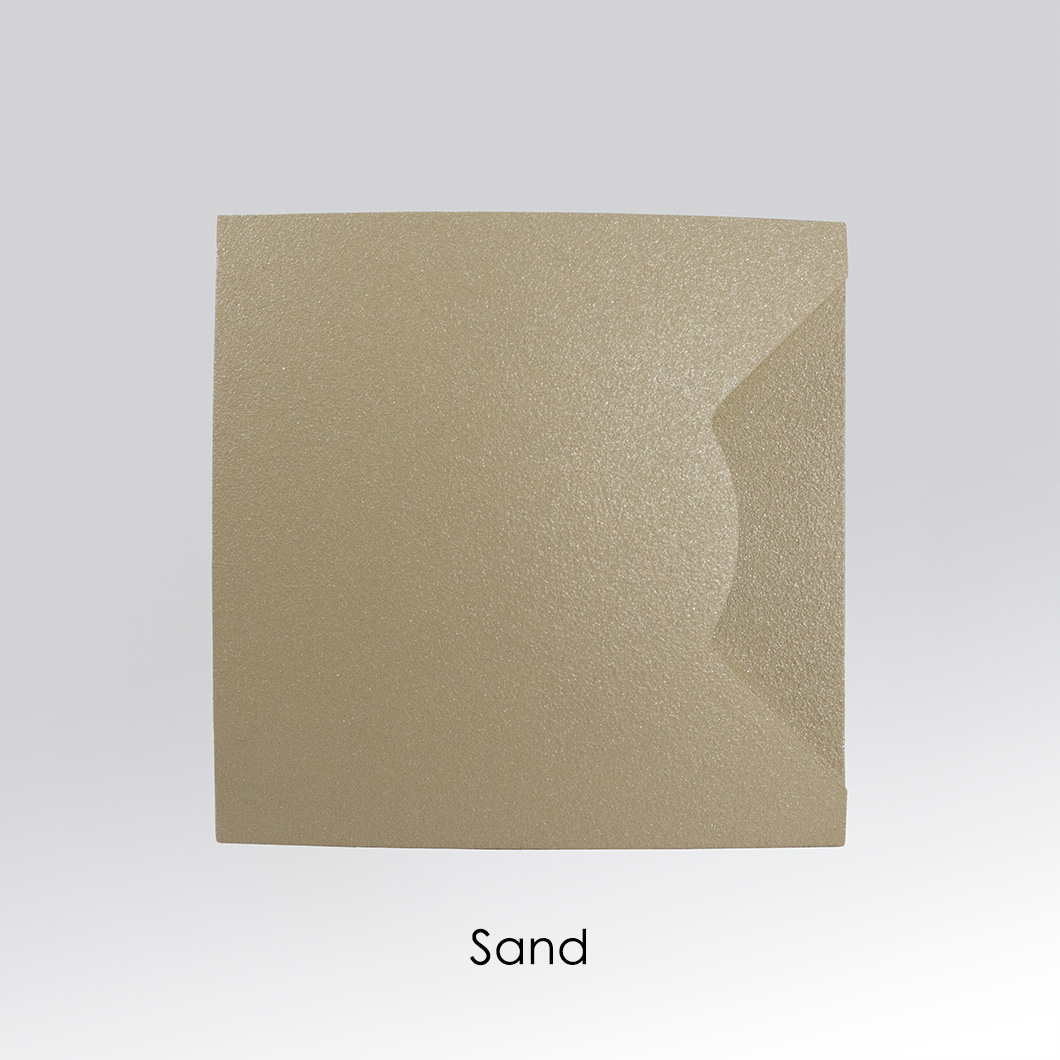

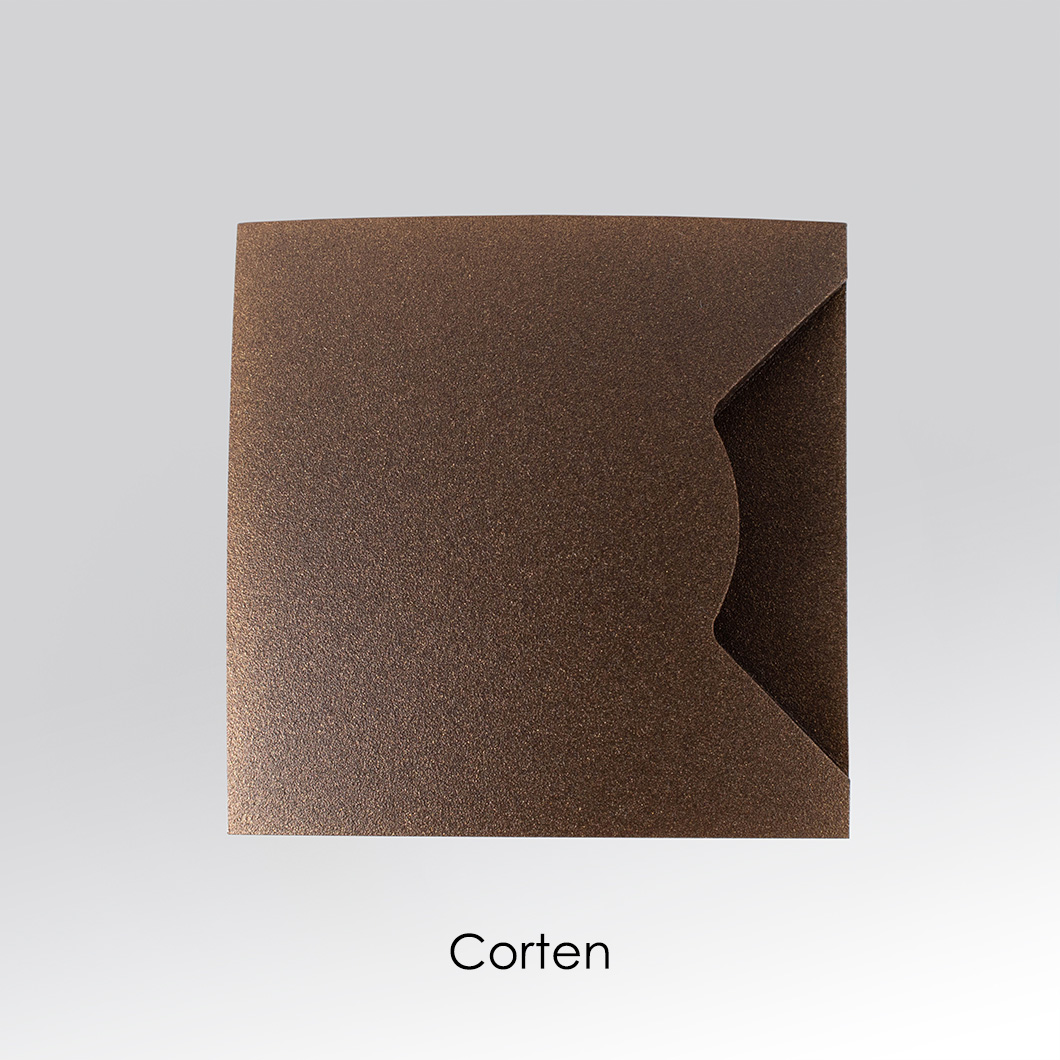

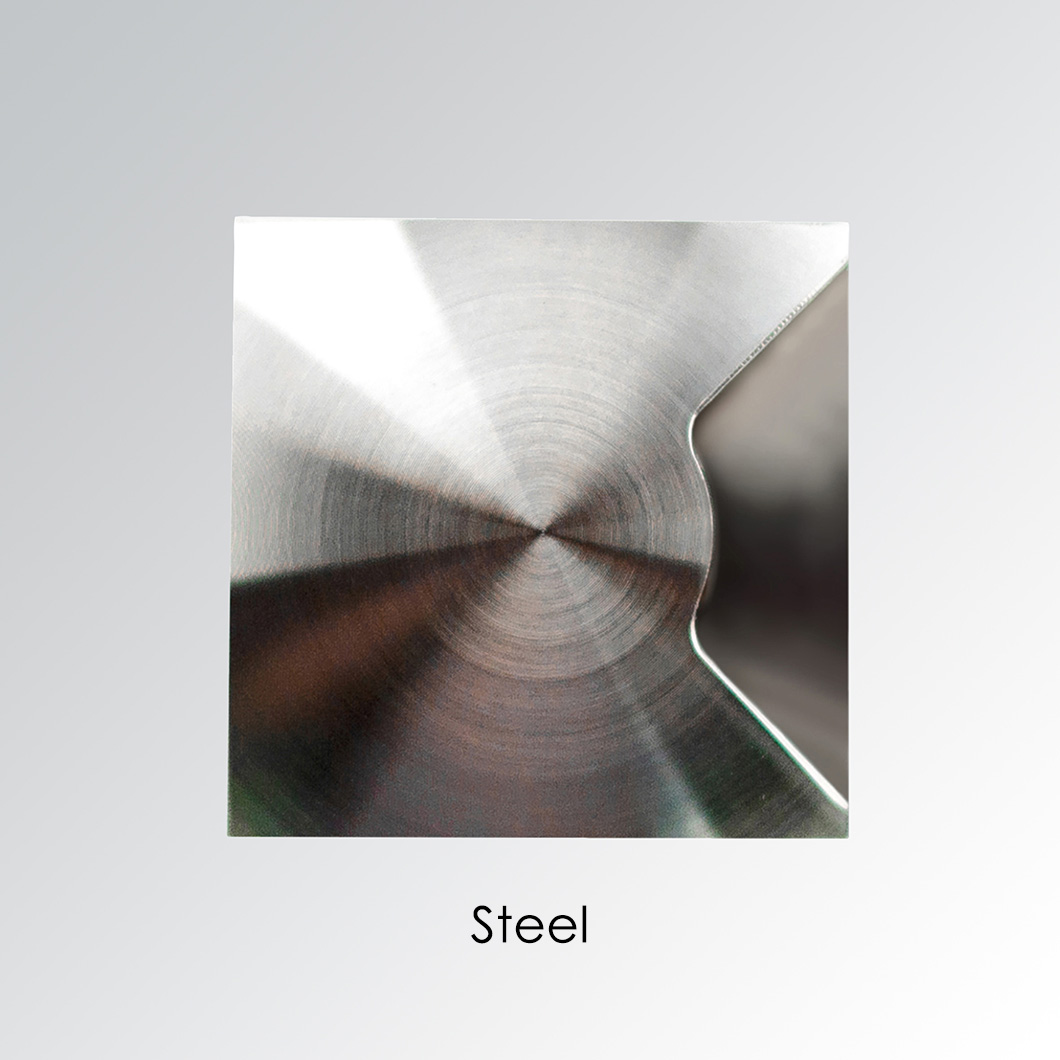

A 6W energy efficient LED produces over 800lm of light from a single emission, lighting only a specific targeted area. The 500mA constant current / 24VDC constant voltage Bia path light has a choice of 2200K, 2700K, 3000K, 4000K, RED, GREEN, OR BLUE light temperatures. The anticorodal aluminium body and trim is available in anodised aluminium, steel, brushed steel, TXT black, TXT anthracite, corten, or sand. The brushed steel and steel finishes have an AISI 316L stainless steel trim. Optic in PMMA.

Supplied with a 50cm, 5m, 10m, or 15m cable with WP System connection. The optional housing box should be used for installing the LLD Bia into the ground, allowing 30cm gravel drainage.

Driver required. This fitting is compatible with non-dim, TRIAC dim, push dim, 1-10V dim, DMX dim and DALI dim drivers.

Other sizes and light emissions are available - see our 'More Like This' section below.

Specification

IP67
Water-proof cable: 50cm, 5m, 10m, 15m
Anticorodal aluminium body
Anticorodal aluminium or AISI 316L stainless steel trim
PMMA optics or PC

C.C.
1 x 1W - 1,6W
1x1W 34lm - 1x1,6W 48lm
1W - 350mA not included
1,6W - 500mA not included
Connected in series

24Vdc
1 x 2,2W
1x2,2W 48lm
Connected in parallel

2200K / 2700K / 3000K / 4000K / BLUE / RED / GREEN
CRI 80

Optics: Radial

Accessories:
Housing box PVC (CAW53): Ø60mm x 120 x Ø57mm
Housing box ABS (CAI53): Ø100mm x 100 x Ø58mm

Dimensions

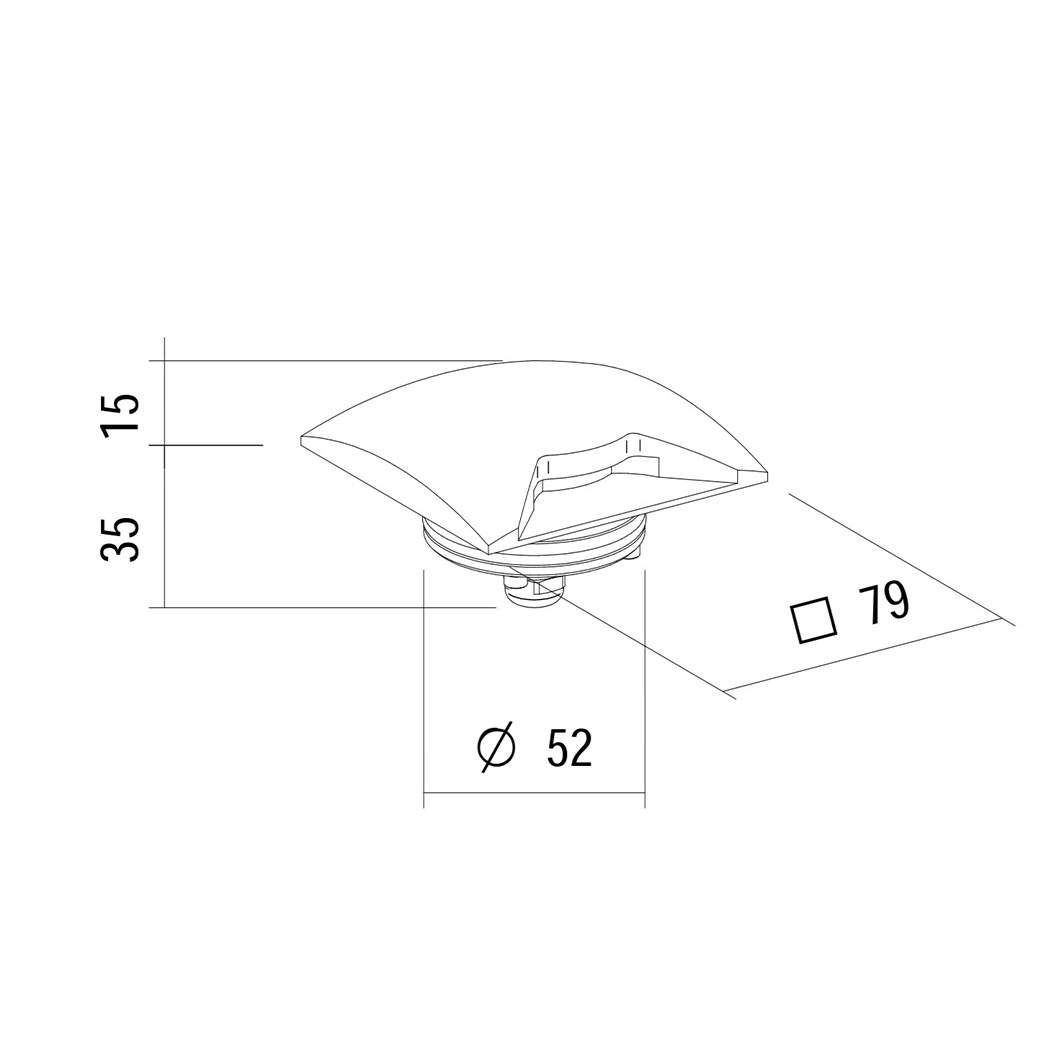

Product dimensions: W.79mm x D.79mm x H.50mm

Downloads

• Bia S Single Em. Datasheet PDF | C.C.
• Bia S Single Em. Datasheet PDF | 24Vdc
• Bia Installation Instructions PDF
• Info on WP Water Protection System PDF

Delivery and warranty

Delivery usually within 2-3 weeks

Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:

• damage caused by transport
• the use of products in unsuitable environmental conditions
• non-standard product use or stress including under/over voltage
• damage caused by negligence or lack of maintenance
• damage caused by the use of power supplies not provided or indicated by LLD Light
• repair attempts or tampering performed by unauthorised staff
