- Description
-

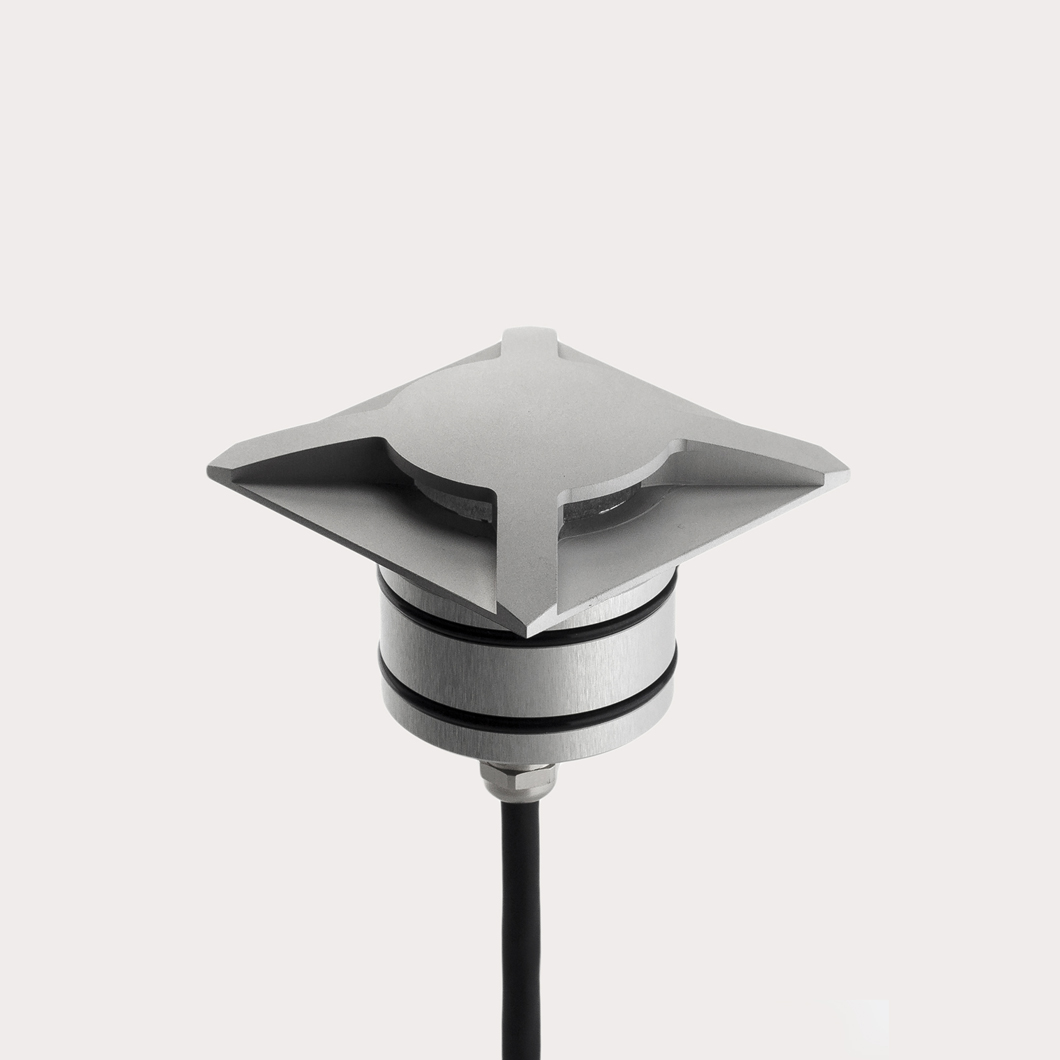

The four emission LLD Bia Square outdoor recessed path light is under 8cm in size - twice the size of the mini version. The versatile LLD (LED Luce E Dintorni) Bia can be installed in the wall as a low level or step light or into the floor as a path light. Suitable for both private garden and commercial outdoor lighting projects, the Bia Square can be driven over up to 1500kg and has a rating of IP67.

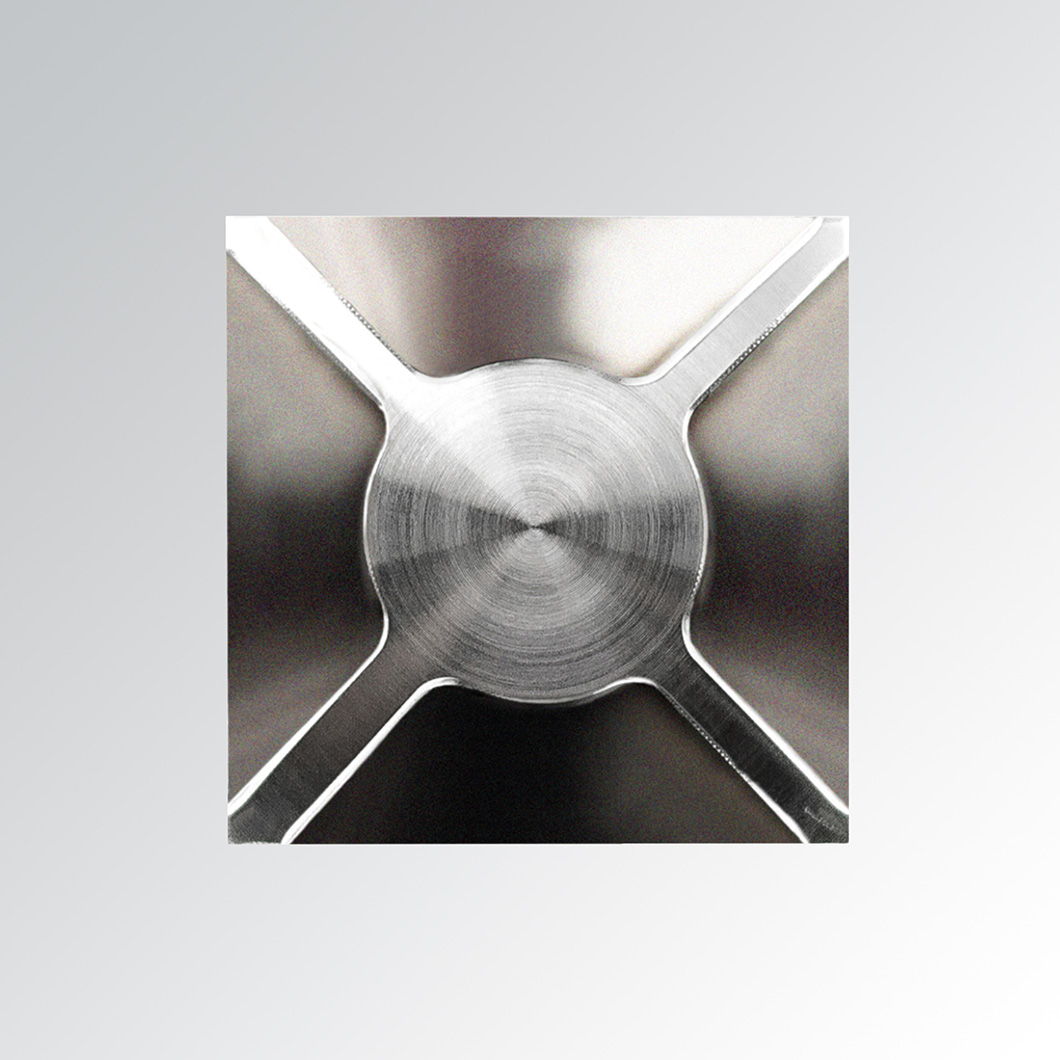

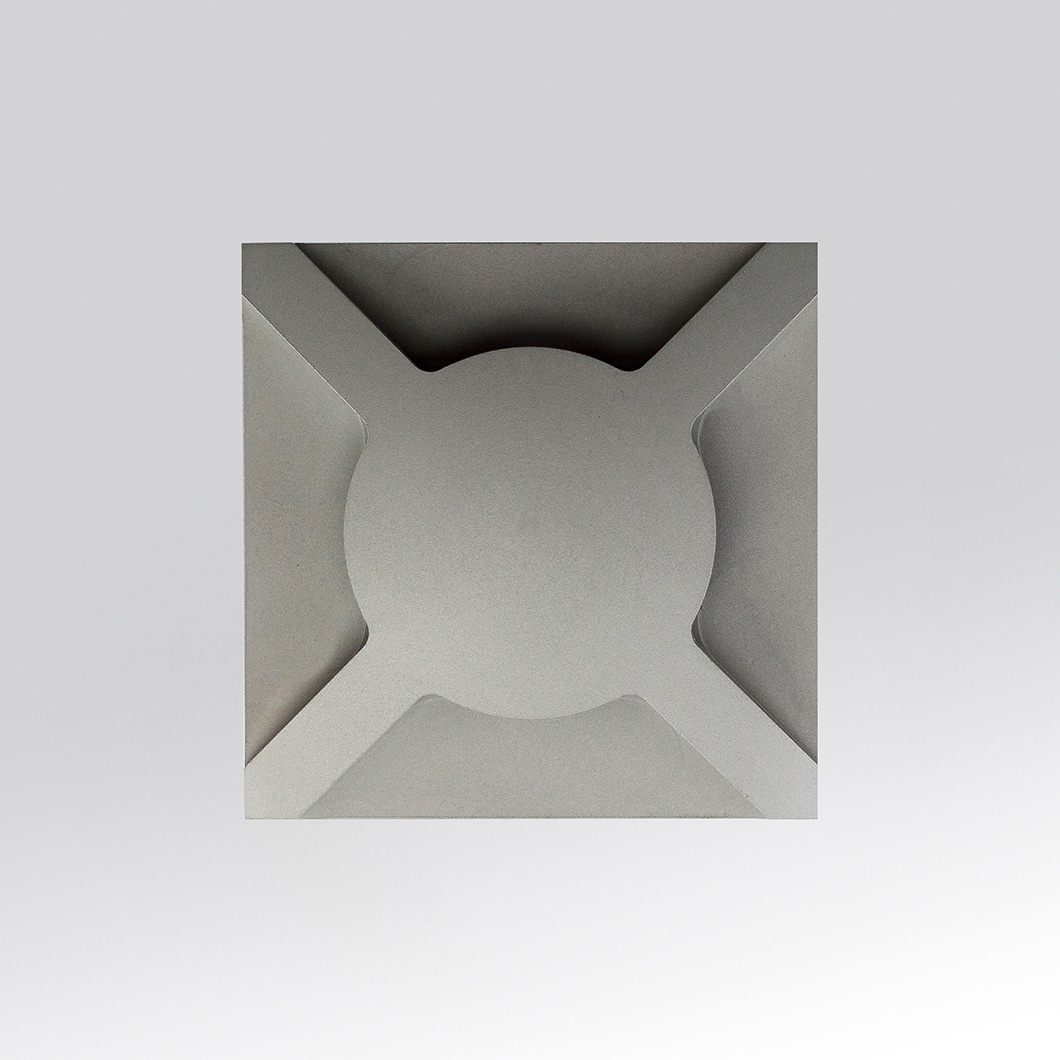

The LED light sources emit lighting in four directions, available in constant current or 24Vdc versions. Bia path light has a choice of 2200K, 2700K, 3000K, 4000K, RED, BLUE, or GREEN light temperatures. An anticorodal aluminium body and trim is available in anodised aluminium, steel, brushed steel, TXT black, TXT anthracite, corten, or sand. The brushed steel and steel finishes have an AISI 316L stainless steel trim. Optic in PMMA.
Supplied with a 50cm, 5m, 10m, or 15m cable with WP System connection. The optional housing box should be used for installing the LLD Bia into the ground, allowing 30cm gravel drainage.
Driver required. This fitting is compatible with non-dim, TRIAC dim, push dim, 1-10V dim, DMX dim and DALI dim drivers.
Other sizes and light emissions are available - see our 'More Like This' section below.
- Specification
-
IP67
Water-proof cable: 50cm, 5m, 10m, 15m
Anticorodal aluminium body
Anticorodal aluminium or AISI 316L stainless steel trim
PMMA optics or PC
C.C.
4 x 1W - 1,6W
4x1W 2x34lm - 4x1,6W 2x48lm
1W - 350mA not included
1,6W - 500mA not included
Connected in series
24Vdc
4 x 2,2W
4x2,2W 4x48lm
Connected in parallel
2200K / 2700K / 3000K / 4000K / BLUE / RED / GREEN
CRI 80
Optics: Radial
Accessories:
Housing box PVC (CAW53): Ø60mm x 120 x Ø57mm
Housing box ABS (CAI53): Ø100mm x 100 x Ø58mm
- Dimensions
-
Product dimensions: W.79mm x D.79mm x H.50mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
