- Description
-

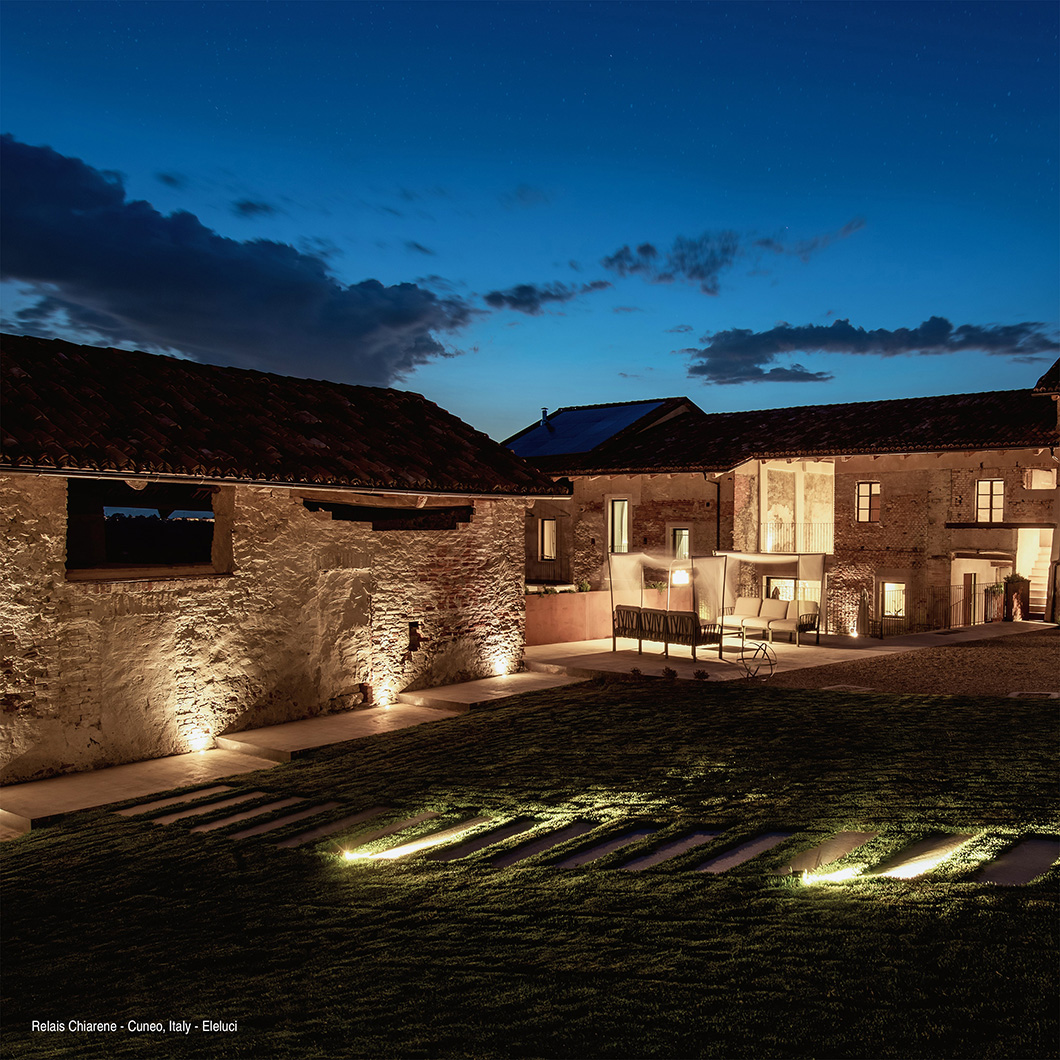

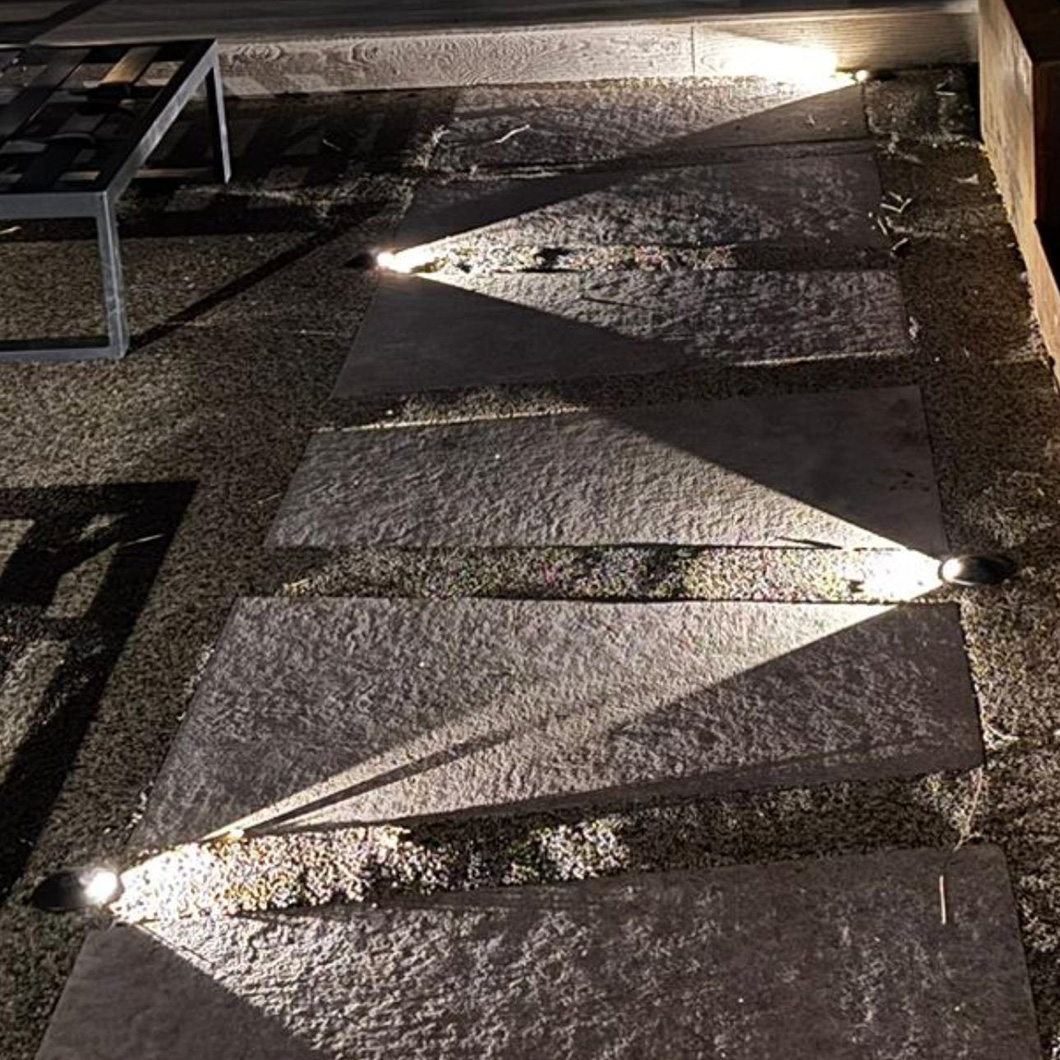

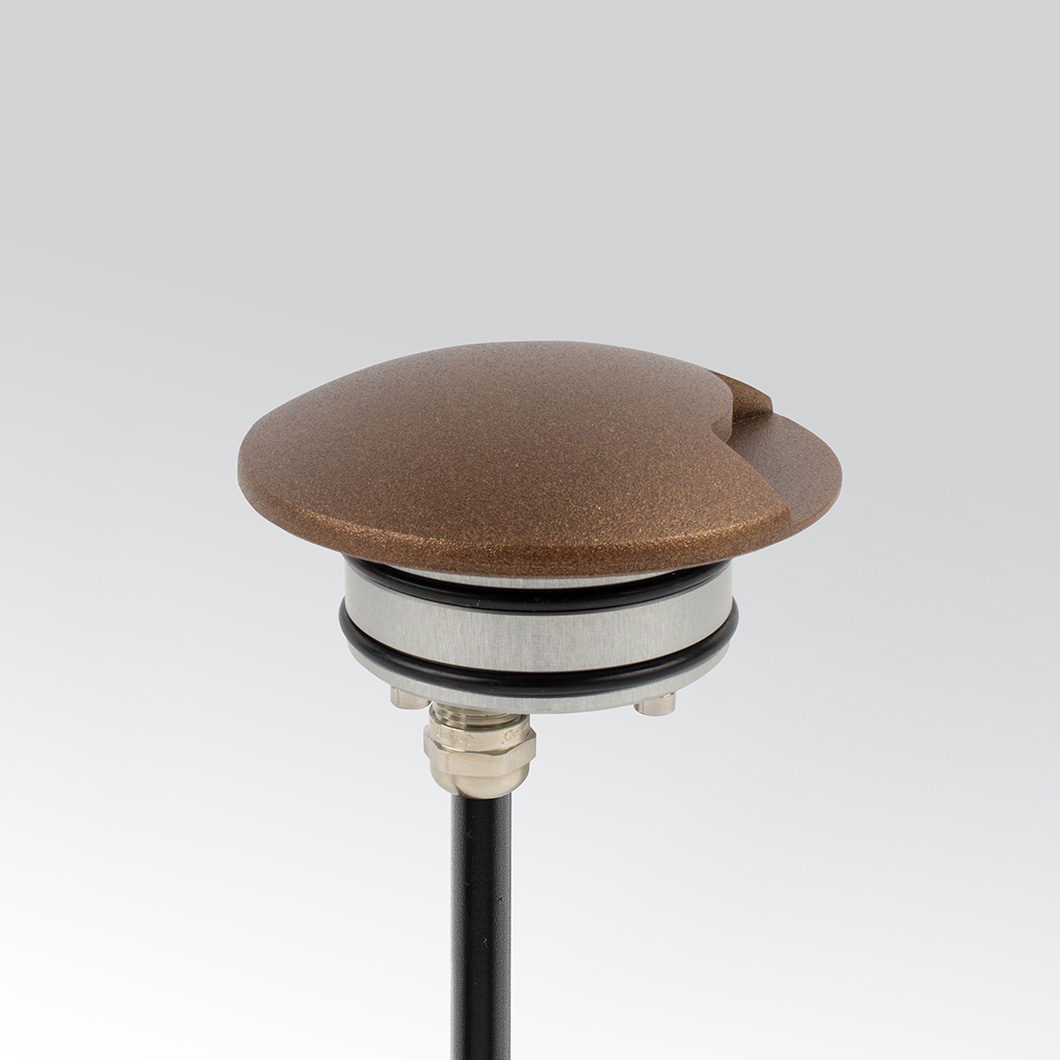

Under 8cm in diameter and twice the size of the mini version, the Bia Round is a single emission outdoor recessed path light by LLD (LED Luce E Dintorni). Suitable for both private garden and commercial outdoor lighting projects, the versatile LLD Bia can be installed in the wall as a low level or step light or into the floor as a path light. The Bia Round can be driven over up to 1500kg and has a rating of IP67.

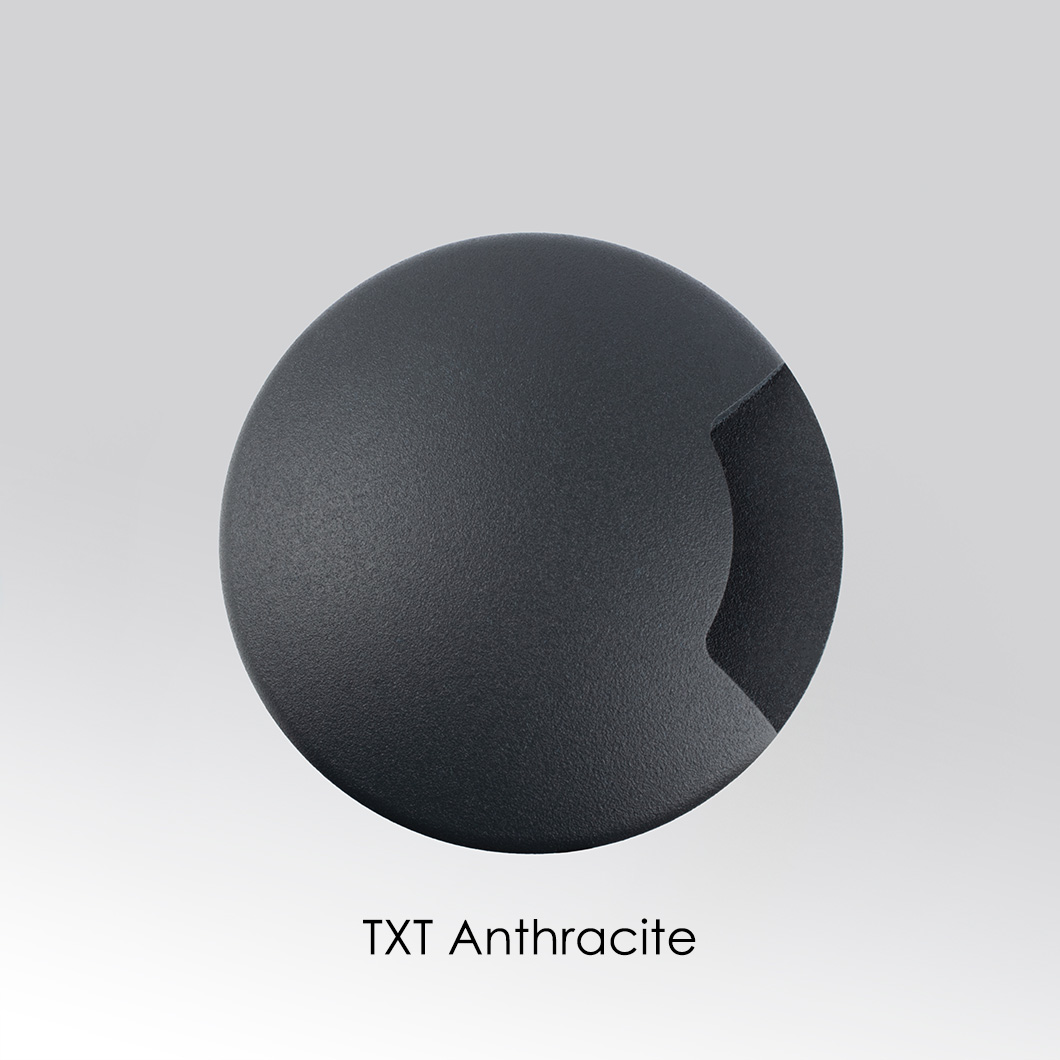

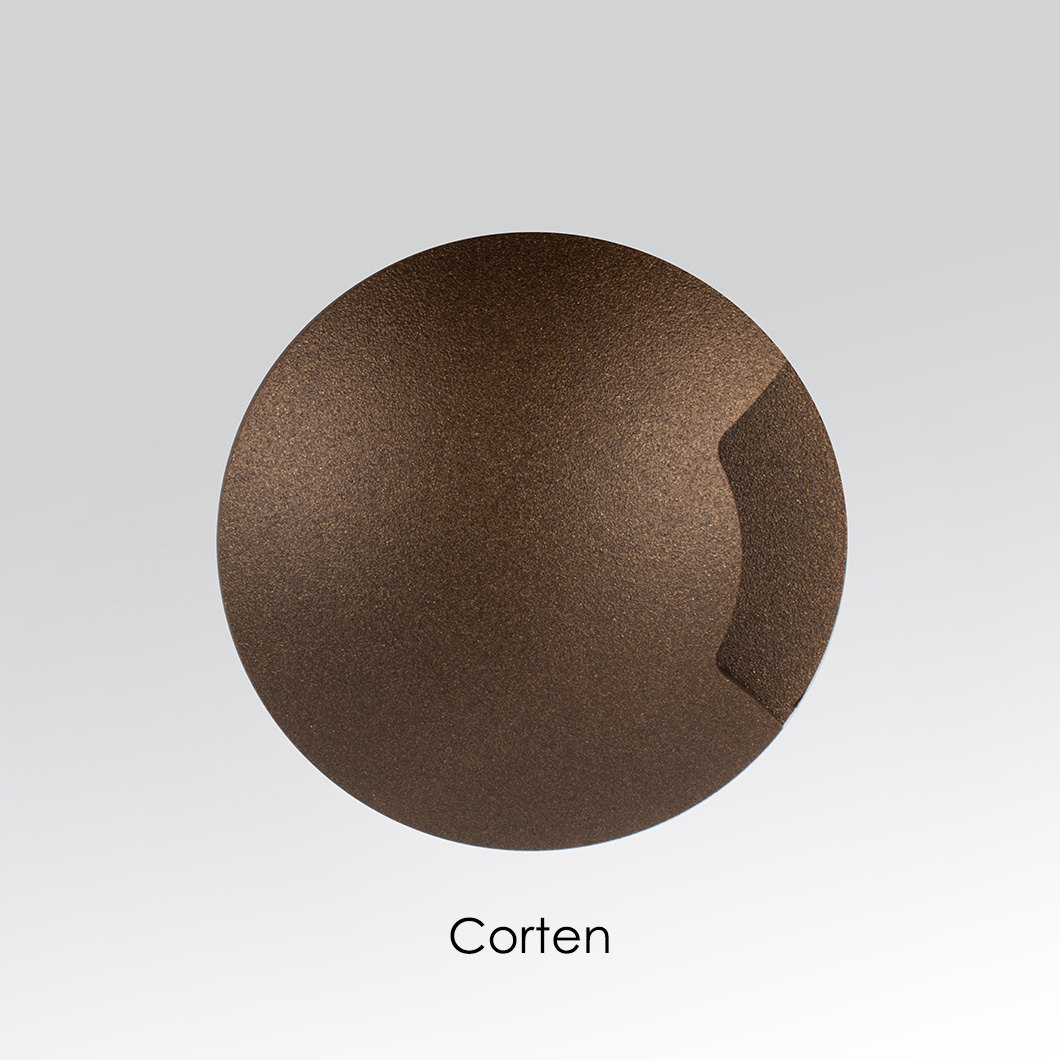

A 6W energy efficient LED produces over 800lm of light from a single emission, lighting only a specific targeted area. The 500mA constant current / 24VDC constant voltage Bia path light has a choice of 2700K, 3000K or 4000K light temperatures. An anticorodal anodized aluminium body and trim is available in anodized aluminium, matt black, anthracite or rusty COR-TEN. The brushed steel and steel finishes have an AISI 316L stainless steel trim. Optic in PMMA.
Supplied with a 500mm cable with WP System connection. The optional housing box should be used for installing the LLD Bia into the ground, allowing 30cm gravel drainage. 500mA constant current driver (wired series) or 24VDC constant voltage driver (wired parallel) required. This fitting is compatible with non dim, TRIAC dim, push dim, 1-10V dim, DMX dim and DALI dim drivers.

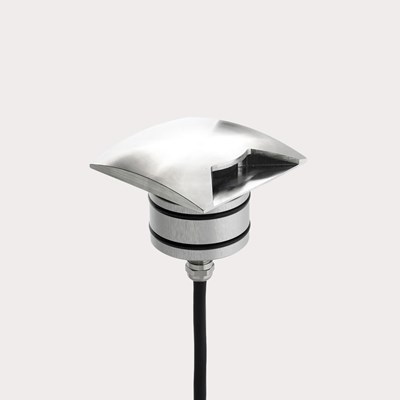

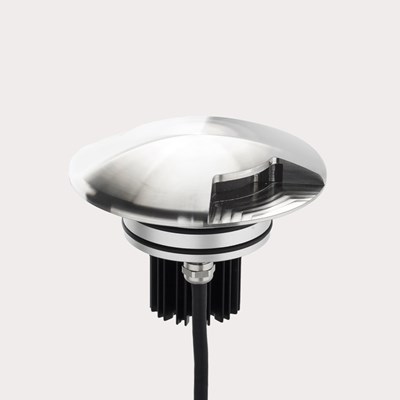

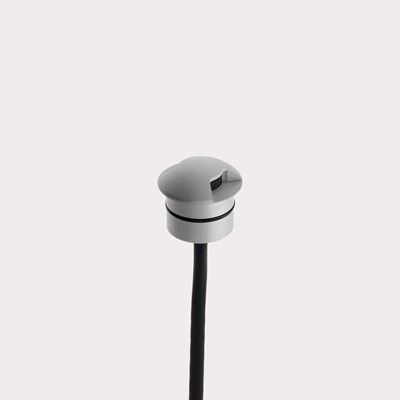

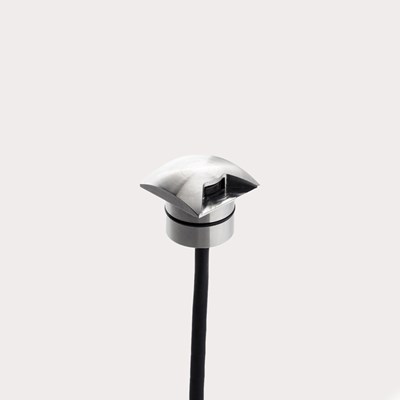

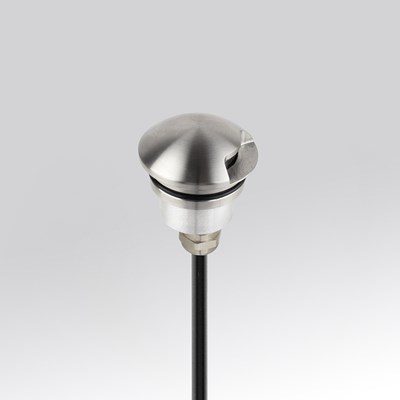

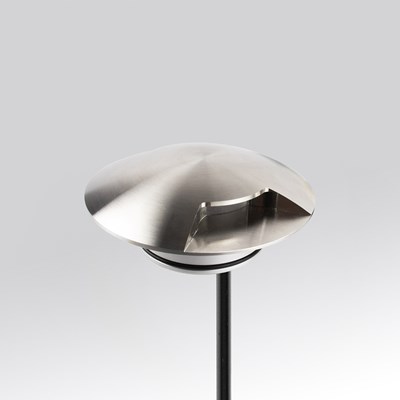

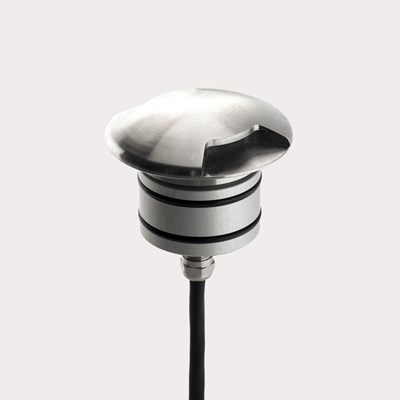

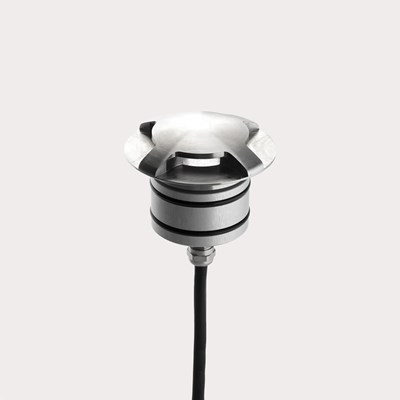

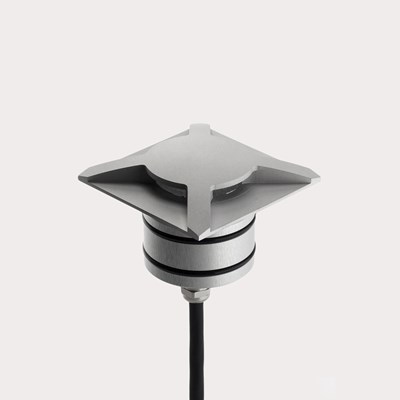

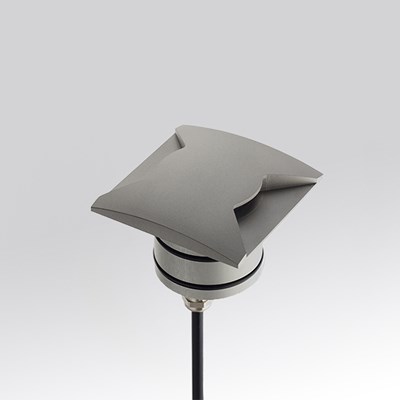

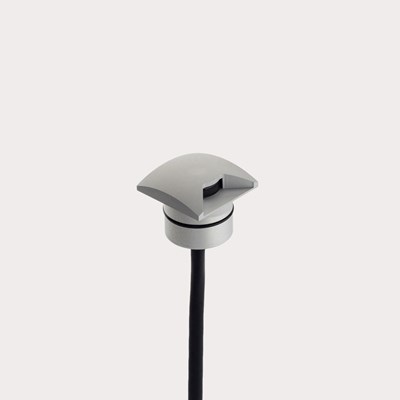

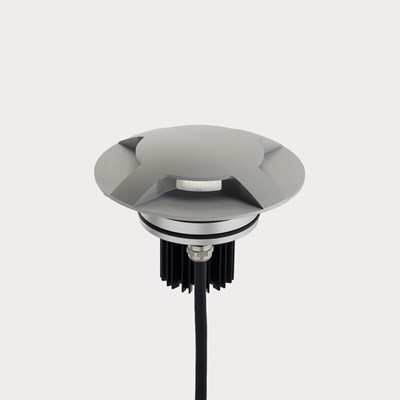

Other sizes and light emissions available - see below. View the full LLD Light catalogue in the downloads tab.
Delivery usually within 2 weeks
- Specification
-
IP67
6W
Class III
500mm cable with Water Proof connection system
Push, 1-10V, TRIAC, DMX and DALI dimmable with compatible driver (not included)
Exposed lip depth: 15mm
Single emission
Cutout: Ø53mm
Weight: 0.57kg
Drive-over: up to 1500kg
Floor installation: 30cm gravel drainage with housing box
500mA constant current version - wired series
500mA driver required
24VDC constant voltage version - wired parallel
24VDC driver required
CCT | Lumens
2700°K | 560lm
3000°K | 600lm
4000°K | 640lm
Optional housing box (CAW53): Ø60mm D.120mm
Lamp type: LED 6W Lifespan 50,000hrs
- Dimensions
-
Product dimensions: H.74mm x Diameter.79mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
