- Description
-

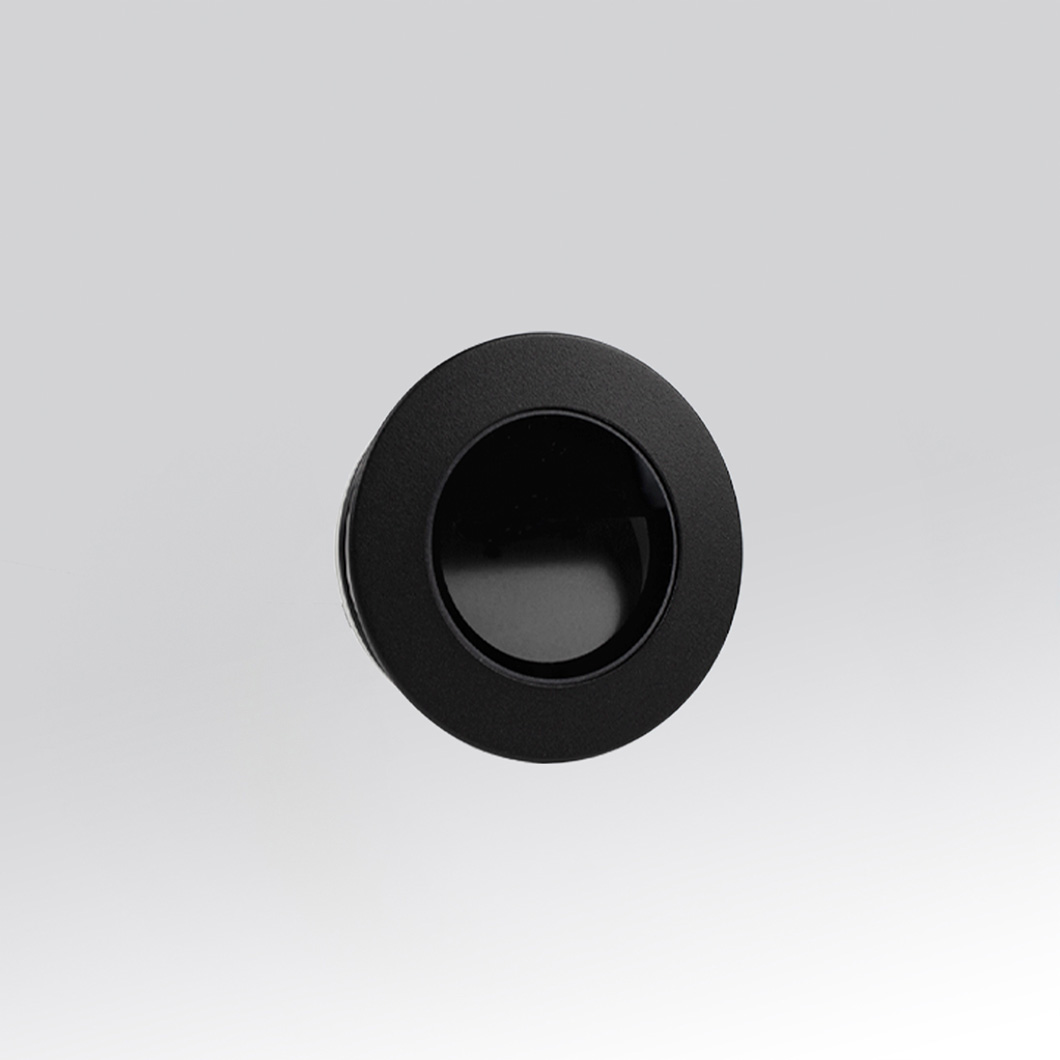

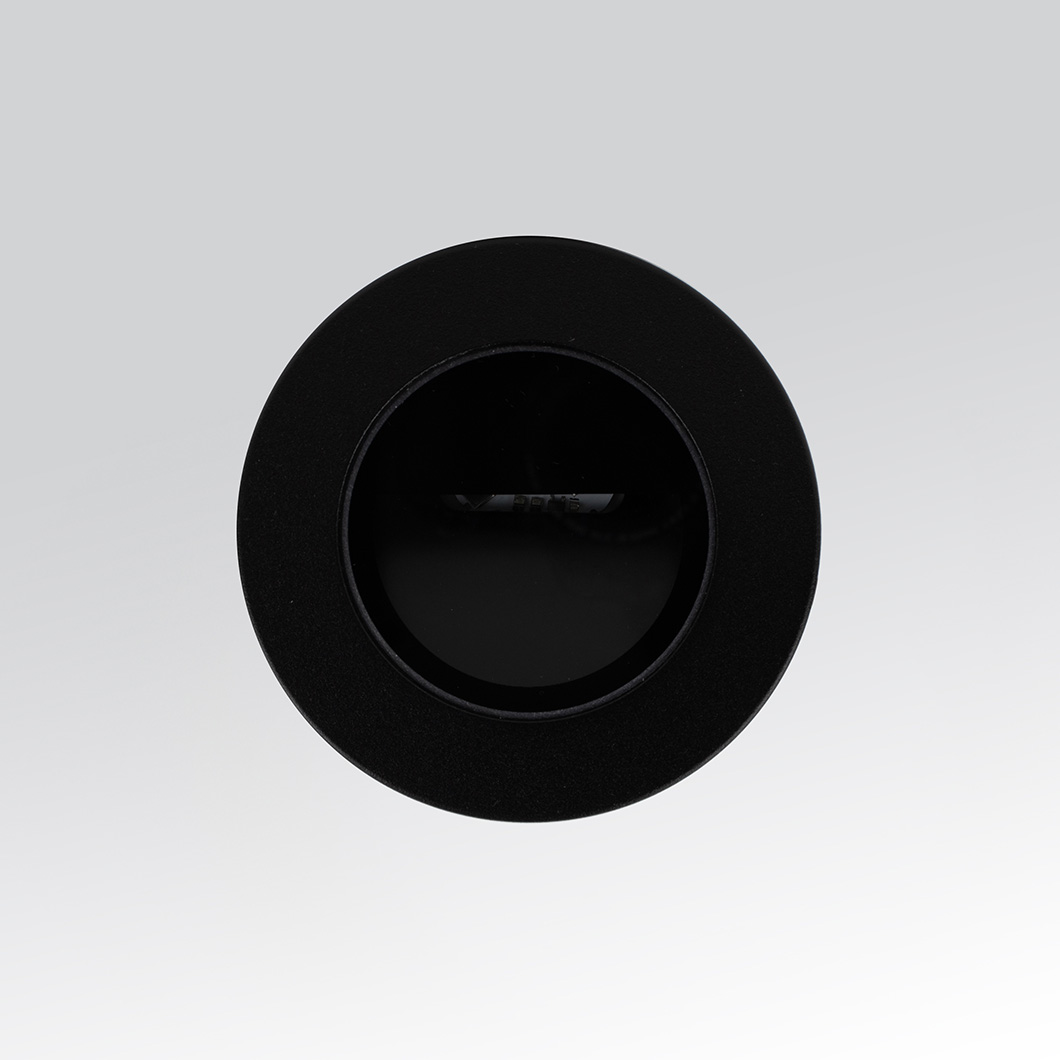

A contemporary, minimal fitting, the Aura Outdoor IP65 LED Low Level Step Light by LLD complements a modern outdoor lighting project. The circular light has a 93mm diameter, a simple yet effective addition to a staircase or along an enclosed pathway. The IP65 rating allows for exterior use, although Aura can also be installed inside the home.
The 24Vdc constant voltage Aura step light illuminates areas near the ground with an asymmetrical beam angle. Select from 7 colour temperatures: 2200K, 2700K, 3000K, 4000K, red, green, or blue. Anticorodal aluminium body with silk-screen printed tempered glass and an anticorodal aluminium trim (for the aluminium version) or an AISI 316L stainless steel trim (for the steel version). Finished in anodised aluminium, TXT white, TXT black, TXT anthracite, corten, sand, bronze, steel, or brushed steel. Supplied with a 50cm, 5m, 10m, or 15m cable. Recessed on plasterboard or wood with springs (not included) or recessed on brickwork through o-ring (included) and housing box (not included).
24Vdc driver required. This fitting is compatible with non-dim, TRIAC dim, push dim, 1-10V dim and DALI dim drivers.
- Specification
-
IP65
Anticorodal aluminium body
Anticorodal aluminium trim (aluminium version) / AISI 316L stainless steel trim (steel version)
Silk-screen printed tempered glass
Cable: 50cm, 5m, 10m, 15m
24Vdc
6,5W
6,5W - 24Vdc (not included)
Connected in parallel
2200K / 2700K / 3000K / 4000K / RED / GREEN / BLUE
CRI 80
Optics:
ASYM
Installation:
Recessed on plasterboard or wood with spring (not included)
recessed on brickwork through o-ring (included) and housing box (not included)
Accessories:
Torsion spring (ML060)
PVC Housing box (CA081): Ø90 x 79 x Ø80,7
Lamp type: LED 6,5W

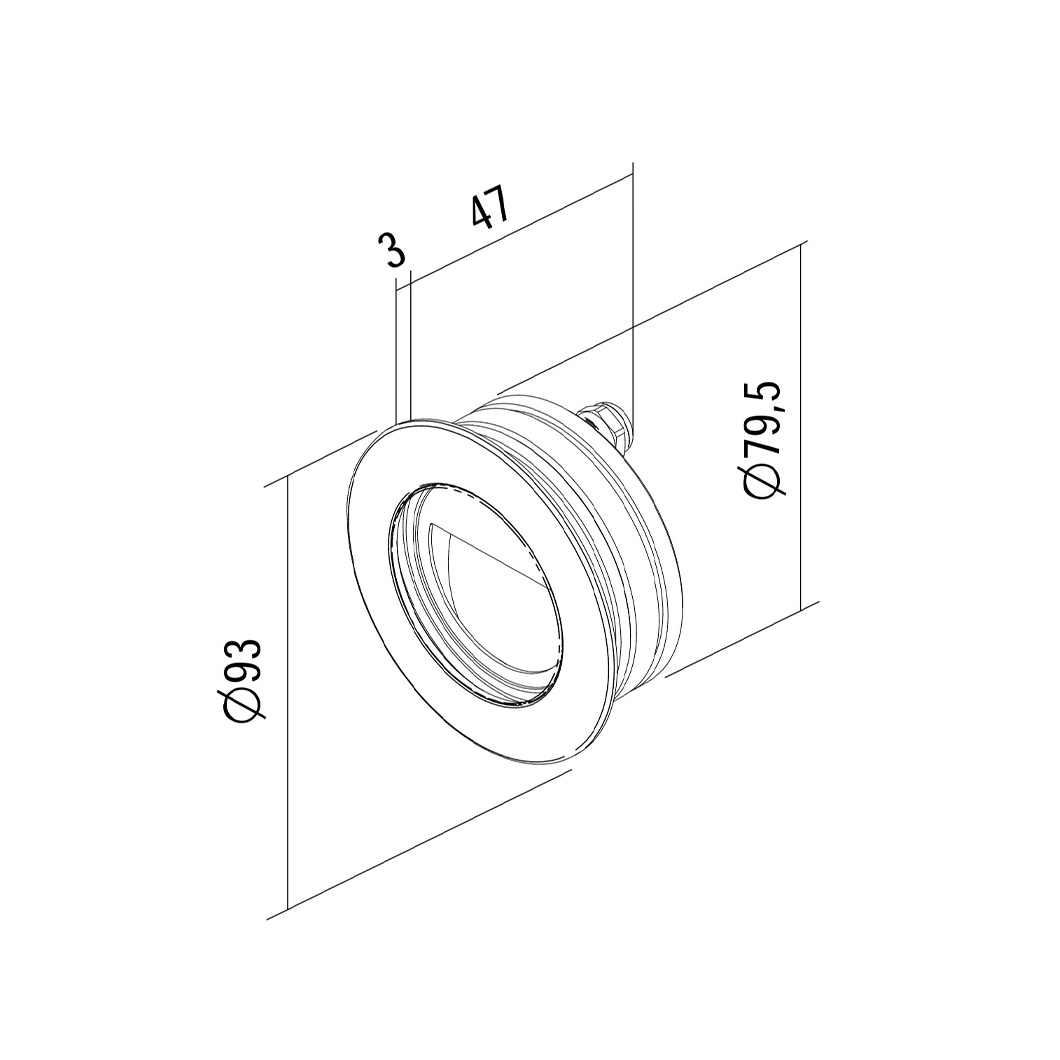

- Dimensions
-
Product dimensions: D.50mm x Diameter.93mm
Cutout dimensions: Dia.81mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
