- Description
-

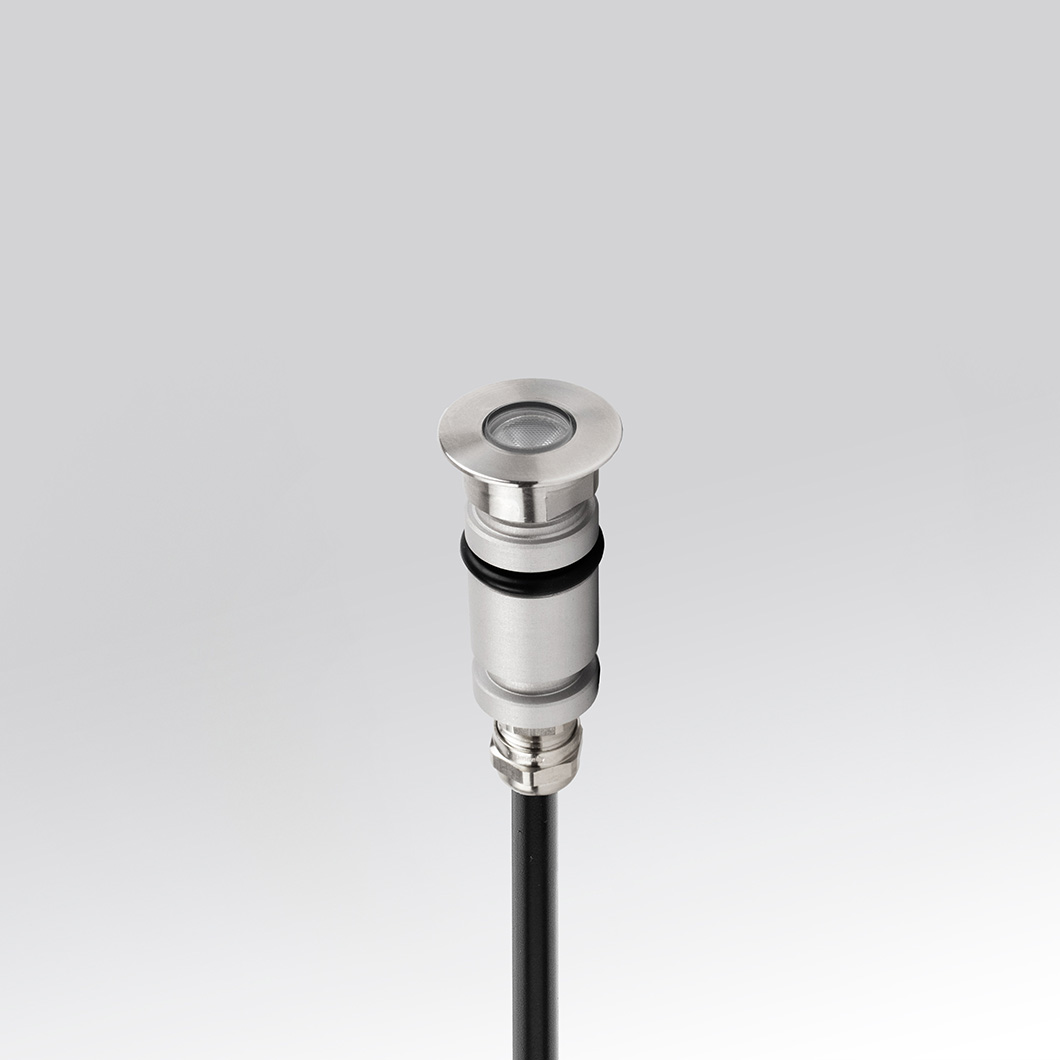

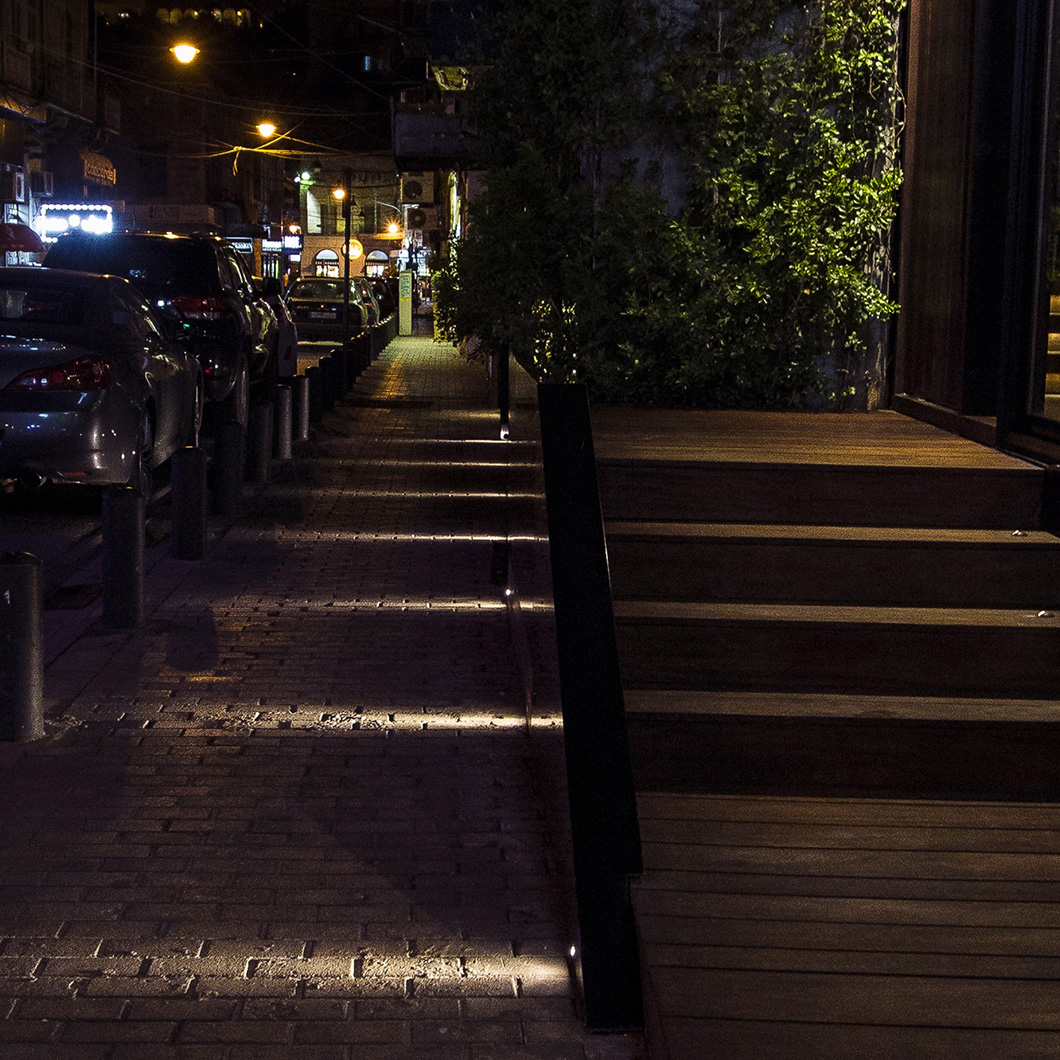

With a mini diameter of 26mm, the LLD Altea Mini Outdoor IP67 LED Recessed Floor Uplight is a sleek and sophisticated minature outdoor luminaire that can take a walk-over weight up to 500kg. A fixed optic that is suitable for floor, wall or ceiling installation, the Altea has an IP67 rating that makes it suitable for lighting exterior pathways, steps and gardens.
Altea Mini utilises an energy-efficient low-wattage 1-2W LED light source with an 18°, 35° or 57° beam angle. Available in constant current or 24VDC constant voltage versions, and with a choice of 2200K, 2700K, 3000K, 4000K, red, green, or blue light temperatures. Constructed from an anticorodal aluminium body with weatherproof AISI 316L stainless steel trim & a tempered transparent glass / PMMA lens. Finished in anodised aluminium, steel or brushed steel. Supplied with a 50cm, 5m, 10m, or 15m cable with water-proof system connection. The optional spring fitting should be used for installation into plasterboard or wood. The optional housing box should be used for installing Altea Mini into the ground. Other sizes available - see below.
350mA constant current driver (wired in series) or 24VDC constant voltage driver (wired parallel) required. This fitting is compatible with non-dim, TRIAC dim, push dim, 1-10V dim and DALI dim drivers.
- Specification
-
Cable with water proof connection system: 50cm, 5m, 10m, 15m
Push, 1-10V and DALI dimmable with compatible driver (not included)
Cutout: Ø21mm
IP67
C.C.
1W - 1,6W
1W - 350mA
1,6W - 500mA
Wired in series
24Vdc
2,2W
Wired in parallel
CRI 80
2200K / 2700K / 3000K / 4000K / RED / GREEN / BLUE
Optics: 18°, 35°, 57°
Finishes: Anodised aluminium, steel, brushed steel
Optional torsion spring (ML021): Ø17.5mm x 47mm x 26mm
Optional housing box (CAS20): Ø23mm

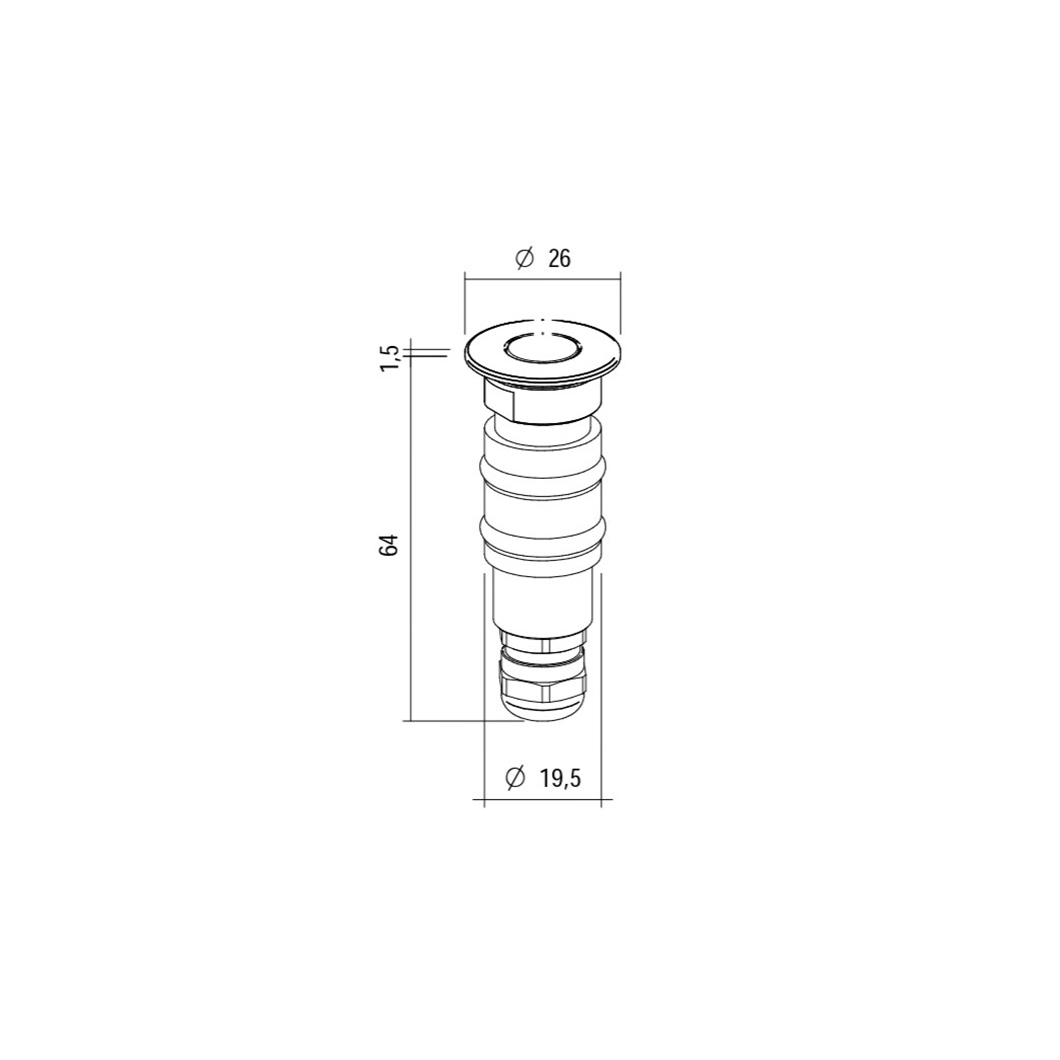

- Dimensions
-
Product dimensions: H.66mm x Diameter.26mm
Cutout dimensions: Dia.21mm
- Downloads
-
- Delivery and warranty
-
Delivery usually within 2-3 weeks
Supplied with a 2 year warranty covering manufacturing and/or design defects. The warranty does not cover:
- damage caused by transport
- the use of products in unsuitable environmental conditions
- non-standard product use or stress including under/over voltage
- damage caused by negligence or lack of maintenance
- damage caused by the use of power supplies not provided or indicated by LLD Light
- repair attempts or tampering performed by unauthorised staff
- About the manufacturer
-
With a heritage in nautical lighting, it's no surprise that LLD Light have evolved to become a prominent manufacturer of contemporary architectural indoor and outdoor lighting. Passionate about continual research and innovation, LLD combine innovative Italian design with the highest quality locally sourced materials. Each LLD light fitting, electronics and all, is produced in Vicenza - a true example of Made In Italy.
We're especially excited about their range of contemporary IP rated outdoor lighting - from adjustable spike spots and bollards, to wall lights and IP68 submersible underwater lights. Most are available in sleek and modern stainless steel, black or white, as well as COR-TEN stable rusted or in green to truly camouflage with the outdoor environment.
