Description

LED Profilelement S24 linear profile for concealed and integrated installation in walls and ceilings. The S24 LED recessed profile is made from high-grade aluminium, in which a maximum of 2 LED strips with 10mm width can be installed.

Supplied with a frosted diffuser cover made of polycarbonate (PC), which is weathering, UV-resistant and flame-retardant. The optional end caps, made of polypropylene (PP), additionally seal the profile. Optional mounting springs available.

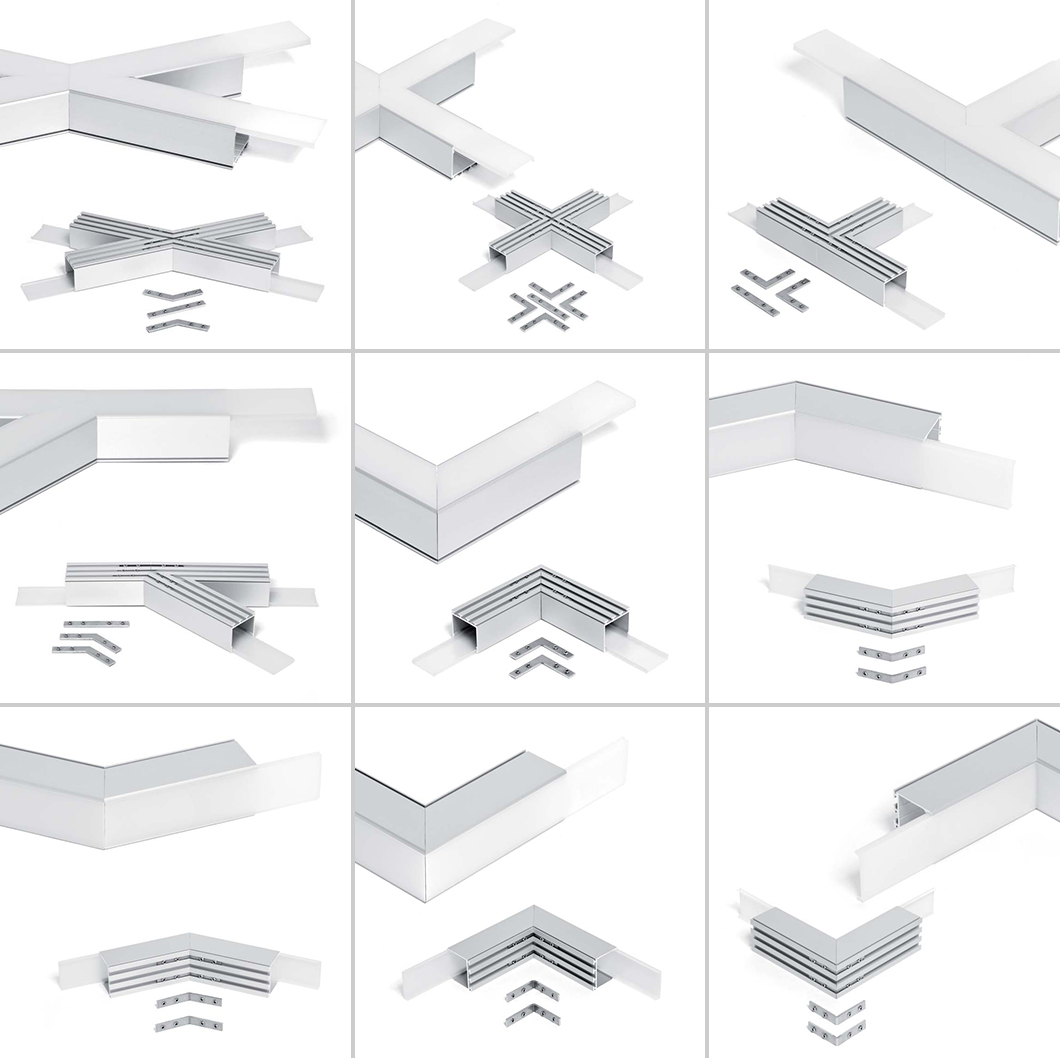

Supplied in 2m lengths. Various connectors are available to join on the same plane (flat) and wall-to-ceiling (angle), scroll through the images above for further details.

Avaliable on Next Day Delivery

See install instructions PDF in the Downloads tab.

- Our Top Tips -

• Why do you need a diffuser? The diffuser is final piece of the jigsaw, with it you will create a nice soft halo of light. Without it you will create a hard wonky line – not a great look

Specification

Length 2000mm
Internal width 24mm
Profile: aluminium
Frosted diffuser cover: polycarbonate (PC)
Optional end cap (PE85.0005): polypropylene (PP)
Optional mounting springs (PE85.0019)

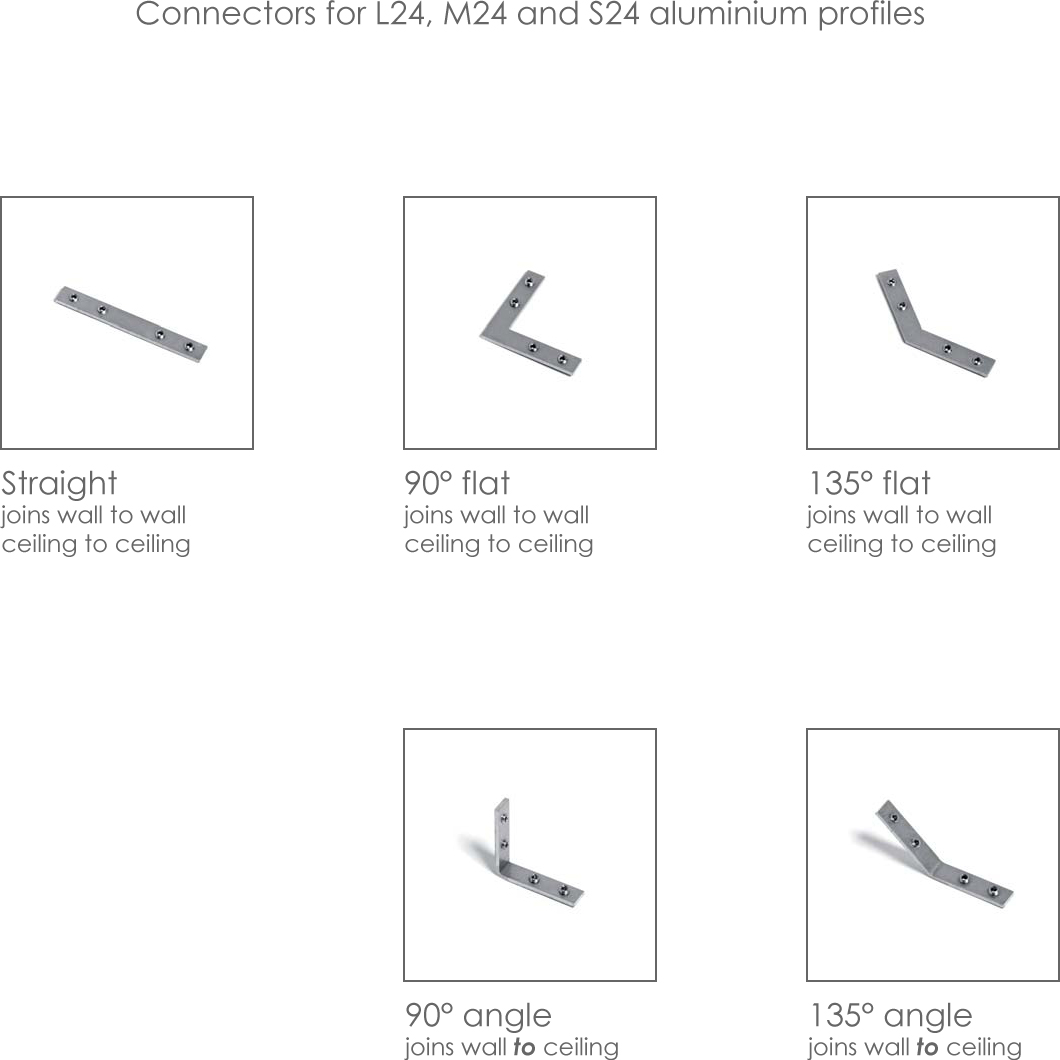

Connectors:
Flat straight - wall-to-wall/ceiling-to-ceiling
Flat 90° - wall-to-wall/ceiling-to-ceiling
Flat 135° - wall-to-wall/ceiling-to-ceiling
Angle 90° - wall-to-ceiling/ceiling-to-wall

Angle 135° - wall-to-ceiling/ceiling-to-wall

How to install LED Profilelement S24 Alu Profile - video

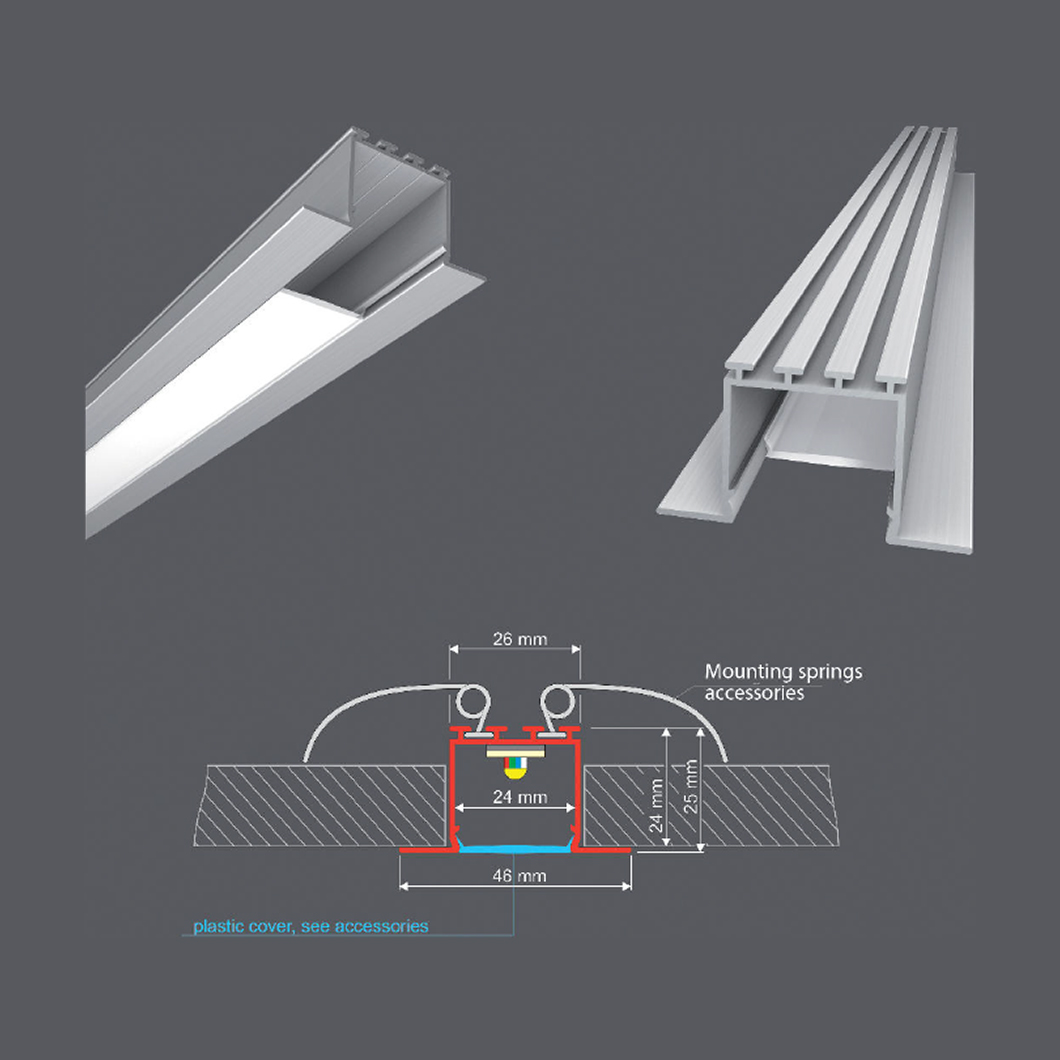

Dimensions

Product dimensions: W.2000mm x D.40mm x H.25mm

Downloads

• LED-Prof-install19.pdf

Delivery and warranty

When in stock: Next day delivery
Not in stock: Delivery approximately 2 weeks

Supplied with a 3 year warranty

About the manufacturer

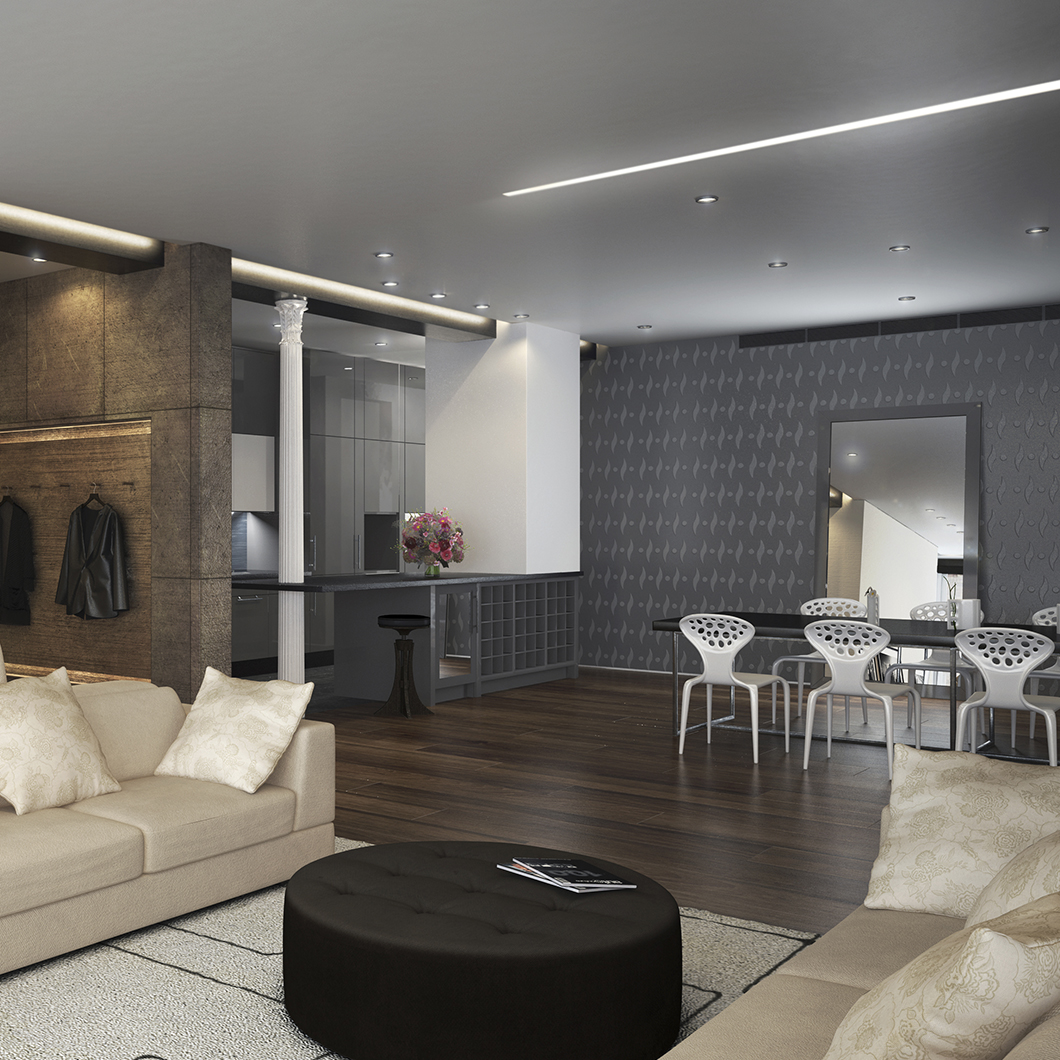

Flexibility. If there’s one word to sum up LED Profilelement, it’s flexibility. Whether creating indirect accent lighting, shadow gaps for coves and skirtings or highlighting architectural features, the versatility of LED Profilelement flows from soft and subtle integrated lighting to a striking, dramatic statement.

The LED Profilelement edit below showcases the most popular products in the range.

 Browse the full LED Profilelement catalogue

For prices on any product that isn't shown below please contact us.



Installed directly into the drywall, many of the profiles are either plaster-in or with a paintable wing - seamlessly integrating into the architectural scheme whilst taking advantage of the latest in LED innovations. As we said - flexibility.
