LED Profilelement DSL Flex Profile

Description

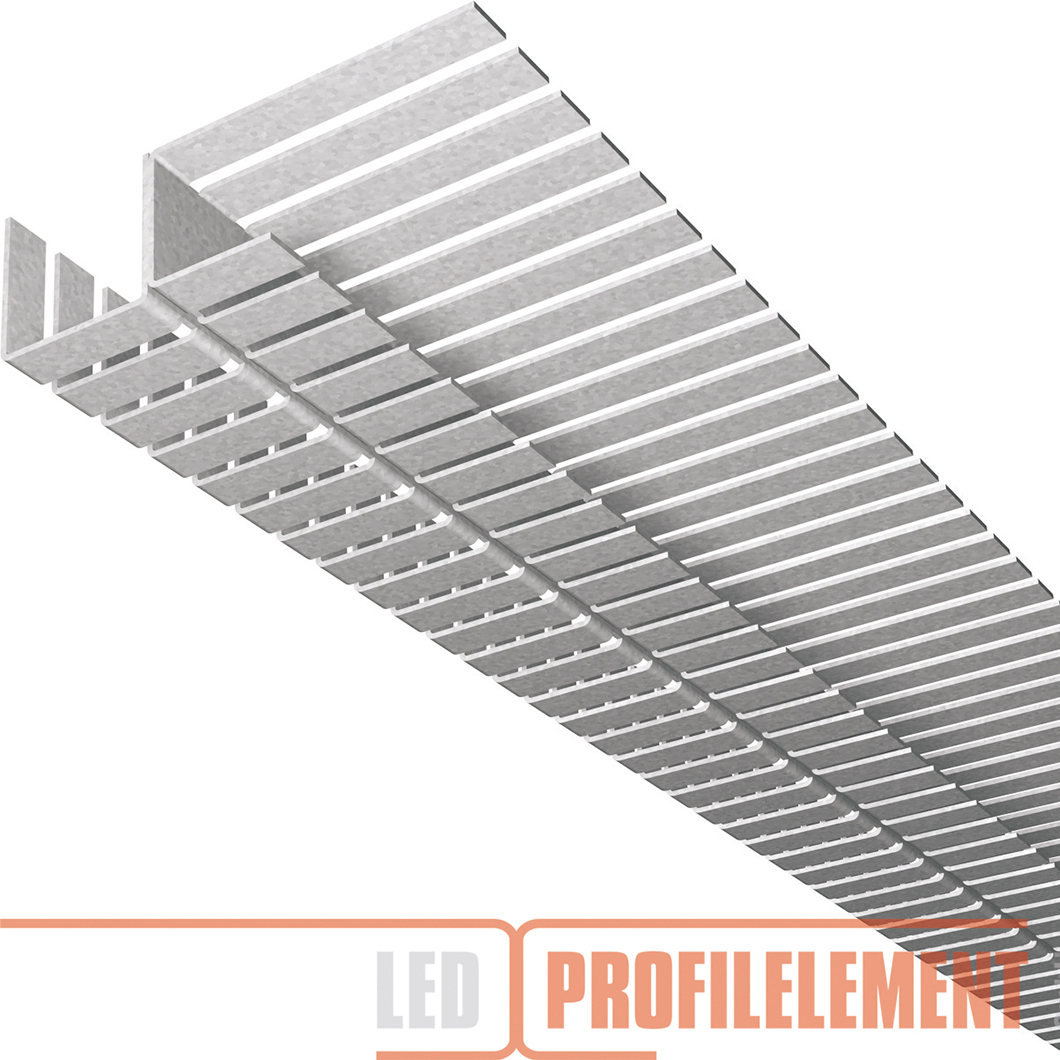

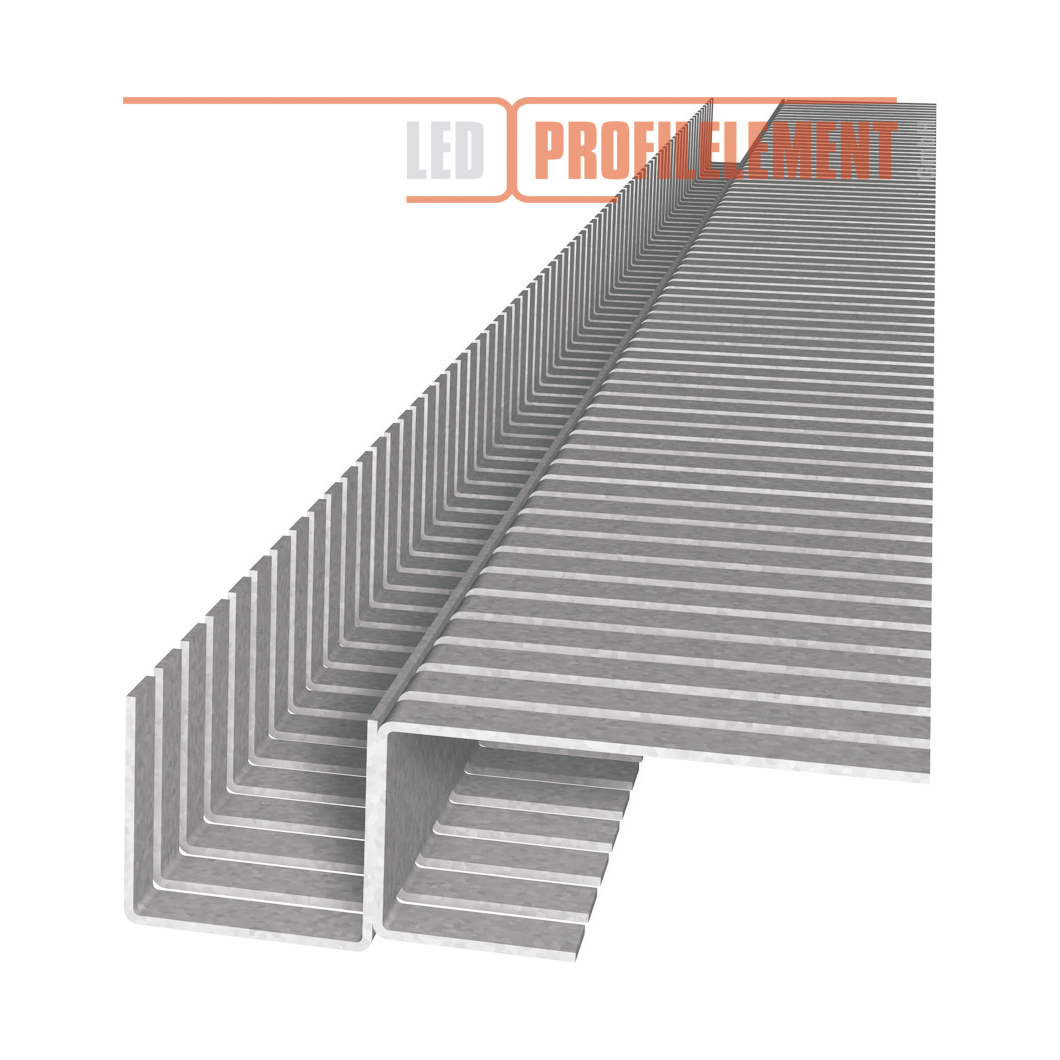

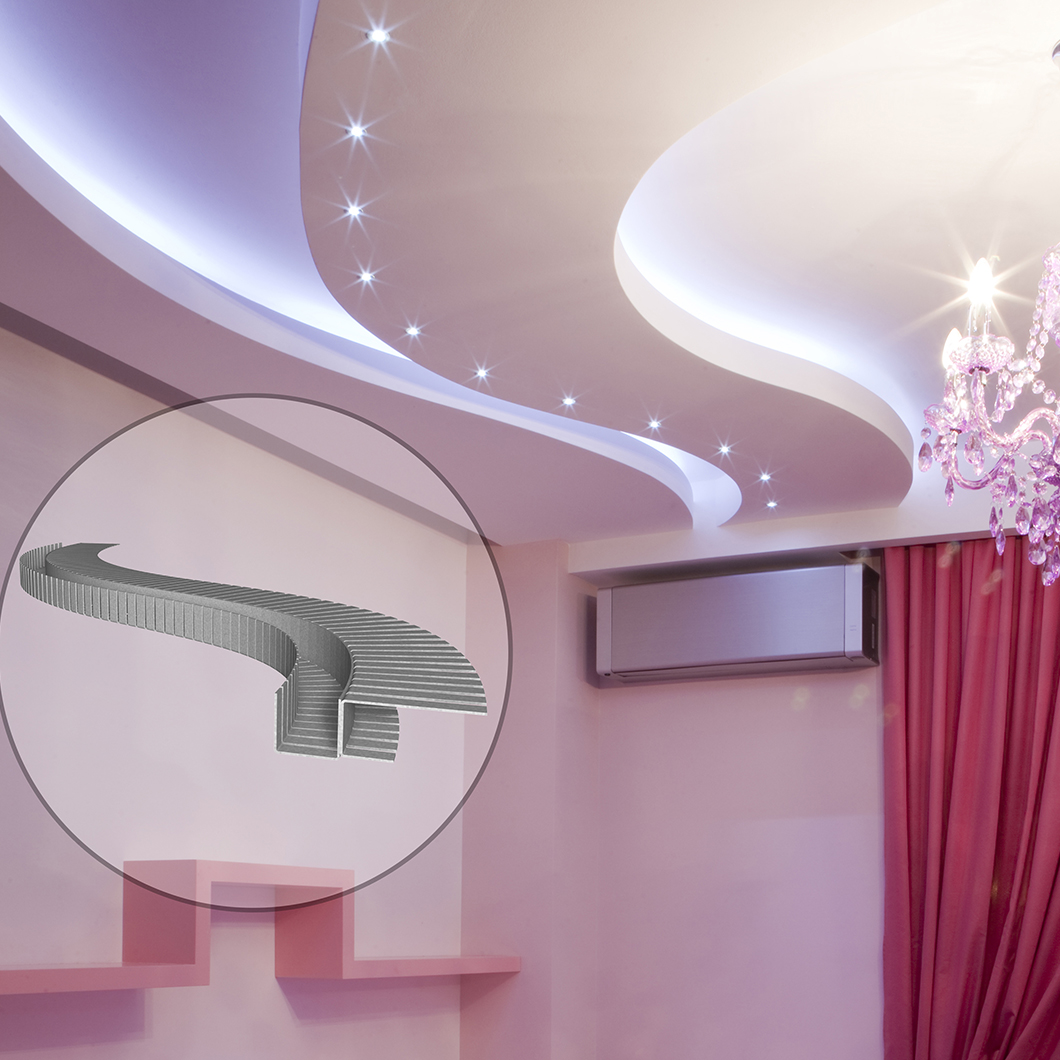

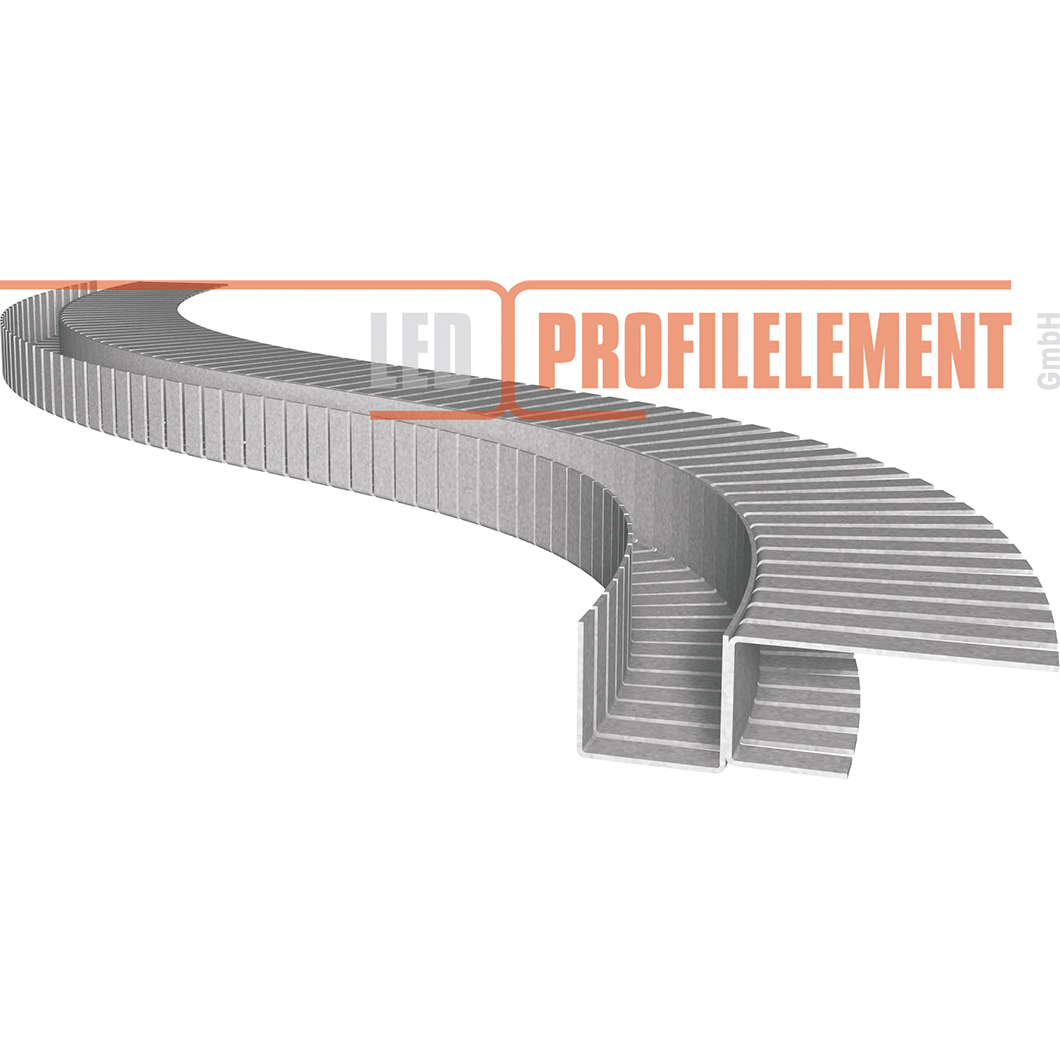

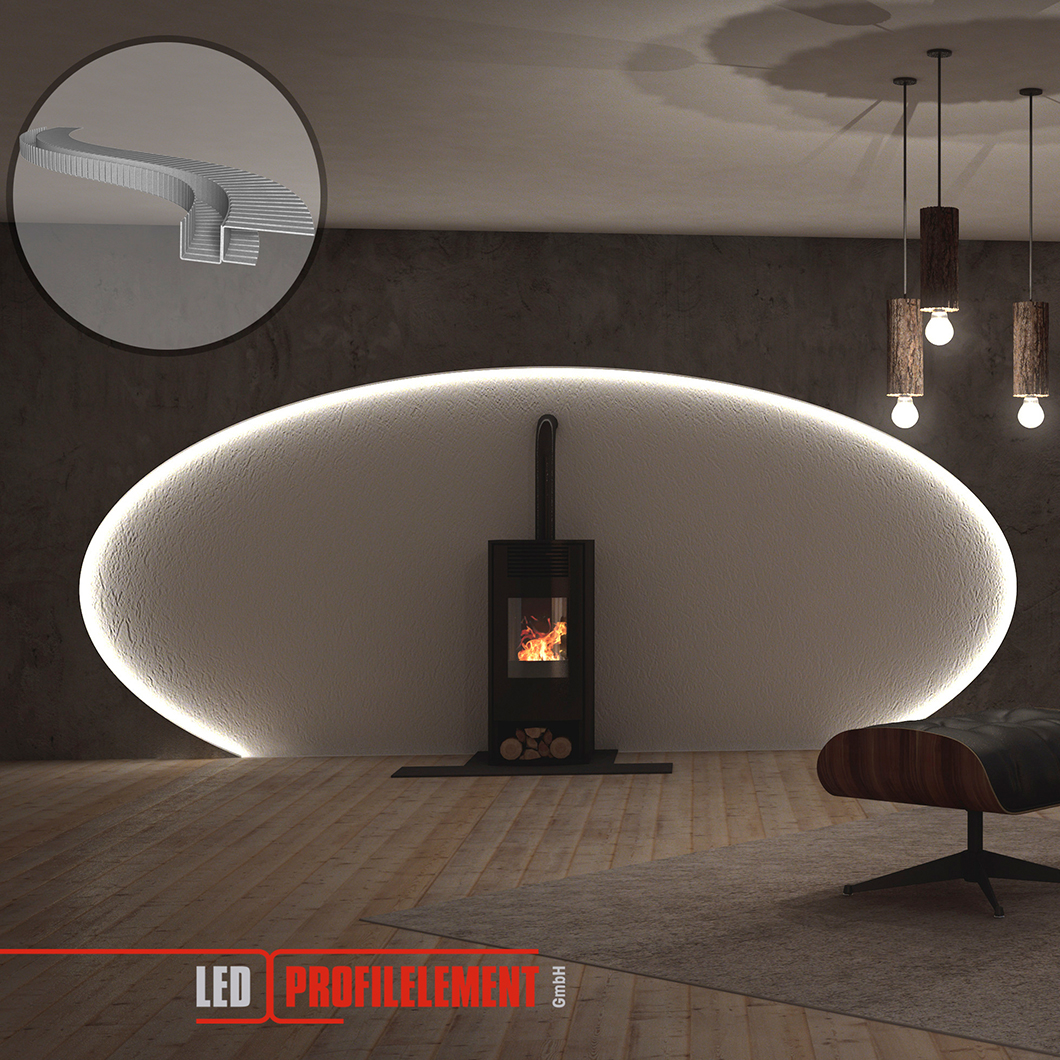

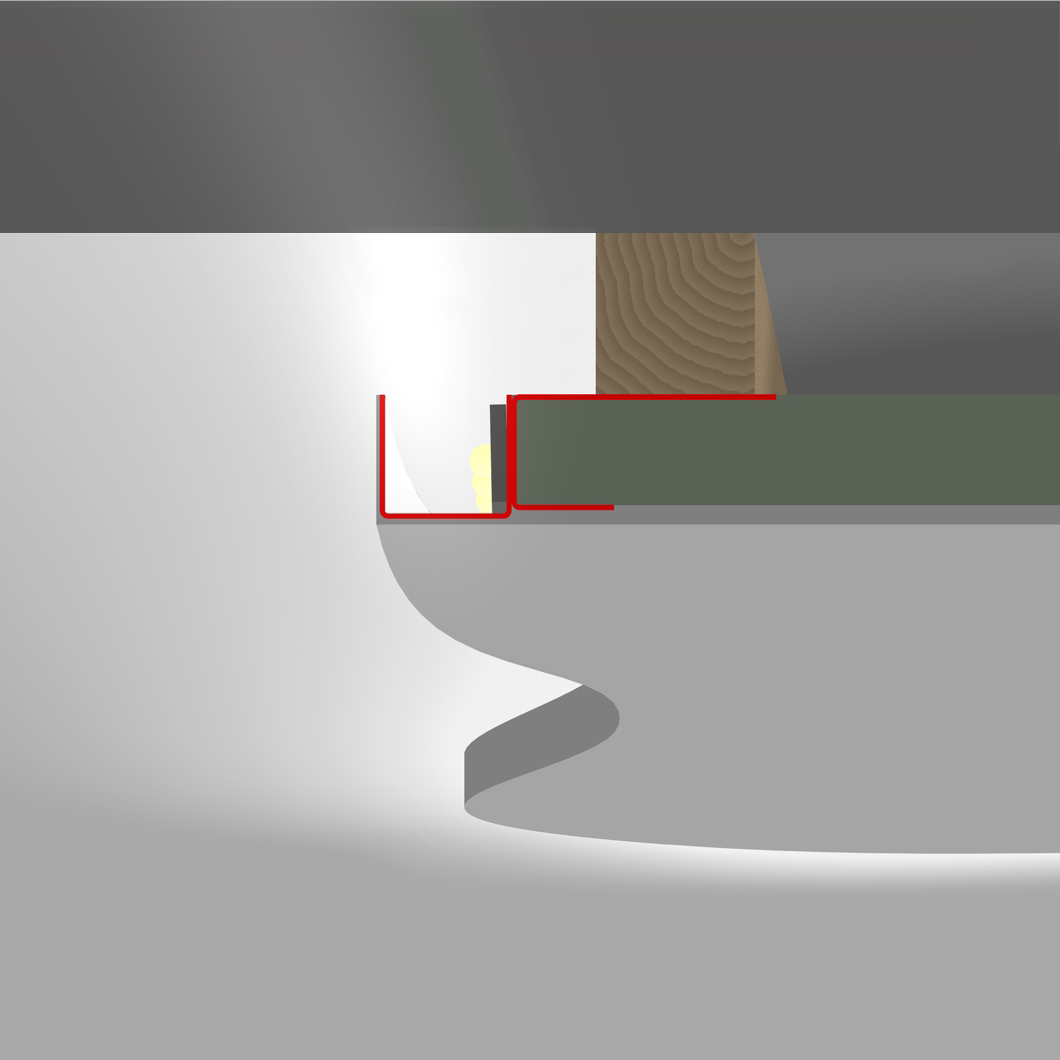

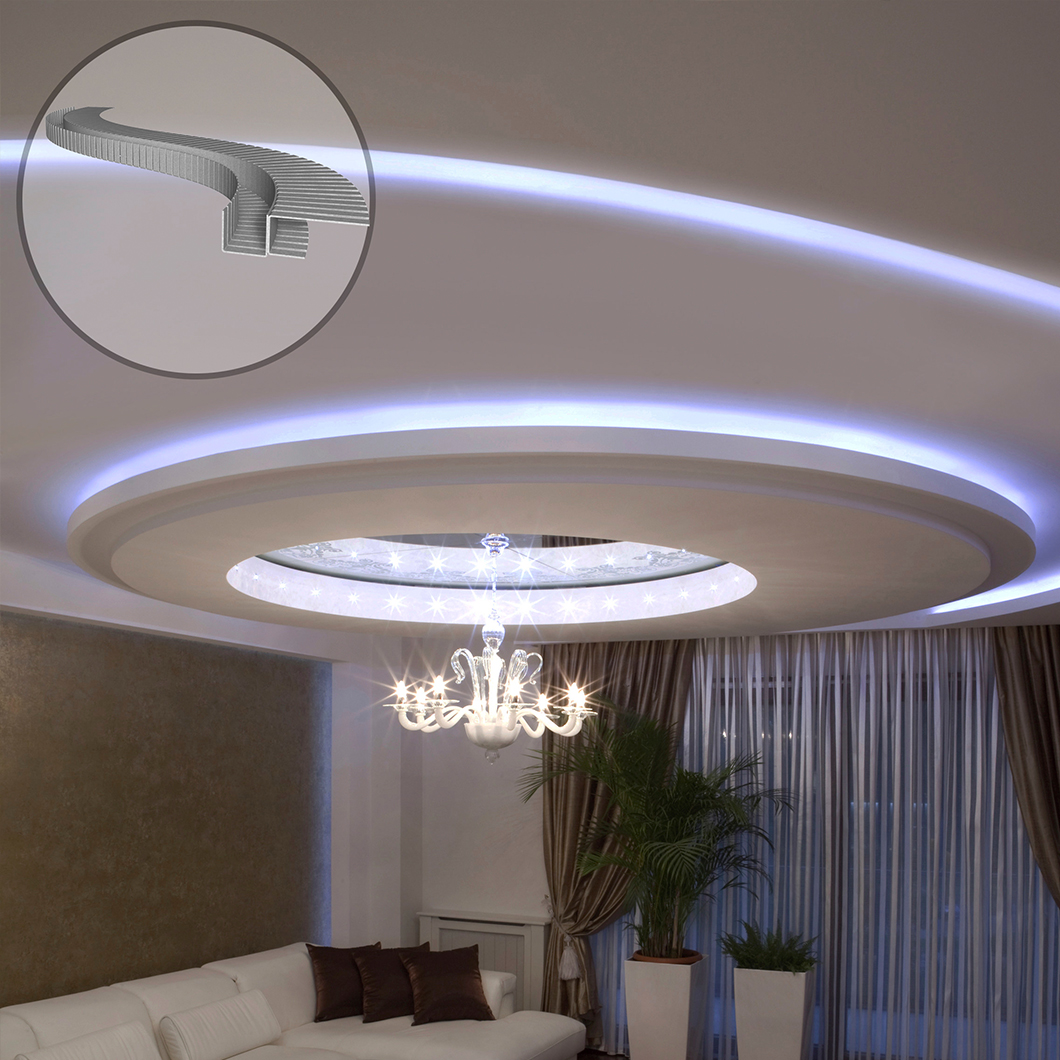

LED Profilelement DSL Flex drywall profile integrates invisibly with the surrounding architecture, and is the perfect choice for cove lighting and for creating dramatic indirect lighting effects behind 'floating' curved structures. Suitable for use with LED tape up to 15mm in width. Shadow casting can be avoided by altering the plane that the LED strip is fixed to. Made of zinc, which acts as a heat sink for the LED strip, the DSL profile is supplied with the primer already applied. Fire rated, see downloads tab for further info.

Use in conjunction with DSL for a combination of straight and curved shapes.

See the Optional Items below for:
The fleece lining for seamless installation (see install instructions)

• Supplied in 2m lengths.
• The recommended minimum radius for all flex profiles is 50cm.

Delivery usually within 3-5 working days

See install instructions PDF in the Downloads tab.

- Our Top Tips -

• What makes this profile better than others on the market? This profile is made from zinc alloy which is very hard to deform - even under a high heat output. Therefore changes in temperature will not cause cracking in the plaster (provided the recommended fleece lining has been used too) unlike aluminium profile which often bends.
• With a shallow depth of 12.5mm, this installs flush into plasterboard and no other structure is required for installation - saving time and money.
• We recommend fleece-lining for joining multiple profile channels together.
• Minimum radius for all flex profiles is 50cm.

Specification

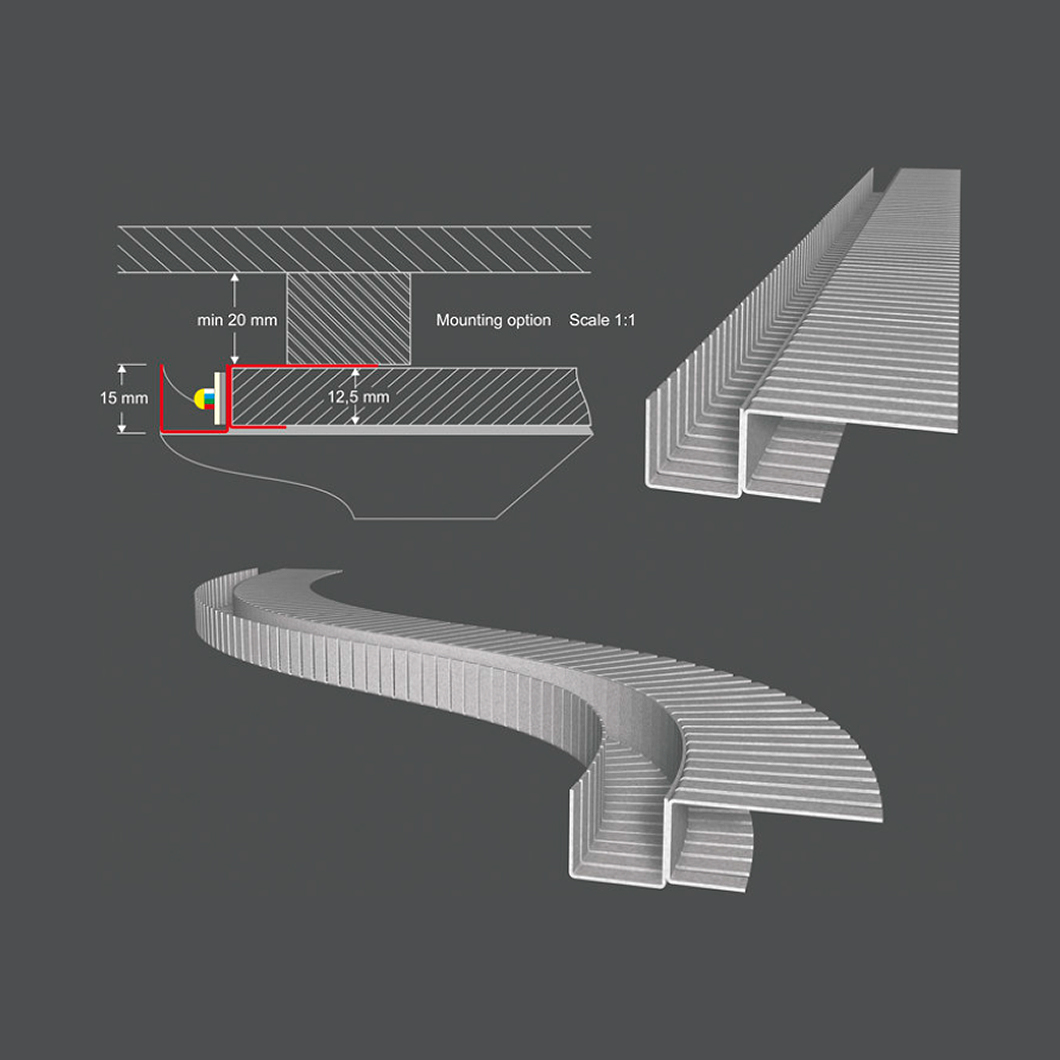

• Minimum suspension: 20mm
• Suitable for LED tape up to 15mm in width
• Pre-primed in white
• Fire rated
• Recommended flex profile minimum radius: 50cm

How to install LED Profilelement DSL Flex Profile - video

Dimensions

Product dimensions: W.2000mm

Downloads

• LED-Prof-install1.pdf
• mounting instruction-flex-profiles2.pdf
• LED Profilelement Fire Rating Doc

Delivery and warranty

When in stock: Next day delivery
Not in stock: Delivery approximately 2 weeks

Supplied with a 3 year warranty

About the manufacturer

Flexibility. If there’s one word to sum up LED Profilelement, it’s flexibility. Whether creating indirect accent lighting, shadow gaps for coves and skirtings or highlighting architectural features, the versatility of LED Profilelement flows from soft and subtle integrated lighting to a striking, dramatic statement.

The LED Profilelement edit below showcases the most popular products in the range.

 Browse the full LED Profilelement catalogue

For prices on any product that isn't shown below please contact us.



Installed directly into the drywall, many of the profiles are either plaster-in or with a paintable wing - seamlessly integrating into the architectural scheme whilst taking advantage of the latest in LED innovations. As we said - flexibility.
