Output
Output voltage: 24Vdc
Input voltage: 24Vdc ± 0.5Vdc
Output current: Max. 3.125a
Output power: Max. 75W
Output power range: 0-75W
Strobe level: High-frequency exemption level
Dimming range: 0-100%, dimming depth: max. 0.1%
Overload power limitation: ≤150mV
PWM frequency: 3600Hz
Input

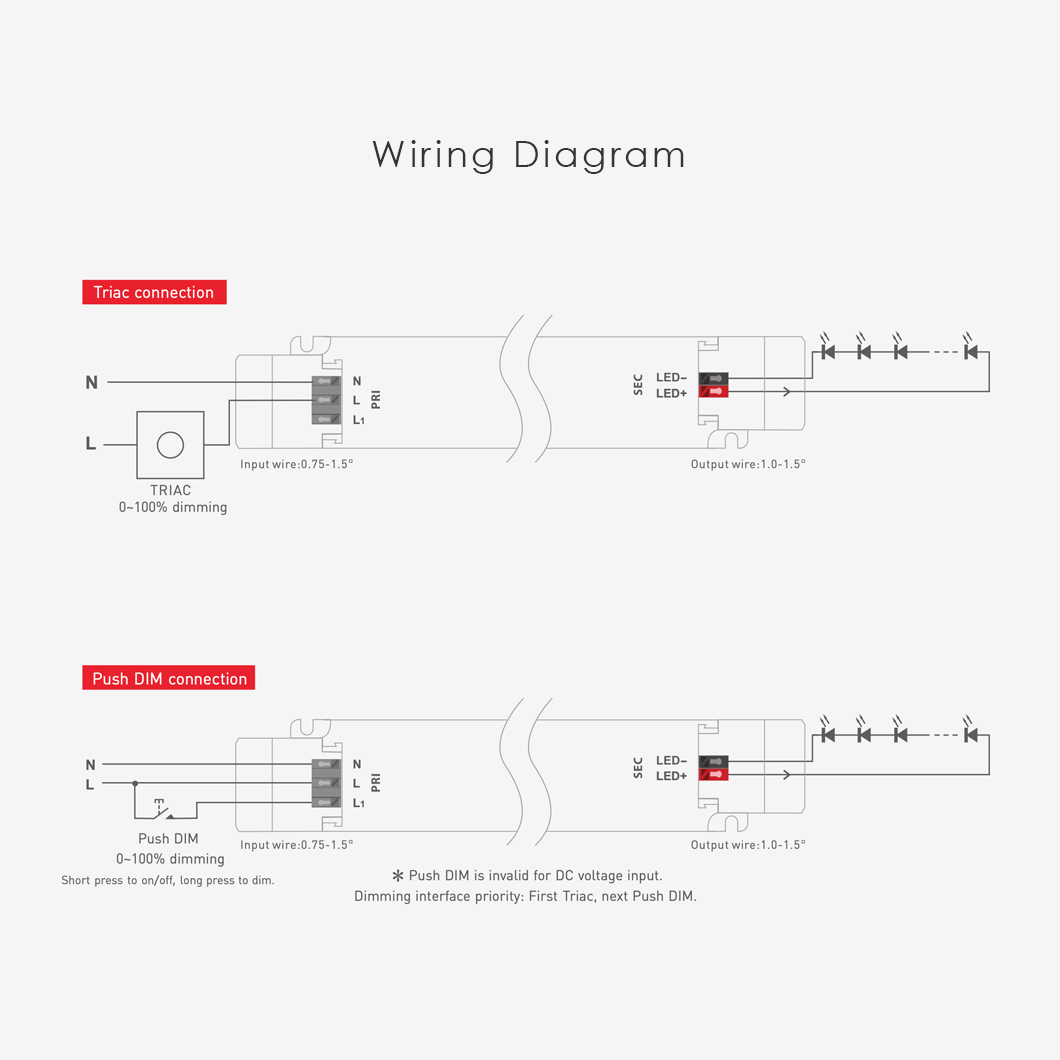

Dimming interface: Leading edge (TRIAC), Trailing edge (ELV) phase-cut and Push DIM
Input voltage: 220-240Vac
Frequency: 50-60Hz
Input current: 230Vac≤0.4A
Power factor: PF>0.98/230Vac, at full load
THD: 230Vac@THD＜6%, at full load
Efficiency (typ.): 88%
Inrush current (typ.): Cold start 30A at 230Vac
Control surge capability: L-N: 2kV
Leakage current: Max. 0.5mA
Environment
Working temperature: ta: -20~50°C tc: 90°C
Working humidity: 230Vac 20 ~ 95%RH, non-condensing
Storage temp. humidity: -40°C ~ 80°C, 10~95%RH
Temp. coefficient: ±0.03%/°C(0-50°C)
Vibration: 10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes
Safety & EMC
Withstand voltage: I/P-O/P: 3750Vac
Isolation resistance: I/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety standards: IEC/EN61347-1, IEC/EN61347-2-13
EMC emission: EN55015, EN61000-3-2 Class C, IEC61000-3-3
EMC immunity: EN61000-4-2,3,4,5,6,8,11, EN61547
Strobe test standard: IEEE 1789
