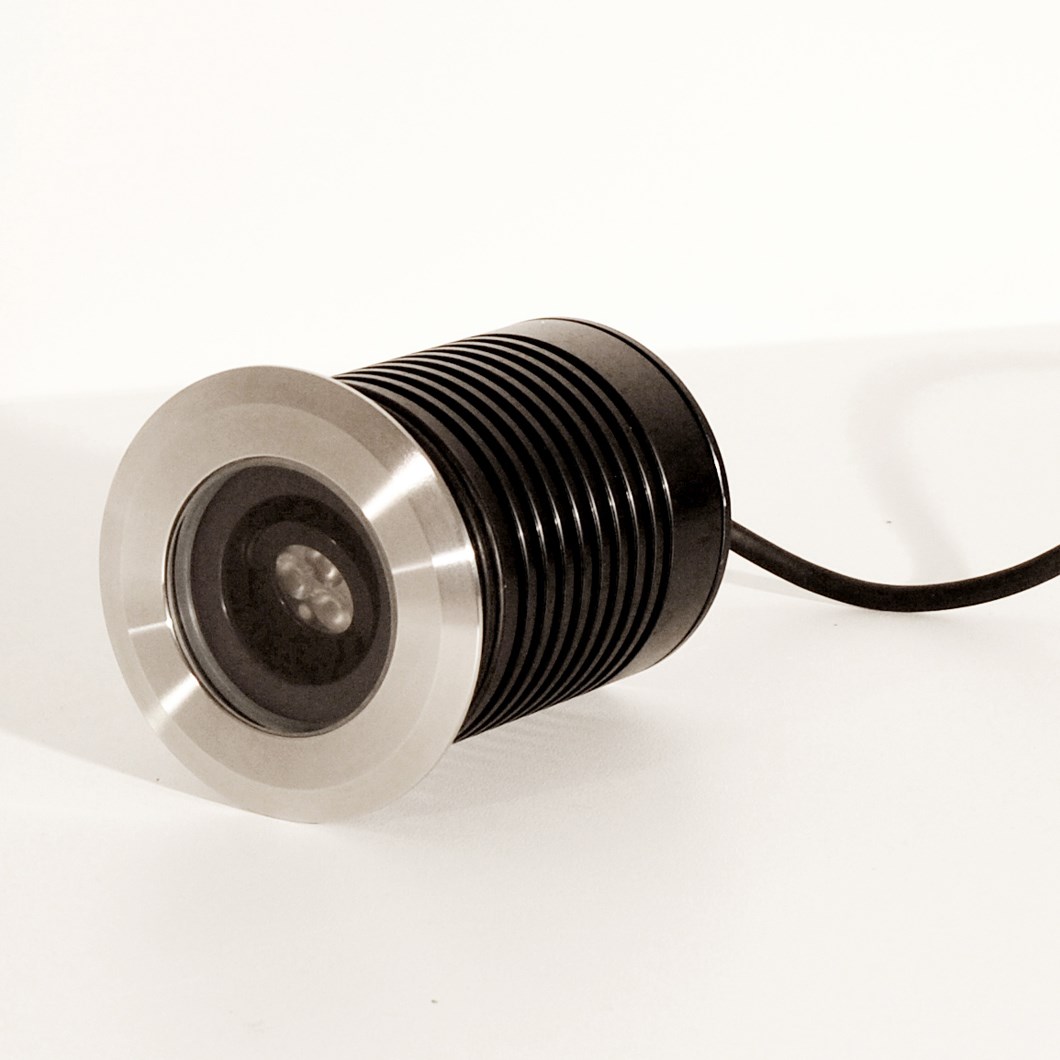

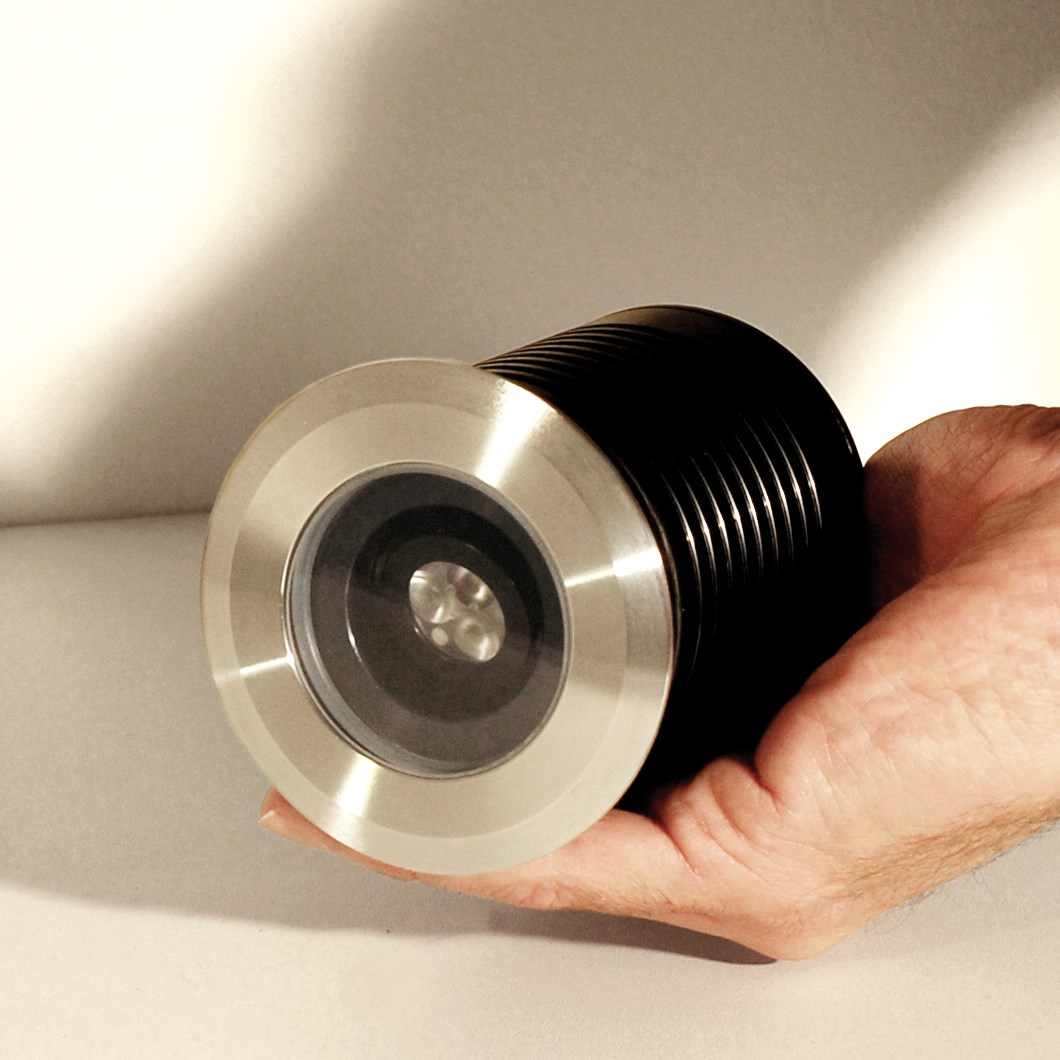

Flexalighting Jena 6 IP67 Adjustable Recessed Floor Uplight

Description

Jena 6 IP67 adjustable in-ground recessed uplights boast high construction quality. The use of advanced waterproofing technologies ensures absolute product reliability. Adjustable by 15°. Versions with a treated aluminium front with double powder coating are suitable for walking over, versions with AISI 316L steel front can be driven over. Available with multiple power options, finishes, beam angles and light colour temperatures. CSXJ02 recessing box available, as is an anti-glare low luminance louvre.

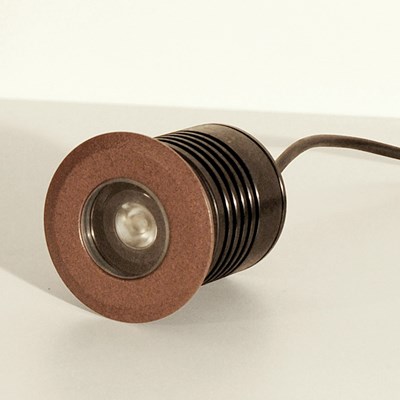

Other Jena versions available.

Delivery usually in 1-2 weeks

- Our Top Tips -

This fitting needs a driver. You can pick a driver:

(1) from the dropdown above, or
(2) from ‘You May Also Need' below, or
(3) once you add this product to your basket

Driver questions? Contact us - we're happy to help :)



Specification

IP67
Stainless Steel: IK10 (can be driven over)
Other finishes: IK09 (can be walked over)

3W 350mA
6W 500mA
Wired in series

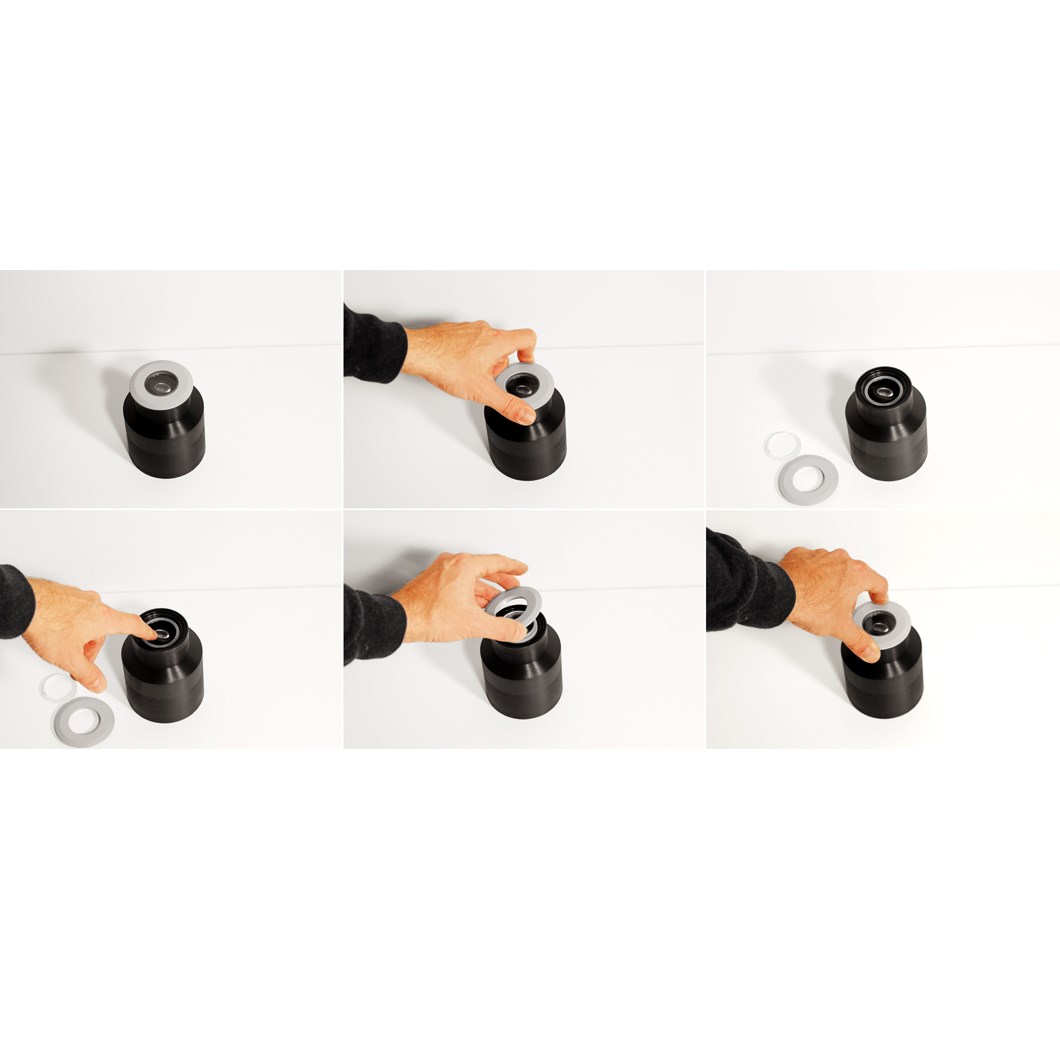

15° adjustable tilt
18° or 40° beam angle

CSXJ02 recessing box:
Diameter:104mm H:140mm

Driver required - see 'You May Also Need' below
Constant Current Driver | No. units powered
L-Tech 20W 300-650mA CC Triac LED Driver | 1-6 Jena 6 (3W)
L-Tech 20W 300-650mA CC Triac LED Driver | 1-3 Jena 6 (6W)

Lamp type: LED 3W 350mA or 6W 500mA

Dimensions

Product dimensions: H.115mm x Diameter.82mm

Downloads

• jena-6-datasheet-1.pdf
• jena-6-datasheet-2.pdf
• Jena-Energy-Label1.pdf
• Flexa-Drivers-Datasheet3.pdf
• JENA 6 18DG 3000K 350mA.ies
• JENA 6 18DG 3000K 500mA.ies
• JENA 6 40DG 3000K 350mA.ies
• JENA 6 40DG 3000K 500mA.ies
• JENA 6 18DG 3000K 350mA.ldt
• JENA 6 18DG 3000K 500mA.ldt
• JENA 6 40DG 3000K 350mA.ldt
• JENA 6 40DG 3000K 500mA.ldt

Delivery and warranty

Delivery usually within 2-3 weeks
