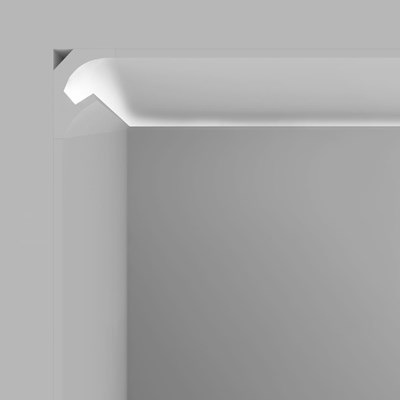

Eleni Lighting EL203 LED Linear Profile Cornice

Description

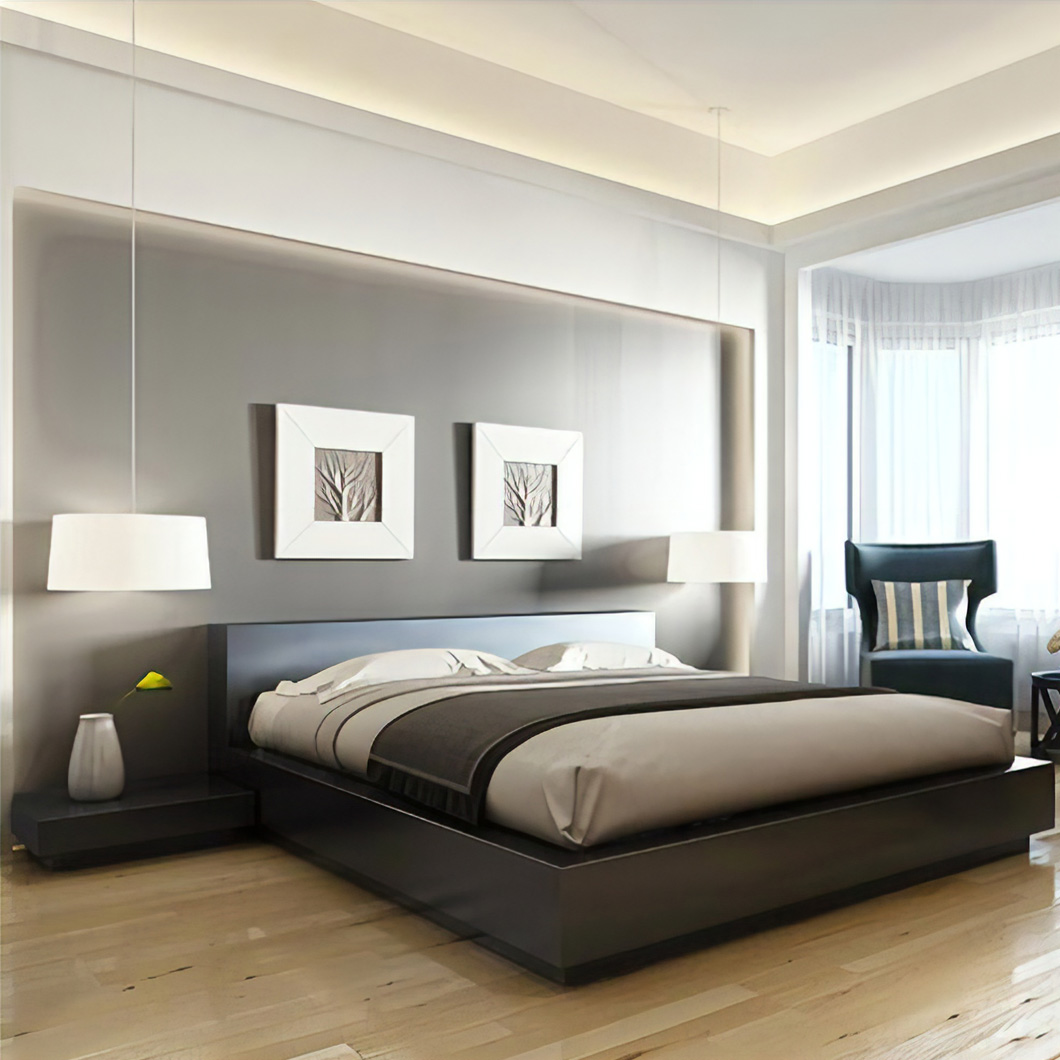

The EL203 linear profile cornice by Eleni has been designed to create a modern and understated ambient lighting effect on the wall and ceiling at the same time. Adding a soft diffused bi-directional light for the wall / ceiling corner, EL203 can either be surface mounted or recessed into the architecture. The result is a lighting scheme that is totally unified with the interior. Available in 2 versions, EL203 can take LED tape up to 16mm in depth, EL203 Largo is suitable for LED strip with a maximum width of 29mm.

The coving is made from XPS (extruded polystyrene) and finished in an acrylic resin, the material is similar to foam board insulation. An optional aluminium heatsink profile and opal diffuser in 1m lengths is available to help prolong the life of the LED strip.

LED strip and power supply not included

Not a stock item, please enquire for a price and lead time.

- Our Top Tips -

• Prolong the life of the LED strip by using an internal aluminium heat sink within the coving.
• Install easily using adhesive and secure with fixing screws. See the installation instructions PDF for more info.
• Once installed, plaster over the edges for a seamless effect, ready to be decorated over.

Specification

EL203
Weight: 0.4kg
Max LED width: 16mm

EL203 Largo
Weight: 0.4kg
Max LED width: 29mm

Optional aluminium heatsink profile:
Opal diffuser included
Heatsink dimensions: 1000 x 15.4 x 6mm
Weight: 0.1kg

LED strip and driver not included

Lamp type: LED strip not included

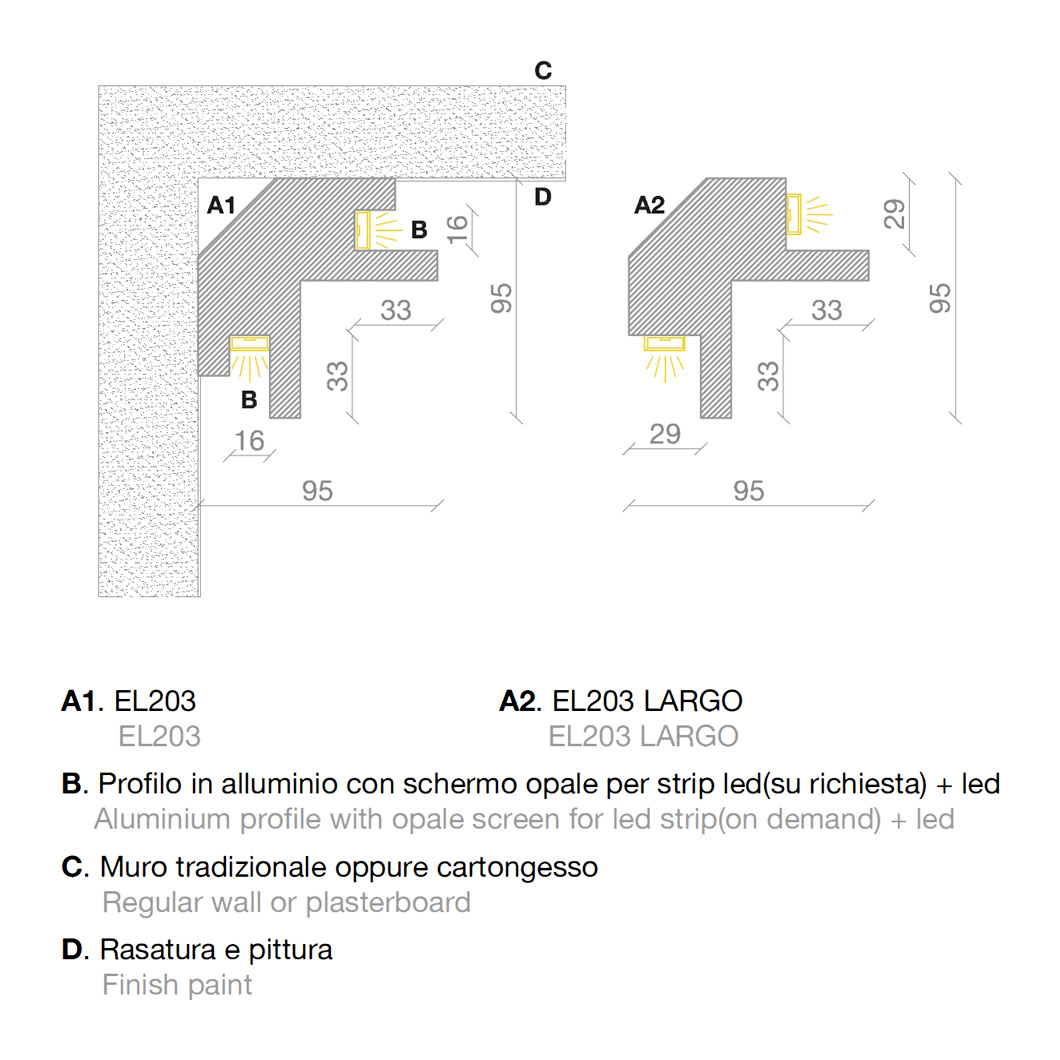

Dimensions

Product dimensions: W.1150mm x D.95mm x H.95mm

Downloads

• Eleni Lighting EL203 LED Cornice Datasheet PDF
• Eleni Lighting Plaster In Installation Instructions PDF
• Catalogo Eleni Lighting 2023 Small

Delivery and warranty

When in stock: Next day delivery
Not in stock: Delivery approximately 6-8 weeks

About the manufacturer

By combining decorative architectural elements with integrated LED, the Eleni Lighting range is perfect for lighting designers, interior designers and architects who are looking to create a subtle atmospheric effect. Specialising in cornices, coving and facades, whilst also offering solutions for indoor and outdoor, Eleni Lighting integrates with the architecture of your project to emit an indirect light.
